Высокая скорость 2ply оборудование для изготовления производственной линии гофрированного картона/3 слойная гофрированная производственная линия/однопокровная машина двухслойного картон делая
- Категория: Упаковочные формовочные машины >>>
- Поставщик: Cangzhou,Quanheng,Imp,&,Exp,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 238000.94 $* | 249900.31 $* |
| Aug-19-2025 | 236000.63 $* | 247800.38 $* |
| Jul-19-2025 | 198000.11 $* | 207900.56 $* |
| Jun-19-2025 | 232000.73 $* | 243600.61 $* |
| May-19-2025 | 202000.25 $* | 212100.26 $* |
| Apr-19-2025 | 228000.44 $* | 239400.82 $* |
| Mar-19-2025 | 226000.89 $* | 237300.11 $* |
| Feb-19-2025 | 224000.61 $* | 235200.74 $* |
| Jan-19-2025 | 222000.34 $* | 233100.3 $* |
Характеристики
Product Description

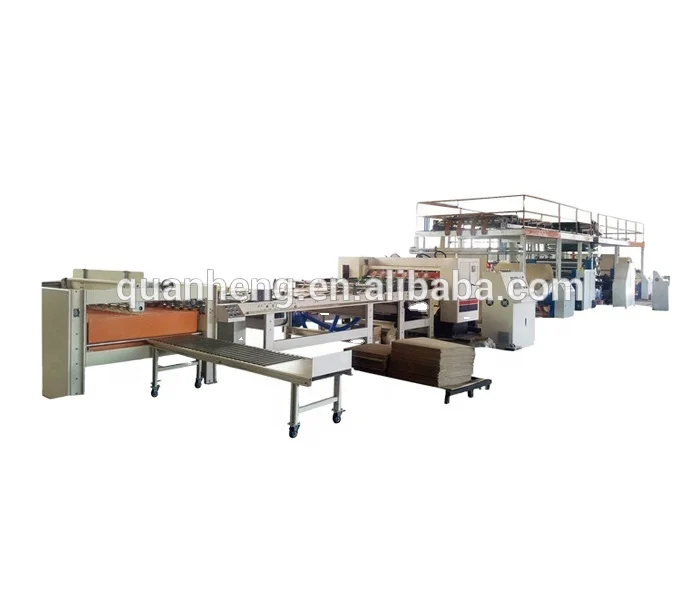

Single Facer Line 2-Layer Corrugated Paperboard Production Line)(2-Ply Corrugated Paperboard Line,The Single facer Line is composed of Paper Roll stand, Single facer machine, Paper cutting machine. To use the web paper materialsingle face machine production line, producing and cutting single face corrugated paper as(required sizesit forms the corrugated board with no need drying
Single facer : | Corrugated main roller 280mm,48CrMo. |
Working width : | 1600mm |
Design speed : | 120-150m/min |
Working speed : | 100-120m/min |
Standard flute : | UV Flute |
Standard spec : | A B C D E F |
Specification | Equipment name | UNIT | QTY | Remark |
ZJ-V5B | Hydraulic shaftless mill roll stand | set | 2 | The spindle240mm,hyperbola heavy rocker,toothed chuck,multi-disc ventilated disc brakes,hydraulic drive lift,left and right translation,for medium. Rail length 6000mm,trolley used 10mm plate welding. |
Paper trolley | set | 4 | ||
RG-1-600 | preheater | set | 2 | roller900mm,including certificate of pressure vessel.Electromotion adjustment angle. |

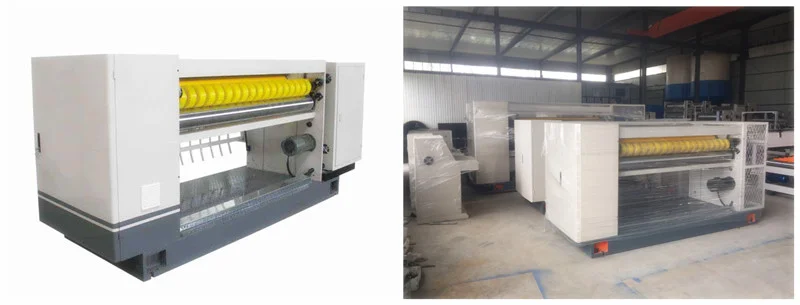

SF-320S | set | 1 | ||

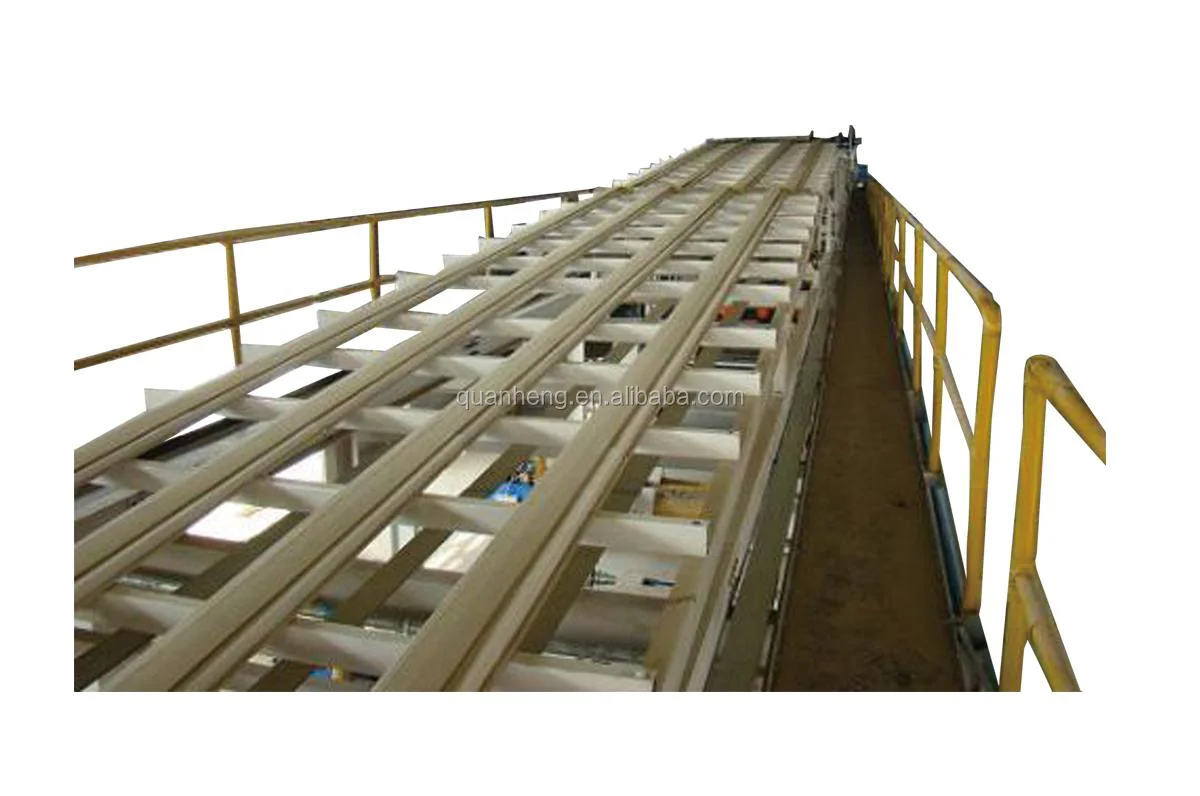

ZDF | Conveyor bridge | set | 1 | Independent frequency motor drive lifting, transmission.Main beam is connected with the 20th channel, 16-beam, No. 63 angles, columns, etc. Both sides of the security fence, the word pedals, ladders. |

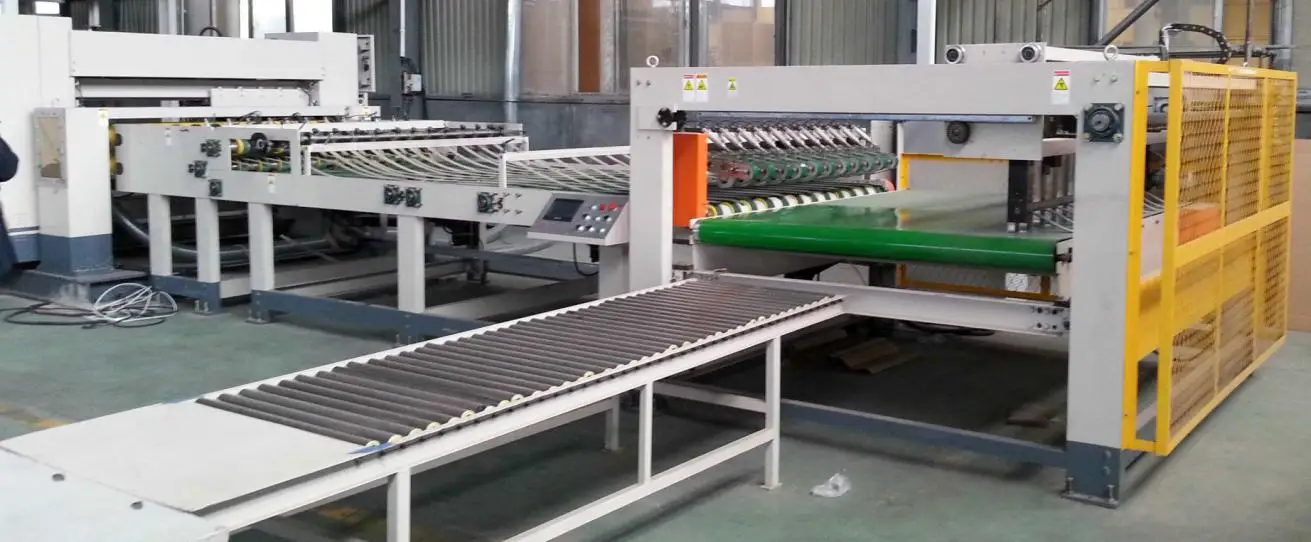

DHE-120 | Single corrugated the aspect Cutter(Spiral knife Crosscutting,down stacking ) | set | 1 | |
QH-1T | Gas heating steam boiler | set | 1 |
Related Products
Product packaging
FAQ
Q: How does your factory do regarding quality controlling?
1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We produced high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Midd
Q:Are you manufacture or trading company?1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We produced high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Midd
A:we are manufacture , our factory set up on 1999, and before we exported our products are mainly supply to the trading company ,so we are the source factory, welcome to be our agency.
Q:Do you inspect the finished products?
A:Yes, we have QC department, they will inspect the machine before shipping, to ensure there is nothing problem of the machine .
Q:Does the packing strong?
A:Yes, of course! All of our export packing with strong wooden tray, all to meet the export packaging standards.
Q:How about after-sales service process?
A:When your machine has problem, contact our sales and we will solve your problem as soon as possible.We have after-sale office in China, Vietnam, India, Bangladesh, Italy.
Q.Where is your factory?
A:Our factory located in Development Zone, East Of DongGuang County, CangZhou City, Hebei Province,China,welcome to visit our factory!
