Наружный инфракрасный луч сенсор фотоэлемент для барьерных
- Категория: >>>
- Поставщик: Shenzhen,ExcelSoo,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 5.47 $* | 5.72 $* |
| Aug-17-2025 | 5.83 $* | 5.94 $* |
| Jul-17-2025 | 4.58 $* | 4.10 $* |
| Jun-17-2025 | 5.6 $* | 5.87 $* |
| May-17-2025 | 4.59 $* | 4.38 $* |
| Apr-17-2025 | 5.96 $* | 5.93 $* |
| Mar-17-2025 | 5.65 $* | 5.51 $* |
| Feb-17-2025 | 4.77 $* | 4.75 $* |
| Jan-17-2025 | 4.13 $* | 4.24 $* |
Характеристики
Product Description
Specification

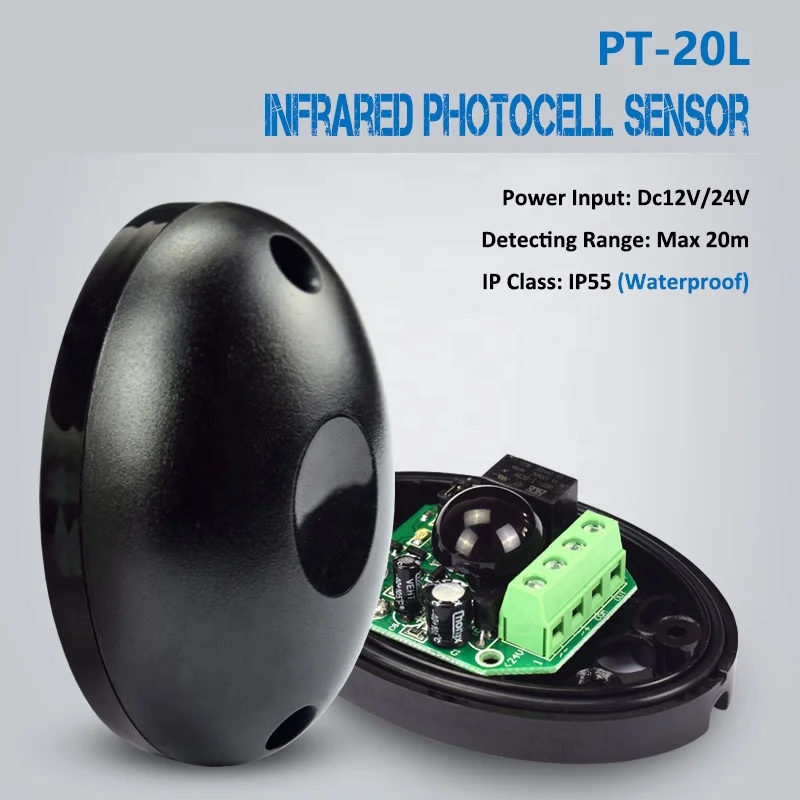

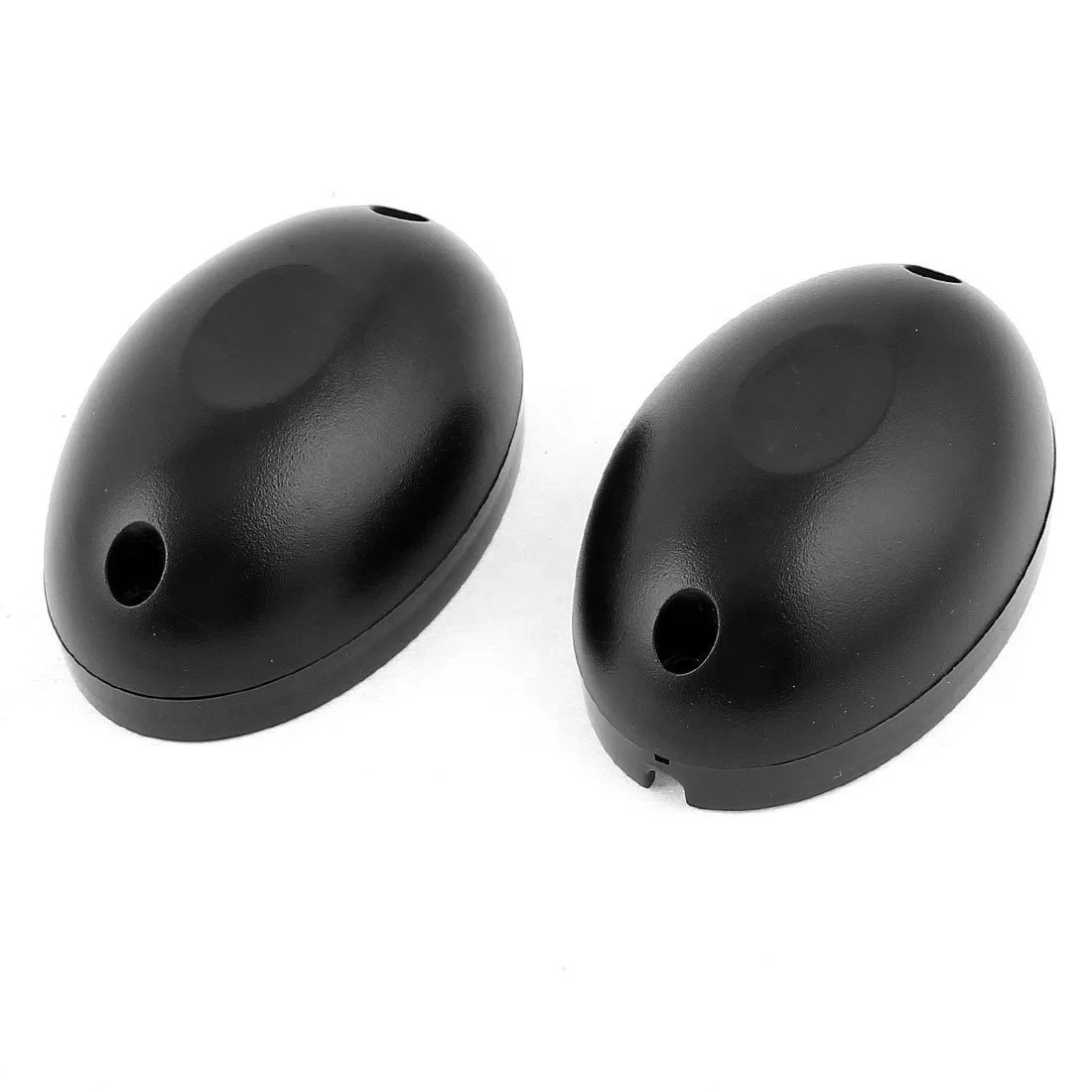

Products Name | Photocell Beam Sensor |
Brand | Excelsoo |
Detecting Distance | 20M |
Working Voltage | 12-24V 50mA |
Quiescent Current | 5uA |
Output Relay | Normally Open or Normally Closed (Optional) |
Application | Indoor or outdoor |
Type | Passive Infared Detector |
Detection Angle | 10° |
Working Temperature | -20℃ to +60℃ |
Size | 49.2×76×21.6MM |
Application Place | Boom Barrier Gate, Door, Gate, Window, Plant Equipment and so on.. |
Installation Instructions
Installation Guide
The best installation height should be greater than 20CM, and the installation distance should not be less than 2 meters. When installing, the infrared protection device should be placed vertically and on the same horizontal line. When installing, install the receiving part first, and then install the transmitting part. When in the same straight line, the OFF light in the receiver is off, then fix it, connect the line The installation is complete.
Note: Due to the high transmit power of this product, there will be no response when the transmitter and receiver are too close. At this time, they should be pulled away at least 1M and try again. When the installation distance is too close, it is found to be insensitive Phenomenon, you can remove the condenser lens in the transmitter and receiver to increase sensitivity.
Note: Due to the high transmit power of this product, there will be no response when the transmitter and receiver are too close. At this time, they should be pulled away at least 1M and try again. When the installation distance is too close, it is found to be insensitive Phenomenon, you can remove the condenser lens in the transmitter and receiver to increase sensitivity.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if QTY less than 10pcs; we need to negotiate if QTY is more than 10pcs.
Q: Do you provide samples ? Is it free or extra ?
A: We could offer the sample for charge, freight collect.
Q: What is your terms of payment ?
A: T/T.
Please feel free to contact us if any further information or clarification needed.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if QTY less than 10pcs; we need to negotiate if QTY is more than 10pcs.
Q: Do you provide samples ? Is it free or extra ?
A: We could offer the sample for charge, freight collect.
Q: What is your terms of payment ?
A: T/T.
Please feel free to contact us if any further information or clarification needed.
We sincerely welcome you to represent our products, whether you are a merchant or an individual, we will give you the treatment of the office and strong brand, technology, after-sales service support, welcome to inquire!
