500 м кабель для подводной скважины камера глубокого осмотра
- Категория: Other Test Instruments >>>
- Поставщик: Shenyang,ABT,Drilling,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.39 $* | 0.43 $* |
| Aug-18-2025 | 0.6 $* | 0.94 $* |
| Jul-18-2025 | 0.49 $* | 0.81 $* |
| Jun-18-2025 | 0.54 $* | 0.65 $* |
| May-18-2025 | 0.82 $* | 0.4 $* |
| Apr-18-2025 | 0.78 $* | 0.55 $* |
| Mar-18-2025 | 0.63 $* | 0.97 $* |
| Feb-18-2025 | 0.93 $* | 0.65 $* |
| Jan-18-2025 | 0.31 $* | 0.13 $* |
Характеристики
Product Description
Underground Water Well Camera
1. During the installation, check whether the equipment is working properly and the mechanical part is damaged. Underground lens is used for vertical well detection to display image detection. It is used in water wells, earth mines, natural gas wells, coal mines and other fields. The diameter range is 25-55cm. The probe light source is 8-9 led 5w power.

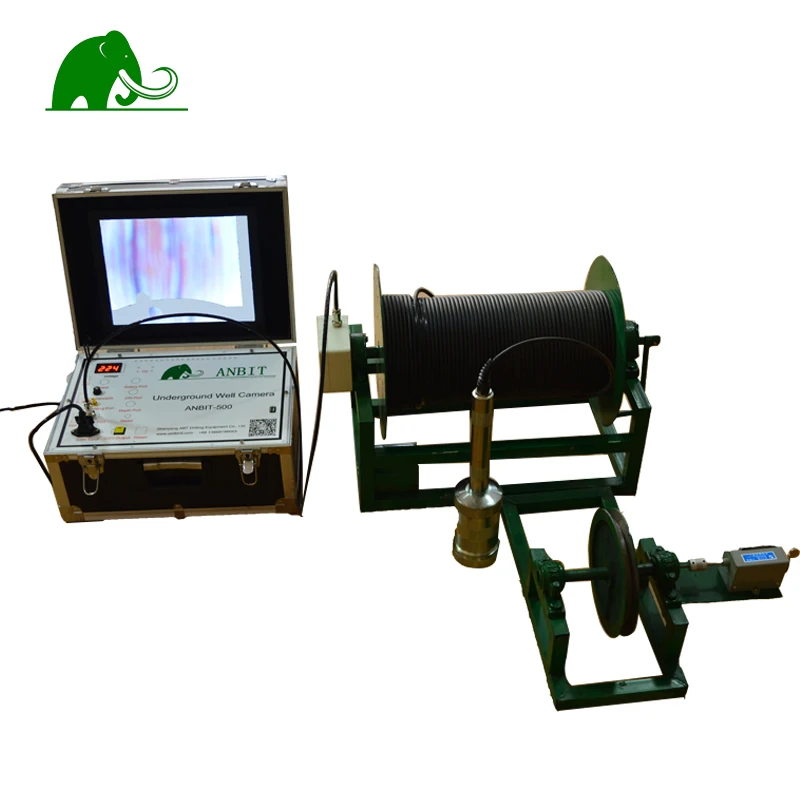

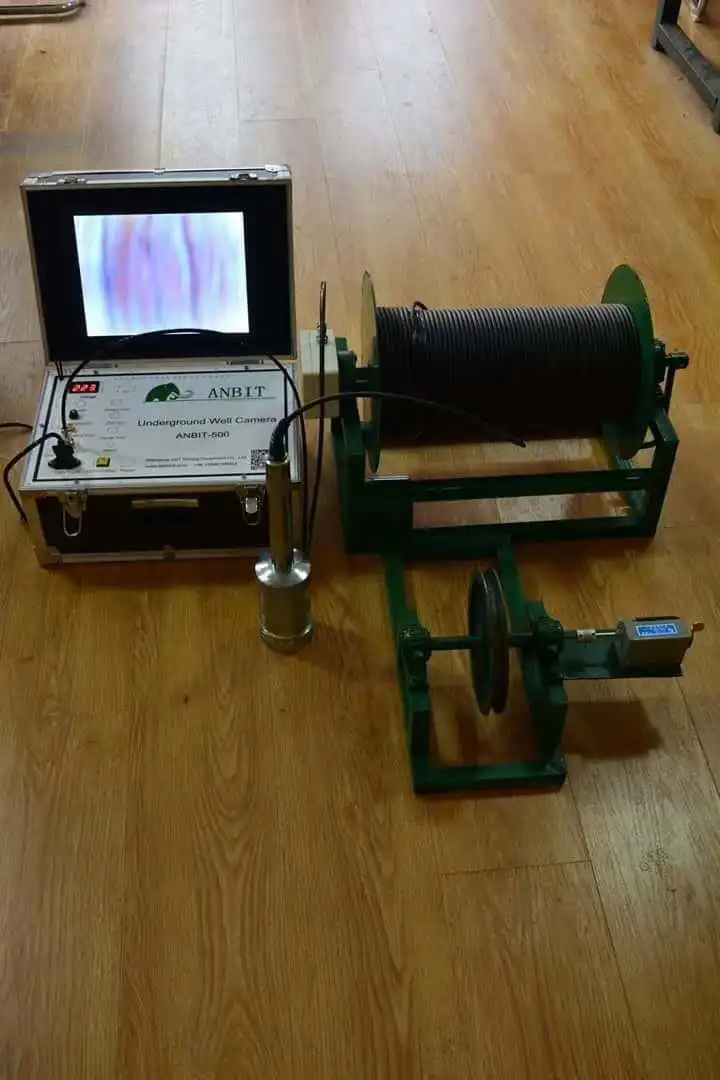

2. The equipment consists of three parts: control box, electric winch and down hole pulley.
3. Before use, the down hole pulley is placed in the middle of the wellhead, and the cable is placed between the middle slots of the pulley.
4. Press the pulley counter to reset the data .
2. The equipment consists of three parts: control box, electric winch and down hole pulley.
3. Before use, the down hole pulley is placed in the middle of the wellhead, and the cable is placed between the middle slots of the pulley.
4. Press the pulley counter to reset the data .

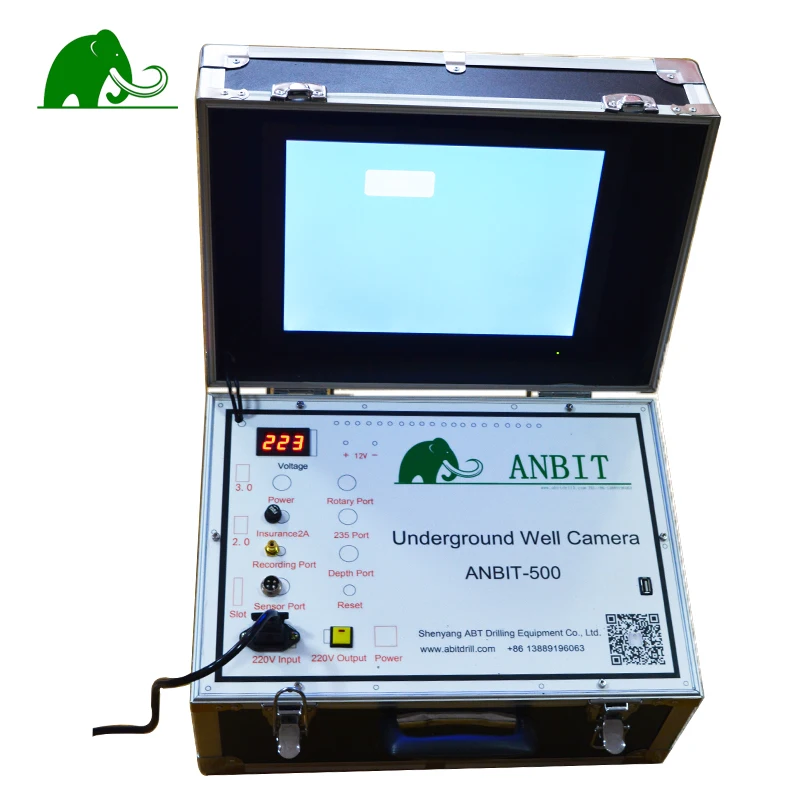

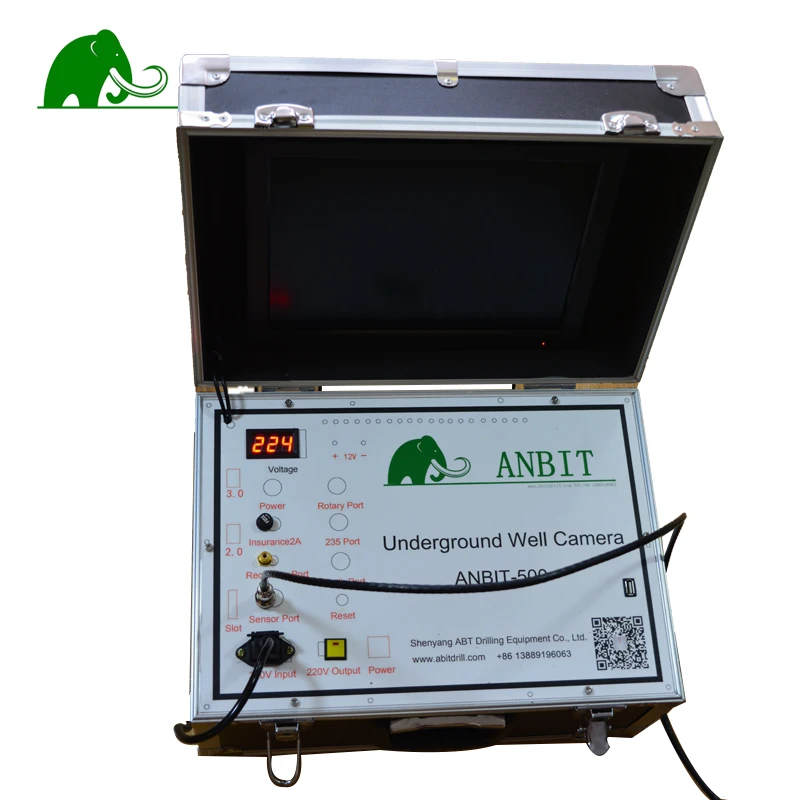

The power supply voltage is 220v. After the power is turned on, the display will automatically display the image. The middle menu at the bottom of the screen is the main menu, the right is the menu selection button, and the left side is the sub menu. The user can adjust the color, contrast and brightness of the image according to the down hole environment. The image will be saved after the power is turned off.
Details Images
1.Pay attention to protect the logging cable during use, avoiding the cable and the sharp object of the well wall to scratch. Scratching may damage the cable.
2. This equipment is a video detector, which is only suitable for use in clear water environment. Please use sonic logging instrument to purify the water source before use.
3.The counter is in decimal notation and the error is 5 cm. Please use the wellhead object reference in advance to measure the depth of the down hole problem. The maximum display data bit is 1000 meters deep and the display data is 400m*0.055 meters.
4.Please prevent the cable from squeezing and damaging.
5.After use, the lens should be cleaned with water. It is strictly prohibited to use a cloth wipe or a corrosive liquid to clean it. Please prevent the lens from being scratched, otherwise the image will be not clear.
Specification
Underground Water Well Camera | ||

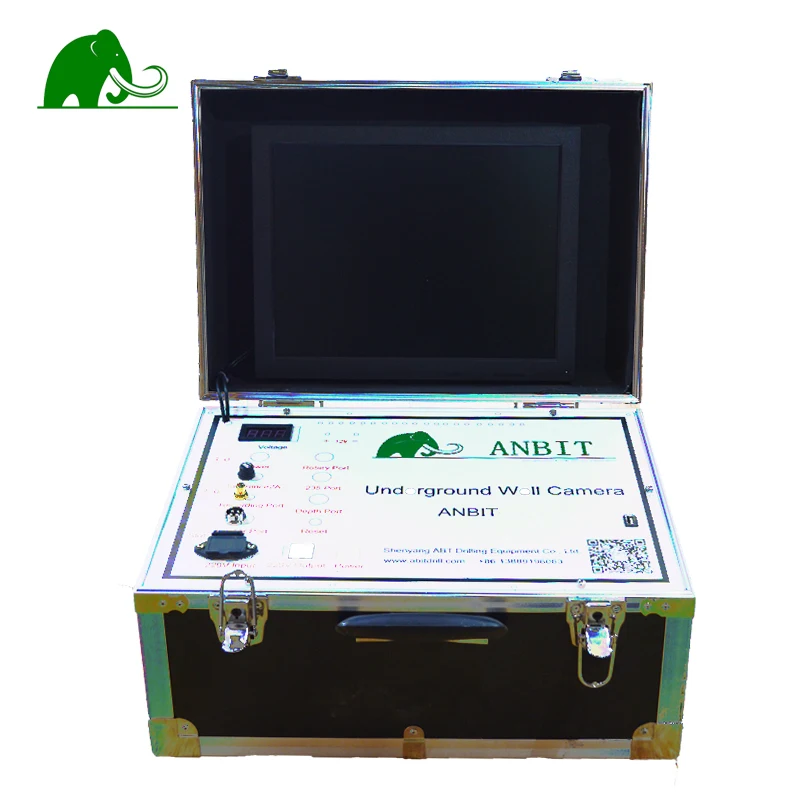

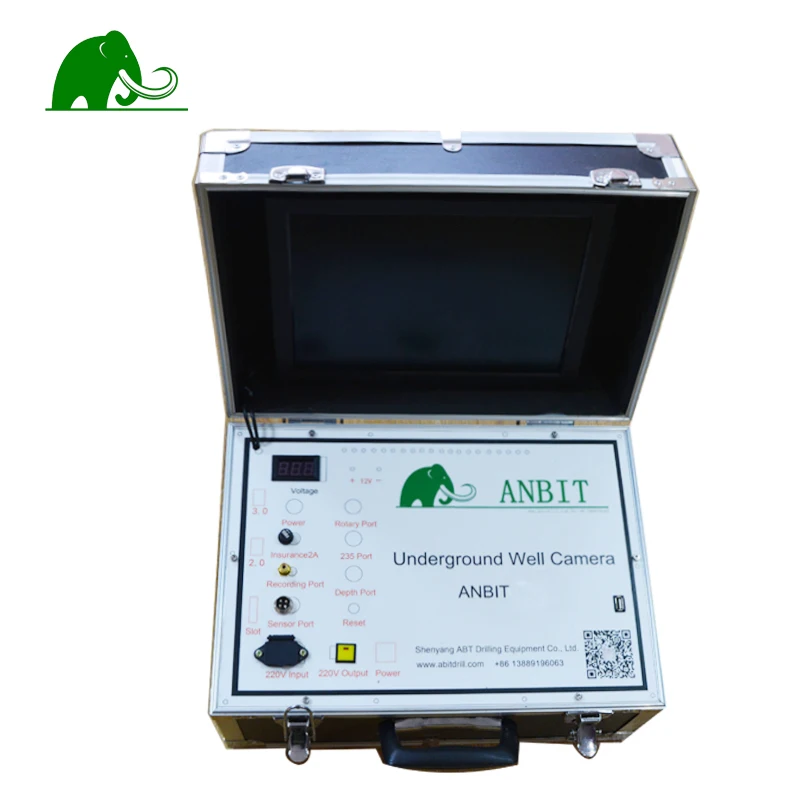

Main control box | 12V/220V | |
Winch | electric winch | |
Display | 12 inch high brightness industrial control display | |
Video system | 500G Hard Disk Recording | |
High Quality Underground Water Well Camera with 360 Degree Camera for Detect 600m | The probe consists of four high-definition cameras with three cameras around, each with an angle of 120 degrees and a high-definition wide-angle camera at the bottom. | |
Depth counter | depth is accurate to 0.05 meters | |
Logging cable | 10 core tensile, length 500 meters | |
Centralizer | High elastic stainless steel centralizer | |
Hold-all | Connecting cables and accessories | |
Recommend Products
Packing & Delivery
Company Profile
Shenyang ABT Drilling Equipment Co., Ltd. mainly provides holistic drilling solutions, serving the mining, stone crushing, water conservancy drilling industry, to help you solve the problem of drilling at high efficiency and low cost. We mainly provide mobile air compressors, drilling rigs, hammer, drill bit, crushers, underground water detector.We are your trustworthy partner.
Our Services
FAQ
1.Is it difficult to operate and make the graph?
The instrument is easy to operate and we will send you the detailed operation manual via email.
The detector directly mapping with one button, no need computer drawing mapping.
2.What is the accuracy?
Our natural electric field instruments have been made for more than ten years, with advanced technology and market test. We have obtained many invention patents. Our customer feedback rate reaches 100%. Accuracy over 95%.
3.How about after-sales service?
2 year warranty.Free data service for life.The professional geologist give the suggestions and 24hours online.
The instrument is easy to operate and we will send you the detailed operation manual via email.
The detector directly mapping with one button, no need computer drawing mapping.
2.What is the accuracy?
Our natural electric field instruments have been made for more than ten years, with advanced technology and market test. We have obtained many invention patents. Our customer feedback rate reaches 100%. Accuracy over 95%.
3.How about after-sales service?
2 year warranty.Free data service for life.The professional geologist give the suggestions and 24hours online.
