Product Description
waterless sandy Coble stratum pile construction application rotary excavating drill machine
Rotary drilling rig is a construction machine suitable for forming holes in building foundation engineering. It is mainly suitablefor soil layer construction such as sand, cohesive soil and silty soil. Rotary drill machine application: foundation construction such as cast-in-place pile, continuous wall and foundation reinforcement with big hole size.
waterless sandy Coble stratum pile construction application rotary excavating drill machine
Rotary drill machine with big hole size max depth 15meters
Features as follows:
a). Big hole size soil drilling rig with hydraulic crawler chassis, telescopic drill pipe, automatic detection and adjustment of verticality, digital display of hole depth
b). Rotary drilling machine adopts hydraulic pilot control and load sensing is light and comfortable to operate.
c) Rotary drilling rig bits can be changed according to different geology conditions, for the drilling of dry soil ground change to short spiral drill bit or for wet ground change to rotary bucket drill bit and for rock we use core drilling.
d).The crawler rotary drill equipment can be equipped with long auger, underground continuous wall grab and vibratory hammer. Etc.,
waterless sandy Coble stratum pile construction application rotary excavating drill machine
Size Information
Technical data sheet as follows
Model | HWDR150 |
Total Weight | 12000kg |
Dimensions | 11000*2300*3000mm |
Engine model | Yuchai, Weichai, Dongfanghong, Cummins |
Drilling diameter | 400-1500 mm |
Drilling depth | 1-15 m |
Torque | 90000 KN.M |
Drilling speed | 6-35 rpm |
Working pressure | 16-32 mpa |
Rated power | 88-125 kw |
Pressurized cylinder pressure | 80-120 KN |
Lifting force of main winch | Single rope tension10T |
Mast tilt angle | ±5° |
Mast forward angle | 5° |
Walking speed | 2-3km/h |
Pilot pressure | 3.5mpa |
Detailed Images
Big hole drilling rig engine choose from the follow brand:

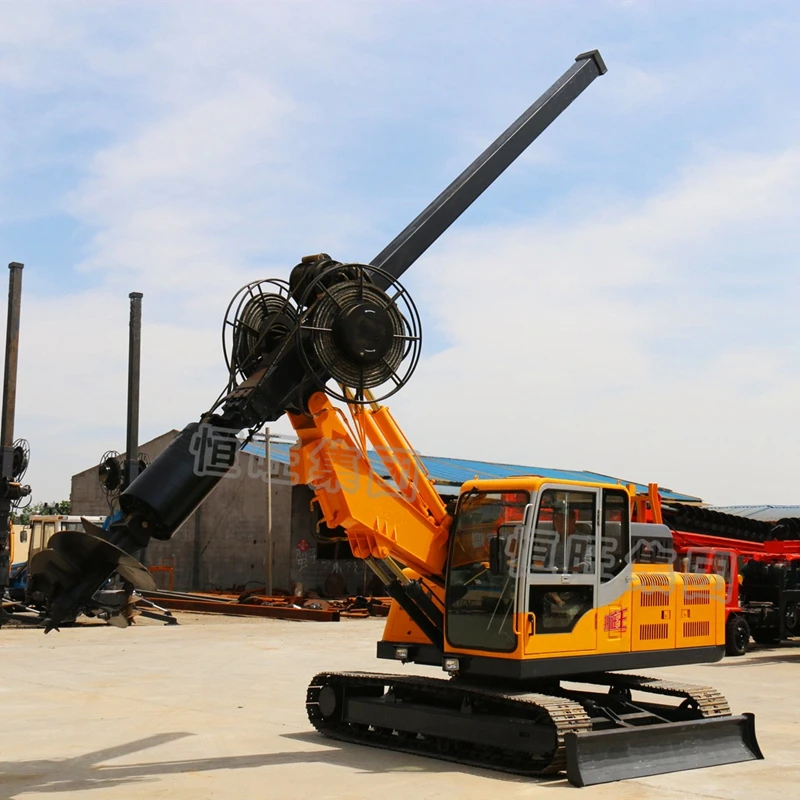

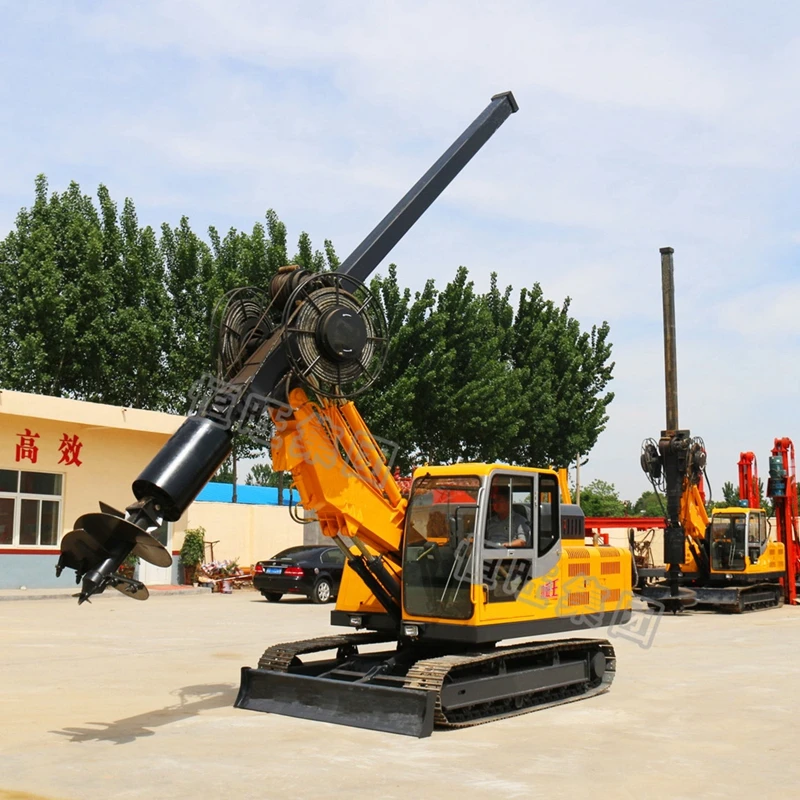

Working Scene of the large hole rotary drill machine as follows:
Company Introduction
Jining Luheng Machinery Equipment Co., Ltd. as one of the seven branches of head office Shandong Hengwang Group Co., Ltd. is a professional company engaged in research , development, production, sales, application and service of well drill machines and pile driver machines. With more than 400 workers and 25 senior engineers, high quality products and best after sales service can both be guaranteed. Hengwang is eyeing the global market with world class products and services and is working hard and moving forward to help the rise of China national machinery and equipment manufacture industry.
waterless sandy Coble stratum pile construction application rotary excavating drill machine
FAQ
waterless sandy Coble stratum pile construction application rotary excavating drill machine
Q1.What is the main function of our drill rig?
Ans.: It has different models used for water well drill rig,mine blast hole drill,underground drill project,,etc
Q2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q5. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories
broken can be changed for a new one.And we provide videos for machine install and operation.
Q6. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q7. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
Q8.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have recor d s for your clients, and will prefer provid ing accessories to clients.
Q9: How do you make our business long-term and good relationship?
Ans.: 1. We keep good quality and competitive price to ensure our customers benefits; 2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Q10.Do you have any certificates for your machine?
Ans.: All of our produ c ts coming with the certificates of CE, ISO9001
