Небольшой мини-воздушный топливный односторонний силиконовый Обратный контроль обратного сброса диафрагменный
- Категория: Сантехника >>>
- Поставщик: Fuzhou,Jingteng,Seiko,Rubber,&,Plastic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.55 $* | 0.28 $* |
| Aug-17-2025 | 0.18 $* | 0.23 $* |
| Jul-17-2025 | 0.10 $* | 0.36 $* |
| Jun-17-2025 | 0.98 $* | 0.75 $* |
| May-17-2025 | 0.60 $* | 0.96 $* |
| Apr-17-2025 | 0.13 $* | 0.16 $* |
| Mar-17-2025 | 0.32 $* | 0.42 $* |
| Feb-17-2025 | 0.98 $* | 0.86 $* |
| Jan-17-2025 | 0.36 $* | 0.59 $* |
Характеристики

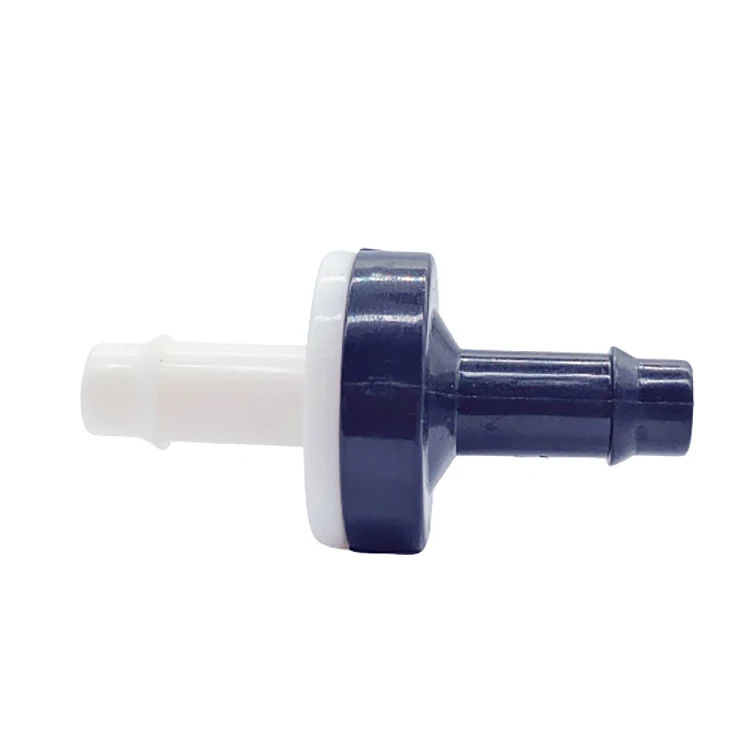

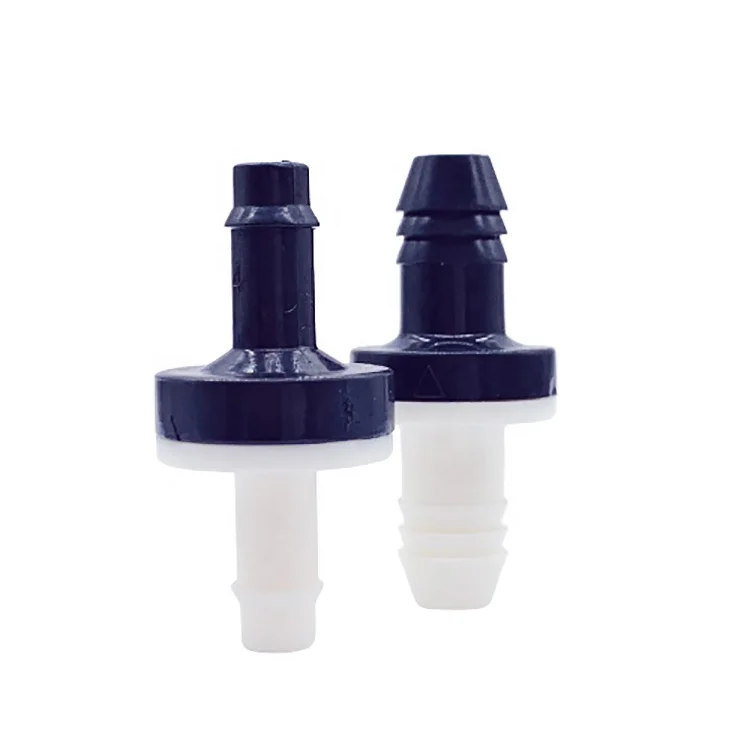

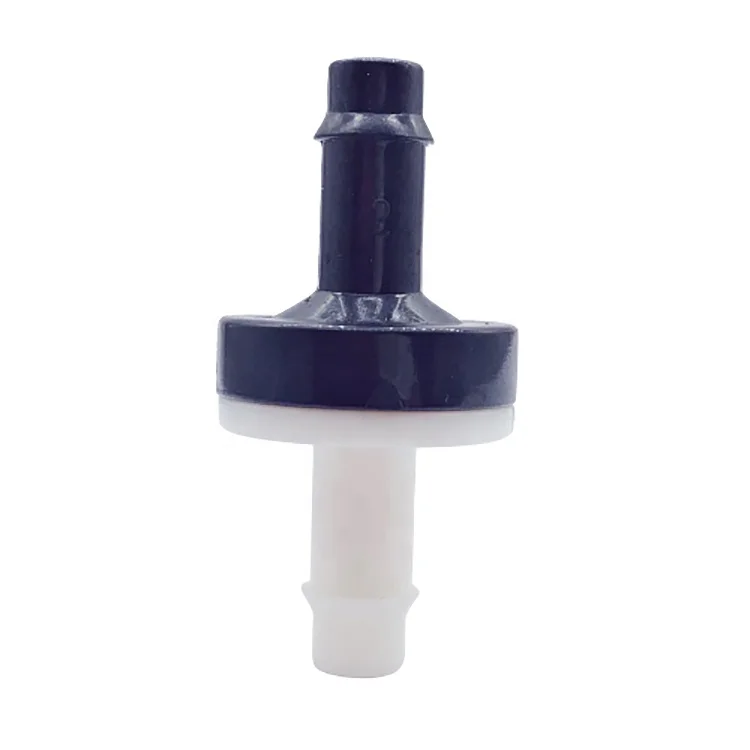

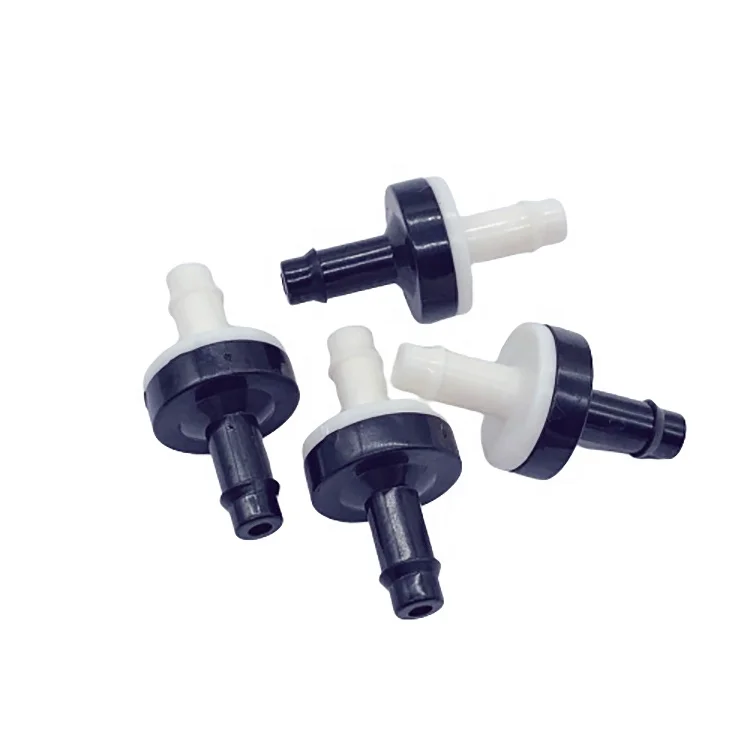

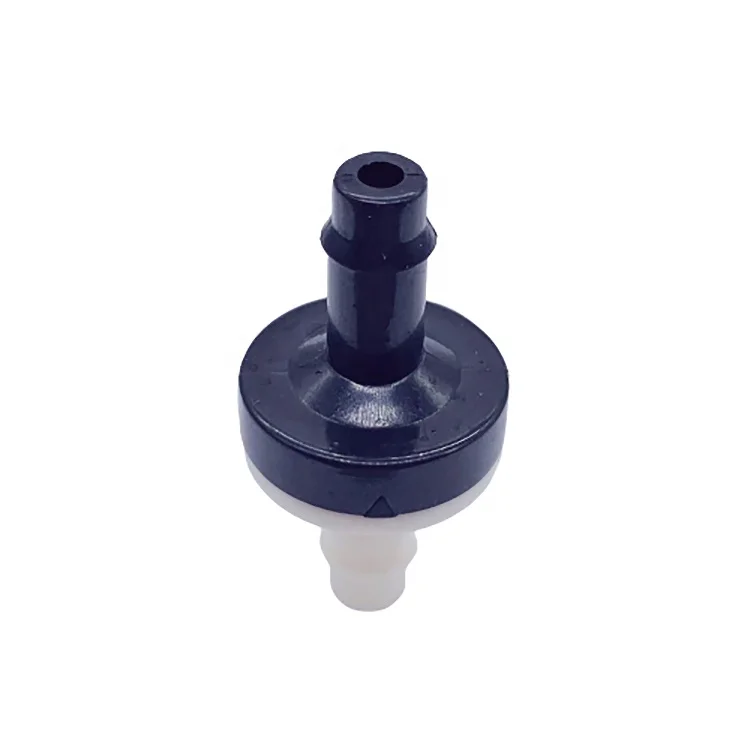

Water Treatment Small Mini Air Fuel One Way Silicone Check Non Return Relief Control Diaphragm Valve
Part No. | Material | Type | Opening Pressure | Back Pressure | Port Size/Tube ID |
CJT017 | ABS+SILICONE | Diaphragm | 0-1Kpa | <=300Kpa | 1/4(6.4mm) |

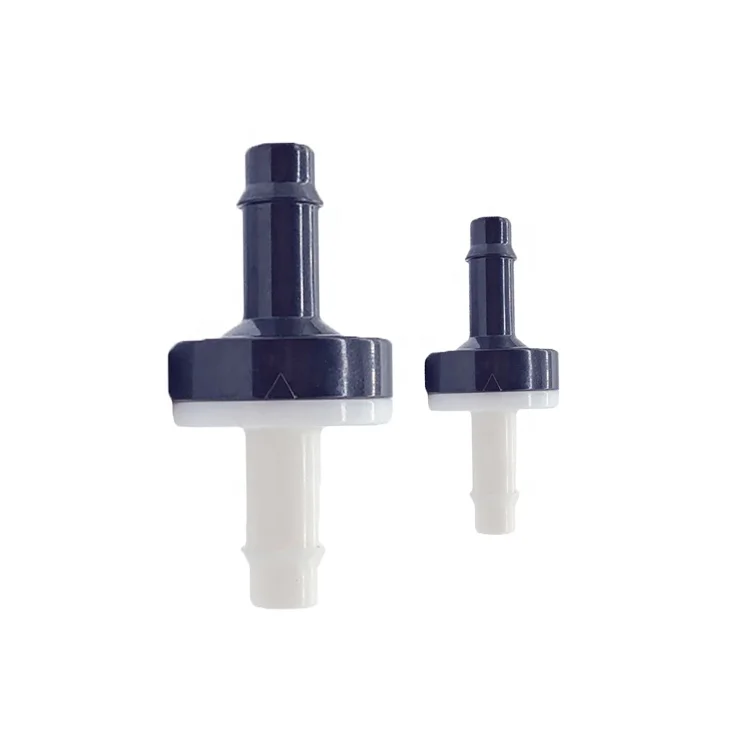

Available Sizes | 1/16(1.6mm),1/8(3.2mm),3/16(4.8mm),1/4(6.4mm), | ||||
Optional Body Material | ABS,PP,PC,PA66,PVDF,etc. | ||||
Optional Material | Silicone/VMQ,Viton/FKM,Fluorosilicone/ | ||||
--
| Product Solution List | ||
| item | Product Type | Advantage |
| 1 | Medical Check Valve | Opening Pressure: ≤2kPa,No backflow on 2kPa and 200kPa,Customized Pressure. |
| 2 | Anti-Siphon valve/Anti-gravity-flow Valve | Prevent auto infusion by pressure of liquid height. |
| 3 | Duckbill Valve | Particles can pass through,Self-cleaning, installation easy,anti-backflow,Hundreds of plans to choose from.Often used for drainage, air refill. |
| 4 | Duckbill Component Valve | Particles can pass through,Self-cleaning, installation easy, anti-backflow,Hundreds of plans to choose from.Often used for drainage, air refill. |
| 5 | Umbrella Valve | Easy to install, customize opening pressure. |
| 6 | Bidirectional Valve | Combined with Umbrella Valve & Duckbill Valve, Flow pass on both direction. |
| 7 | Reducer Three-Way Valve | The interface size can be freely selected and The "in" and "out" directions can be optionally converted;Cracking Pressure Customized. |
| 8 | Spring Stem Valve | Stable opening pressure on lifetime, customize opening pressure ±3kPa |
| 9 | High Sealing Check Valve | Cracking Pressure: 0-3kPa, Customized cracking pressure tolerance ±3kPa, high performance of vacuum sealing. |
| 10 | Vacuum Check Valve | Non return on low pressure, Vacuum Pressure Maintain |
| 11 | Quick-Connect Valve | Quick Connect, Sustain 2mPa, Opening Pressure Customized |
| 12 | Anti-siphon pressure reducing valve | Quick connection, pressure resistance of 2mPa, effective pressure reduction,preventing backflow and siphoning,customized opening pressure, and protecting the safe use of equipment. |
| 13 | Hemostatic Valve/lntroducer Sheath | 1,No leakage by reverse 300kPa without puncture 2,No leakage by reverse 38kPa after puncture 3,Smooth passage of instrumentssuch as sheaths and guide wires |
| 14 | Light-resistant Check Valve | 1,Transmittance≤15% 2,No Decolorization 3,Cracking pressure ≤2kPa, no leakage in reverse 2kPa & 200kPa. Customized cracking pressure |
| 15 | Diaphragm Valve | Opening Pressure ≤1kPa, High Flow. |
| 16 | Spring Ball Check Valve | High chemical resistant, customize opening pressure ±5Kpa. |
| 17 | Spring Check Valve | Special Springs & Sealing,Corrosion-Resistant,Customizable Cracking Pressure. |
| 18 | Connectors | Straight/Y/T/L shape connector;medical grade PP material, 100,000 grade clean-room production. |
-
Click below to view related products
↓↓↓
Duckbill Valve Umbrella Valve Bidirectional Valve
Luer Valve Relief/Safety Valve Hemostatic Valve
Spring Stem Valve Duckbill Component Valve
Vacuum Check Valve Silence Check Valve
Cross Slit/Dispensing Valve High Pressure 350PSI Valve
Spring Check Valve Diaphragm Valve
