Трансформатор тока с кольцевым сердечником 100 А CT 17 мм в

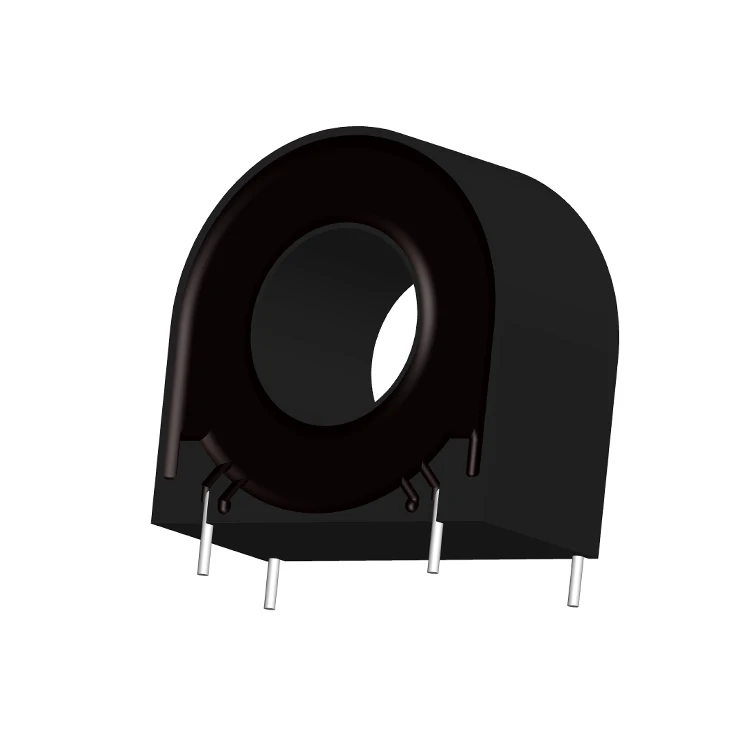

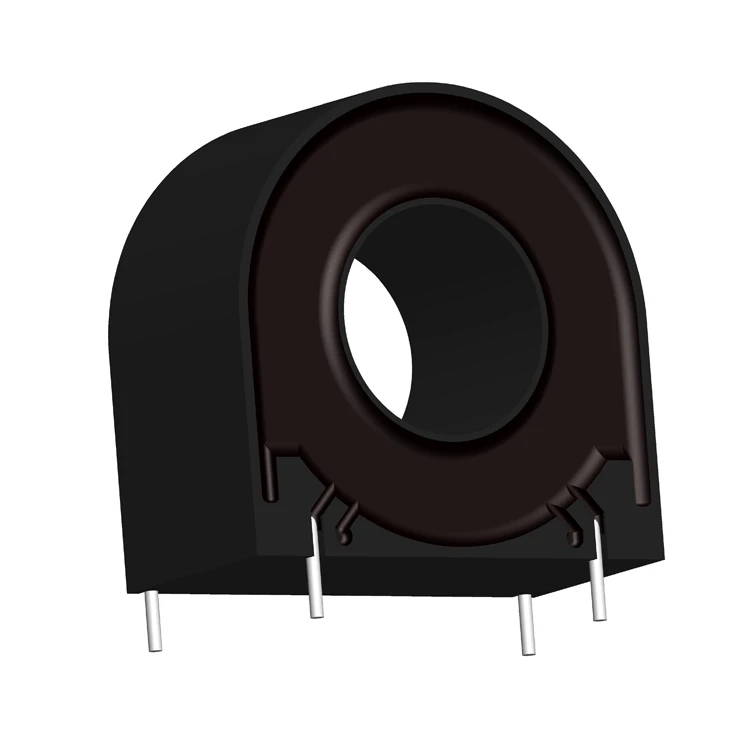

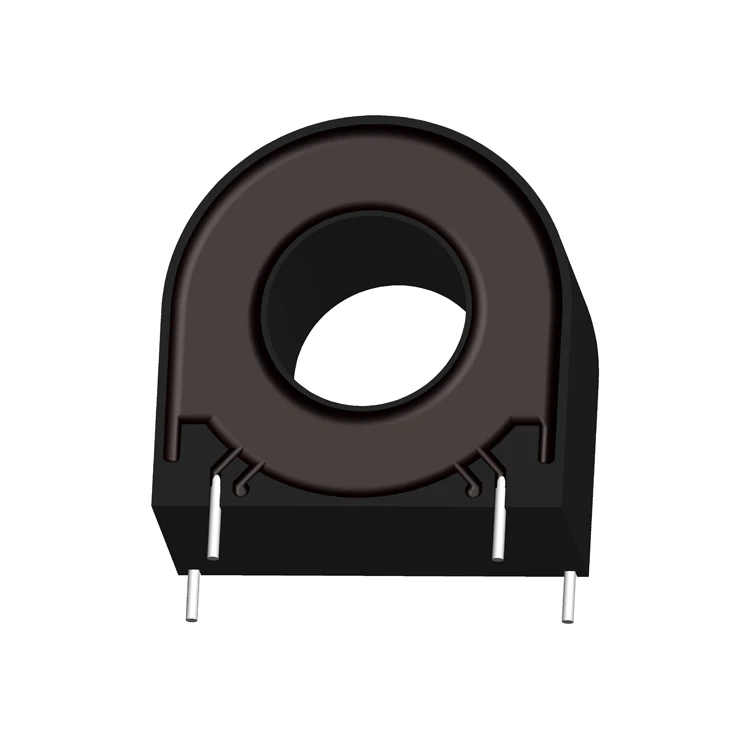

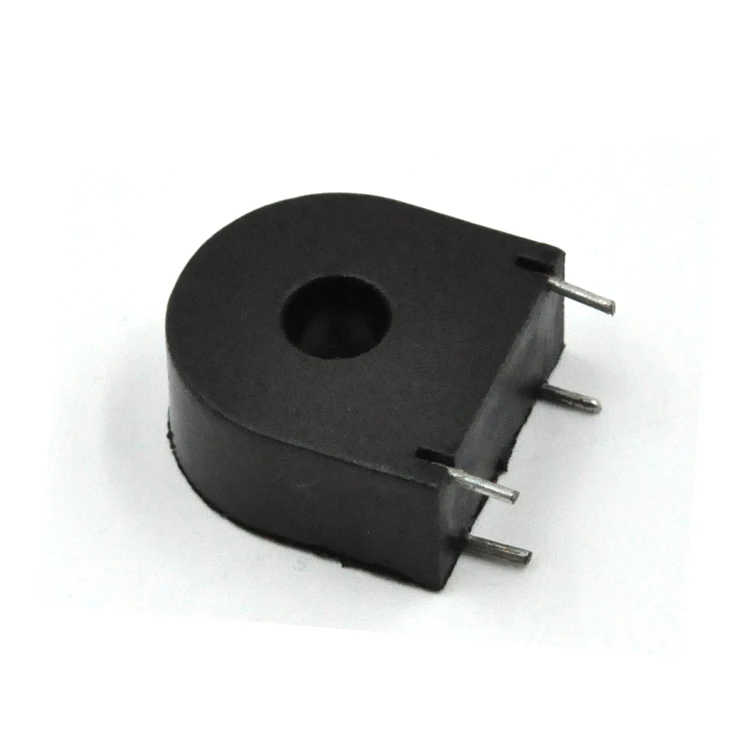

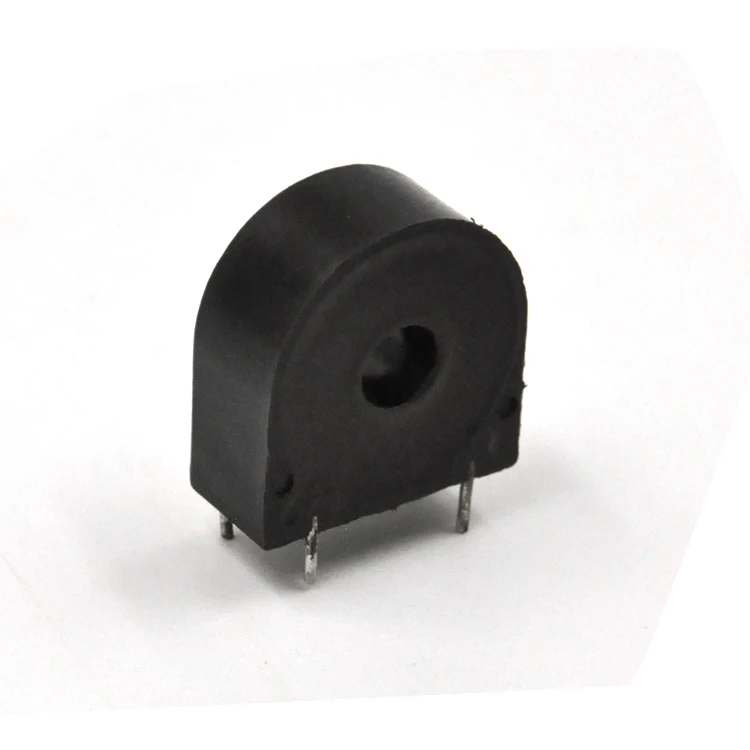

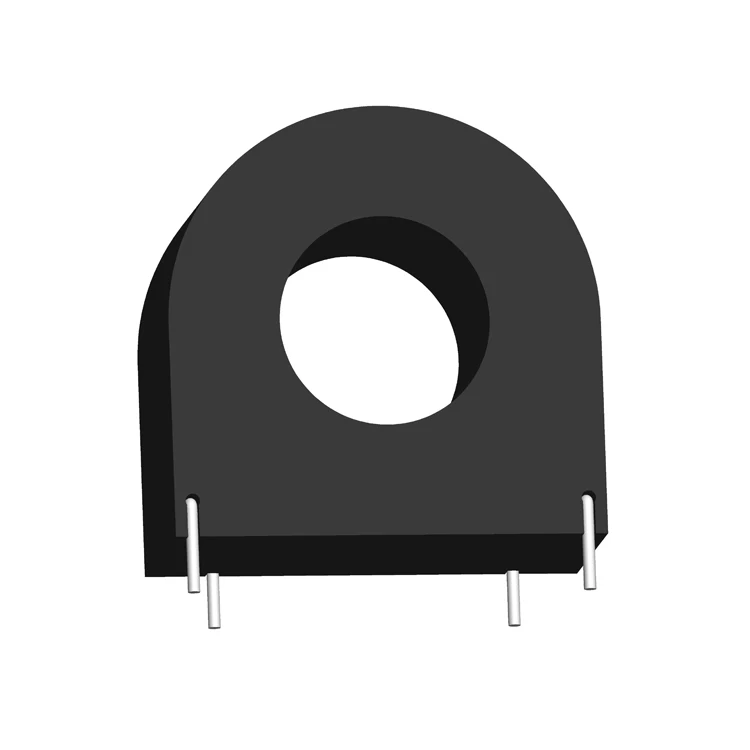

DHC011A Series Current Transformer

Feature:

1. Permalloy core,

2. High precision, good linearity;

3. Epoxy potting , Safe and reliable

4. Flame retardant (UL94- V0),

5. Environmental protection( EU RoHS).

6. Small, Compact Design

7. Easy to assemble and weld

Guideline:

National standard gb 1208-2006;

Industry Standard jbt 10665-2006.

Use Temperature:-25℃-+85℃

Relative humidity:≤95%

Scope of application:

Suitable for instrumentation, etc., need to convert large current into small current for precise measurement, Used for precision measurement or as electrical safety protection.

Notes:

If the load connected to the secondary of the transformer exceeds the rated load capacity, it may result in reduced accuracy or saturation. If you need to increase the load capacity and we can provide customized.

Specification:

<Our Certification >

   we are professional manufacturer of sensor including current transformer, hall sensor, fluxgate sensor, rogowski coil sensor, EV charging equipment as so on, Also we can provide customized service for you.
