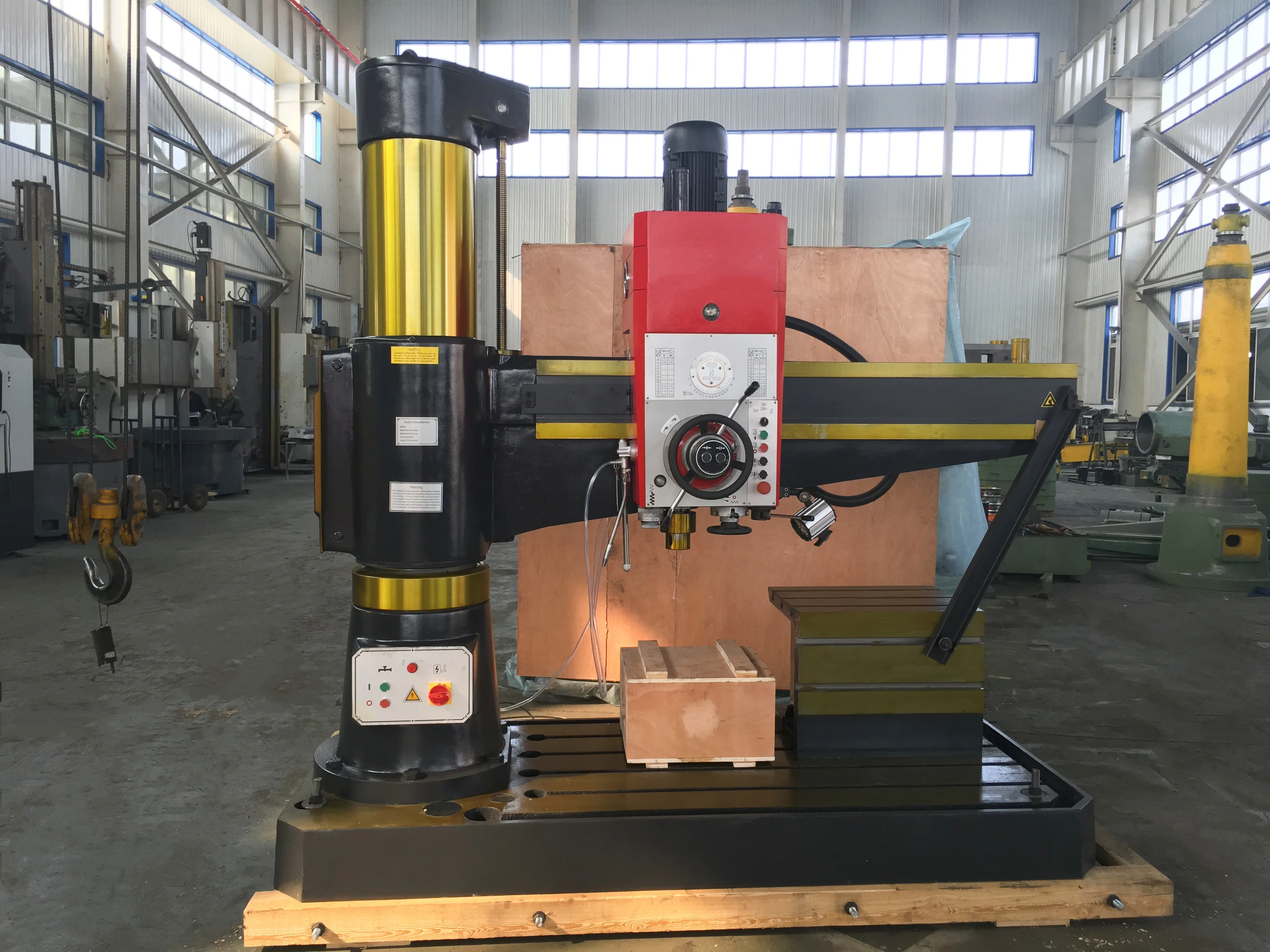

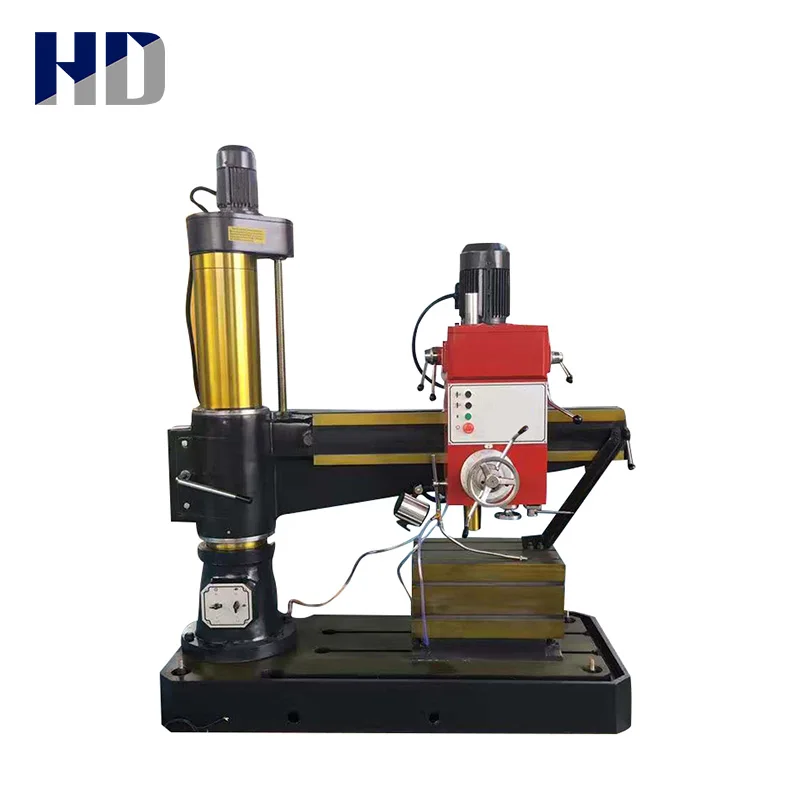

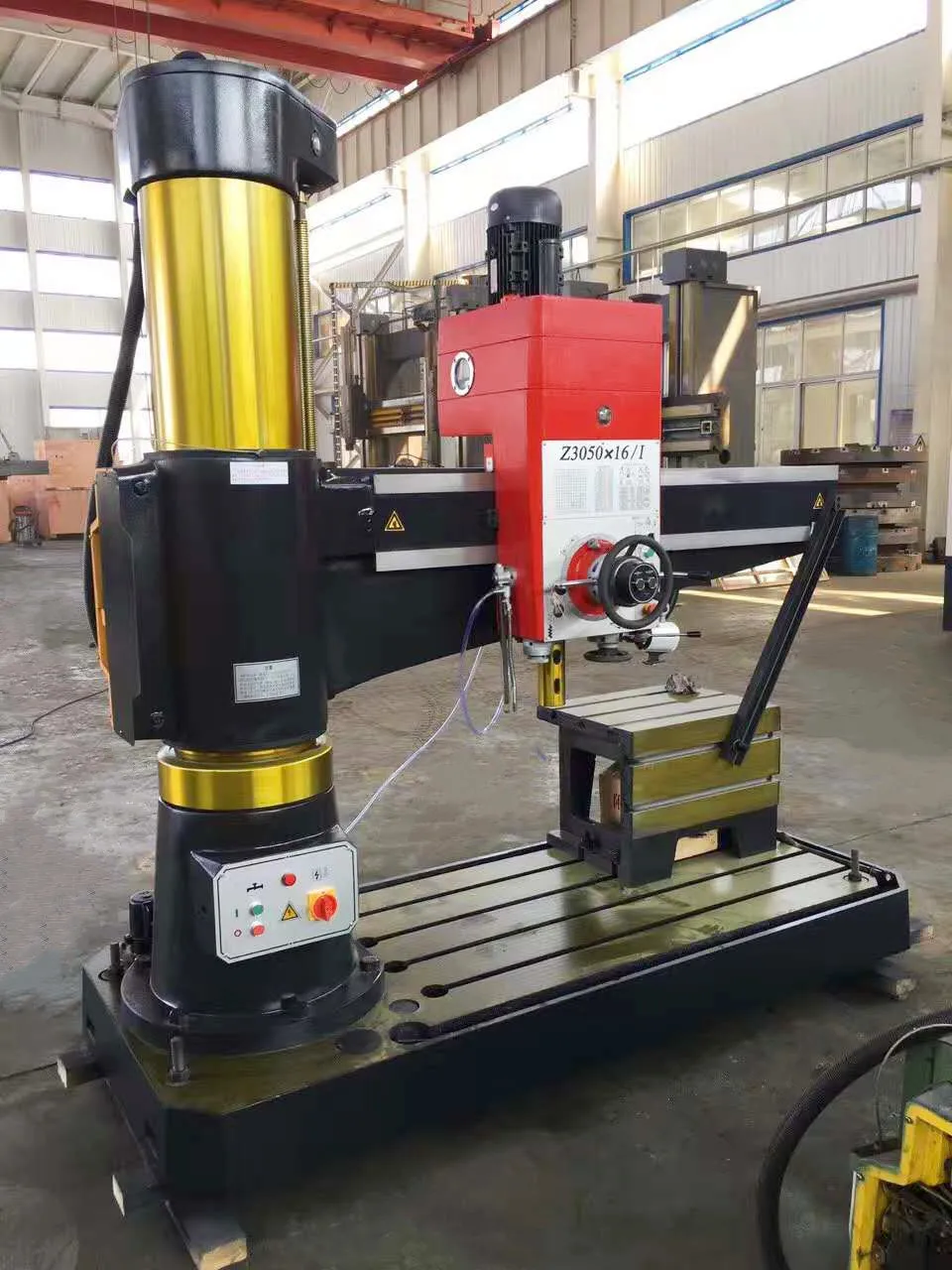

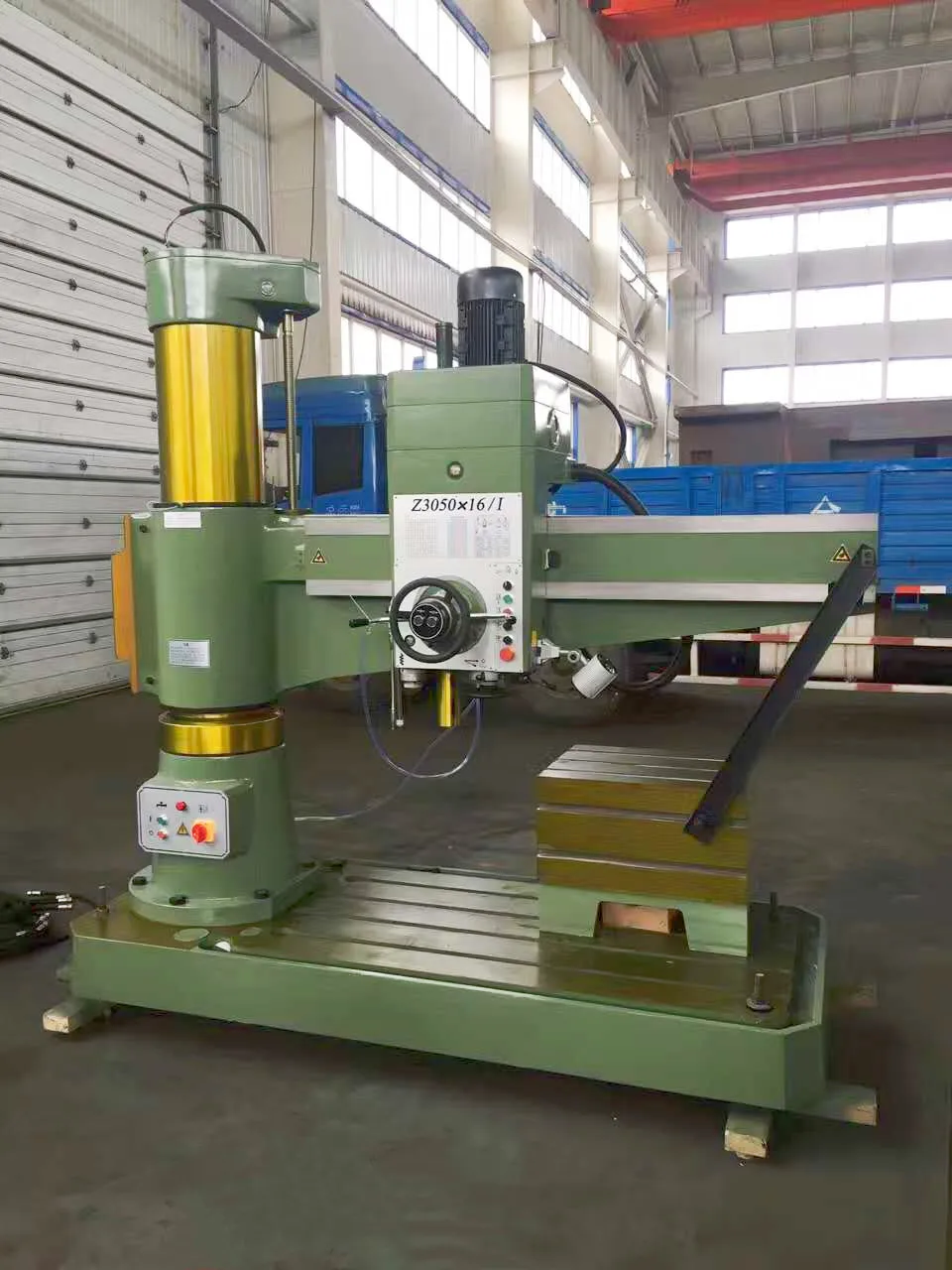

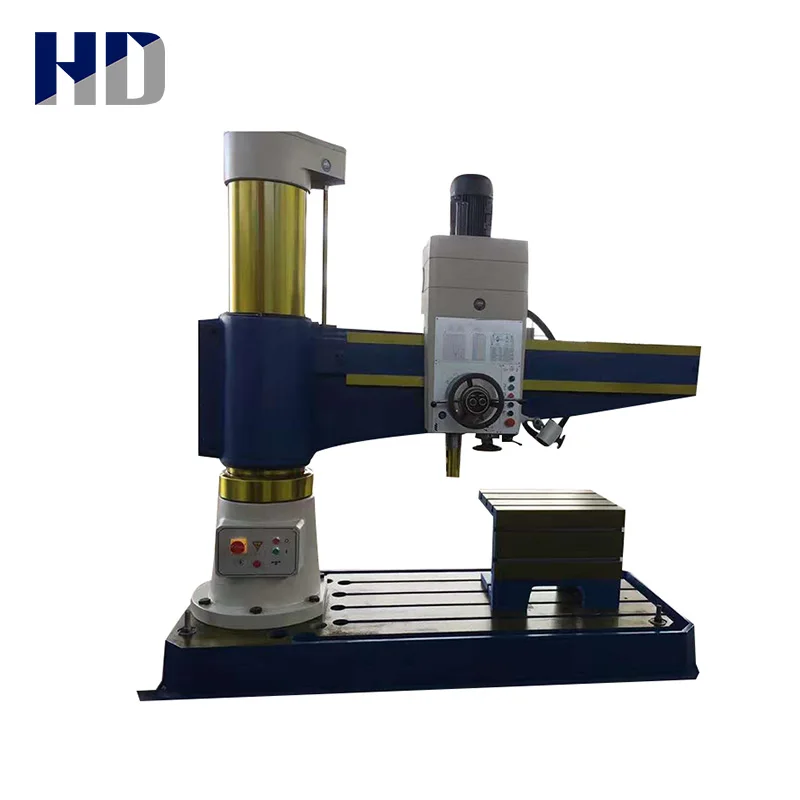

Z3040 высококачественный автоматический новый мощный 40 мм радиальный сверлильный станок цена
- Категория: Drilling Machines >>>
- Поставщик: Dalian,Haidi,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.41 $* | 0.11 $* |
| Aug-18-2025 | 0.84 $* | 0.74 $* |
| Jul-18-2025 | 0.75 $* | 0.39 $* |
| Jun-18-2025 | 0.57 $* | 0.11 $* |
| May-18-2025 | 0.75 $* | 0.52 $* |
| Apr-18-2025 | 0.70 $* | 0.62 $* |
| Mar-18-2025 | 0.9 $* | 0.41 $* |
| Feb-18-2025 | 0.78 $* | 0.29 $* |
| Jan-18-2025 | 0.79 $* | 0.61 $* |
Характеристики
Products Description
Item | Unit | Z3040×12 | Z3050×16 | Z3080×25 | Z30100×31 | Z30125×40 | ||
Max. drilling capacity | mm | 40 | 50 | 80 | 100 | 125 | ||
Distance from spindle center to column axis | Max. | mm | 1200 | 1600 | 2530 | 3150 | 4000 | |
Min. | mm | 330 | 350 | 530 | 570 | 600 | ||
Spindle head travel | mm | 870 | 1250 | 2000 | 2580 | 3400 | ||
Distance from spindle nose to work base | Max. | mm | 1000 | 1220 | 2000 | 2580 | 2500 | |
Min. | mm | 260 | 370 | 550 | 750 | 750 | ||
Spindle travel | mm | 270 | 315 | 450 | 500 | 560 | ||
Spindle taper | No. | 4 | 5 | 6 | 6 | Metric 80 | ||
Spindle speed | r/min | 750-1220 | 25-2000 | 16-1250 | 8-1000 | 6.3-800 | ||
Spindle speed steps | 6 | 16 | 16 | 22 | 22 | |||
Range of feed steps | mm/r | 0.1-0.25 | 0.04-3.20 | 0.04-3.20 | 0.06-3.20 | 0.06-3.20 | ||
Spindle speed steps | 3 | 16 | 16 | 16 | 16 | |||
Arm travel | mm | 580 | 580 | 1000 | 1250 | 1250 | ||
Arm lift speed | m/min | 1.3 | 1.2 | 1 | 0.61 | 0.6 | ||
Arm swing angle | ° | ± 180 | ± 180 | ± 180 | ± 180 | ± 180 | ||
Max. torque of spindle | mm | 115 | 122 | 151 | 170 | 170 | ||
Max. force of spindle | N.m | 300 | 500 | 1568 | 2450 | 3136 | ||
Max. force of spindle | N | 6300 | 18000 | 35000 | 45000 | 49000 | ||
Main motor power | Kw | 2.2 | 4 | 7.5 | 15 | 18.5 | ||
Arm lift motor power | Kw | 0.75 | 1.5 | 3 | 3 | 3 | ||
Worktable size | mm | 400*560 | 500*650 | 800*1000 | 800*1250 | 800*1250 | ||
Machine weight | kg | 1600 | 3500 | 10500 | 20000 | 28500 | ||
Machine dimension | mm | 1800*760*2100 | 2500*1070*2800 | 3730*1400*3835 | 4650*1630*4425 | 5817*2000*5120 | ||
