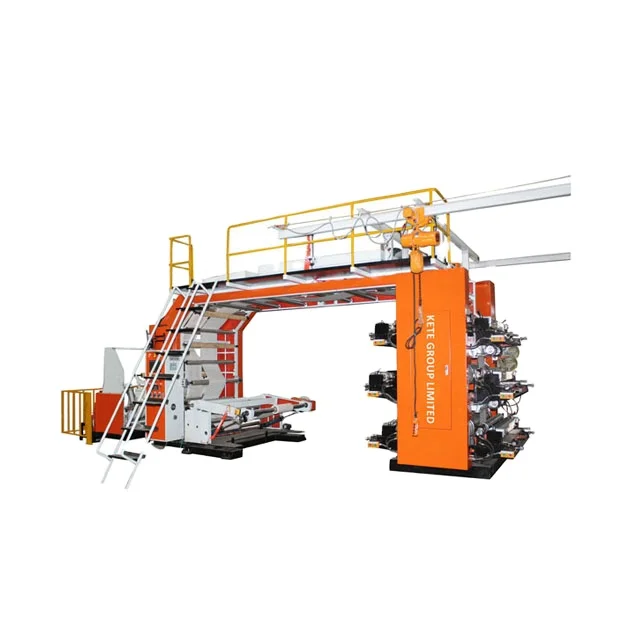

6 Colour Flexo Printing Machine Price

This flexographic printing machine is suitable for roller to roller printing Plastic Film, Paper, Non woven fabric, PP woven fabric, Aluminum foil and other similar roller type materials.



Performance and Characteristics:

1.        Printing color support 2 colors, 4 colors, 6 colors, 8 colors

2.        Printing width range from 600mm up to 2000mm

3.        Unwind and rewind with auto tension control..

4.        Machine use PLC touch screen control system.

5.        Ceramic anilox roller use Japan brand (180LPI- 800 LPI)

6.        Doctor blade use double side enclosed type.

7.        Printing cylinder life use hydraulic system.

8.        Main motor use Taiwan brand with Panasonic inverter.

9.        Most Bearing use Japan NSK brand.

10.    Unidirectional bearing use Germany ASNU brand.

Main Technical Specification:

Model	KTFP-B
Printing Color	4 Colors (4+0, 3+1,2+2)
Max Material Width	600mm to 2000mm
Printing Length	190-889mm up to 2032mm (7.5"- 80")
Printing Speed	100-120m/min
Ceramic Anilox Roller	180 - 800LPI  JAPAN
Rubber Plate Thickness	1.4mm /2.28mm /2.84mm
Doctor Blade	Double side enclosed type
Register Precision	Longitude ±0.10mm Transverse ±0.10mm
Unwind and Rewind Diameter	600mm /800mm
Paper Core Diameter	Φ76mm (inner diameter)
Tension Range	3-50kg
Tension Precision	±0.3kg
Air supply	0.6mpa
Drying Model	Heat drying
Drying Power	14kw
Machine Power	26kw
Machine Weight	4000kg
Power Support	3 phase  220/380/440V  50/60HZ
Machine Size(LWH)	4500 x 2200 x 2600mm
