Характеристики
Product Description
Acrylic bending machine is also called plastic plate bending machine, soften and bend the plastic plate by heating.
Specification
Product Name | Acrylic Bending Machine | ||
Product Model | ABM700 | ABM1300 | |
Working Principle | Thermal Forming | Thermal Forming | |
Applicable Length | ≦650mm | ≦1250mm | |
Applicable Thickness | 1-10mm | 1-10mm | |
Input Voltage | 110V/220V | 110V/220V | |
Working Voltage | 110V/220V | 110V/220V | |
Working Power | 1000W | 1500W | |
Temperature Range | Available 0-600℃ | Available 0-600℃ | |
Our Advantages
Adjustable temperature 0-600℃:
Temperature adjustable during 0-600℃, according to different thickness of sheet.
Adjustable heating gap:0-20mm:
According to different material and thickness of various sheets, heating gaps width can be adjustable.
Circulating water cooling system:
Adopted advanced infrared heating technology and circulating water cooling system, ensure fast cooling.

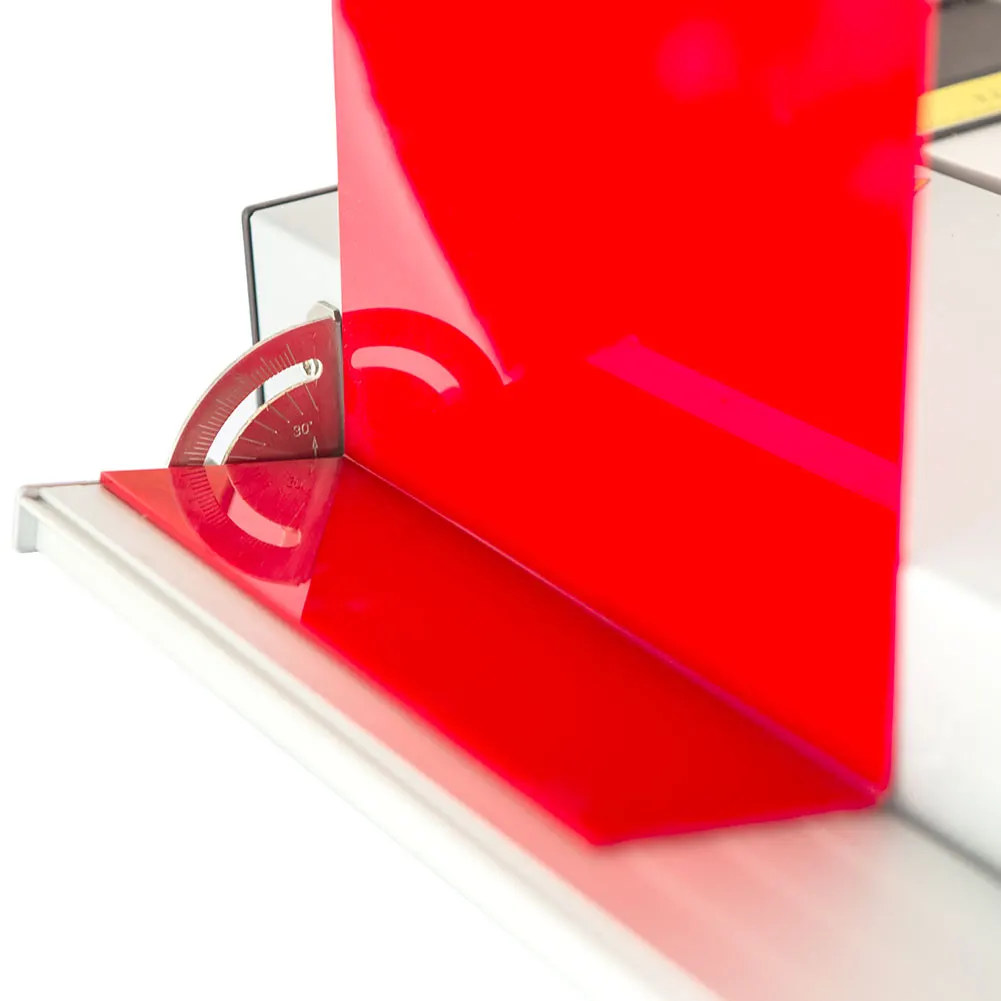

Angle Adjuster And Length Adjuster:
Available angle 0-160°, available length 40-330mm. Ensures bending standardization and unification. Suitable for mass production.
Special Version:
Equipped circulating cooling water system. replace the water after heavy and long time working, temperature up to 50℃. Ensure the machine cool completely, turn off the heating tube gap after working.
Packing & Delivery
Product Model | ABM700 | ABM1300 | ||
Carton Size | Carton: 1250(W)x430(D)x185mm(H) | Carton: 1850(W)x430(D)x185mm(H) | ||
Packing Quantity | 1pcs/ctn | 1pcs/ctn | ||
Net Weight | 17kg | 26kg | ||
Gross Weight | 23kg | 33kg | ||
Product Shiping Specs | ||||
20GP(General Purpose Container) | 264pcs | 188pcs | ||
40GP(General Purpose Container) | 552pcs | 384pcs | ||
40HQ(High Cube Container) | 644pcs | 448pcs | ||
Express Service | Available | Available | ||
Certifications
Company Profile
AECFUN Commercial Equipment Co.,Ltd (hereafter referred to briefly as AECFUN) was founded in 2013, specialized in manufacturing and selling auxiliary equipments of digital printer, such as take up system and media dryer for famous printer brand MUTOH, ROLAND, MIMAKI...etc. Since 2015, AECFUN expanded production line, developed a series of advertising tools, existing products: Take up system, Media dryer, Textile take-up&feeding system, Heating cutter, KT foam board notching cutter, Corrugated plastic sheet notching cutter, Advertising ruler, Paper trimmer, Electric paper trimmer, Manual paper trimmer machine, Acrylic bending machine...etc.
AECFUN always adheres to the concept of “ Do not slight every product, treated with sincerity”, focus on developing useful and practical advertising tools as our development goals. To guide independent development and promoting products under the refined management.
AECFUN insists that full automation equipments are truly important, while those small semi-automation device also can’t be neglected in the rapidly developing modern society. High flexible operation, and less cost, can match with some large equipment, also can be used in advertising process workplace.
AECFUN products have been sold all over China, and global market as well. Our products plays a role as kinds of ties, recommends us to majority countries around the world.
AECFUN is a young company. But we promise we will catch every chance, and produce every product with full sincerity.
Let’s keep moving and look forward to bright future!
AECFUN always adheres to the concept of “ Do not slight every product, treated with sincerity”, focus on developing useful and practical advertising tools as our development goals. To guide independent development and promoting products under the refined management.
AECFUN insists that full automation equipments are truly important, while those small semi-automation device also can’t be neglected in the rapidly developing modern society. High flexible operation, and less cost, can match with some large equipment, also can be used in advertising process workplace.
AECFUN products have been sold all over China, and global market as well. Our products plays a role as kinds of ties, recommends us to majority countries around the world.
AECFUN is a young company. But we promise we will catch every chance, and produce every product with full sincerity.
Let’s keep moving and look forward to bright future!
FAQ
1. Q: What kind of material can it cut bend? What’s the applicable thickness?
A: Plastic plate like Acrylic, Plexiglas, PVC, PC,ABS, PP and so on ...etc.
The applicable thickness is 1-10mm.
2. Q: Do you have the bigger one?
A: We have two models now. Only two models at present.ABM700: applicable length≤650mmABM1300: applicable length≤1250mm
3. Q: What’s the working theory of acrylic bending machine?
A: Softening and bending of plastic plate by far Infrared heating, shaped by hand or any mould.
4. Q: How many minutes should the user heat for 3mm sheet?
A: About 15 seconds.
5. Q: Can the machine heat multiple parts at same time?
A: No. Our machine has only one heating lamp, could heat and bend only one line at a time.
6. Q: How about the temperature? Is the temperature adjustable?
A: Temperature is adjustable during 0~600℃ by the temperature button.
7. Q:Is the heating area adjustable?
A: Yes, according to sheet thickness and real requirement, heating range in 0-20mm.
Generally, the sheet is thicker, the heating area need bigger. 3mm thickness sheet need heating width at least 8mm. 8mm thickness
sheet need 20mm heating width.
8. Q: Does the machine have adjuster?
A: Yes, it has length position adjuster and angle adjuster in standard.
9. Q: Can the mahine bend big arc?
A: No. Is has only single heating lamp, main fuction is to bend angle. It is suggested using oven heating to make big arc.
10. Q: Can it be customized to 2.4m?
A: No. The current heating lamp could not achieve the requirement of stable quality and heating temperature.
11. Q: There is white foam under heating lamp. Does it need to take out before using the machine?
A: No. The object is for protecting the heating lamp and to insulated heating during working. It is heat-resisting material.
12. Q: Does it have input voltage in 110V?
A: Yes. Two voltages are available, 220V and 110V. Generally, some European countries and China is in 220V, North America and
Japan is 110V. Pls confirm with sales before placing the order.
13. Q: Can the plug be changed to any countries’ standard?
A: Normal plug has 4version, E.U plug, British plug, U.S plug, and C.N plug. If indeed has other demand, pls send exact picture to
sales for further confirmation. If we could buy from Chinese market, we could change as your demand.

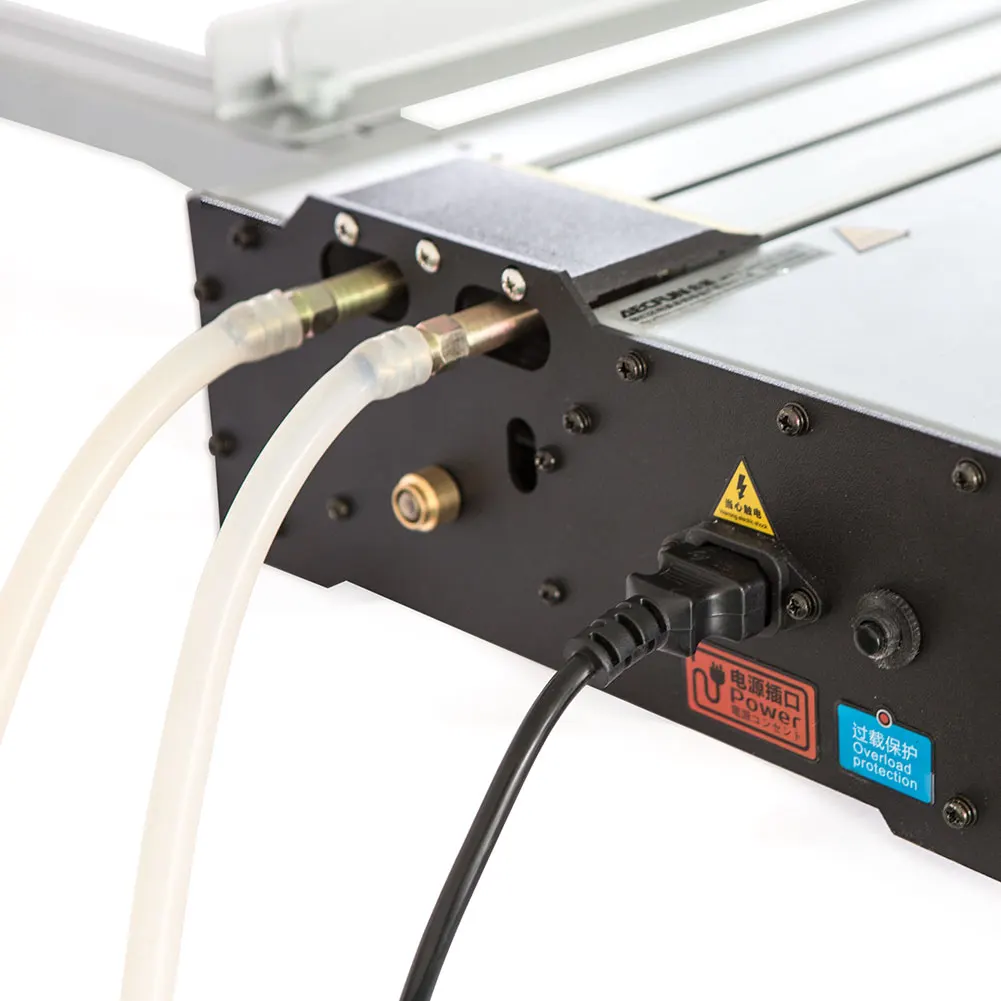

14. Q: How does the water cooling system working?
A: The machine has 1pc water pump and 2pcs water pipes in standard. To fullfill the water in any water tank or bucket, connect the
pipes with water pump, and put the water pump into the water, then turn on the switch. The water pump will push the water into
machine inner through the pipes. The water temperature will rise during the working time. To acheive better cooling effect, please
exchange the water when you feel the water is heated by your hand or the water temperature is up to 50℃.
15. Q: Is the water tank included?
A: No. User could use water tank or bucket with capacity ≥20L.
16. Q: The water temperature will be heated after long time work. Is there any method to reduce the water exchange time?
A: It is suggested to use big water tank or bucket. Or put some ice into the water to slow down water heated speed.
17. Q: Does the machine has fans cooling?
A: Yes, fans are installed. It has holes under and in the side of machine, helps to cooling and extending machine life.
18. Q: What’s the warranty time?
A: 12 months. Warranty part: the temperature control circuit board.
19. Q: Can I buy extra heating tubes for replacing?
A: Yes. We offer one standby heating tube for each ABM.
20. Q: Can I buy extra water pump for replacing?
A: Yes. You could buy any spare parts as you want.
21. Q: Where is the spare heating lamp in the package?
A: Spare heating lamp is packed into a silver or black alluminum alloy tube. Since it is fragile, it need special protection.
Please be careful when you push out the heating lamp.
22. Q: How to exchange the heating lamp.
A: Firstly, turn off the machine power supply, to ensure the broken heating lamp is cooled enough. Open the metal set in both
sides of the machine, take out the broken heating lamp, pull out and unfasten the wires. Then exchange the new heating lamp as it
was. Please ask for sales for video guidance with any questions.
23. Q: Does the machine have CE certification?
A: Yes.
Caution: To ensure the power supply is turned off, before cleaning and replairing.
