Мини-преобразователь частоты Taili 220 кВт VFD для упаковочной машины

Мини-преобразователь частоты Taili 220 кВт VFD для упаковочной машины

Категория: Frequency Changer >>>
Поставщик: Sanmen,Taili,Motor,Co.,Ltd.

Цена:30,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	36.65 $*	38.40 $*
Aug-19-2025	35.3 $*	37.23 $*
Jul-19-2025	30.23 $*	32.21 $*
Jun-19-2025	35.46 $*	37.9 $*
May-19-2025	30.21 $*	32.19 $*
Apr-19-2025	34.3 $*	36.24 $*
Mar-19-2025	34.82 $*	36.52 $*
Feb-19-2025	34.85 $*	36.18 $*
Jan-19-2025	33.11 $*	35.0 $*

Характеристики

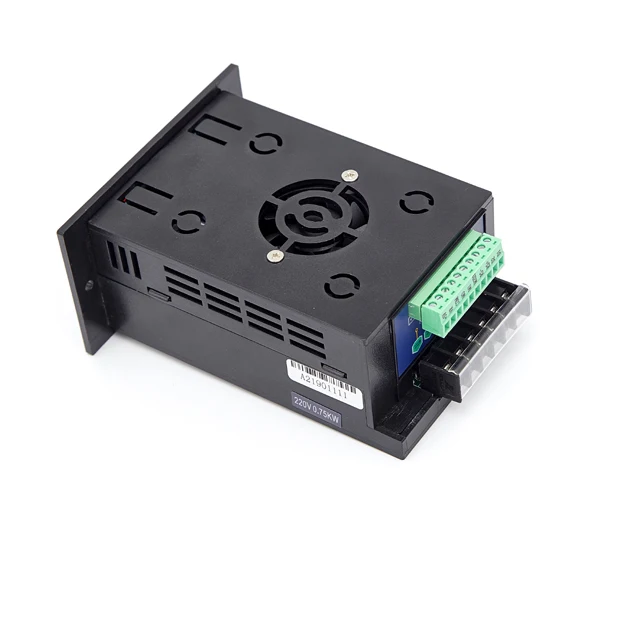

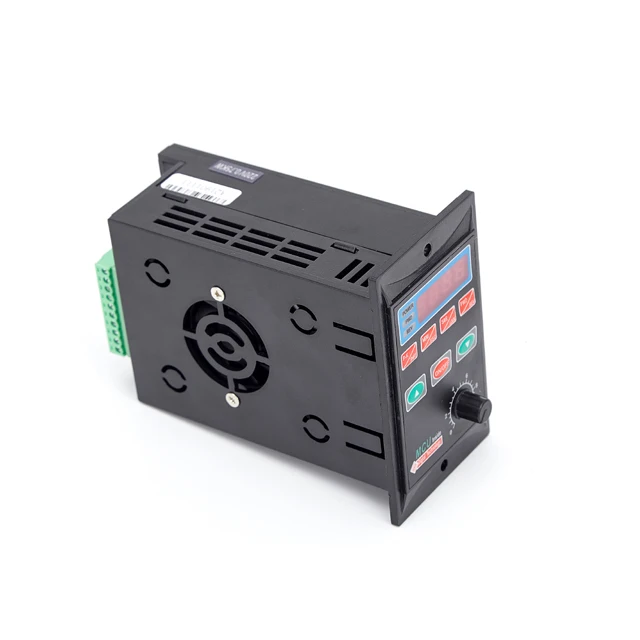

US Series Mini VFD,Mini Frequency Inverter, Mini AC Motor Drive 0.2kw,0.4kw,0.75kw Specially for simple speed regulation of Conveyor belt,Package Machine,Food Machine,Trasmission equipment and others

Product Description

Input 1phase 220v,Output 3phase 220v,US Series Inverter(VFD) is specially for 3phase AC 220v Motor with Power less than and equal 0.75kw

Low price/small size/easy installation/easy debug/simple parameters,can meet the needs of ordinary occasions.

Technical characteristics:

Output frequency range:0~99Hz, meet general speed regulation occassion

With speed regulating potentiometer, can also connect outside speed regulating potentiometer

Built-in intelligent logic controller,can realize simple logic control function

With electronic thermal relay function, and other traditional motor protection devices

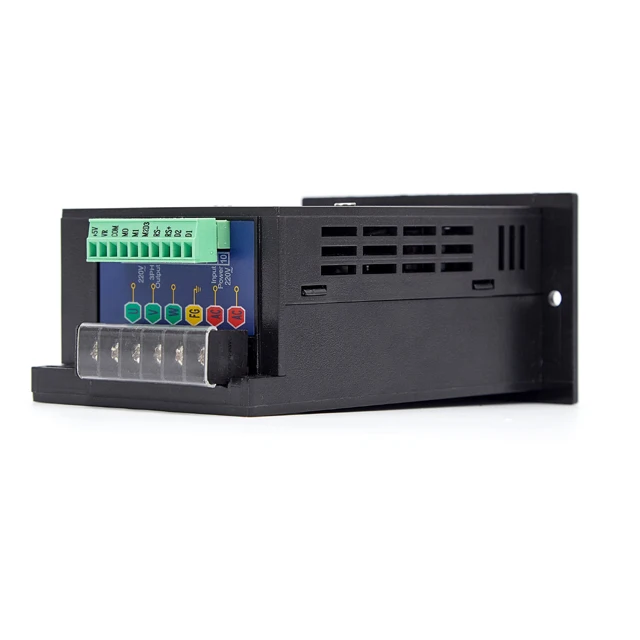

Can connect external LED indication,convenient for on site use

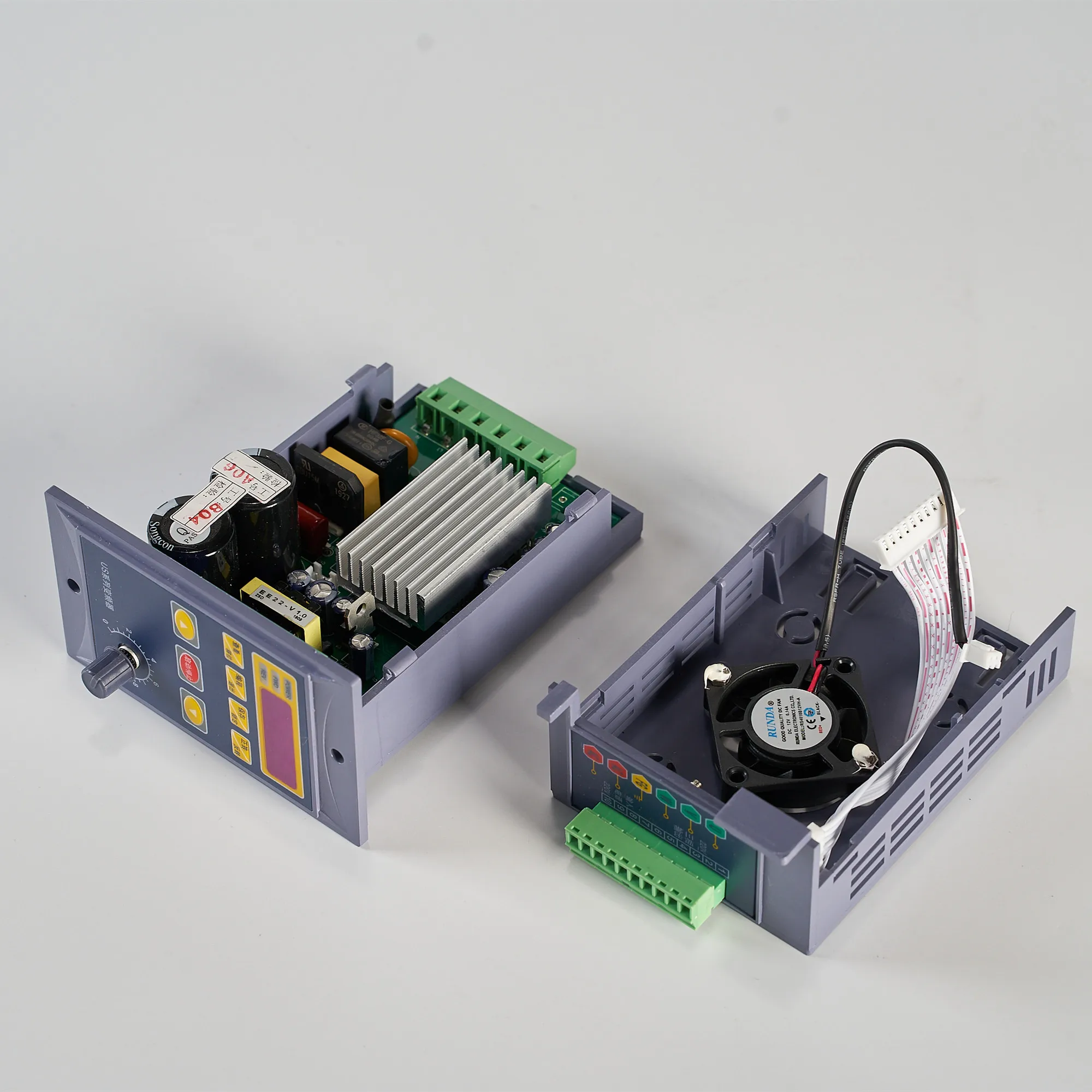

Adopt the new IPM module,has complete protection function

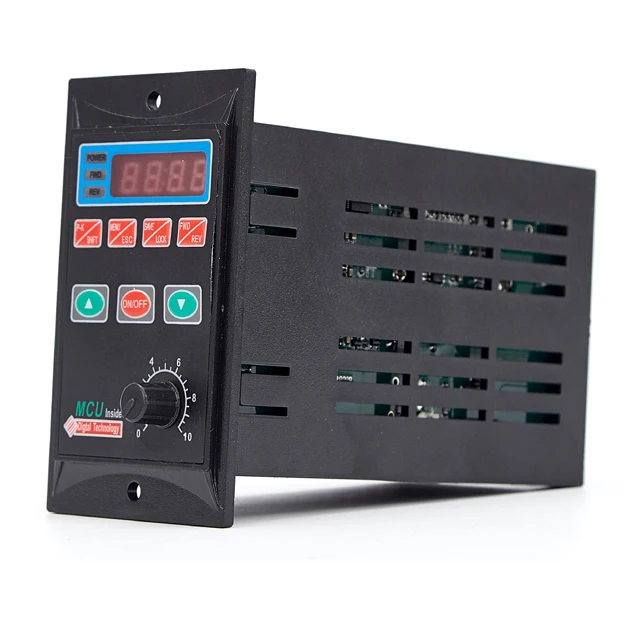

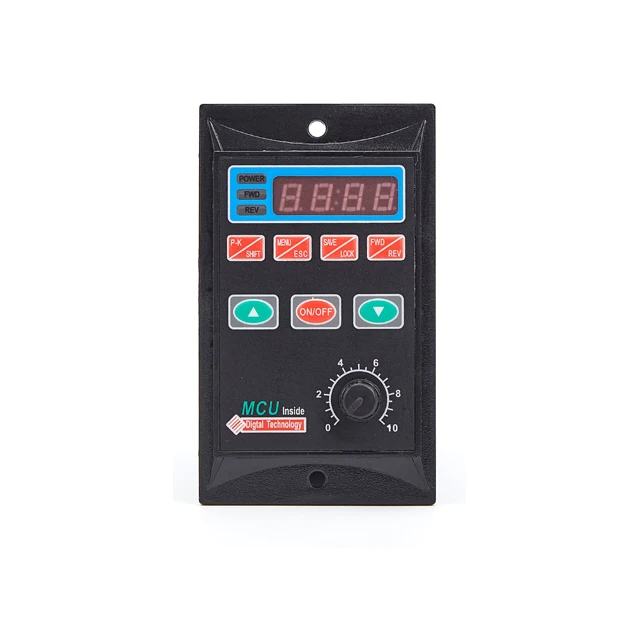

User friendly operation interface, simple parameter setting, very convenient to use

Can set at will the V/F curve function,meet the special requirements occasions

Can use Shift key to view the real-time parameters

Input frequency50/60Hz

Output frequency:0~99Hz

Input voltage:1phase200v~240v AC, output voltage:3phase200v~240v AC

Power:0.2kw~0.75kw

Widely used for simple speed regulation of:conveyer belt,packaging machine,food machine ,tranmission equipment and others

US Series model and technical specification:

0R2

US:simple inverter

0:standard configuration

1:special configuration1

2:special configuration2

0R2=0.2Kw 0R4=0.4Kw

P:light load type G:standard type H:heavy load type

1: 1phase220v 2: 3phase220v

3: 3phase380v

4: 3phase440v

Model	Power Capacity KVA	Input Current A	Output Current A	Adapted Motor KW
1 phase 200~240V AC ,50/60Hz
US00R2G1	3.0	3.2	1.6	0.2
US00R4G1	3.8	4.3	2.1	0.4
US00R7G1	5.6	6	3.1	0.75
