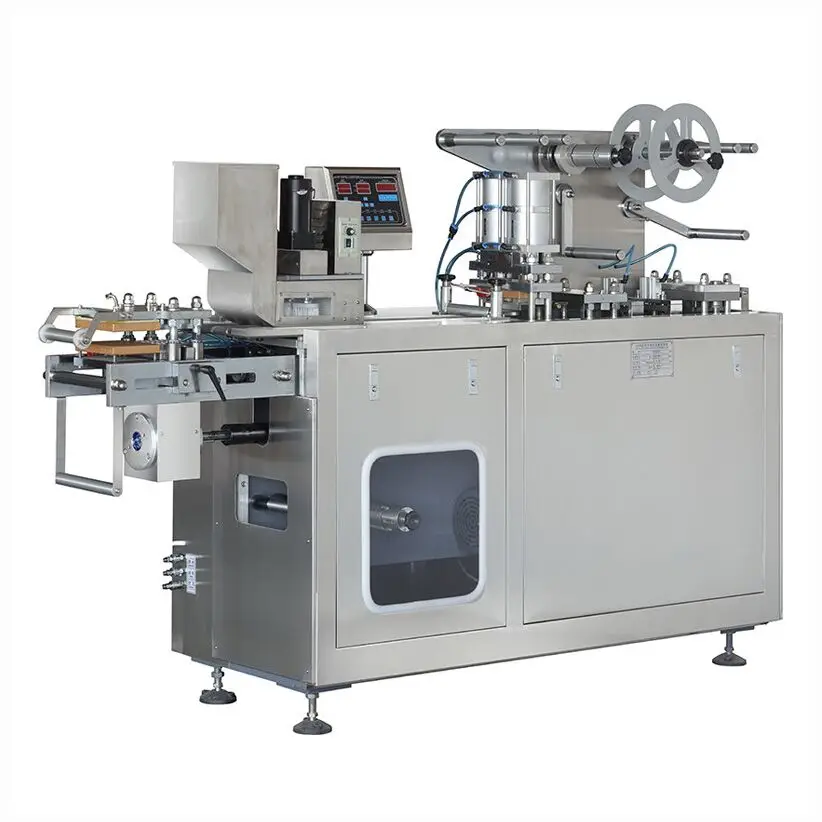

DPP-150 автоматическая высокоскоростная блистерная упаковочная
- Категория: Фармацевтические упаковочные машины >>>
- Поставщик: Huizhou,Pingfang,Tranding,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.25 $* | 0.75 $* |
| Aug-15-2025 | 0.57 $* | 0.79 $* |
| Jul-15-2025 | 0.84 $* | 0.69 $* |
| Jun-15-2025 | 0.46 $* | 0.15 $* |
| May-15-2025 | 0.22 $* | 0.32 $* |
| Apr-15-2025 | 0.83 $* | 0.27 $* |
| Mar-15-2025 | 0.37 $* | 0.34 $* |
| Feb-15-2025 | 0.79 $* | 0.29 $* |
| Jan-15-2025 | 0.97 $* | 0.28 $* |
Характеристики
Product Description
Application
It is suitable for different shape packaging of Alu / PVC , Paper/Alu and Alu /Alu for capsule, tablet, candy, honey shape pills,disposable syringes and so on in industries of pharmaceutical, foodstuff, health product , medical instruments and etc.
Features：
1.It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
2.Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user’s requirement.
3.It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
4.It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
5.The machine is suitable for industries of foodstuff, medicine, medical instruments, hardware, electronics and etc for packing.
Technical Parameter
Model | DPP-150 |
Punching Frequency | 10-35 times/min |
（AL/AL）15-30（Times/Min） | |
Capcity | 1200-4200 plates/hour(two plates one time) |
Max.Forming area and depth | 130x100(standard thickness≤15mm) Max.depth 26mm |
Stroke range | 50-120mm(can be designed as per user's required) |
Standard plate size | 80x57mm(can be designed as per user's required) |
Air compressed capacity | ≥0.3m3/min |
Clean compressed air | 0.4-0.6Mpa |
Total power supply | 380V 50Hz 3.8Kw |
PVC hard Film | 0.15-0.5*150(mm) |
PTP Aluminum film | 0.02-0.035*150(mm) |
Dialysis Paper | 0.02-0.035*150(mm) |
Mould cooling | Tap water or recycling water |
Noise index | ＜75dBA |
Overall Dimension | 2500X800X1780mm |

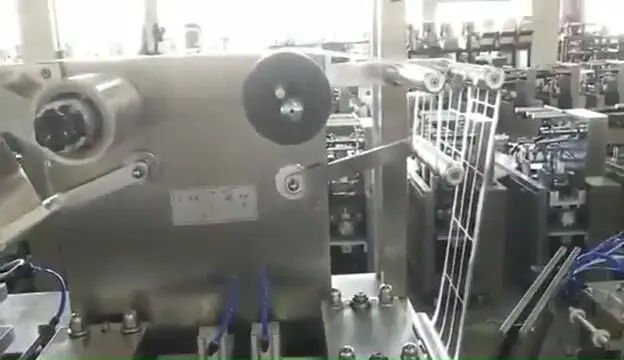

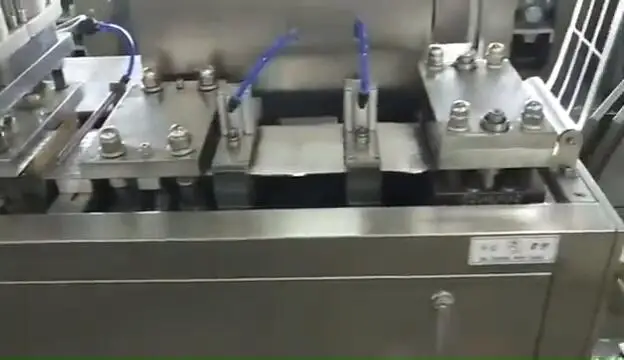

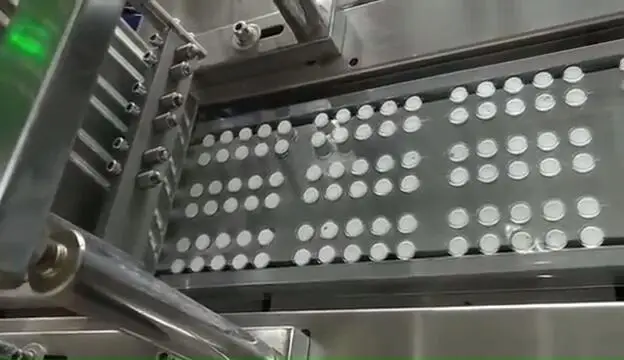

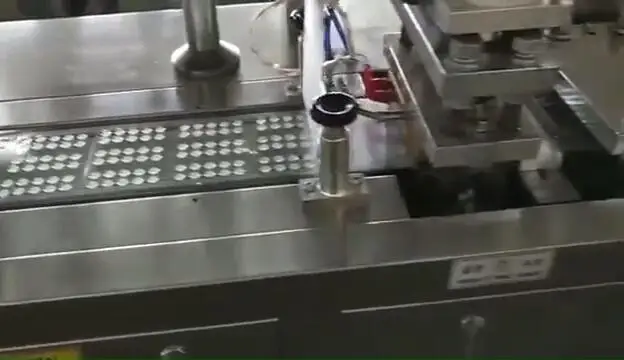

Detailed Images
Related Products
Packing&Shipping
Company Introduction
Huizhou Pingfang Trading Co.,Ltd established in 2004 , is a professional engaged in the research, development,We are specializing in machinery including tablet press machine, counting machine,coating machine, soft capsules filling machine, hard capsules filling machine, ampoule filling and sealing machine. Our vast product selection caters to numerous industries, worldwide.Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.We warmly welcome customers from at home and abroad to establish cooperation and create a bright furture with us together.
Our Services & Strength
Our company founded in 2004 more than 20 years pharmaceutical machine.,and service on line in 24hours.
Cooperative
Workshop
Certificate
FAQ
How about the after service and guarantee period?
We make the guarantee time 12 months from the machine's arrival in buyer facility and we have a professional team with an experienced technician to serve abroad and do the best after service to assure the machine whole life usage.
What's your payment way?
T/T by our bank account directly, or by Alibaba's trade assurance service, or by the West Union, or in cash.
