Автоматическая машина для накатки алюминиевого профиля с терморазрывом вставкой ленты
- Категория: Окна и двери, делая машину >>>
- Поставщик: Shanghai,Hongxun,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.57 $* | 0.55 $* |
| Aug-19-2025 | 0.9 $* | 0.21 $* |
| Jul-19-2025 | 0.76 $* | 0.0 $* |
| Jun-19-2025 | 0.58 $* | 0.63 $* |
| May-19-2025 | 0.85 $* | 0.5 $* |
| Apr-19-2025 | 0.37 $* | 0.35 $* |
| Mar-19-2025 | 0.19 $* | 0.69 $* |
| Feb-19-2025 | 0.15 $* | 0.58 $* |
| Jan-19-2025 | 0.42 $* | 0.91 $* |
Характеристики

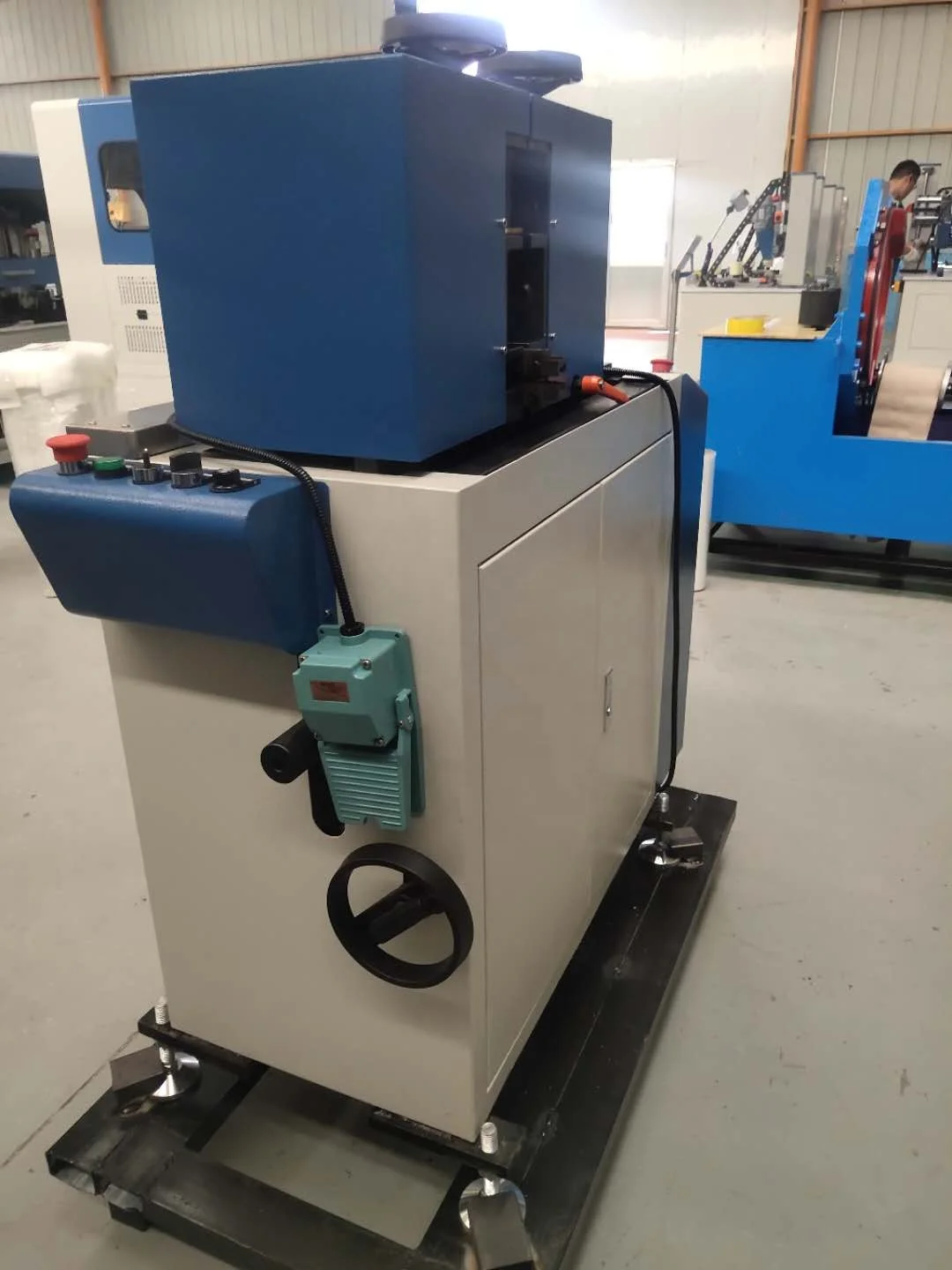

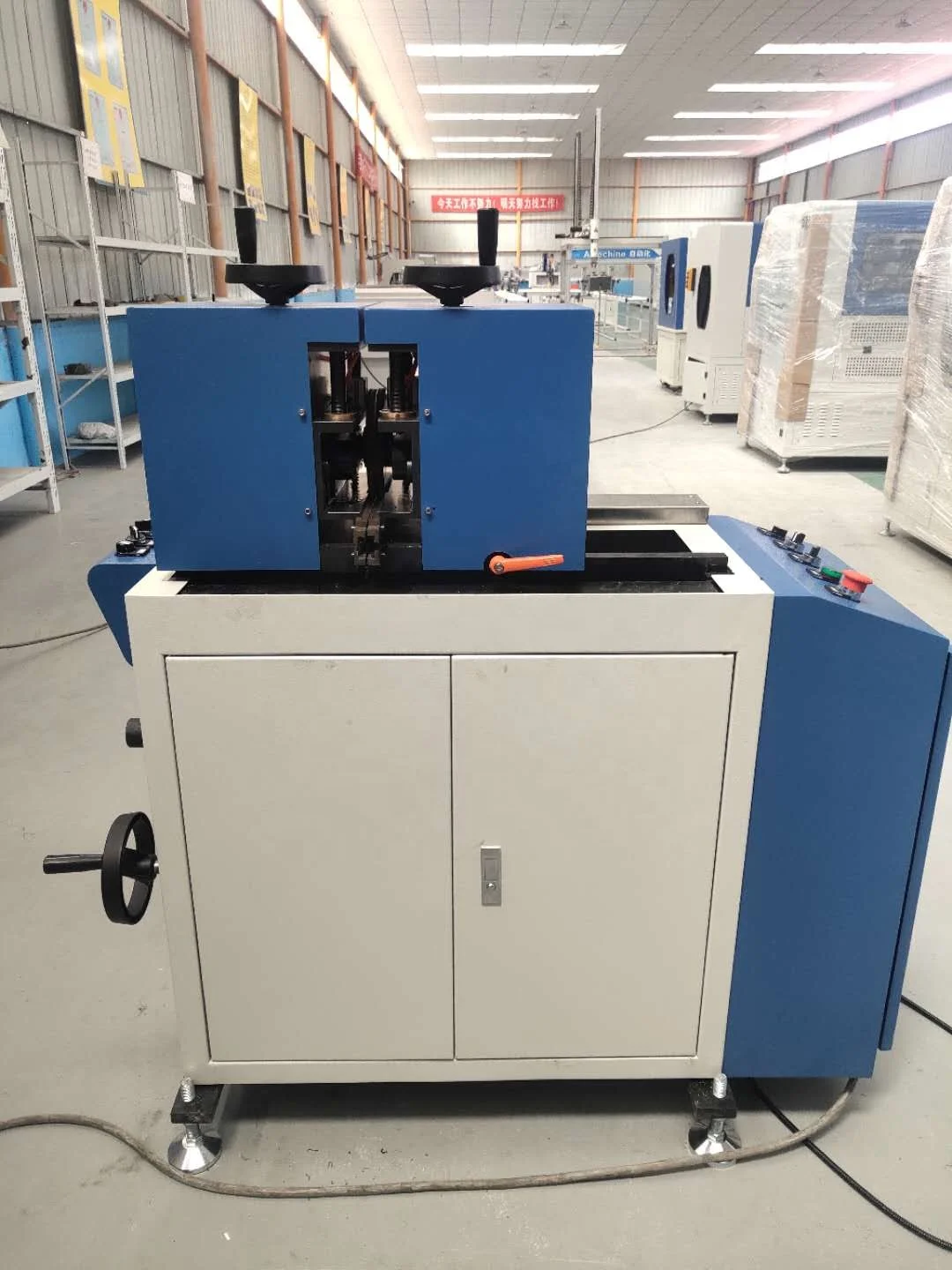

Aluminium profile assembly line-knurling machine
Product Description
Power supply | 380V/50Hz |
Total power | 1.78KW |
Knurling wheel diameter | 120mm |
Knurling wheel regulating range | Horizontal(width):250 mm |
Vertical(height):150 mm | |
Air pressure supplied | 0.6-1Mpa |
Knurling speed | 0-110m/min |
Overall dimension | 1100x900x1560mm(LxWxH) |
Weight | 600Kg |
Related Products

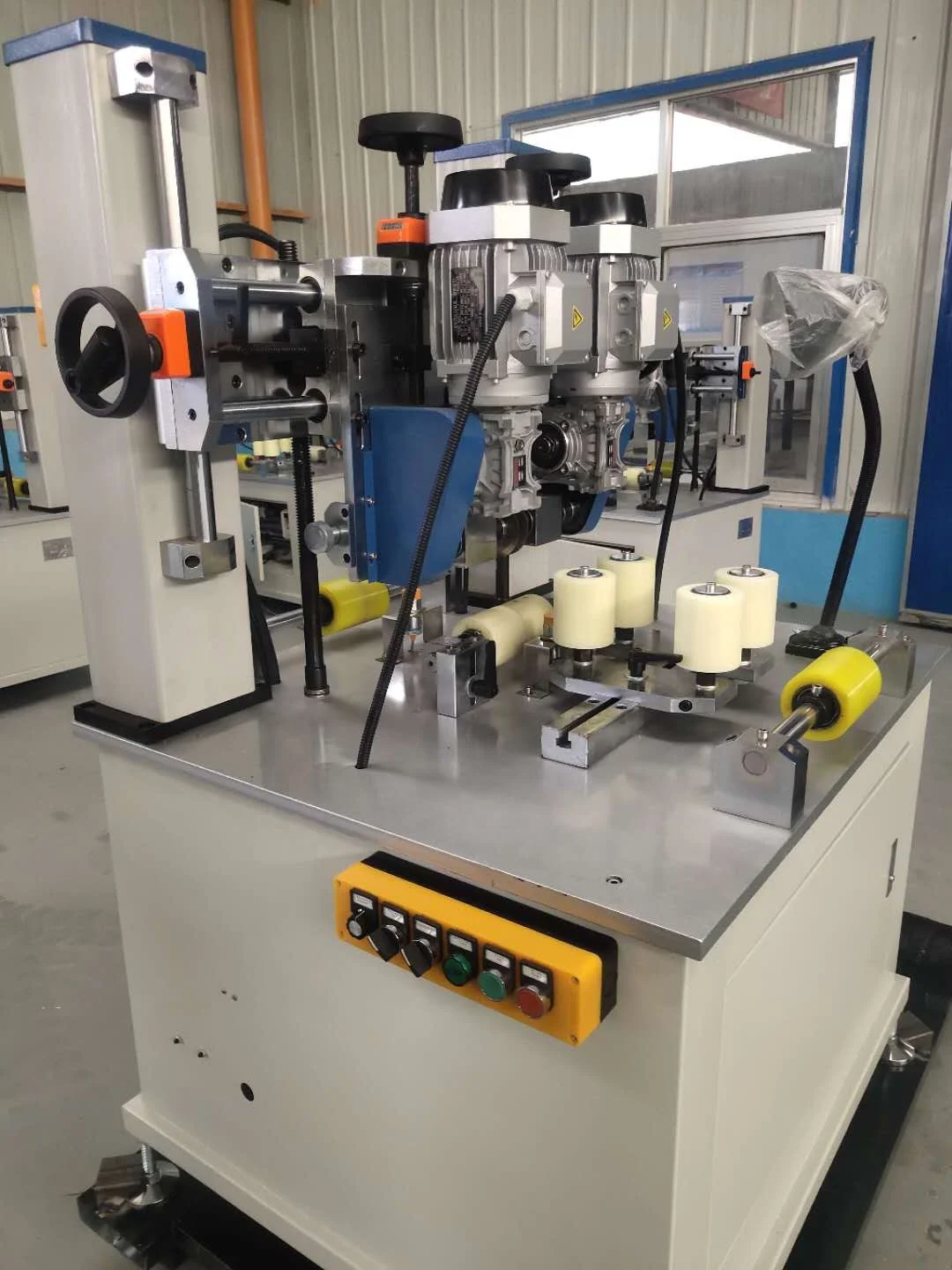

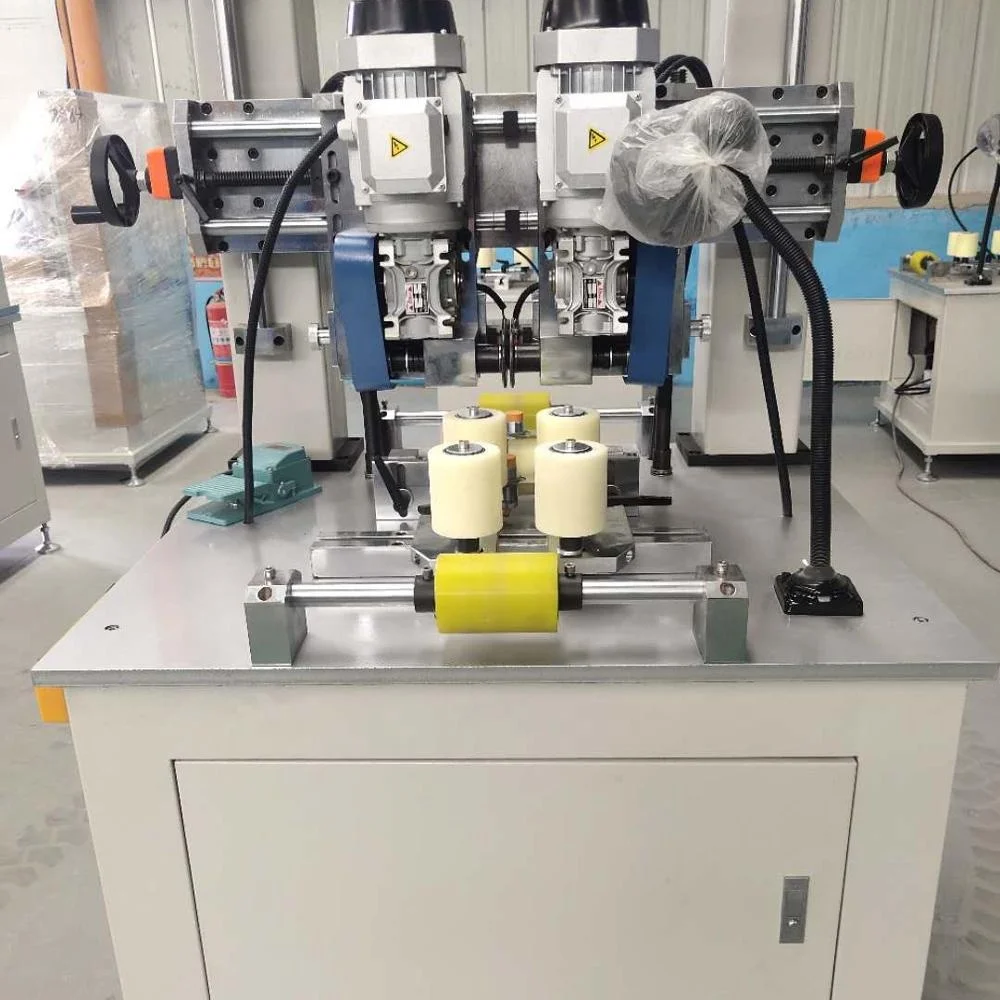

Feeding Machine
Power supply | 380V/50HZ |
Total power | 1.28Kw |
Air pressure supplied | 0.6-1Mpa |
Feeding width | 0-100mm, adjustable |
Feeding height | 0-200mm, adjustable |
Feeding speed | 110m/min(adjustable) |
Strip size allowed | 12-40mm |
Overall dimension | 1100x550x1350mm |
Weight | 600kg |

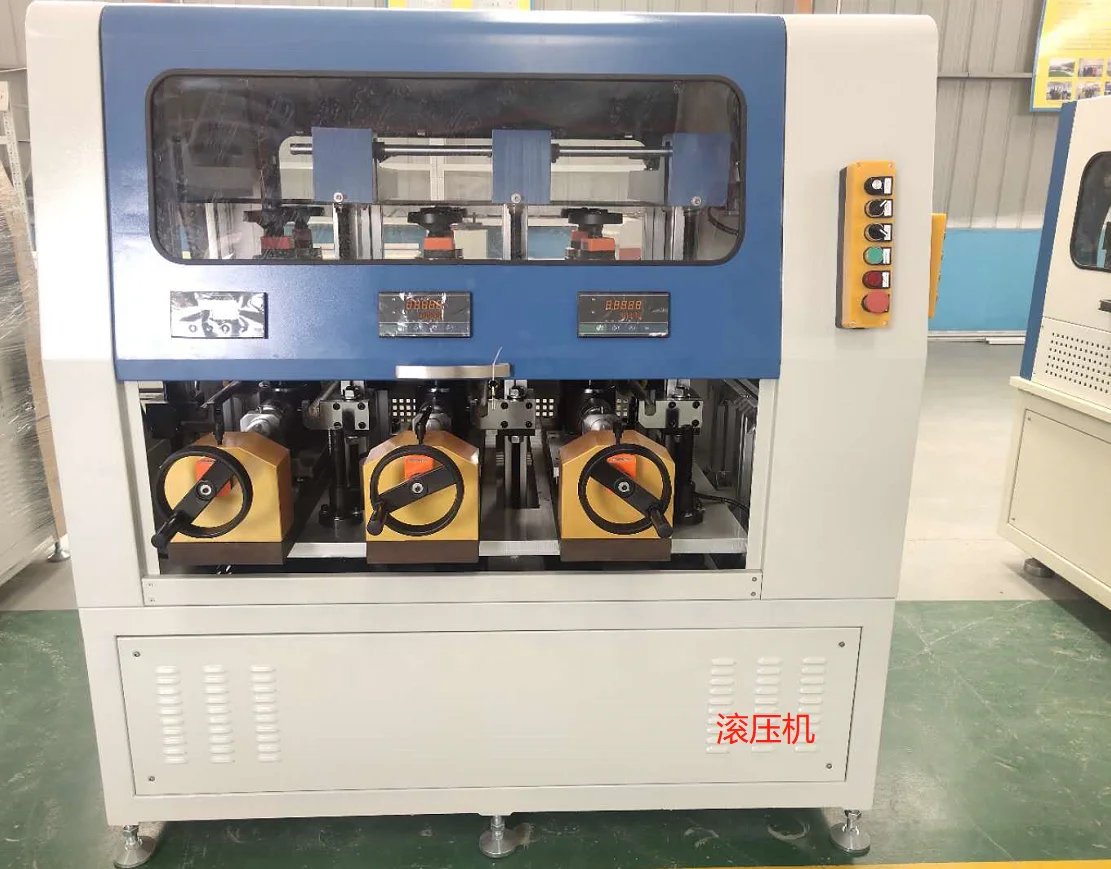

Roller Press
Power | 380V/50Hz |
Total power | 4.73Kw |
Dual axis control | Rolling discs and upper rubber rollers |
Roller cutter diameter | 240mm |
Two roller cutter spacing | 0-50mm |
Roll cutter head height adjustment range | 0-80mm |
The largest processed profile section size | 170x230mm (WxH) |
Profile feed rate | 0-60m/minute |
Equipment size | 1600x1200x1670mm |
The weight of equipment | 1300kg |

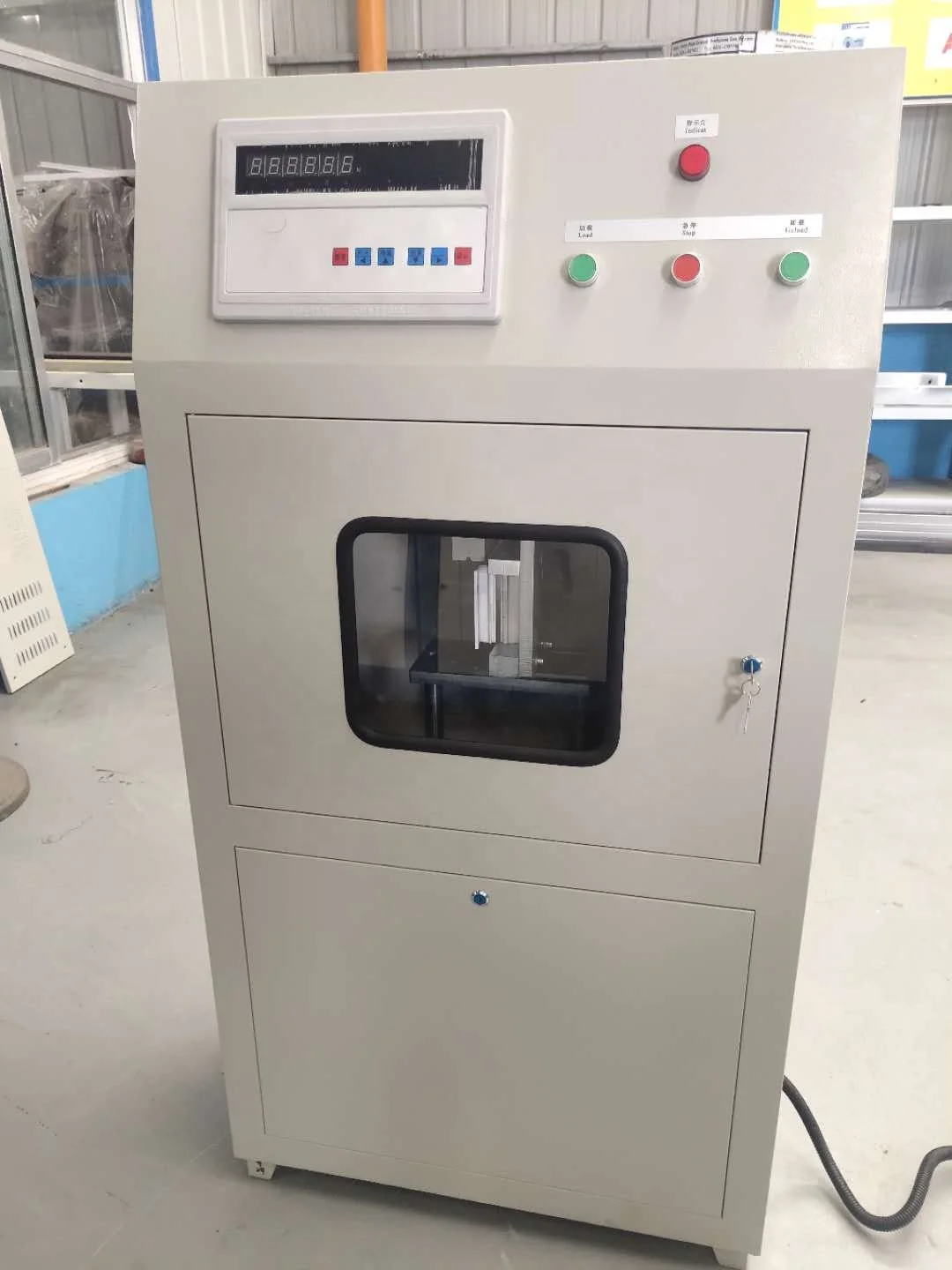

Test Machine
Max load on sensor | 1000kg (10kN) |
Measuring tolerance | 2% |
Pushing speed | 50+5mm/min |
Power supply | 380V/50Hz |
Total power | 370W |
Overall dimension | 750x340x1470mm |
Weight | 100Kg |
Packaging & Shipping
