Шприц в сборе
US $25000-$25500
DPP-150C AL/ПВХ пластиковые фармацевтическая блистерная упаковочная машина для
- Категория: Фармацевтические упаковочные машины >>>
- Поставщик: Huizhou,Pingfang,Tranding,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.22 $* | 0.62 $* |
| Aug-15-2025 | 0.95 $* | 0.53 $* |
| Jul-15-2025 | 0.2 $* | 0.57 $* |
| Jun-15-2025 | 0.30 $* | 0.18 $* |
| May-15-2025 | 0.12 $* | 0.74 $* |
| Apr-15-2025 | 0.4 $* | 0.54 $* |
| Mar-15-2025 | 0.2 $* | 0.87 $* |
| Feb-15-2025 | 0.80 $* | 0.64 $* |
| Jan-15-2025 | 0.29 $* | 0.85 $* |
Характеристики
Product Description
Applications

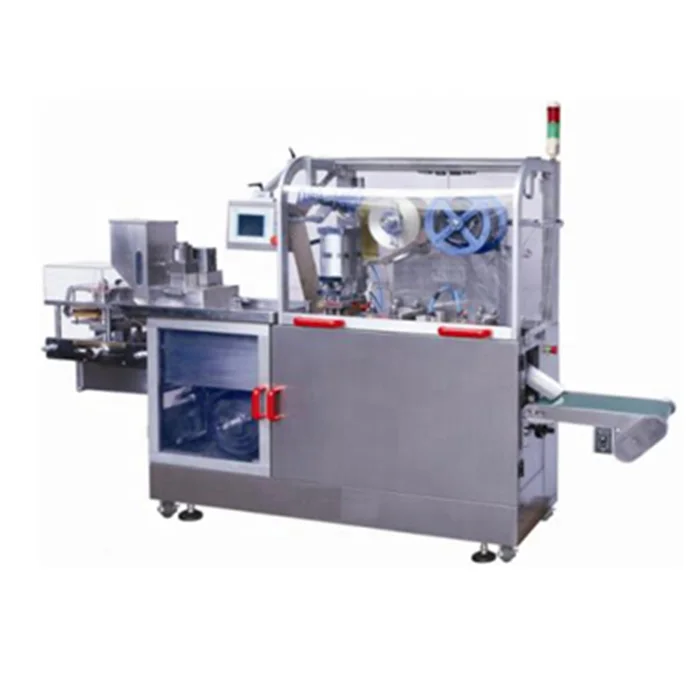

DPP-150C Aluminium Plastic/ duralumin Packing Machine is the latest and high automation product designed for middle and small sized pharmacy factory, healthcare factory and preparation-room of hospital, especially for those who need small batches product but various kinds. It can automatically finish the process of feeding, forming, heat-sealing, pressing, batch number printing, and punching. It is the ideal equipment with convenience operation, full purpose function. The product is made under CE and GMP
standard. The machine can be adopted with PLC, frequency converter and touch screen operation instead of standard PC board controller as picture shows.
standard. The machine can be adopted with PLC, frequency converter and touch screen operation instead of standard PC board controller as picture shows.
Usage

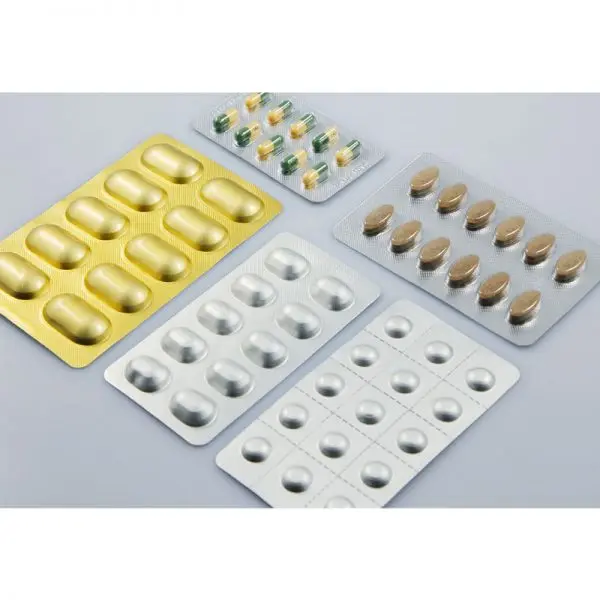

It is suitable for capsule, tablet, honey pill, candy, liquid (ointment), syringe as well as irregular shape Al-Plastic or Paper-Plastic packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.
Features:
1.Main transmission part adopts parallel axis and bevel wheel speed reducer, with novel structure, stable running, long longevity and low noise.
2.Spare parts as heat-sealing station fixing, forming, impressing and cutting etc can move freely to adjust the distance and it is easy to change moulds.
3.With manipulator towing and adjustable travel range, it can be suited for blister packing of various sizes.
4.Flat plate structure can pack special shape products, such as: elliptic shape, square shape, triangle shape, liquid, paste and syringe etc.
Technical Parameter
Model | DPP-150C |
Cutting Frequency | 15-35/cutter(Alu PVC Blister) 15-25/cutter(Alu PVC Blister) |
（AL/AL）15-30（Times/Min） | |
Travel Range(mm) | 40-140(can be lengthened to 160mm according to user's requirements) |
Max.Forming area and depth | 135X110X26(standard depth 14mm) |
Air Pressure(Mpa) | 0.4-0.6 |
Air Supply | ≥0.2m³/min |
Total Power | 380V/220V 50Hz 3.6KW |
Main Motor Power(KW) | 0.75 |
PVC Hard Pieces(mm) | 0.15-0.5x150 |
PTP Aluminum Foil(mm) | 0.02-0.035x150 |
Dialysis Paper | 50-100gX140 |
Mould cooling | Tap water or circulating water |
Weight | 750kg |
Overall Dimension | 2300X560X1410mm |

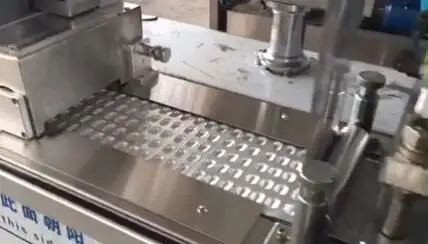

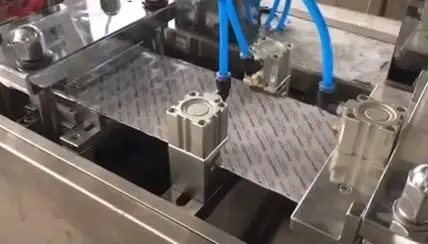

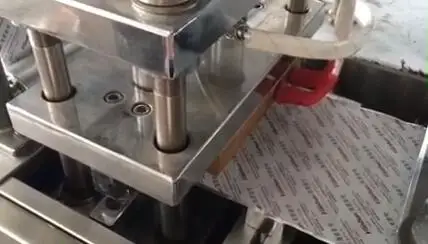

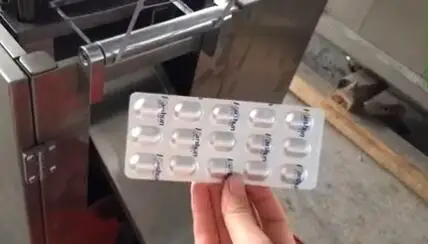

Detailed Images
Related Products
Packing&Shipping
Company Introduction
Huizhou Pingfang Trading Co.,Ltd established in 2004 , is a professional engaged in the research, development,We are specializing in machinery including tablet press machine, counting machine,coating machine, soft capsules filling machine, hard capsules filling machine, ampoule filling and sealing machine. Our vast product selection caters to numerous industries, worldwide.Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.We warmly welcome customers from at home and abroad to establish cooperation and create a bright furture with us together.
Our Services & Strength
Our company founded in 2004 more than 20 years pharmaceutical machine.,and service on line in 24hours.
Cooperative
Workshop
Certificate
FAQ
How about the after service and guarantee period?
We make the guarantee time 12 months from the machine's arrival in buyer facility and we have a professional team with an experienced technician to serve abroad and do the best after service to assure the machine whole life usage.
What's your payment way?
T/T by our bank account directly, or by Alibaba's trade assurance service, or by the West Union, or in cash.
