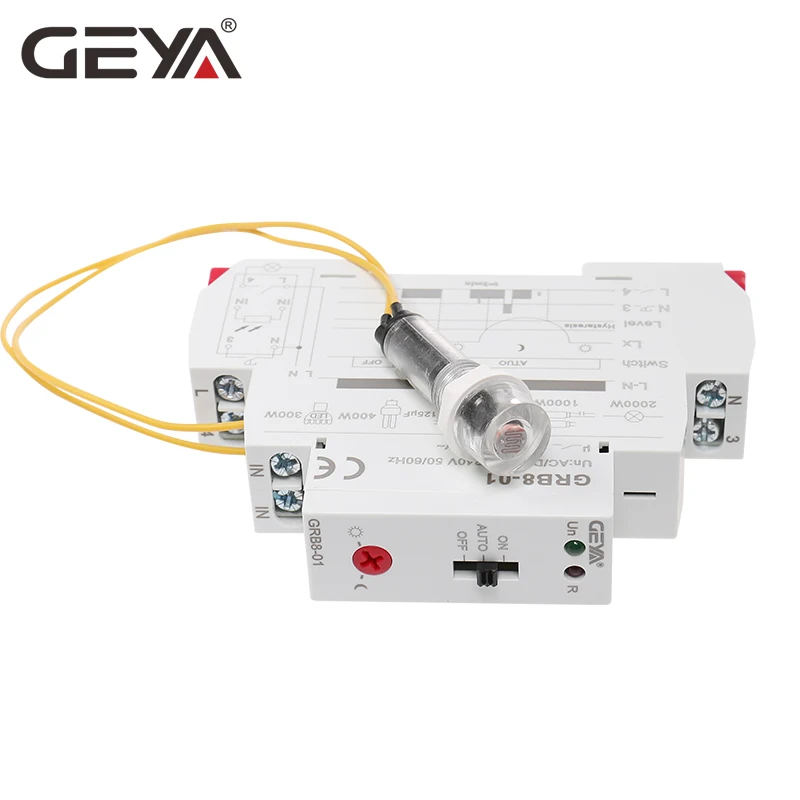

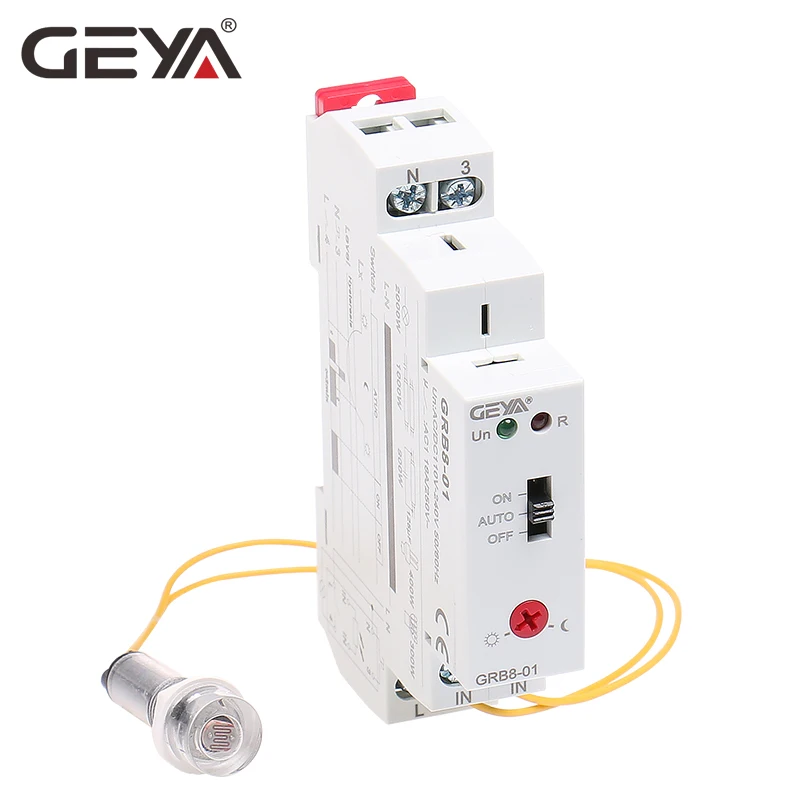

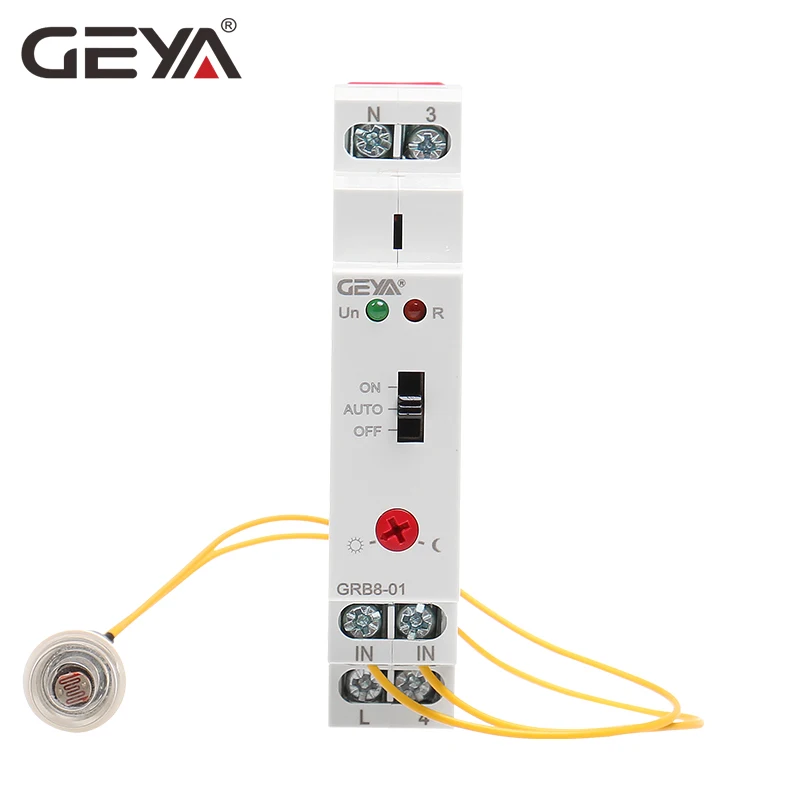

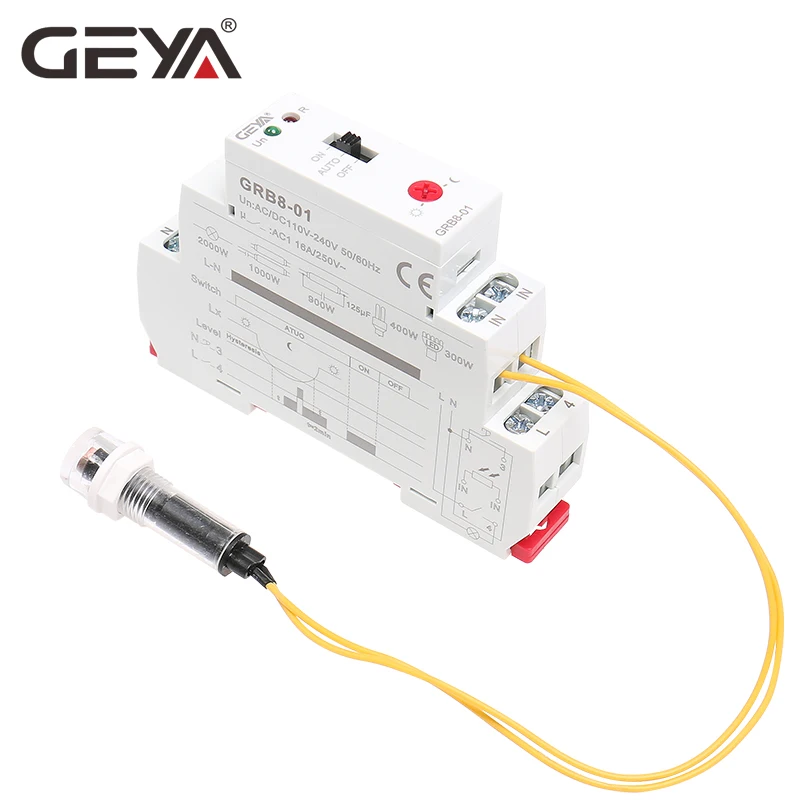

Выключатель управления освещением GEYA GRB8-01 автоматический переключатель уличного и садового
- Категория: Другие переключатели >>>
- Поставщик: Zhejiang,Geya,Electrical,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 9.44 $* | 9.11 $* |
| Jul-16-2025 | 7.68 $* | 7.34 $* |
| Jun-16-2025 | 9.86 $* | 9.57 $* |
| May-16-2025 | 9.63 $* | 9.78 $* |
| Apr-16-2025 | 7.77 $* | 7.2 $* |
| Mar-16-2025 | 9.12 $* | 9.97 $* |
| Feb-16-2025 | 8.85 $* | 8.47 $* |
| Jan-16-2025 | 8.83 $* | 8.98 $* |
Характеристики
Product Description

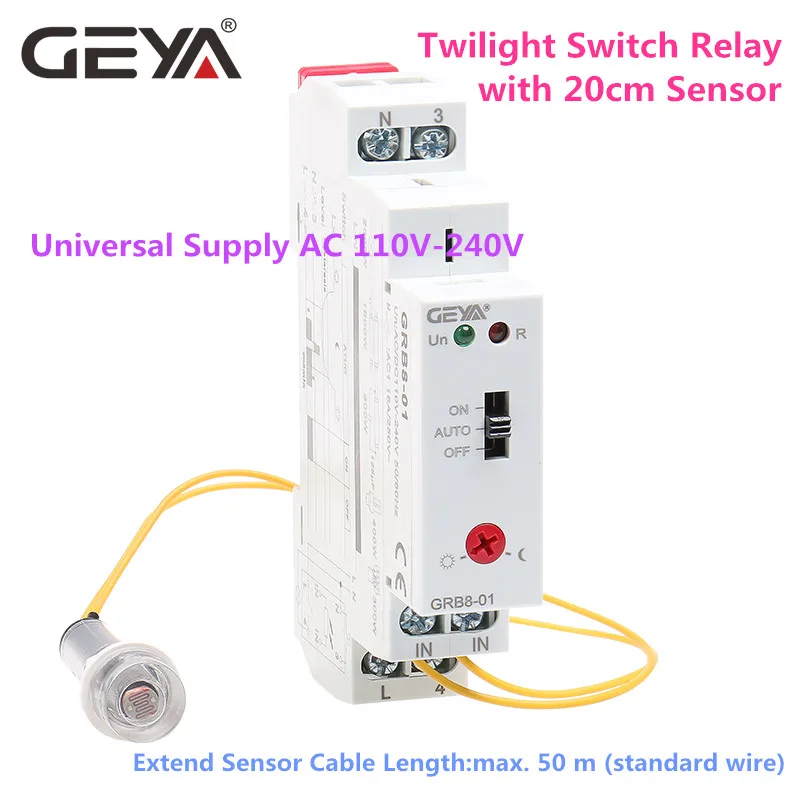

Twilight switch with external photosensor-Used for switching street illumination and garden lights, illumination of advertisements, shop windows, etc.
- Delay Time: 2 mins
-Serves to control lights on the basis of ambient light intensity.
-Level of ambient intensity is monitored by an external sensor and output is switched according to set level on the device.
-Control input for additional control
-Level of ambient intensity is monitored by an external sensor and output is switched according to set level on the device.
-Control input for additional control
-Illumination Rang 1-100Lx
-Function ON-AUTO-OFF
-Suply indicated by GREEN LED, Relay status is indicated by RED LED.
-1-MODULE 18mm, DIN rail mounting, convenient install.
-Function ON-AUTO-OFF
-Suply indicated by GREEN LED, Relay status is indicated by RED LED.
-1-MODULE 18mm, DIN rail mounting, convenient install.
Technical Data

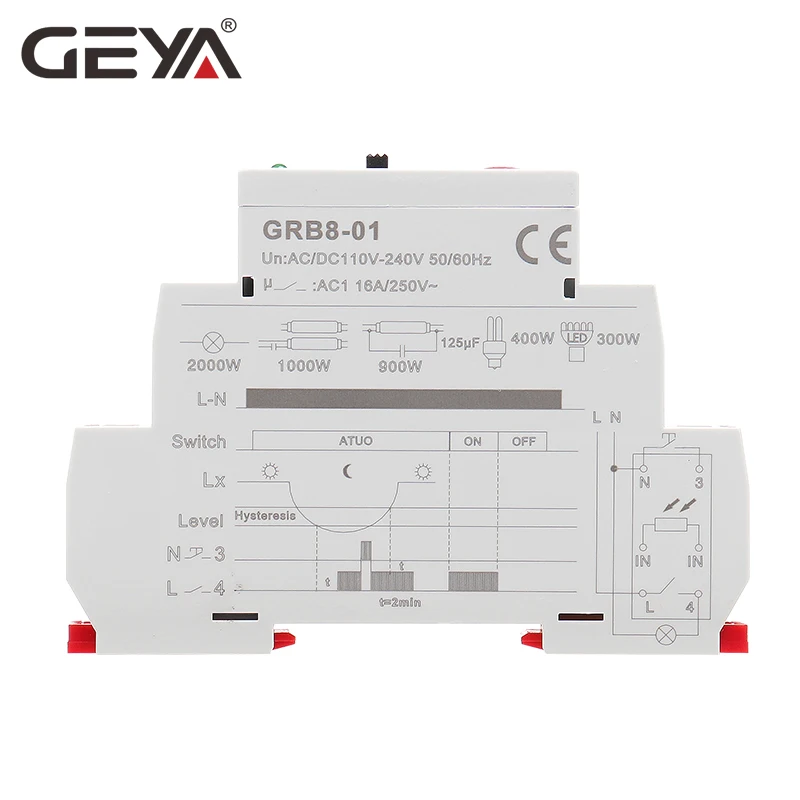

Technical parameters | GRB8-01 |
Function | Twilight switch |
Supply terminals | L-N |
Rated supply voltage | AC 110V-240V |
Rated supply frequency | 50/60Hz |
Burden | max 2VA |
Supply voltage tolerance | -15%;+10% |
Illumination rang | 1-100Lx |
Function | ON-AUTO-OFF |
Supply indication | green LED |
Tolerance sensor | ±35% |
Delay time | 2min |
Sensor cable length | max. 50 m (standard wire) |
Output | 1×SPDT |
Current rating | 1×16A(AC1) |
Switching voltage | 250VAC/24VDC |
Min.breaking capacity DC | 500mW |
Output indication | red LED |
Mechanical life | 1×107 |
Electrical life(AC1) | 1×105 |
Operating temperature | -20℃ to+55℃（-4℉to131℉） |
Storage temperature | -35℃ to+75℃（-22℉to158℉） |
Mounting/DIN rail | Din rail EN/IEC 60715 |
Protection degree | IP40 for front panel/IP20 terminals |
Operating position | any |
Overvoltage cathegory | III. |
Pollution degree | 2 |
Max.cable size(mm2) | solid wire max.1×2.5or 2×1.5/with sleeve max.1×2.5(AWG 12) |
Dimensions | 90×18×64mm |
