Трехфазный генератор переменного тока 50 кВт кВА бесщеточный самовозбуждающийся для дизельного

Generator features and advantages:

1.Overload protection for safe running
2.Top quality & Easy Maintenance
3.Stamford technology & high-quality materials
4.Single bearing or Double bearing
5.Easy to be connected with power networks or other generator sets
6.4 POLE, Brushless, Self-excited, H class insulation, IP23, A.V.R. 100% Copper
7.Farrand Series AC Brushless alternators are conformity to GB755, IECBS5000, VDE0530,NEMA MG1-22 & IEC34, CSA C 22.2-100standards
8.The 2/3 pitch windings avoid excessive neutral currents, ensure low waveform distortion.
9.Low-frequency protection & exterior voltage adjustments.

Technical performance of generator:
HJI series generators are brushless AC synchronous generators, which meet the relevant national and international standards.
Mechanical characteristics of generator:
1. Steel frame
2. IP22 is the standard type of protection grade for all road and marine generators, IP23 is the optional protection grade, which can prevent the damage caused by water dropping into the generator within 60 degrees in the vertical direction, but the rated power is reduced by 5%
3. Single fulcrum generator adopts multi specification disc coupling, which is easy to connect with various engine flywheels
4. Sealed ball bearing without grease

Electrical characteristics:
1. Insulation class H
2. All generator stator windings are 2 / 3 pitch wound, effectively eliminating the third harmonic of voltage
3. The regulation rate of stable voltage is ± 0.5%
4. The excitation stator is equipped with permanent magnet, the generator will not lose field and can always build voltage

Jiangsu Haut Mechanical Co., Ltd,  is located in Yangzhou City.Jiangsu Province . Adjacent to Shanghai Port. With convenient transports access.For more than 20 years.The power of generating units range from 10 kw to 5000 kw.They all adopt automation silence. mobile. and remote monitoring.Our can provide all kinds of diesel generators according to your requirements. Our products are widely used in factories. communication engineering. military. ports. roads.railways and commercial facilities.

Our Advantages:

1. Solve technical problems and provide international warranty service for the engine within 24 hours

2. Design customized products according to customer requirements

3. Polyester varnish, anti-corrosion, protect the appearance and prevent rain

4. Test for two hours before delivery

5. ISO9001 and CE certification, strictly guarantee the quality

Delivery standard configuration:

1. Generator Set Distributor Random Technical Documents

2. Diesel engine, radiator / Muffler / Unit manual

3.  Alternator  / connection elbow  / unit product quality certificate

4.  Steel structure chassis  / Battery and cable  / Control screen

5.  MCCB air protection switch  / Damping pad  / Engine original quality file

6.  Generator original quality documents

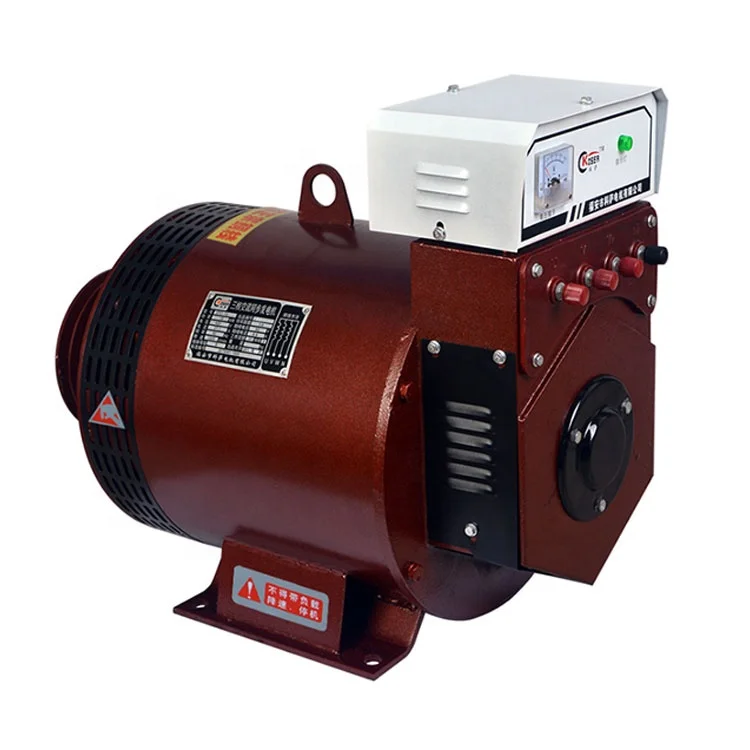

50kw three-phase alternator price 62.5kva brushless alternator self-excited alternator
