30 Вт лазерная маркировочная машина Raycus для изготовления
- Категория: Laser Marking Machines >>>
- Поставщик: Xuzhou,Vank,Cnc,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 2499.72 $* | 2624.39 $* |
| Aug-15-2025 | 2478.65 $* | 2602.10 $* |
| Jul-15-2025 | 2079.9 $* | 2183.79 $* |
| Jun-15-2025 | 2436.40 $* | 2558.82 $* |
| May-15-2025 | 2121.99 $* | 2227.92 $* |
| Apr-15-2025 | 2394.50 $* | 2514.93 $* |
| Mar-15-2025 | 2373.90 $* | 2492.93 $* |
| Feb-15-2025 | 2352.47 $* | 2470.66 $* |
| Jan-15-2025 | 2331.12 $* | 2448.17 $* |
Характеристики
Product Description
Applicable materials
Wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.
Applicable industries
Advertisement, arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping,
packaging and paper indus.
packaging and paper indus.
Product Advantages
Laser engraving cutting offers a huge number of advantages to its users:
Laser engraving cutting allows for great control over beam intensity, length and heat output.
Laser engraving cutting uses an extremely low level of power consumption, typically around 10Kw as compared to 50Kw used by other processes.
Laser engraving cutting can work with a huge range of materials
Laser engraving cutting is a non-contact process, meaning that the laser beam itself never actually touches the material it works with. This reduces heat damage to the surrounding area, which increases productivity by decreasing downtime and repair costs.With the above advantages, it is easy to see why laser cutting is becoming so widely used.
Model | VKD-20LM | VKD-30LM | VKD-50LM | VKD-100LM |
Power | 20W | 30W | 50W | 100W |
Wavelength | 1064nm | 1064nm | 1064nm | 1064nm |
Beam Quality | M2<1.3 | M2<1.3 | M2<1.3 | M2<1.3 |
Output Power | 10%-100%(continuously to be adjusted） | 10%-100%(continuously to be adjusted） | 10%-100%(continuously to be adjusted） | 10%-100%(continuously to be adjusted） |
Output Frequency | 20KHz-100KHz(continuously to be adjusted） | 20KHz-100KHz(continuously to be adjusted） | 20KHz-100KHz(continuously to be adjusted） | 20KHz-100KHz(continuously to be adjusted） |
Power Stability(8h) | <±1%rms | <±1%rms | <±1%rms | <±1%rms |
Focus Spot Diameter | <0.01mm | <0.01mm | <0.01mm | <0.01mm |
Engraving Range | ≤400*400mm(customized) | ≤400*400mm(customized) | ≤400*400mm(customized) | ≤400*400mm(customized) |
Engraving Depth | 1.2mm | 1.2mm | 1.2mm | 1.2mm |
Engraving Speed | 800 standard characters/second | 800 standard characters/second | 800 standard characters/second | 800 standard characters/second |
Minimum Line Width | 0.012mm | 0.012mm | 0.012mm | 0.012mm |
Minimum Character | 0.1mm | 0.1mm | 0.1mm | 0.1mm |
Repeated Accuracy | ±0.003mm | ±0.003mm | ±0.003mm | ±0.003mm |
System Operation | Windows XP/2000/98 | Windows XP/2000/98 | Windows XP/2000/98 | Windows XP/2000/98 |
Cooling Mode | Air Cooling | Air Cooling | Air Cooling | Air Cooling |
Environment Temperature | 10℃~35℃ | 10℃~35℃ | 10℃~35℃ | 10℃~35℃ |
Environment Humidity | 20%-80% | 20%-80% | 20%-80% | 20%-80% |
Power Requirement | 220V/Singlephase/50Hz/<400W | 220V/Single phase/50Hz/<400W | 220V/Single phase/50Hz/<400W | 220V/Single phase/50Hz/<400W |
Life of Laser Module | 100000Hrs | 100000Hrs | 100000Hrs | 100000Hrs |
Host Size | 400mmx350mmx635mm | 400mmx350mmx635mm | 400mmx350mmx635mm | 400mmx350mmx635mm |

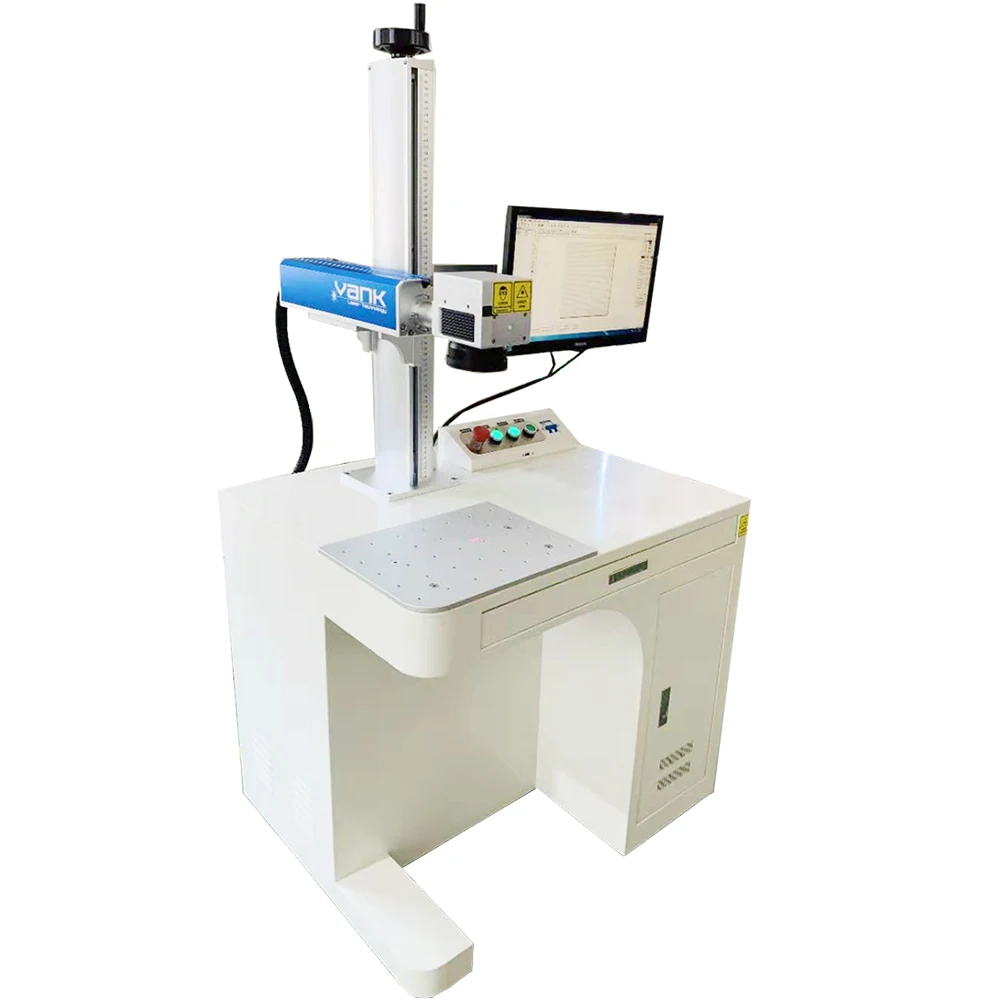

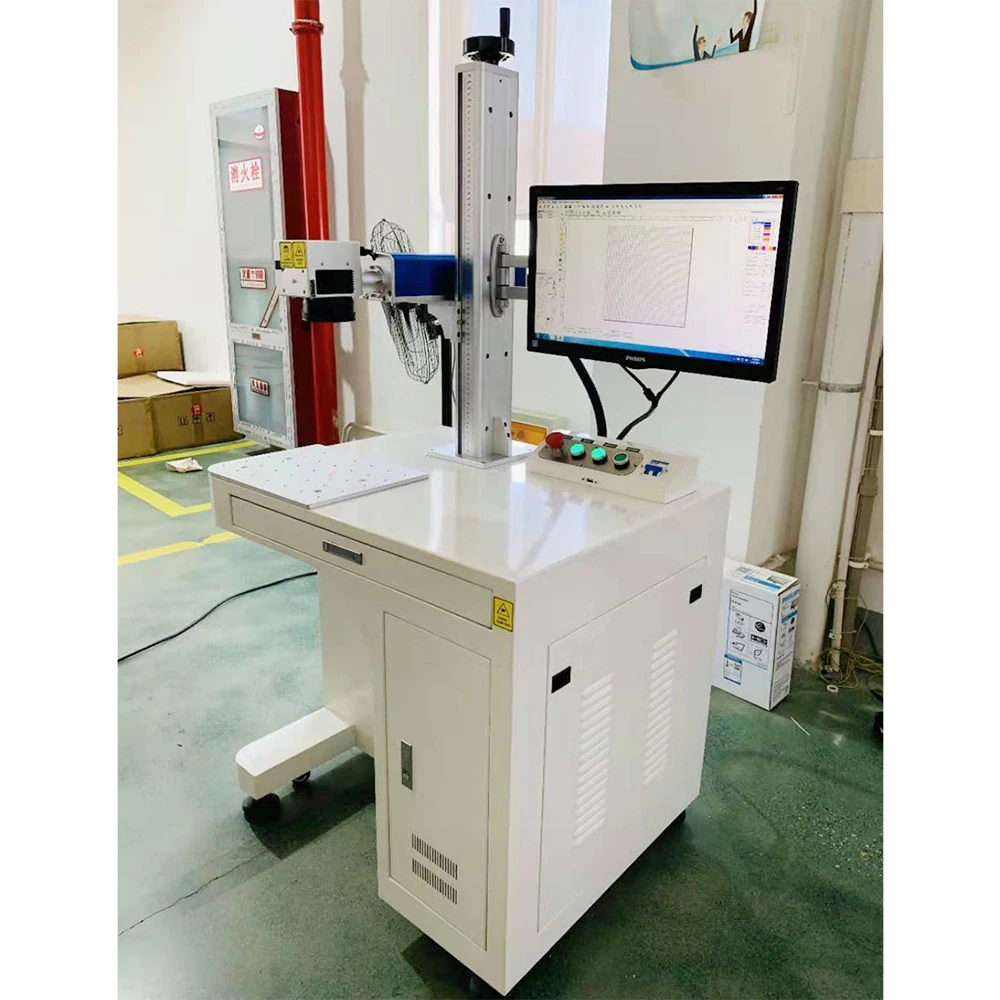

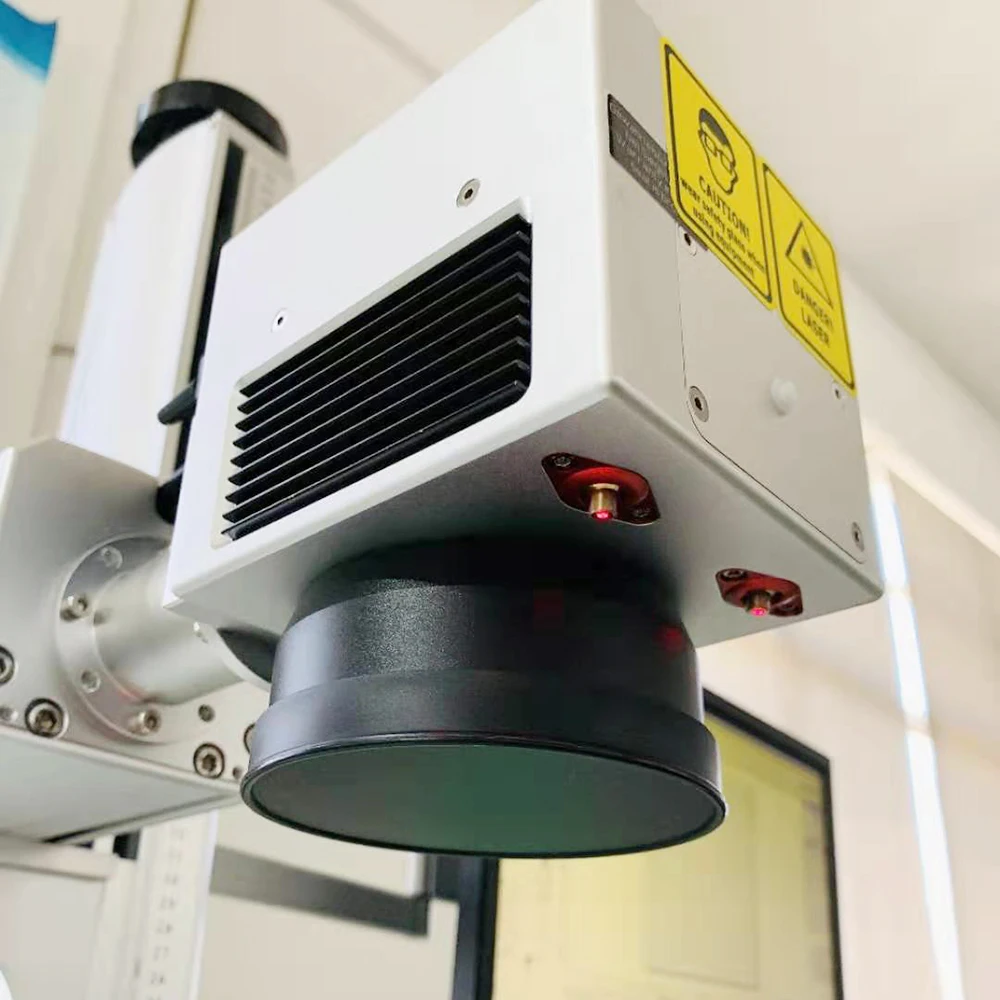

Detailed Images

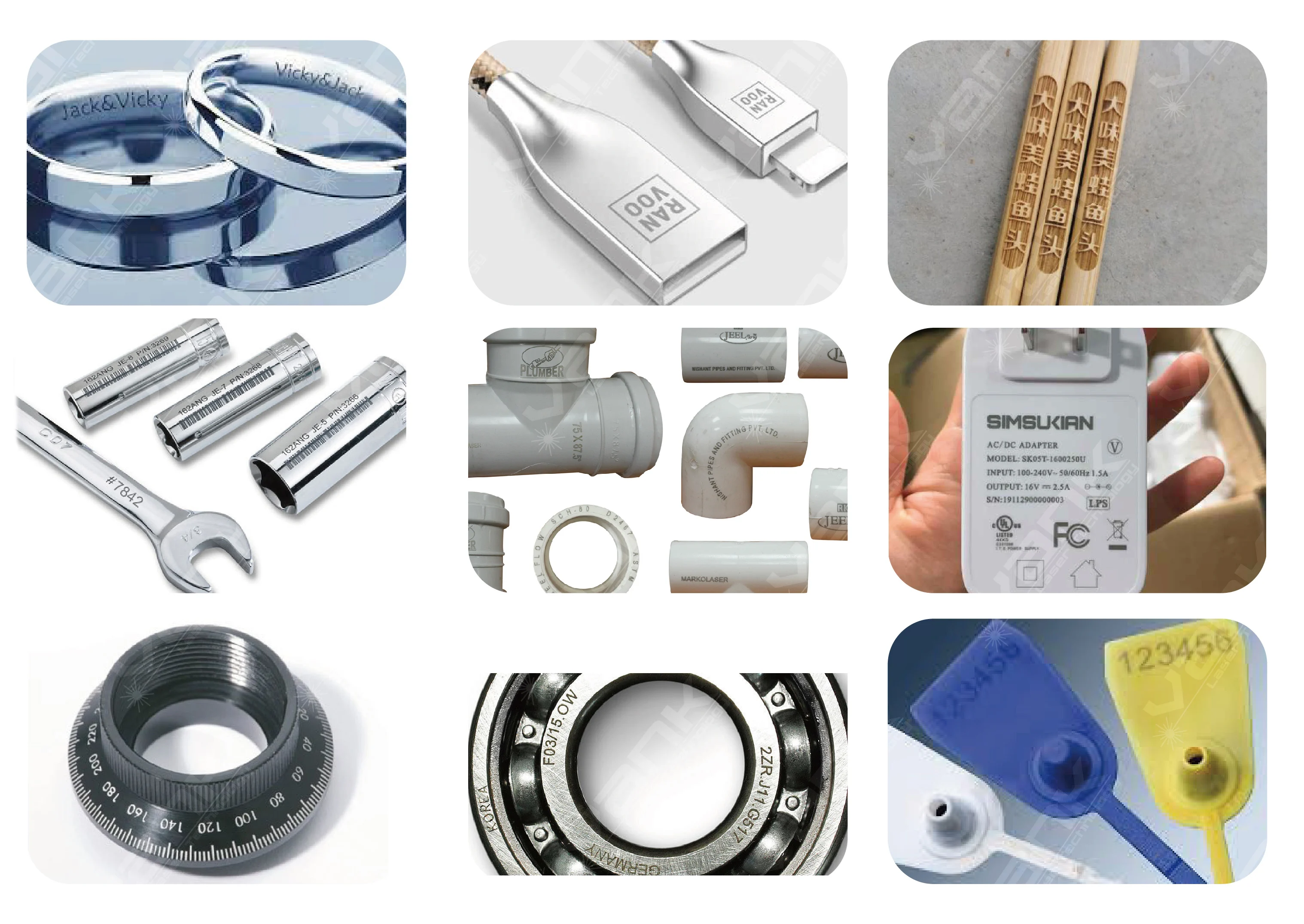

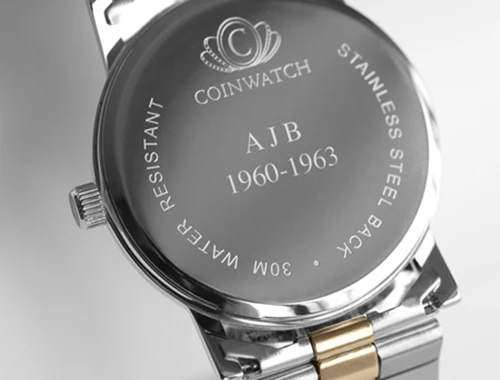

Sample drawing
Certifications
High QUALITY ADVANCED EQUIPMENT
We make the high quality advanced machines,we are providing the best after-sale service in China.
And we are also offering the most competitive price to all of the customers."VANK" is known by more and more people.
And we are also offering the most competitive price to all of the customers."VANK" is known by more and more people.
Prodnction Process

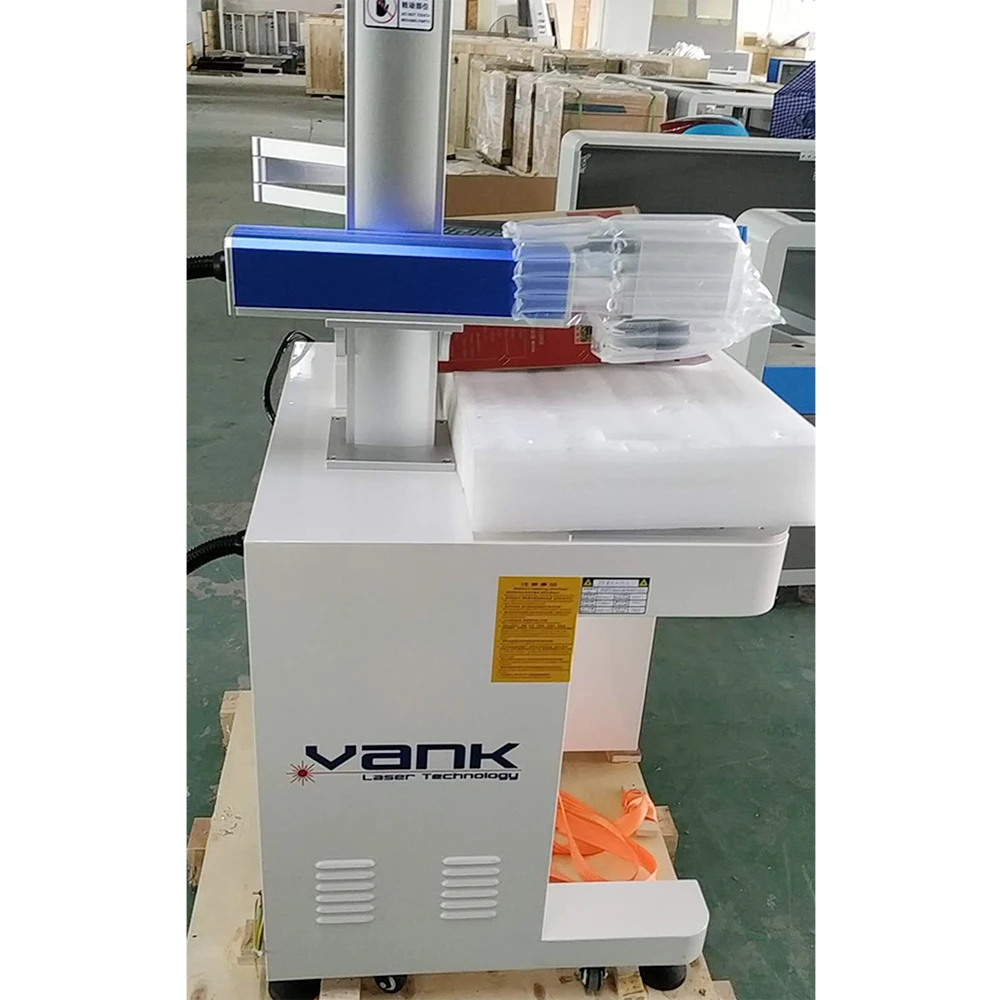

Packing&Shipping
standard wooden package
After Sales Service
Online service
FAQ
1.Q:I am looking for fiber laser machine, any recommendation?
A:Hi, there. Thank you for your concern about our laser cutting machine. It's essential to mention us about your cutting requests (materials, thickness, application and your expectation), our sales experts provides customized consulting service in term of your demand.
2.Q:When I got this machine, but I don't know how to use it. What should I do?
A:We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
3.Q:How can I get the sample to check you quality ?
A:If you want to marking sample to check the quality, we can help you do this. first you need to provide the logo or design to us,free mark samples can be provided.
4.Q:Do the machine can be customized according my requirements?
A:Sure,we have a strong technical team and have rich experience. Our goal is to make you satisfied.
5.Q:Can you arrange the shipment for me?
A:We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, EXW are available.
6.Q:Why should you choose us?
A:We have the high attention and faster response of post-sales in 24hrs. We offer two years-warranty for all products to ensure their activities and after-sales.
Company Introduction
