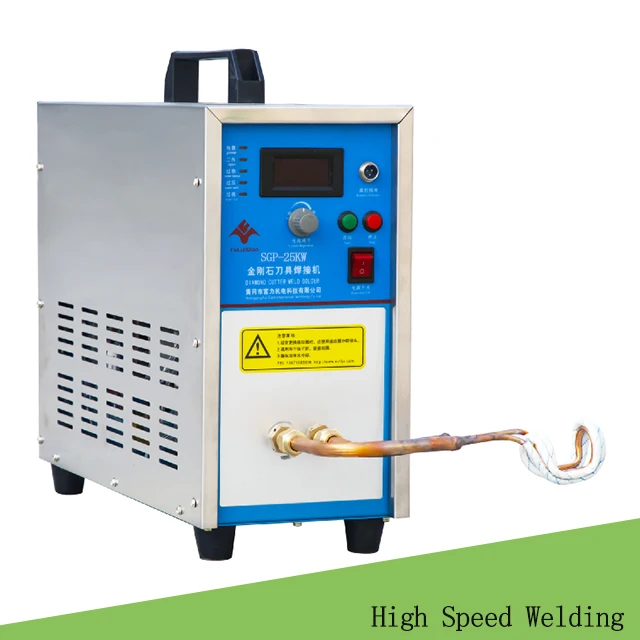

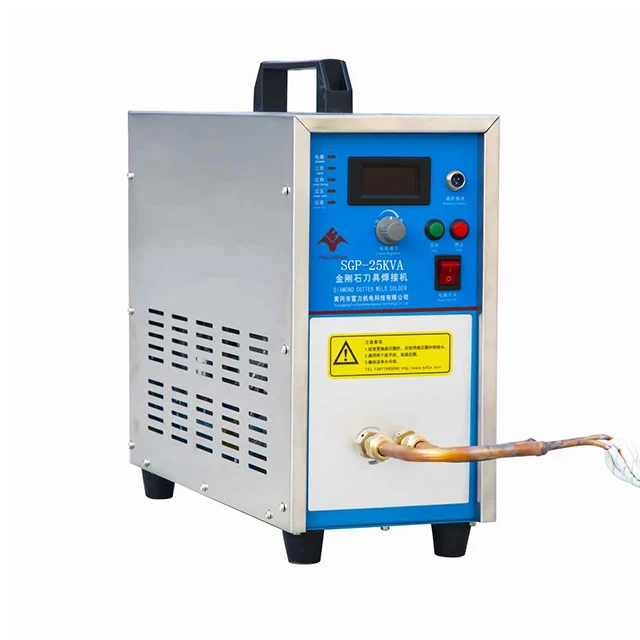

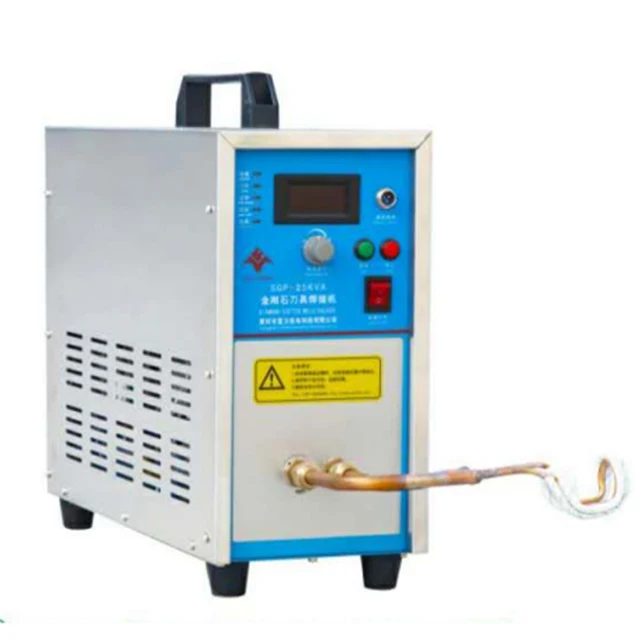

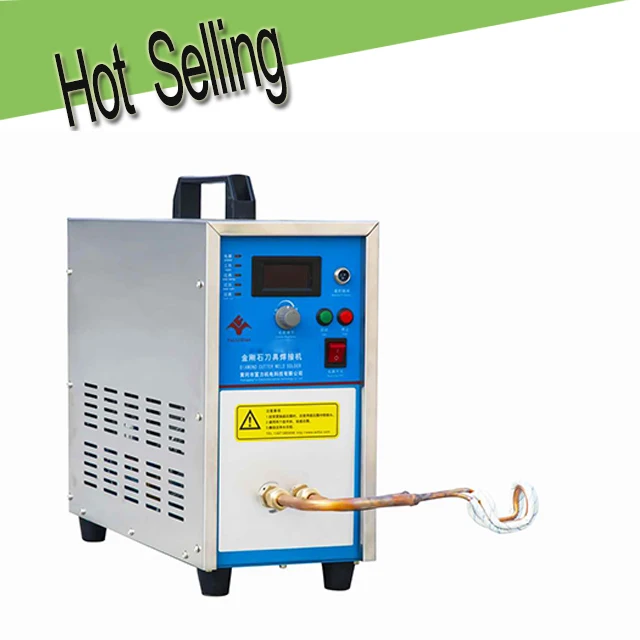

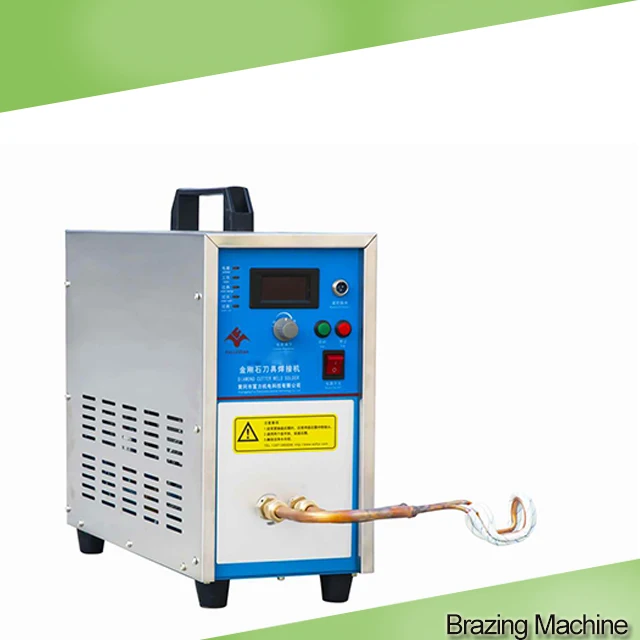

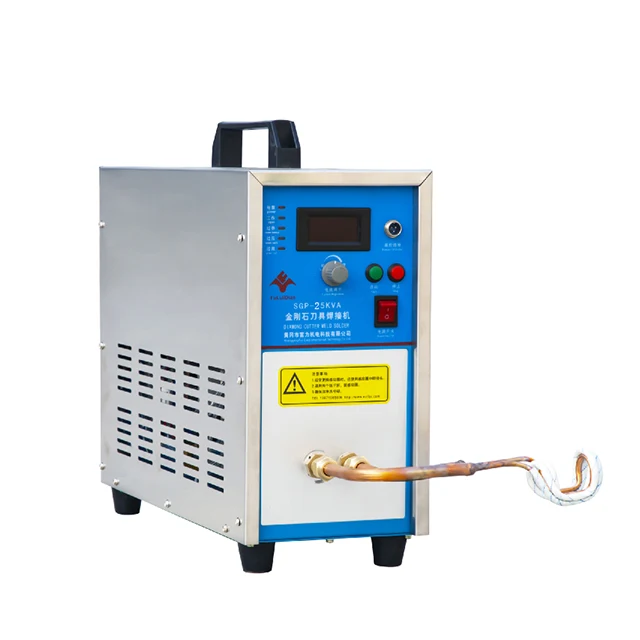

Automatic circular saw blades cutting welding machine for diamond tips

Products description:

1.IGBT solid state inversion technology based

2.Phase locking technology realizes powers & frequency tracking automatically

3.Perfect protective circuit and cooling system (water and air)design,which ensure the good reliability of machine

4.Low energy consumption: converts up to 97.5% above of the expended energy into useful heat

5.Easy operation and installatio

6.Can substitute traditional heating methods.

Model	SGP-25KVA
Input Power	3PHASE 380V 50HZ
Oscillate Power Max	40kw
Max Input Current	2000A
Max Input Power	35kw
Oscillate Frequency	30-100KHz
Cooling Water	≥0.2mpa  flow 2-5L/min
Machine Power Cable Length	2-6M
Duty Cycle	100% 40℃
Input Voltage	320-420v
Size	540*200*450mm
Weight	30kg

Feature:

1. For welding the diamond segments ,grinding wheel;

2.  Environment friendly design , voltage instability;

3.  The machine can be automatic temperature control to realize with equipment;

4.  High power ,High heating Speed, widely application range that can use various diamond tools;

5.  Imported key parts ,lowest hitch, Small in size and taken easily.

Main Parts Introduction :

1.Germany SIEMENS INFINEON IGBT Module. ( 30-100KHZ oscillation frequency, fast response time, superhigh stability, almost spatter-free welding )

2.Japan Nichicon electrolytic capacitor. ( filter capacitor )

3.Imported transistor integrated block.

4.All water pipe use thermostability, High pressure resistance best quality material.

5.Main card, signal circuit, drive circuit board,control circuit board and component6.are adopted:Toshiba, Hitachi,Motorola, China's top manufacturers.

7.International advanced all-solid-state semiconductor power devices.

8.Technical advantage:perfect control, alarm display circuit, getting full automatic tracking frequency, continuous adjustable power, safe dependable protection,clear and accuracy data display and etc.

9.Superiority Advantages: fast heating, wide application, small size, easy installation, simple operation, low power consumption, high efficiency.
