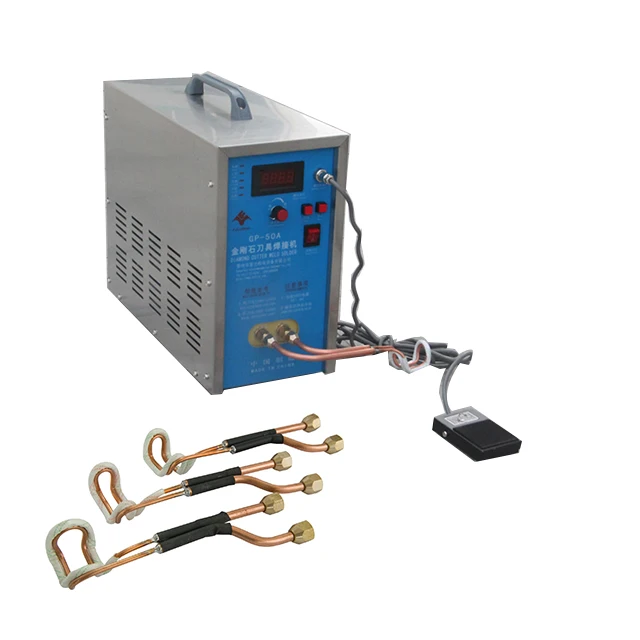

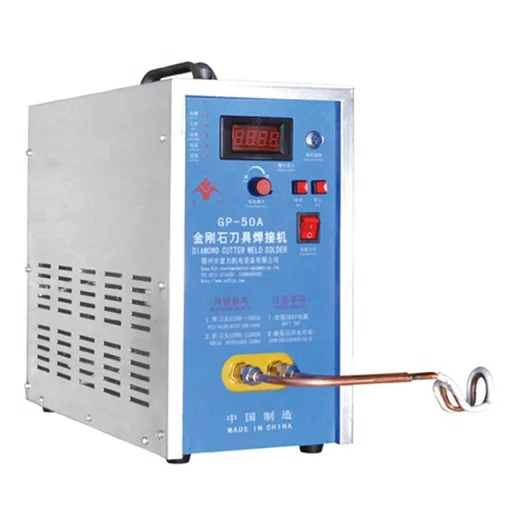

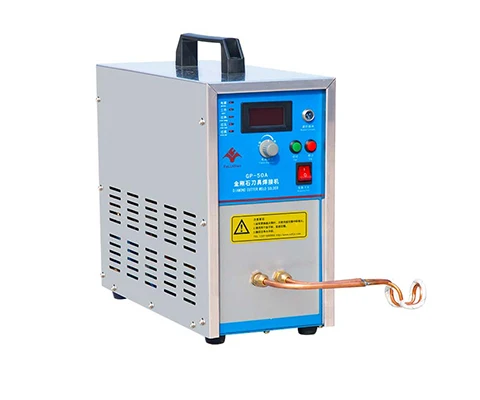

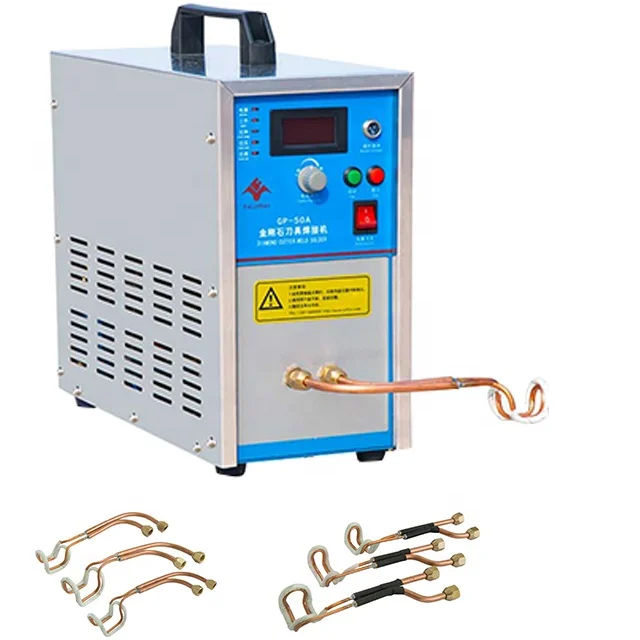

Diamond disc ceramic saw blade disc brazing welding machine

Products description:

Usage:Diamond saw blade welding, marble saw blade welding,woodworking,sawblade welding, cut grass piece of welding, cut aluminum welding.

1.  High power design, up to 50A current , low fault rate, durable and reliable;

2.  Corrosion resistant stainless steel shell;

3.  High heating speed: 4-5s for each segments of 1600mm saw. 8s for each segments of grinding wheel;

4.  24 hours working with 100% full load;

5.  Easy to install, only cooling water and electricity required, No professional needed.

Main Parts Introduction

1.Germany SIEMENS INFINEON IGBT Module. ( 30-100KHZ oscillation frequency, fast response time, superhigh stability, almost spatter-free welding )

2.Japan Nichicon electrolytic capacitor. ( filter capacitor )

3.Imported transistor integrated block.

4.All water pipe use thermostability, High pressure resistance best quality material.

5.Main card, signal circuit, drive circuit board,control circuit board and component6.are adopted:Toshiba, Hitachi,Motorola, China's top manufacturers.

7.International advanced all-solid-state semiconductor power devices.

8.Technical advantage:perfect control, alarm display circuit, getting full automatic tracking frequency, continuous adjustable power, safe dependable protection,clear and accuracy data display and etc.

9.Superiority Advantages: fast heating, wide application, small size, easy installation, simple operation, low power consumption, high efficiency.



Parameters:

Model	GP-50A
Input Power	Single Phase 180-250V 50/60Hz
Oscillate Power Max	20kw
Max Input Current	1500A
Max Input Power	15kw
Oscillate Frequency	30-100KHz
Cooling Water	≥0.2mpa  flow 2-5L/min
Machine Power Cable Length	2-6M
Duty Cycle	100% 40℃
Size	460*200*350mm
Weight	20kg
