10000 Вт 48 В Гибридный солнечный инвертор 10 кВт с зарядным устройством MPPT для системы солнечной энергии дома и


Поделиться:


Цена:758,00 $ - 780,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 902.6 $* 947.21 $*
Aug-15-2025 894.17 $* 939.82 $*
Jul-15-2025 750.45 $* 788.86 $*
Jun-15-2025 879.86 $* 923.63 $*
May-15-2025 766.46 $* 804.82 $*
Apr-15-2025 864.37 $* 907.95 $*
Mar-15-2025 857.56 $* 900.81 $*
Feb-15-2025 849.15 $* 891.52 $*
Jan-15-2025 841.90 $* 883.67 $*

Характеристики



10000w 48v hybrid solar inverter 10kw with MPPT charger for solar power system for home and government


Products Description




Features
* Build in 120A MPPT solar ontroller
* Build in AC charger.
* Build in battery reverse polarity protection.
* Adjustable charge current and output frequency.
* RS-232 communication interface.
* Generator has function of automatic control on and off.
* Full function LCD and LED display.
* AC input and output protect switch.
* Build in battery temperature compensation interface.
* Automatic AC and PV charger after shutdown.
* Low frequency high reliable pure sine wave circuit architecture.
* Optional 8 types of batteries, three-stage intelligent charger

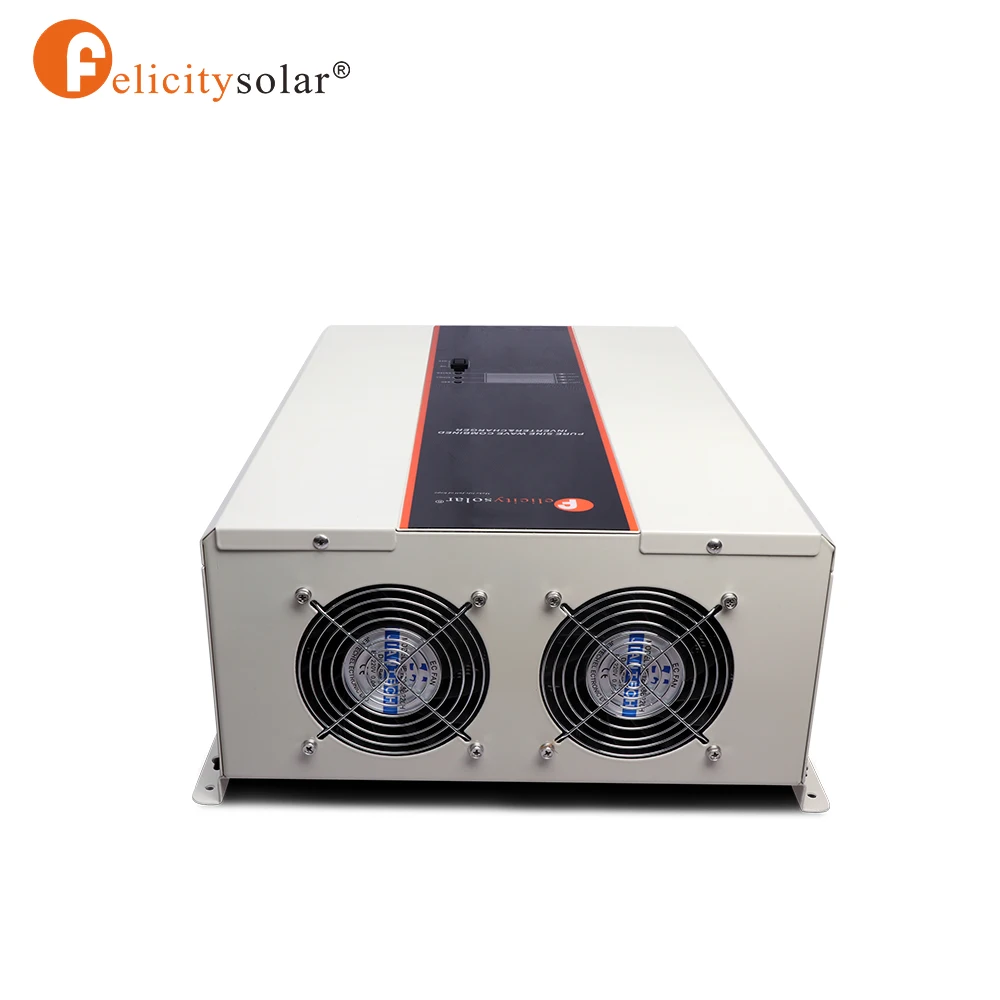

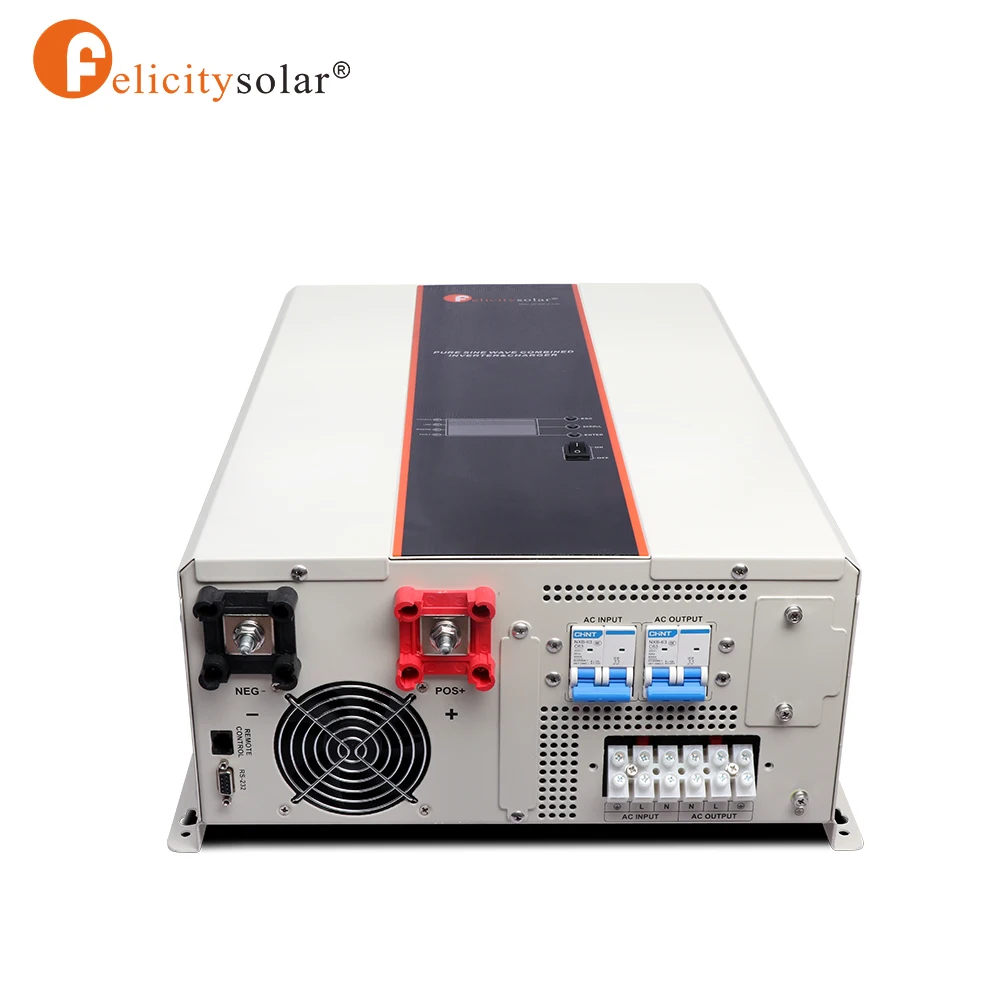

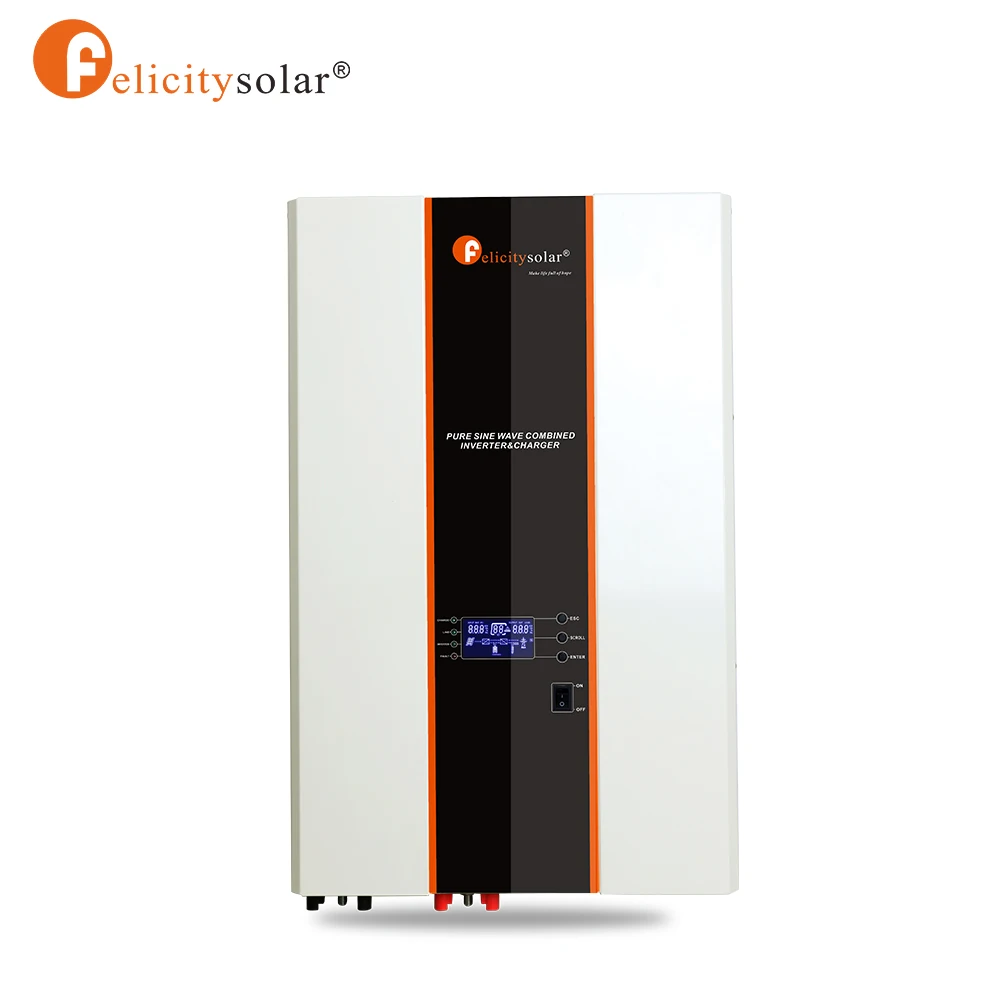

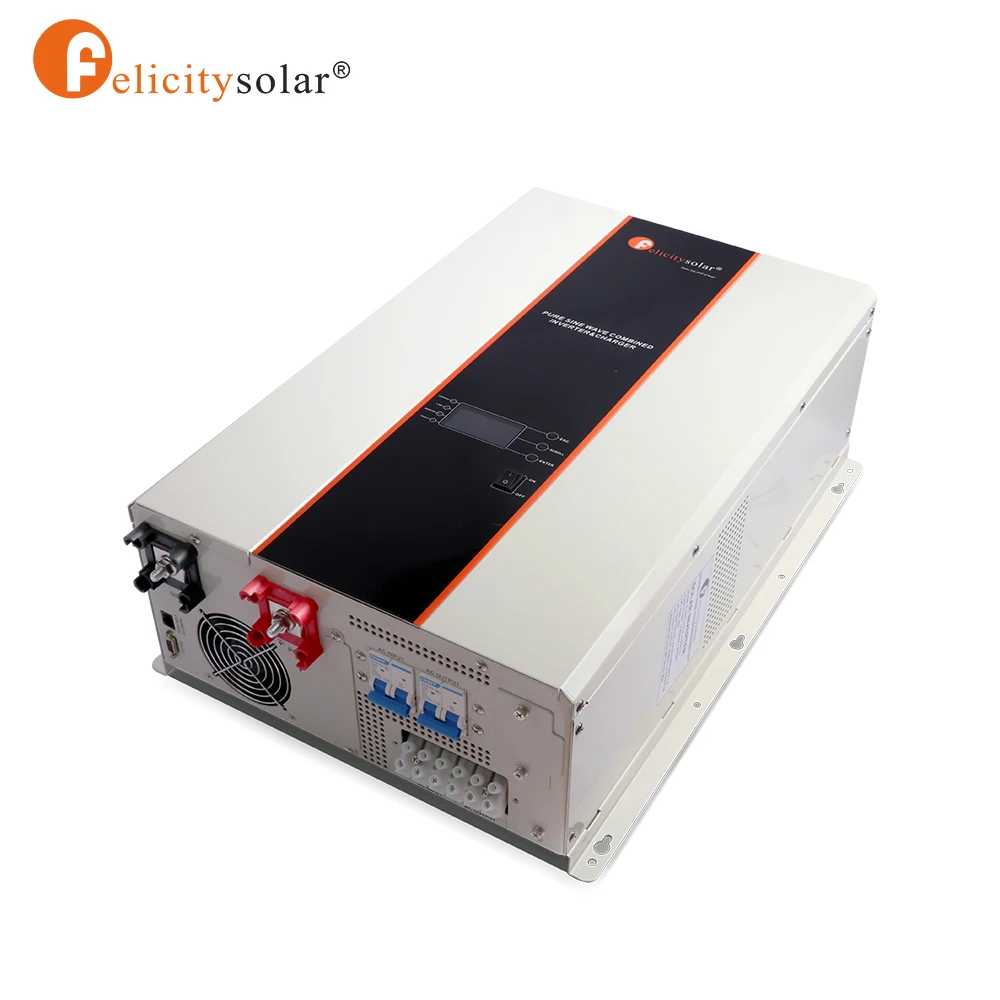

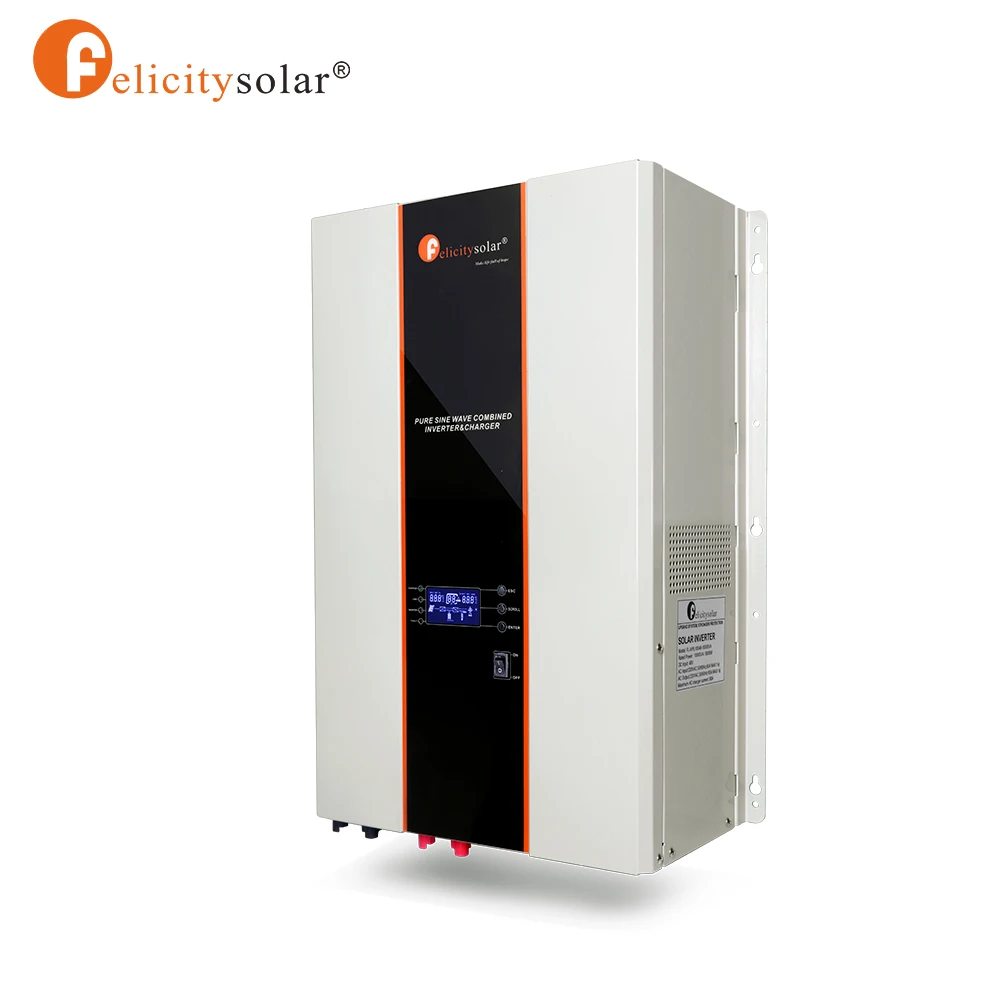

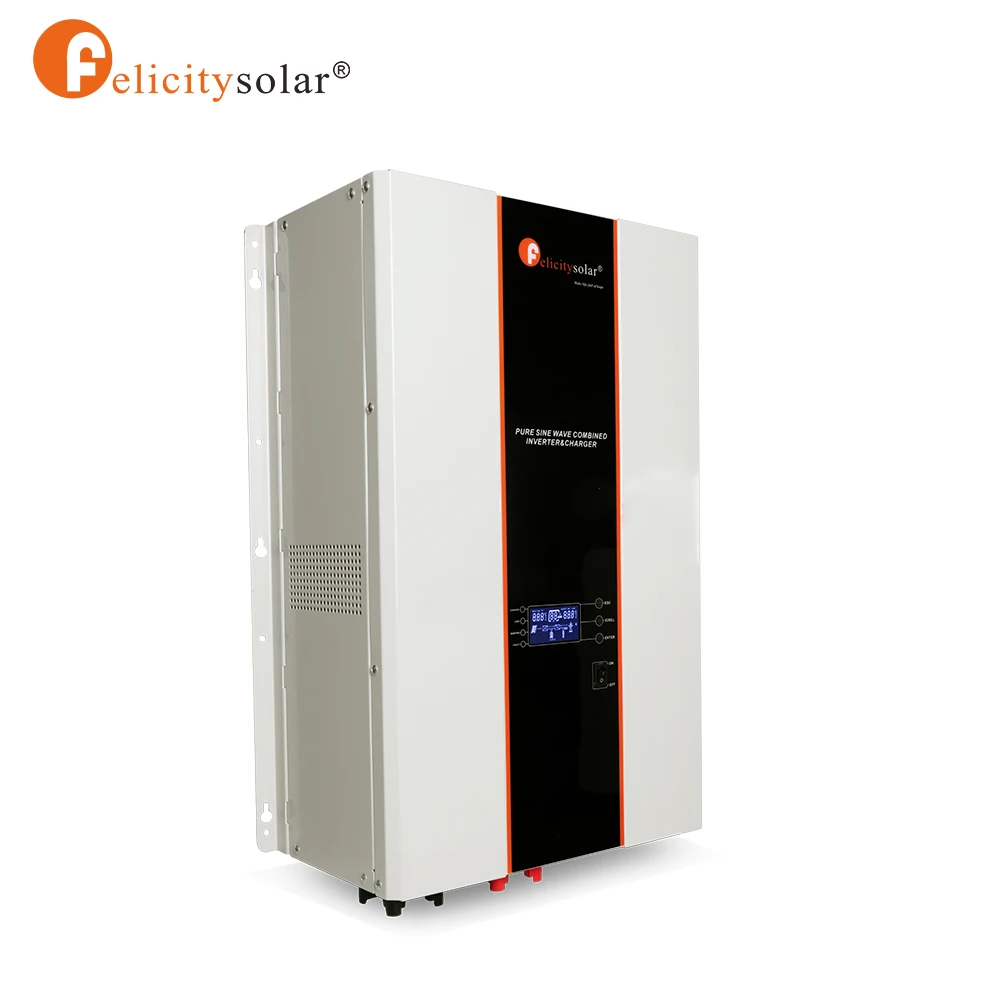

Details Images








Product Parameters


Model IVPL10048
DC Input Voltage
48V
Rated output power(VA)
10000VA 8000W
Rated output power(W)
8000W
Input voltage waveform
Sine(public facility or generator)
Rated input voltage
220vac
Grid low voltage
90Vac±7Vac
Grid low voltagerecovery voltage
100Vac±7Vac
Grid high voltage
280Vac±7Vac
Grid high voltage recovery voltage
270Vac±7Vac
Max input voltage
280Vrms
Rated input frequency
50Hz/60Hz
Grid underfrequency
40±1Hz
Grid underfrequency recovery
42±1Hz
Grid overfrequency
65±1Hz
Grid overfrequency recovery
43±1Hz
Output waveform
Synchronize with input voltage
Overload protection
Air switch protection
Output short circuit protection
Air switch protection
Efficiency(grid)
≥95%
Switching time(AC TO DC)
15ms Typical value
Switching time(DC TO AC)
15ms Typical value/30ms special value
Through battery free
NO
Grid max bypass current
60A
Charging parameter
Rated input voltage
220Vac
Input voltage range
90-280Vac
Rated voltage output
Depending on batty type
Max charging current
80A
Adjustable charging current range
0-80A
Initial voltage of the battery
Breaker
Charging short circuit current
63A
Breaker size
Dependent on battery type or self-defined
Overcharge protection
Yes
MPPT Charging&Grid Charging(MPPT built-in controller is option)
Max PV open circuit voltage
195V
PV voltage working range
60-195VDC
Max input power
6600W
Max mains charging current
120A
Max charging current(mains+solar energy)
200A


Application in Solar Power Syetem






Product packaging






Company Main products




Payment Terms


We support wide range of secure & reliable payment methods like T/T, L/C, West Union, E-checking, Paypal and so on. Please choose your preferred payment method from those listed below.












Payment Terms


T/T or Cash
EXW

30% TT in advance, pay the balance before shipment

FOB
CFR (C&F)

30% TT in advance, pay the balance against copy of B/L
CIF
Payment Terms
L/C
For the amount more than US$90,000 payment, we can accept L/C
Paypal

For the amount less than US$2,000 payment, we can accept Paypal , West Union or MoneyGram
West Union
MoneyGram
Credit card or E-checking

Place a Alibaba Trade Assurance Order


Company Introduction


  Felicity Solar Limited was founded in 2007, located in Guangzhou, China. We have specialized in the solar field for 7 years and made great achievements in overseas markets, For the past 7 years, we have developing rapidly and become a leading enterprise in this field.




   Our major products are solar power system, solar street light and other applicable products such as solar rechargeable lamp, solar kit and so on. We enjoy our company with high technology, experienced engineer, skilled staff and high efficient production line. Taking Customers as Our Orientation, we have been providing perfect technical guidance and after- sales service.
  To strengthen our competency, we improve the quality of our products by optimizing our production process. Thus, we have been approved by ISO9001, CE, ROHS, SONCAP and other authoritative international certification. Currently we have cooperated with partners from more than 40 countries and regional markets from Australia, Turkey, UAE, Singapore, Nigeria and so on and set up more than 10 branch offices in domestic and oversea markets. We are devoted to a low-carbon, energy-saving, environment-friendly life and hope that you can join us and contribute a better life for people in the world.
