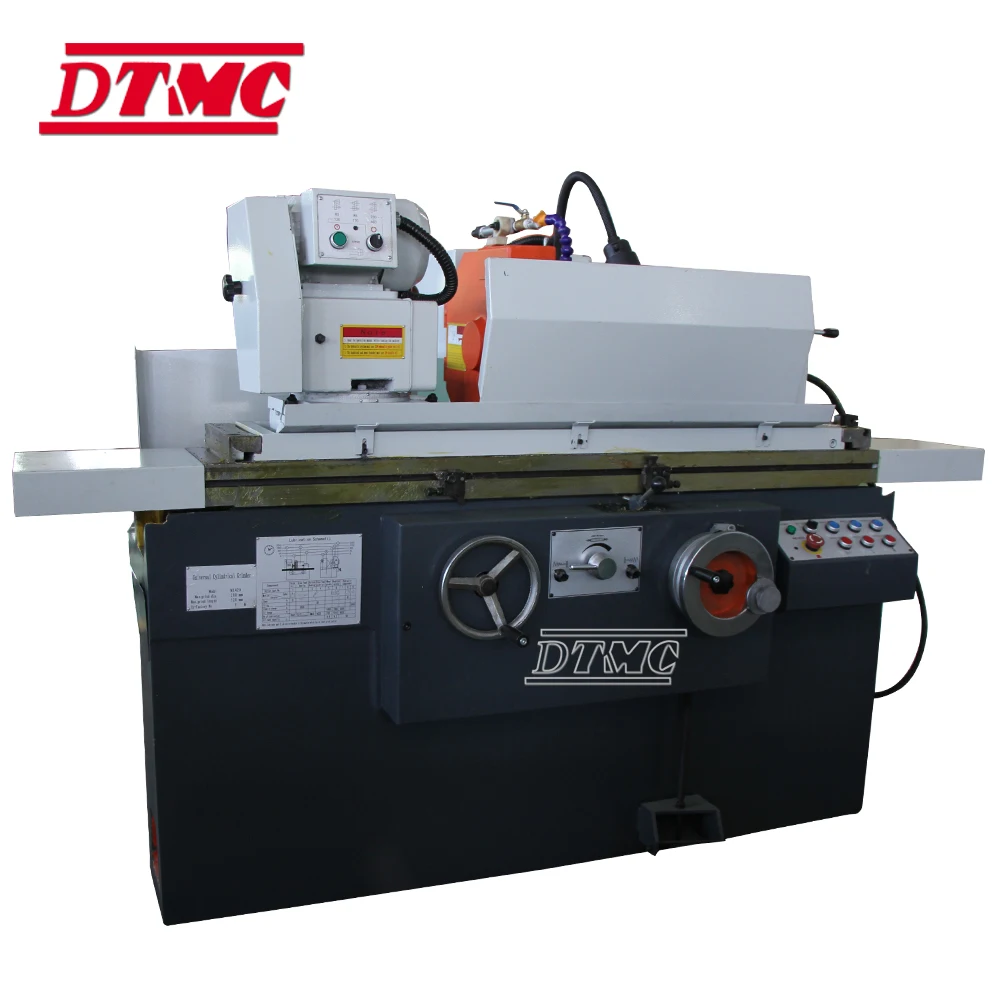

M1420 цилиндрическая шлифовальная машина китайская фабрика точный Универсальный цилиндрический шлифовальный
- Категория: Круглошлифовальные станки >>>
- Поставщик: Tengzhou,Datong,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 11424.39 $* | 11995.84 $* |
| Aug-20-2025 | 11328.58 $* | 11894.28 $* |
| Jul-20-2025 | 9504.54 $* | 9979.78 $* |
| Jun-20-2025 | 11136.20 $* | 11693.8 $* |
| May-20-2025 | 9696.1 $* | 10181.9 $* |
| Apr-20-2025 | 10944.87 $* | 11491.80 $* |
| Mar-20-2025 | 10848.40 $* | 11390.78 $* |
| Feb-20-2025 | 10752.87 $* | 11290.21 $* |
| Jan-20-2025 | 10656.12 $* | 11189.54 $* |
Характеристики
Products Description
Product Paramenters
Universal cylindrical grinding machine | M1420-520 | |
Diameter of grinding | Ø8~200mm | |
Maximum grinding length | 520mm | |
Grinding bore diameter | Ø10~80mm | |
Grinding depth | 125mm | |
Speed of internal mold | 11000r/min | |
Maximum spindle load-bearing | 50kg | |
Maximum travel of working table | 550mm | |
Speed of working table | 100~4000mm/r/min | |
Rotary angel of working table | -5~+9° | |
Rotary angel of headstock | -30~90° | |
Rotary angel of grinding wheel | 180° | |
Center height | 125mm | |
Center sleeve taper | MT2 | |
Grinding wheel size | 200*40*75 | |
Speed of headstock | 60、85、230、120、170、460r/min | |
Speed of grinding wheel | 1780r/min | |
High-speed travel of grinding wheel | 20mm | |
Maximum travel of grinding wheel | 150mm | |
Feeding rate of grinding wheel handwheel per grid | 0.005mm | |
Feeding rate of grinding wheel handwheel per rev | 1mm | |
Power of grinding wheel motor | 4kw | |
Power of headstock motor | 0.25/0.37kw | |
Power of oil pump motor | 0.75kw | |
Power of cooling motor | 0.125kw | |
Dimension (length * width * height) | 2200*1450*1650 | |
Weight | 2500kg | |
Roundness 0.002mm Cylindricity 0.003mm Roughness Ra0.32 | ||
Product packaging
Recommend Products
About Us
Tengzhou Datong Machine Tool Co., LTD (DTMC) is a joint stock enterprise founded in 2000, we are the integration company in R&D,manufacture and export machinery. Our main products lines are 1) CNC machine tools, 2) Precision metal cutting band saws, 3)Precision sheet metalworking machines,4) Lathe Machine, 5)Milling Machine 6) Drilling Machine 7)Grinding Machine,8)Drilling Machine; total eight lines and we can provide more than 600 types products.
Our Factory is located in No.566 Tengfeixi Road,Tengzhou Industrial area.Head office is located in Rm. 805, Floor 10, Wentian Plaza, Tengzhou city, Shandong Province.We are grouped by eight branch factories with around 270,000 square meter workshops and 800 employees (including 220 technicians and management people). We established complete manufacturing systems, covering the casting, punching&pressing, CNC machining, painting and assembling. The advanced casting technology and complete production-chain, give our company very strong competitive ability.
We has approved the ISO9001:2008 Quality management system, ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system and Social Accountability 8000 (SA8000). Most products of ours have been approved the Europe and American safety standard, including CE, GS, EMC & UL. In 2009, the company finished turnover of more than 10 billion US dollars. 90% products were exported to more than 60 countries and regions around the world, especially to Europe and Amercia market and win high reputation always.
With the principle of "Quality First, Credits Foremost", DTMC provides the customers of domestic and abroad with superior products and professional services. We sincerely welcome you to visit our company, to establish business relationship on mutual benefit with us for mutual development !
