  CANGZHOU QUANHENG CARTON MACHINERY CO.,LTD MANUFACTURER FACTORY

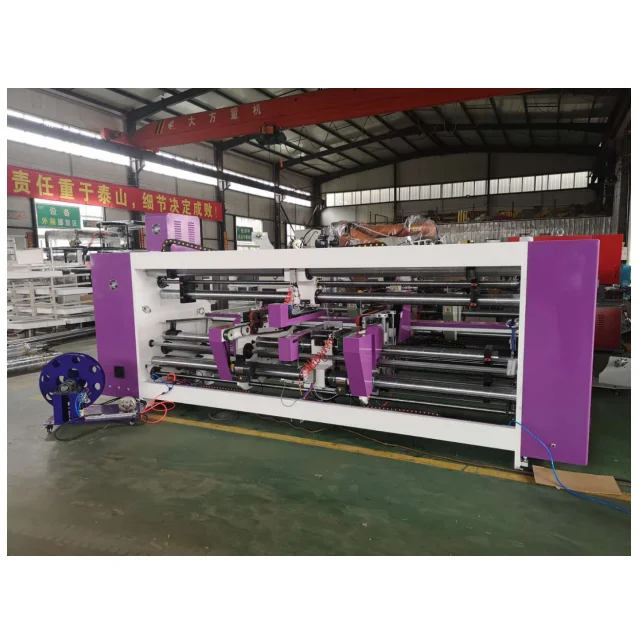

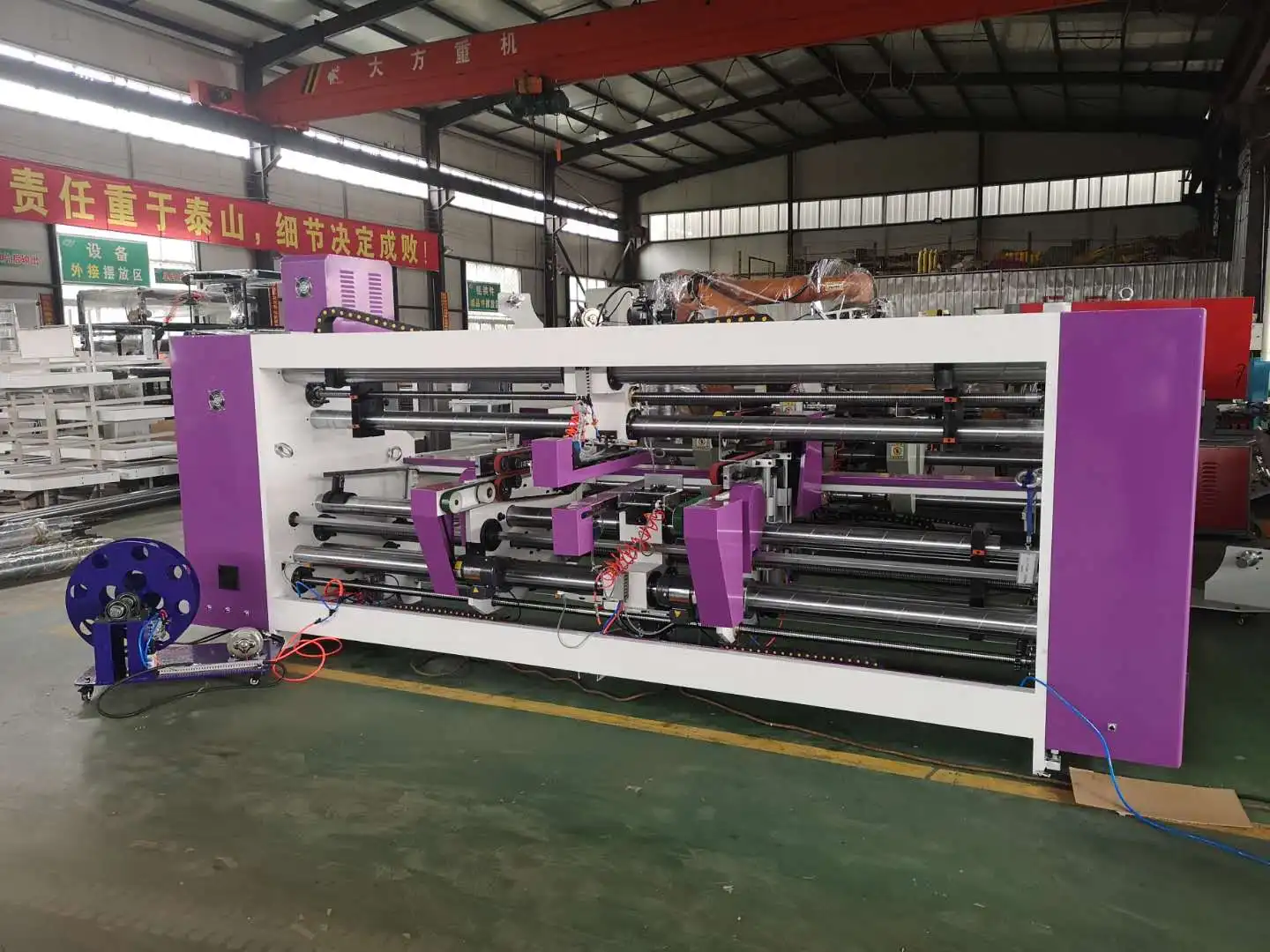

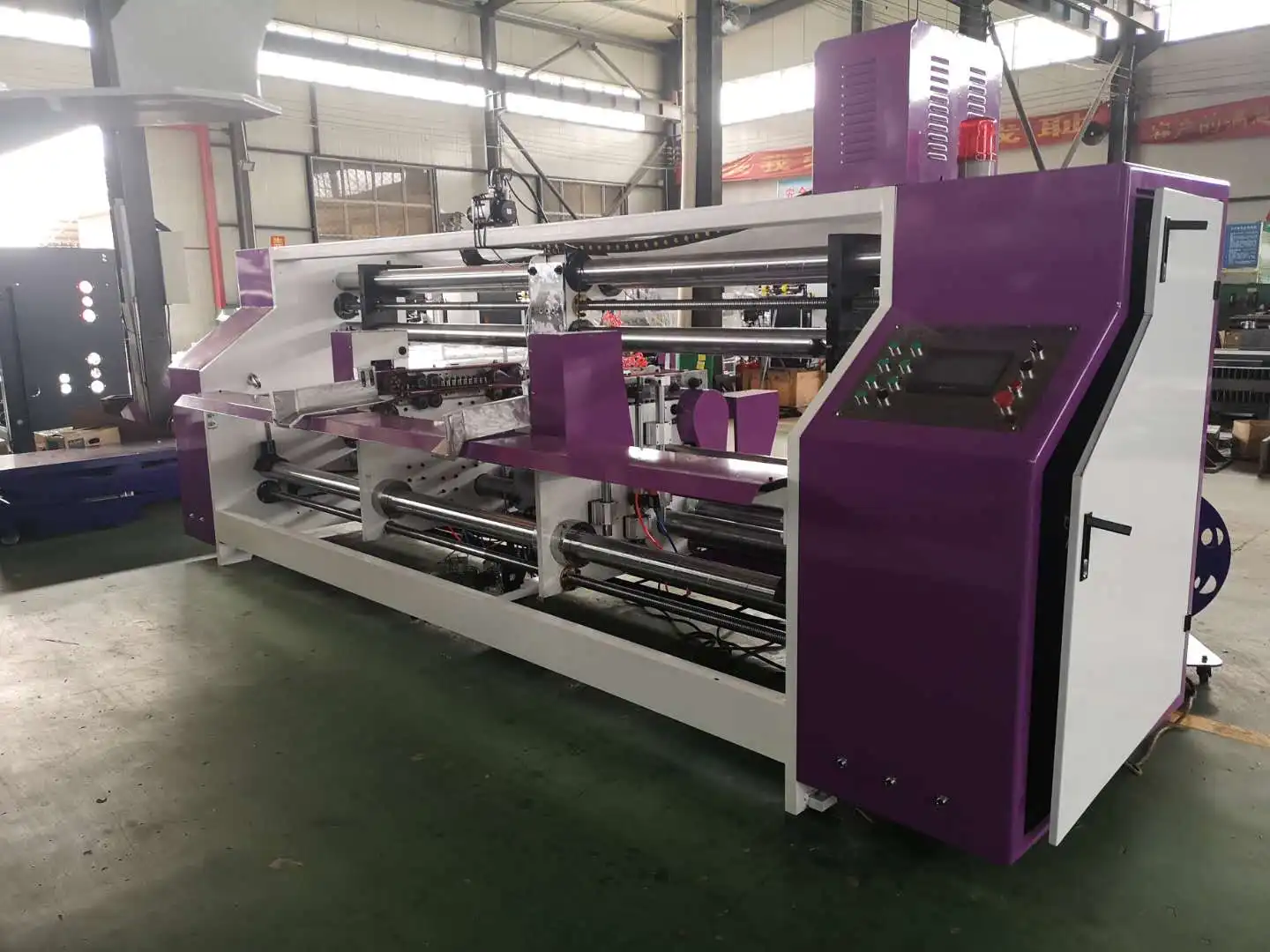

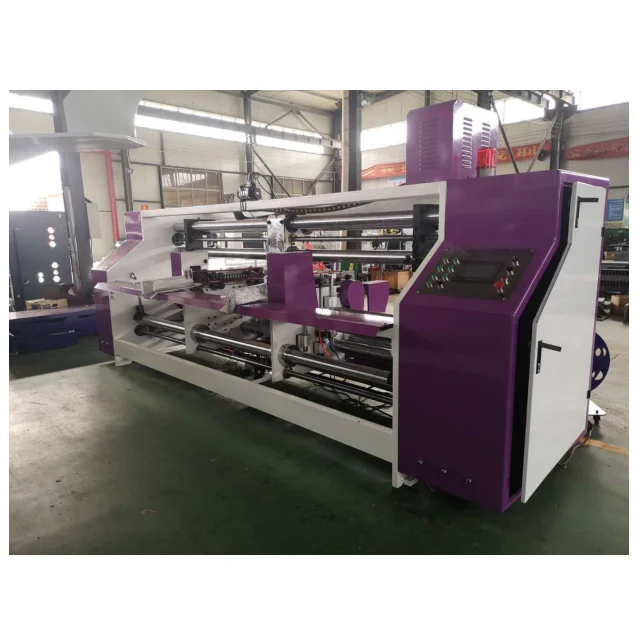

                SDJ- High speed double Stitching machine

One Introduce:

1,Imported Japan 4 servo driving,high precise,with few mechanical driving part to reduce machine damage.

 2,The whole control system adopt Omron PLC control system

 3,The contactor in the control box adopt Siemens brand

 4,Display and circuit breaker adopt schneider ,photo-electric switch and proximity switch adopt Omron branch

 5,Bottom mould and blade adopt Japan Tungsten steel

 6,The whole stitching head adopt special steel to make,computer digital processed.

 7,Change the size only need one minute to finish,same as changing the stitching distance

 8,Can stitch box with lid or box no lid(when customer need the stitching the no lid box ,he must special order)

 9,With automatic counting function in the back part,the finished carton can be delivery to the end by pile,(as the setting number 1--99),it is convenient to strap

10,mechanic speed:500 pcs/min

11,stitching distance:30-120mm can be adjusted.

12,Two function in one machine,can stitch single ,double carton,not normal carton

13,Size adopt whole electric type to control,changing size  only need 2--3minute

14,Can stitch strengthen wire,single  staple,double line stitch,finish on one time

15,Feeding part can automatic count

16,Suitable for medium and small type carton ,stitch quick and easy.

17,the computer set and automatic adjust the distance of stitching ,the stitch distance is 20--120mm can be adjusted.

18,Adopt computer screen to show the damage instruction

19,No lid box can be stitch (special order)

20,suitable for 3-ply 5-ply 7-ply(when use it on 7-ply,customer should order in advance)

21,adopt 4 servo motor(2 head motor,2 control stitch distance motor)

22,whole machine order adjust(option)

23,Automatic wire feed system, no alarm, 20 kg        grail flat wire, to save time.

24,The whole machine electrical isolation transformer protection device.
