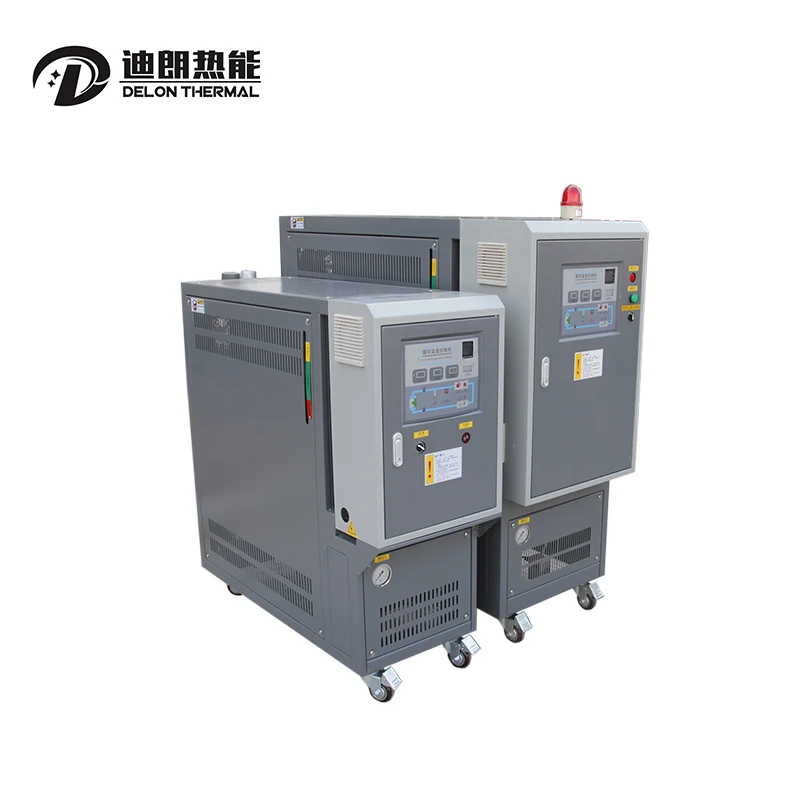

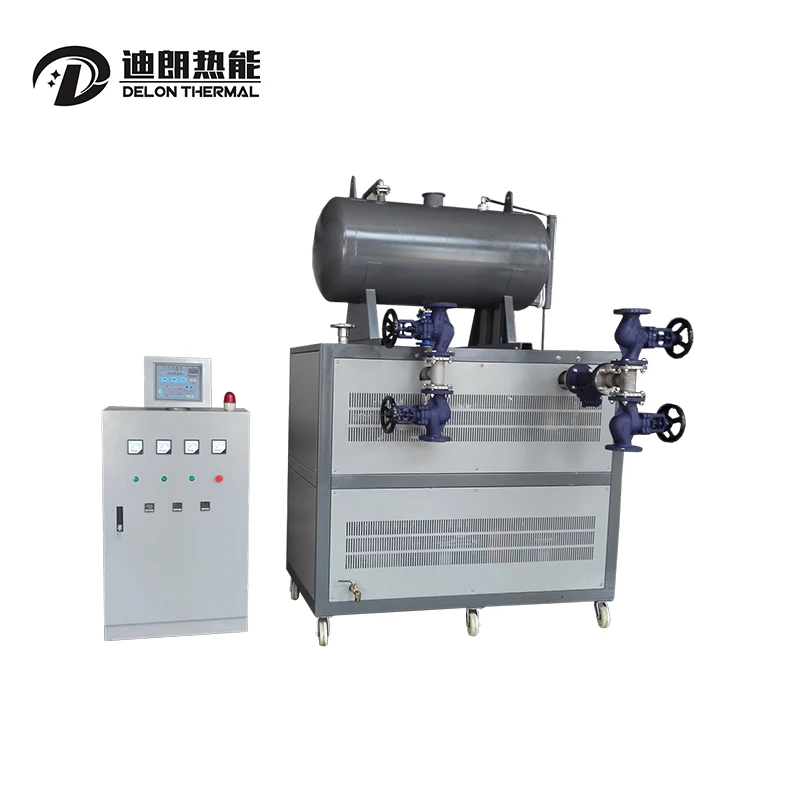

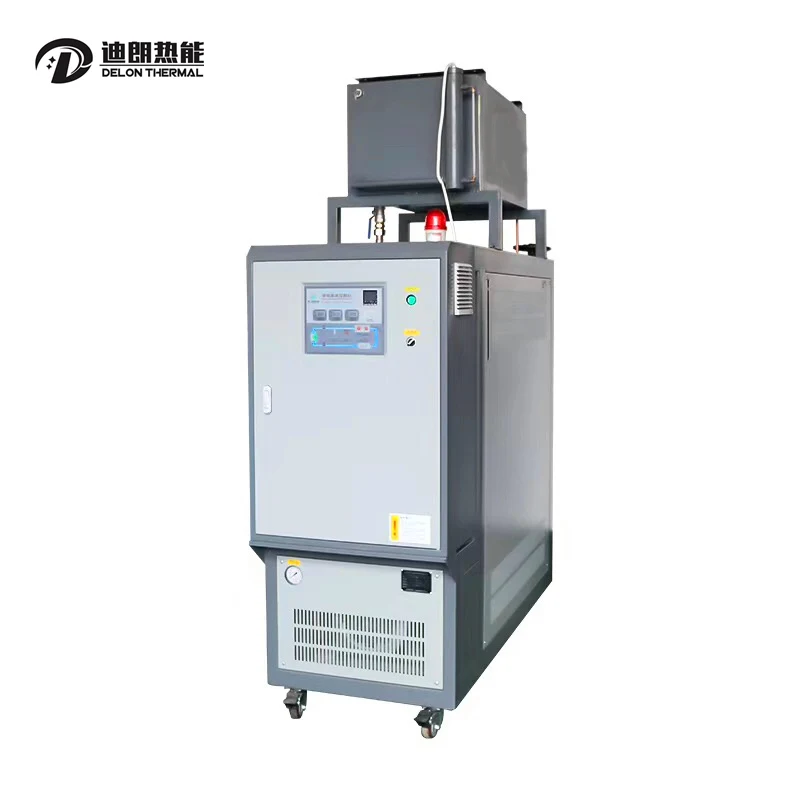

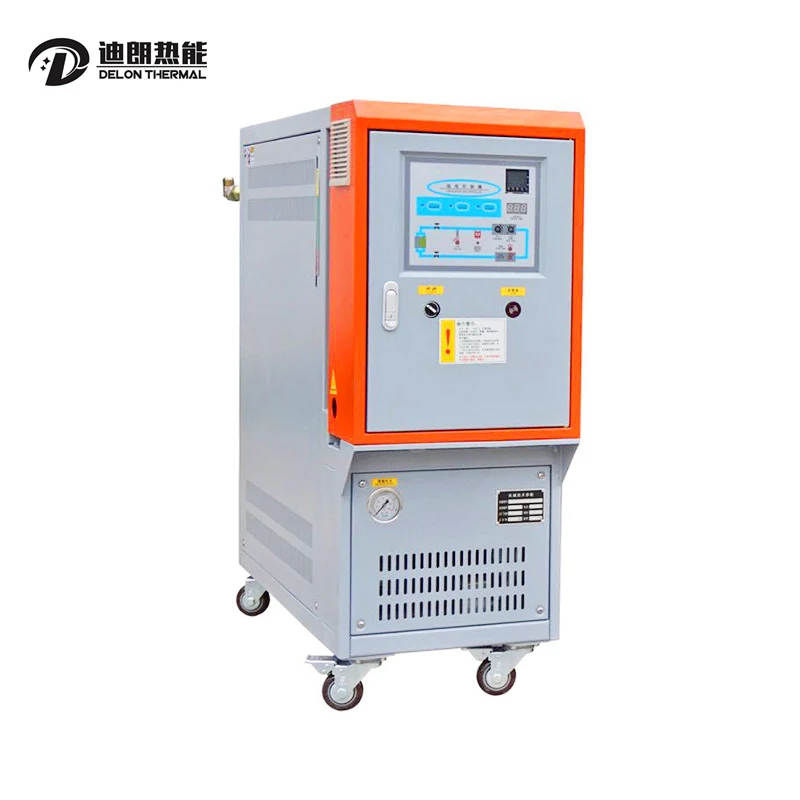

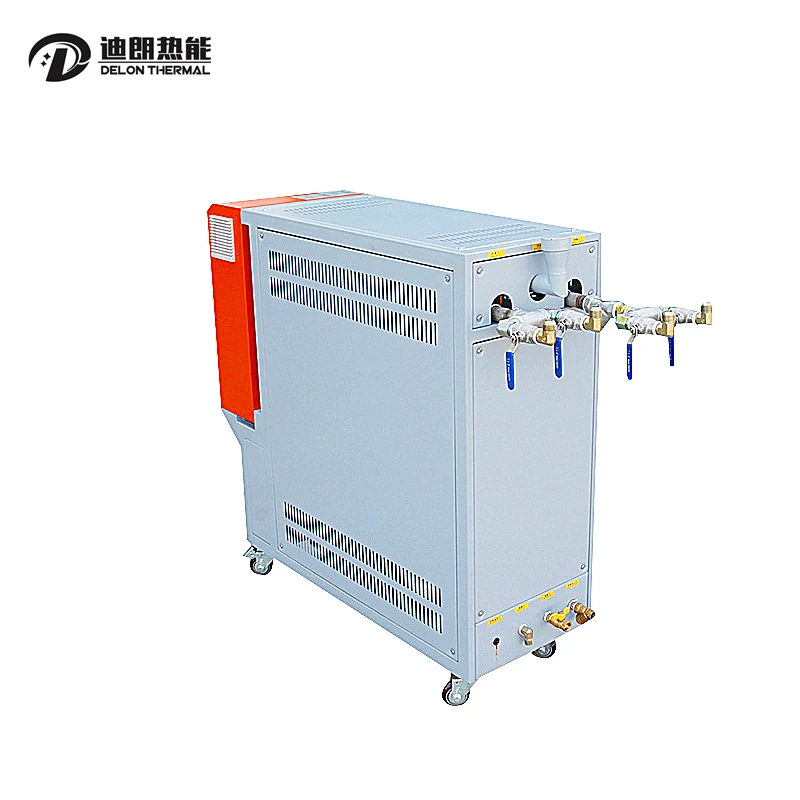

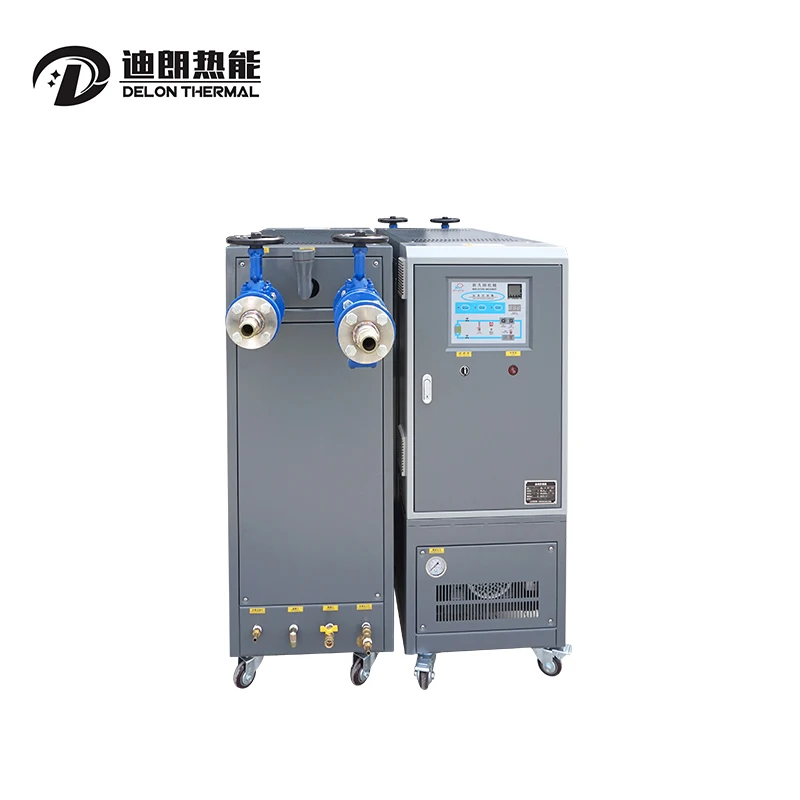

2020 китайский новый дизайн электрический тепловой масляный котел для

Описание и отзывы

Трекер стоимости

Характеристики

Features for Electric Thermal Oil Boiler:



1. Return oil temperature display

2. Automatic air exhaust at startup

3. Heating power switching

4. Hot oil BY-PASS pressure discharge circuit

5. Multi-point temperature control unit can be customized

6. Oil pump horsepower and heating power can be customized

7. Temperature control accuracy: PID±1°C

8. Isolated electric control box to extend the service life of electrical appliances

9. The electrical appliance adopts ABB, SCHNEIDER, WEIDMULLER, SIEMENS, OMRON, FUJI, LS, MOELLER, WEST…

10. Temperature control range: Oil inlet temperature +15℃→300℃

11. 304/316L stainless steel or carbon steel integrated pipeline to reduce resistance and rust…

12. The thermometer adopts WEST or OMRON microcomputer dual-group P.I.D control, touch-measure internal storage automatic calculation, accurate and reliable, saving more than 35% of power

13. Complete security protections with faults display. Repair and maintenance does not require professionals.

(Optional)

14. Explosion-proof type

15. Air blowing and oil returning

16. Instant cooling shutdown

17. RS485 communication to realize automatic management and remote control.

18. Control system: PLC programmer + HMI





Technical Specifications for Electric Thermal Oil Boiler:



Model / Series	Unit	DEL-20	DEL-40	DEL-50	DEL-75	DEL-100	DEL-150
Max. outlet oil temp.	°C	300 (Adjustable)
Main power supply	V/HZ	380V±5%/50HZ, 3Ph (3P+N+E) or Customs Made
Heat transfer medium	—	Heat transfer oil
Cooling mode	—	Indirect cooling
Input power	kW	18/24	24/36	30/40/50	50/60/70	60/75/90	90/120/150
Oil pump power	HP	2	4	5	7.5	10	15
Max. flow rate of pump	m3/h	7.2	12	18	25	30	45
Max. system pressure	bar	3	3.5	3.5	4	4.5	5
Oil Inlet diameter	DN	20	20	25	32	40	50
Oil outlet diameter	DN	20	20	25	32	40	50
Expansion tank volume	Liter	35	50	70	100	150	180
System power consumption	kW	20/26	27/39	34/44/54	56/66/76	68/83/98	102/132/162
Cooling water pipe	mm	DN15	DN15	DN15	DN15	DN20	DN20
Overall size	L  mm	1140	1300	1600	1600	1600	1900
	W  mm	420	500	580	580	580	660
	H  mm	1000	1200	1250	1250	1250	1490
Net weight	Kg	140	200	240	320	370	490

































































 Note:

1. The choice of oil pump is as per customers’ requirements.

2. The diameter of pipe inlet & outlet could be modified as per customers’ requirements.

3. The above specifications are subject to change without notice, special requirements could be designed.
