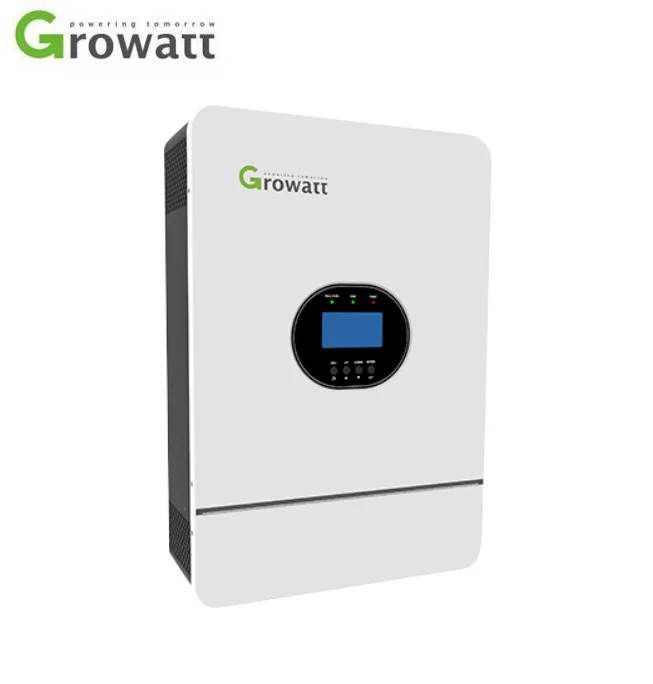

T-5Growatt сетевой инвертор Mppt 48 в 2 кВт 3 5 однофазный SPF 5000TL
- Категория: Solar Inverter >>>
- Поставщик: Eitai,(Xiamen),New,Energy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 619.21 $* | 650.50 $* |
| Aug-15-2025 | 614.30 $* | 645.40 $* |
| Jul-15-2025 | 515.60 $* | 541.96 $* |
| Jun-15-2025 | 603.43 $* | 633.83 $* |
| May-15-2025 | 525.22 $* | 551.47 $* |
| Apr-15-2025 | 593.44 $* | 623.51 $* |
| Mar-15-2025 | 588.42 $* | 617.83 $* |
| Feb-15-2025 | 582.51 $* | 611.70 $* |
| Jan-15-2025 | 577.35 $* | 606.68 $* |
Характеристики
Our Advantage

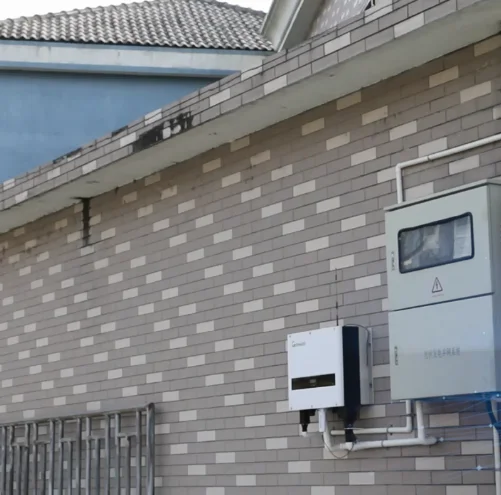

Installtion And Details
Product Datas
Datasheet | SPF 3000TL HVM | SPF 5000TL HVM | SPF 3000TL HVM-WPV | SPF 5000TL HVM-WPV | ||||
Battery voltage | 24VDC | 48VDC | 24VDC | 48VDC | ||||
INVERTER OUTPUT | ||||||||
RATED POWER | 3000VA/ 3000W | 5000VA/ 5000W | 3000VA/3000W | 5000VA/5000W | ||||
Parallel Capability | No | Yes, 6 units | Optional/ support 6 units | |||||
AC Voltage Regulation (Battery Mode) | 230VAC ± 5%@ 50/60Hz | 230VAC ± 5% @ 50/60Hz | ||||||
Surge Power | 6000VA | 10000VA | 6000VA | 10000VA | ||||
Efficiency (Peak) | 90% | 93% | ||||||
Waveform | Pure sine wave | Pure sine wave | ||||||
Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) | 10 ms (For Personal Computers); 20 ms (For Home Appliances) | ||||||
SOLAR CHARGER | ||||||||
Maximum PV Array Power | 1000W | 4500W | 3500W | 5500W | ||||
MPPT Range @ Operating Voltage | 30VDC ~ 80VDC | 60VDC ~115VDC | 120VDC-430VDC | |||||
Maximum PV Array Open Circuit Voltage | 100VDC | 145VDC | 450VDC | |||||
Maximum Solar Charge Current | 40A | 80A | 100A | |||||
Maximum Efficiency | 97% | 97% | 97% | |||||
AC CHARGER | ||||||||
Charge Current | 30A | 60A | 80A | |||||
AC Input Voltage | 230 VAC | 230 VAC | 230VAC | |||||
Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | ||||||
PHYSICAL | ||||||||
Dimension (D/W/H) in mm | 120/315/390 | 130/350/455 | 485/330/135 | |||||
Net Weight (kgs) | 8 | 14.5 | 12 | |||||
OPERATING ENVIRONMENT | ||||||||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | 5% to 95% Relative Humidity(Non-condensing) | ||||||
Operating Temperature | 0°C - 55°C | 0°C- 55°C | ||||||
Storage Temperature | -15°C - 60°C | -15°C -60°C | ||||||
Certificates and Approvals | CE, IEC 62109-1/2, VDE 0126-1-1, Greece, VFR 2014, VDE-AR-N4105, G83, EN50438, CEI 0-21, AS4777, IEC 61727, IEC 62116, CQC | |||||||
Product Application

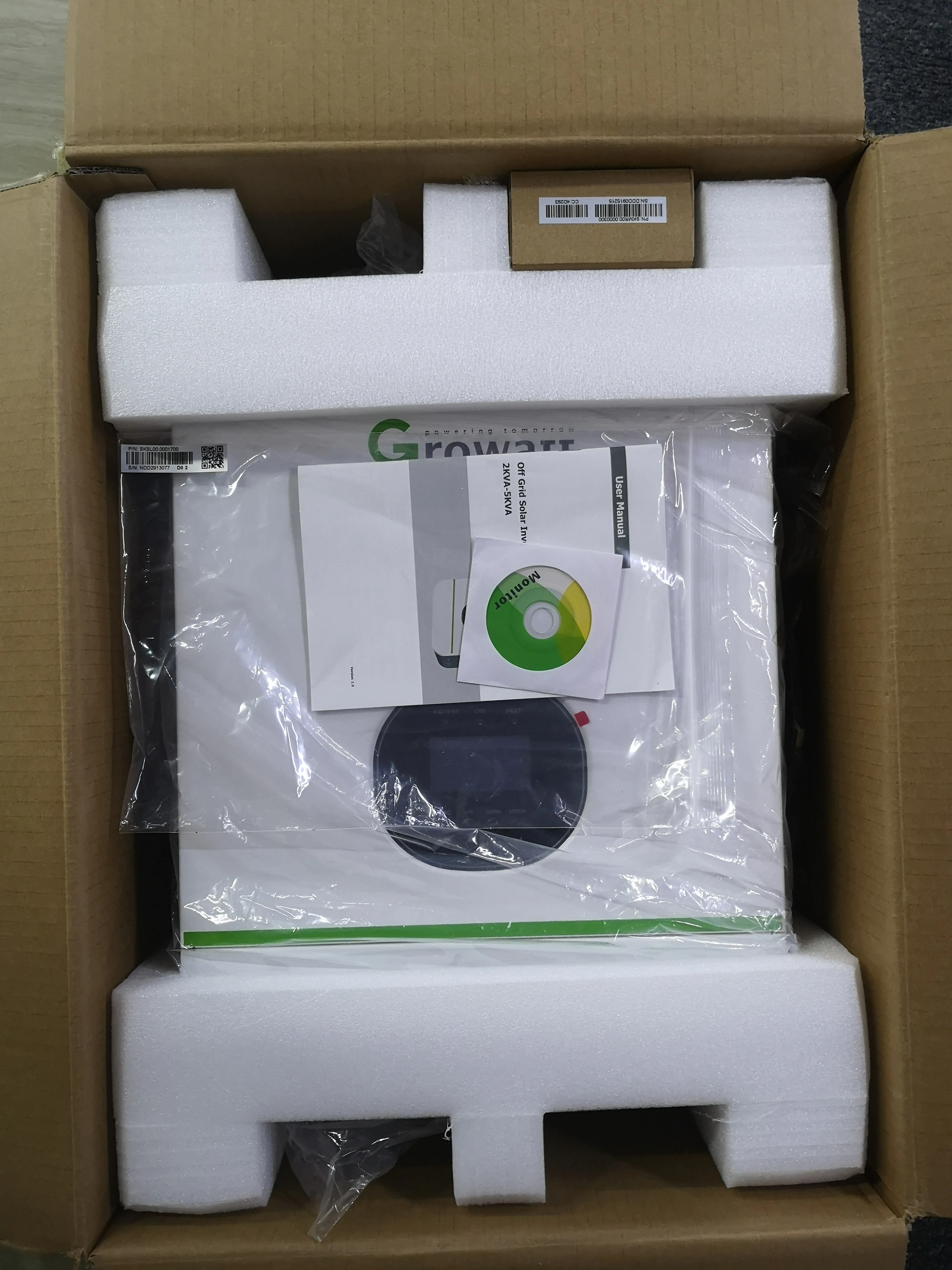

Packing & Delivery
Our Company
Eitai (XiaMen) Photovoltaic Technology Co., Ltd is a high-tech enterprise specialized in the field of new energy, especially inthe product research & development, production, sales and service. Its Headquarters are located in Xiamen Special Economic Zone,and it also has branches in Japan. With support of a professional team, the company provides its clients with safe, reliable,stable and efficient solutions for the solar photovoltaic power station. It focuses on core businesses like automatic positioningpiling machines, automatic solar module installation and cleaning equipment, PV mounting and relatedaccessories, PV power plantconstruction business and so on.
