Машина для переработки корма кур птицы машина производства животных гранул
- Категория: Кормоприготовительная машина >>>
- Поставщик: Zhengzhou,Leabon,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 5569.77 $* | 5847.72 $* |
| Aug-16-2025 | 5522.85 $* | 5798.74 $* |
| Jul-16-2025 | 4633.70 $* | 4865.26 $* |
| Jun-16-2025 | 5429.89 $* | 5700.60 $* |
| May-16-2025 | 4727.76 $* | 4963.65 $* |
| Apr-16-2025 | 5335.34 $* | 5602.30 $* |
| Mar-16-2025 | 5288.62 $* | 5552.71 $* |
| Feb-16-2025 | 5242.35 $* | 5504.87 $* |
| Jan-16-2025 | 5195.30 $* | 5455.98 $* |
Характеристики
Product Overview

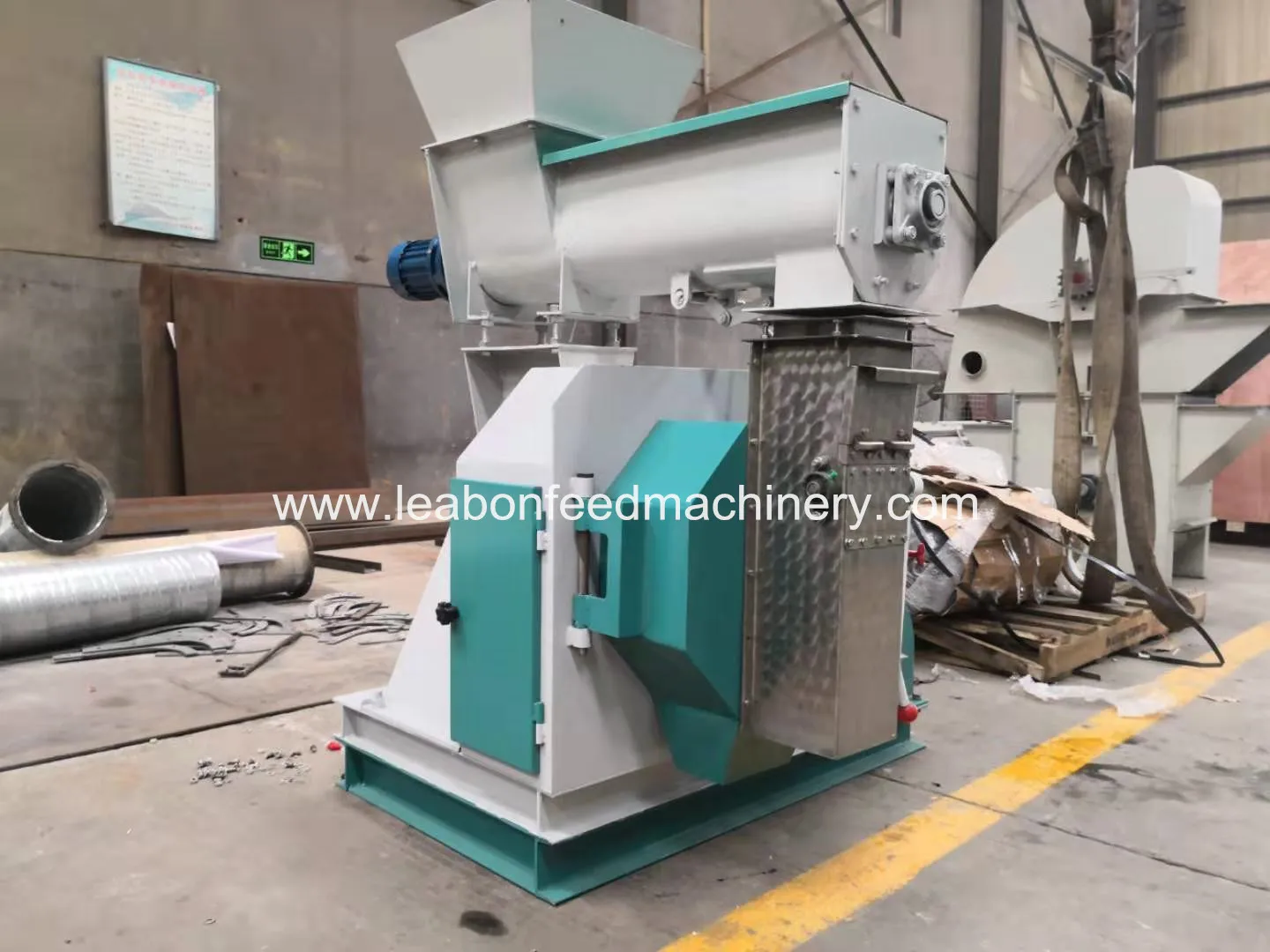

CM Series Ring Die Feed Pellet Production Line
CM Series Ring Model Pellet Mill is the main machine of making granular fodder,it can be used to make various roughage and refined fodder in livestock farm and feed mill, chemical industry and sugar industry.
Complete animal feed production plant include feed hammer mill, feed mixer, feed pellet machine, feed pellet cooling and screening machine, packing machine.
CM-A Series CM-B Series
FEATURES AT A GLANCE
Drive mechanism: High strength belt with steady running and low noise
High quality bearing to ensure high speed and stable operation
Feeding part: Equipped with a permanent magnet to remove metallic impurities
Prolongs the service life of main parts
Reduce the use of auxiliary equipment
High quality bearing to ensure high speed and stable operation
Feeding part: Equipped with a permanent magnet to remove metallic impurities
Prolongs the service life of main parts
Reduce the use of auxiliary equipment
PRODUCT SPECIFICATIONS
CM-A series feed pellet machine | Item | Data | ||||
Parameter/Model | CM-15A | CM-20A | CM-25A | |||
Output（kg/h) | 100-200 | 500-700 | 1000-1200 | |||
Power(kw) | 3 | 11 | 22 | |||
Revolving Speed of ring die（mm） | 420 | 306 | 306 | |||
Inside diameter of ring die (mm) | 150 | 200 | 250 | |||
Pellet diameter(mm) | 1.5、2、2.5、3、3.5、4、5、6、8 | |||||
Dimension（m） | 0.75*0.45*0.8 | 1.1*1.15*1.25 | 1.1*1.15*1.25 | |||
Weight（Kg） | 175 | 500 | 625 | |||
CM-B series feed pellet machine | Item | Data | ||||
Model No. | CM-20B | CM-25B | CM-30B | |||
Output(kg/h) | 500-700 | 1000-1500 | 1500-2000 | |||
Power(kw) | 11 | 22 | 30 | |||
Feeding moder(kw) | 0.75 | 0.75 | 0.75 | |||
Revolving Speed of ring die (r/min) | 306 | 306 | 330 | |||
Inside dimeter of ring die(mm) | 200 | 250 | 304 | |||
Pellet diemeter(mm) | 1.5、2、2.5、3、3.5、4、5、6、8 | |||||
Dimension(m) | 1.1*1.5*1.52 | 1.1*1.15*1.25 | 1.35*1.3*1.6 | |||
Weight(kgs) | 580 | 710 | 960 | |||
Spare Parts
Raw Material & Final Pellets
Raw Material Different Size of Feed Pellets

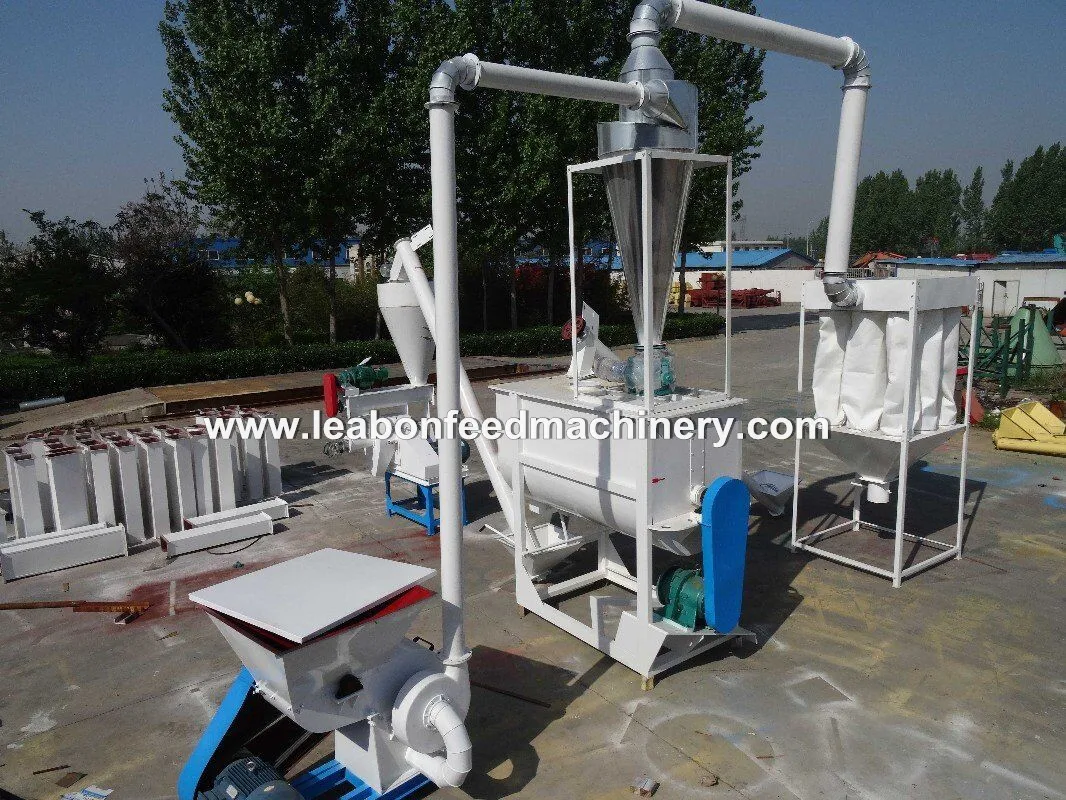

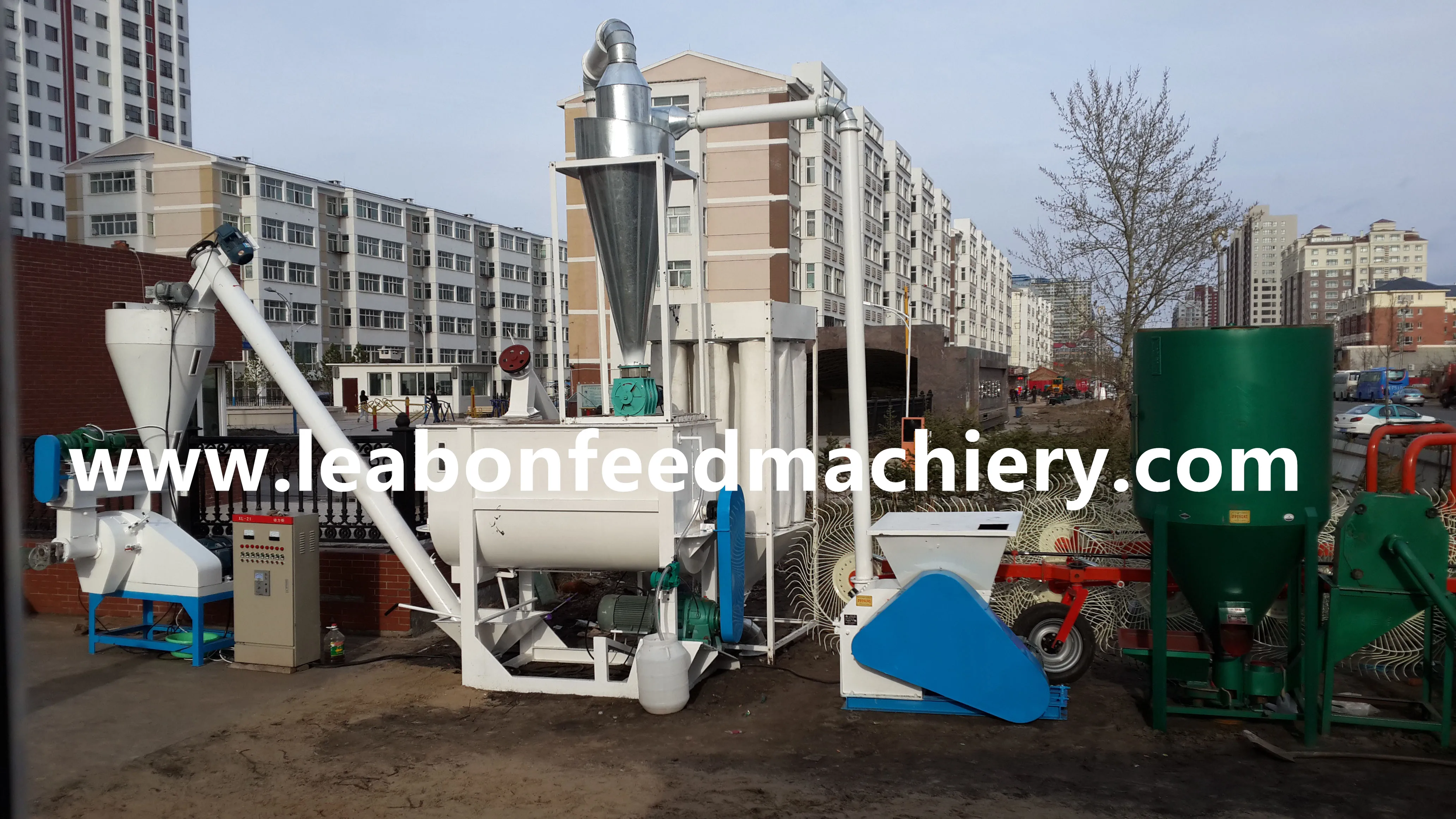

Complete Animal Feed Production Line
1.Crusher | Crushing various kinds of pellet raw material such us corn,sorghum,wheat,bean,wood chip,etc into powder. |
2. Feed Mixer | Mixing different kind of powder feed material evenly together. |
3. Pellet Machine | Making mixed powder feed into different size feed pellets for different animals |
4. Cooler & Screen | Cooling hot feed pellets and screen dust out of pellet to keep pellet clean,for long time storage. |
5. Packing Machine | Packing feed pellets into bag for sale/transportation and long time storage. |
Related Products
Company Information
Zhengzhou Leabon Feed Machinery Co., Ltd. is a professional and advanced supplier which mainly supply feed equipment like feed crusher,mixer,pellet machine,granule crumble, feed pellet cooler, packing and entire feed pellet production line. Leabon has extensive expertise in the areas of engineering. The continuous research helps us to develop the latest technology in biomass new energy field more effectively.
FAQ
Q:I know litter for this machine, how can I choose most suitable machine?
A: Please kindly inform:
1. What is your raw material for making feed pellets?
2. What is the capacity do you need? (kg/h)
3. What is your requirements for the final feed pellets? Like diameter and length.
4. What kind of animal do you want to feed by the final feed pellets?
A: Please kindly inform:
1. What is your raw material for making feed pellets?
2. What is the capacity do you need? (kg/h)
3. What is your requirements for the final feed pellets? Like diameter and length.
4. What kind of animal do you want to feed by the final feed pellets?
CE Certification
