Портативная плавильная печь вместимостью 2 кг с золотом для восстановления металлических
- Категория: Промышленные печи >>>
- Поставщик: Guangzhou,Yali,Jewelry,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 794.14 $* | 810.1 $* |
| Jul-15-2025 | 644.29 $* | 657.1 $* |
| Jun-15-2025 | 781.94 $* | 797.15 $* |
| May-15-2025 | 775.23 $* | 791.32 $* |
| Apr-15-2025 | 619.85 $* | 631.84 $* |
| Mar-15-2025 | 763.35 $* | 778.18 $* |
| Feb-15-2025 | 756.5 $* | 771.71 $* |
| Jan-15-2025 | 750.46 $* | 765.71 $* |
Характеристики
Product Description

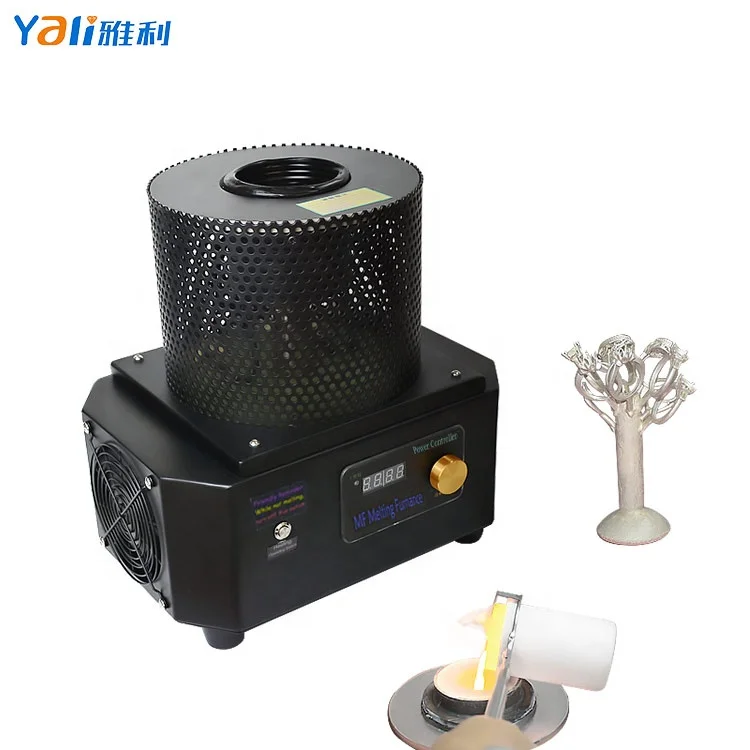

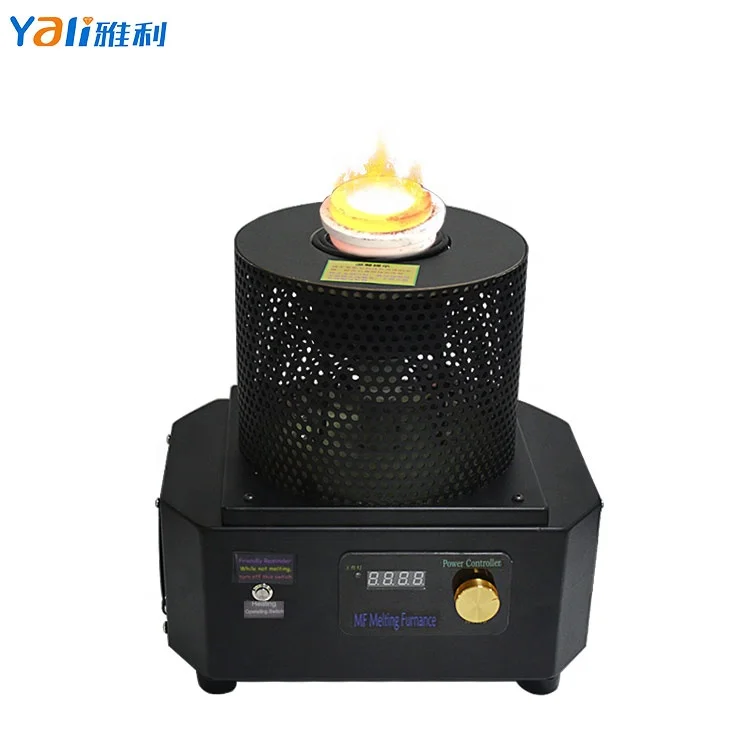

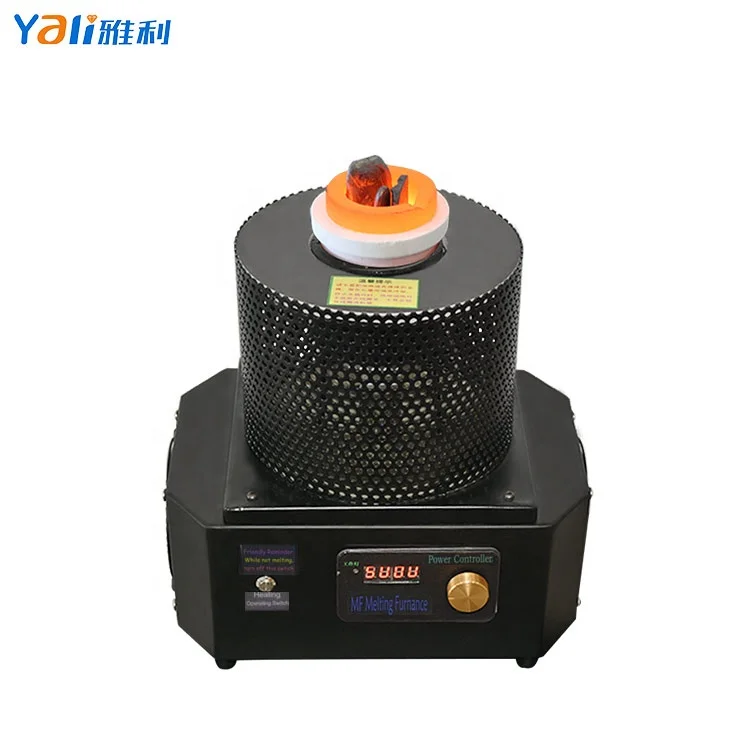

1-6KG silver gold mini metal melting induction furnace for sale
Used for refining precious metals (gold, silver, copper, aluminum or iron or stainless steel etc.).Using the patented magnetic heat technology driving technology, the operation is simple, the melting speed is fast,low energy consumption, the machine volume is small, the outside part is low heat storage.It is a new high performance portable gold melting furnace.
Model | MM-1000 | MM-2000 | MM-3000 | ||
Voltage | 190-235V | ||||
Power | 3500W | 5000W | 5000W | ||
Frequency | 50-60Hz | ||||
Maximum Temp | 1600 ℃ | 1600 ℃ | 1400 ℃ | ||
Leakage Circuit Breaker Minimum | 20A | 25A | |||
Cross-sectional Area of Wire Minimum | 1.5mm2 | 2.5mm2 | |||
Gold Capacity | 1000g | 2000g | 3000g | ||
Melting Speed | 5Mins for Gold,Sliver,Copper | 2000g | 3000g | ||
Net Weight | 8.0KG | ||||
Dimension | 315*295 * 310 mm | ||||
Model | MM-4000 | MM3-4000 | MM3-5000 | MM3-6000 | |||
Voltage | 190-235V | 380V | |||||
Power | 6000 W | 8000W | |||||
Frequency | 50-60Hz | ||||||
Maximum Temp | 1600 ℃ | 1600 ℃ | 1500 ℃ | 1380 ℃ | |||
Gold Capacity | 4000g | 4000g | 5000g | 6000g | |||
Melting Speed | 5-7Mins for Gold,Sliver,Copper | ||||||
Net Weight | 12KG | 14.2KG | 14.7KG | ||||
Dimension | 380 * 340 * 390mm | 380 * 33.5 * 390mm | 420 * 300*390mm | 420 * 300 * 420mm | |||
Model | MM-TC-1000 | MM-TC-2000 | MM-TC-3000 | ||
Voltage | 190-235V | ||||
Frequency | 50-60Hz | ||||
Maximum Temp | 1200 ℃ | ||||
Power | 3500W | 5000W | |||
Dimension | 315*295*350mm | ||||
Net Weight | 8.0KG | ||||
Leakage Circuit Breaker Minimum | 20A | 25A | |||
Cross-sectional Area of Wire Minimum | 1.5mm2 | 2.5mm2 | |||
Gold Capacity | 1000g | 2000g | 3000g | ||
Melting Speed | 5Mins for Gold,Sliver,Copper | ||||
Model | MM-TC-4000 | MM3-TC-5000 | MM3-TC-6000 | ||
Voltage | 220V/380V | 380V | |||
Frequency | 50-60Hz | ||||
Maximum Temp | 1200 ℃ | ||||
Power | 6000W/8000W | 8000W | |||
Dimension | 315*295*350mm | ||||
Net Weight | 12-15KG | ||||
Leakage Circuit Breaker Minimum | 20A | 25A | |||
Cross-sectional Area of Wire Minimum | 1.5mm2 | 2.5mm2 | |||
Gold Capacity | 4000g | 5000g | 6000g | ||
Melting Speed | 5Mins for Gold,Sliver,Copper | ||||
Details Images
usage method
The using process of melting furnace
Using process as below:1. Use the power line to connect the melting furnace & water chiller
2. Put the crucible in the coil, press the operation switch and turn the power to maximum.
3. Put the metal into the crucible.
4. Press the operation switch, turn power to maximum and start melting.
5. High-speed melting is proceeding.
6. About 5 mins, melting is finished, turn off the stop switch.
7. Use the pliers to grab the crucible and pour the liquid metal into a graphite ingot mold.
8. Let the machine run in 1 min and then turn off the master switch & pull the plug
2. Put the crucible in the coil, press the operation switch and turn the power to maximum.
3. Put the metal into the crucible.
4. Press the operation switch, turn power to maximum and start melting.
5. High-speed melting is proceeding.
6. About 5 mins, melting is finished, turn off the stop switch.
7. Use the pliers to grab the crucible and pour the liquid metal into a graphite ingot mold.
8. Let the machine run in 1 min and then turn off the master switch & pull the plug
Attention: If confused, please kindly read our video!!!
Company introduction
Cooperation and Exhibition
Certifications
Packaging and delivery
FAQ
1.How can I get a sample?
For our machines, all samples need cost, you could contact with our customer service, tell her your style and shipping address,she will help you check the shipping cost and make a final invoice for you, then you could pay for the sample on Alibaba.
2.How much shipping cost to my country?
Different countries have different shipping cost, please send us your shipping address, then we will help you check a competitive shipping cost.
3.Which capacity melting furnace you could provide?
For mini style, we could provide 500 grams - 6KG Gold capacity induction melting furnace. For large style, we also can provide 10kg-50kg copper capacity melting furnace. For more larger styles, can do 100kg -2 tons copper capacity melting furnace. Please tell me your requirement, then we will introduce them for you.
4.How about your free sample policy?
For consumable of jewelry tools, such as investment powder or jewelry wax, you could pay the sample with 1 bag first, after your order quantity reach 200 bags next time, we will give the sample cost back to you. This is our policy for sample . Welcome to order our samples for testing.
5.How many years of the machine warranty?
There is 1 year machine warranty. But it has not included that damaging the machine by manual mistake. More warranty details we have made them into the manual book.
For our machines, all samples need cost, you could contact with our customer service, tell her your style and shipping address,she will help you check the shipping cost and make a final invoice for you, then you could pay for the sample on Alibaba.
2.How much shipping cost to my country?
Different countries have different shipping cost, please send us your shipping address, then we will help you check a competitive shipping cost.
3.Which capacity melting furnace you could provide?
For mini style, we could provide 500 grams - 6KG Gold capacity induction melting furnace. For large style, we also can provide 10kg-50kg copper capacity melting furnace. For more larger styles, can do 100kg -2 tons copper capacity melting furnace. Please tell me your requirement, then we will introduce them for you.
4.How about your free sample policy?
For consumable of jewelry tools, such as investment powder or jewelry wax, you could pay the sample with 1 bag first, after your order quantity reach 200 bags next time, we will give the sample cost back to you. This is our policy for sample . Welcome to order our samples for testing.
5.How many years of the machine warranty?
There is 1 year machine warranty. But it has not included that damaging the machine by manual mistake. More warranty details we have made them into the manual book.
