Full Hydraulic 1600m /3200m ground Bore Hole Truck mounted deep Water Well Drilling
- Категория: Буровая установка для шахт >>>
- Поставщик: Zhengzhou,Hanfa,Imp,&,Exp,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 53550.7 $* | 56228.88 $* |
| Aug-18-2025 | 53100.33 $* | 55755.58 $* |
| Jul-18-2025 | 44550.26 $* | 46778.56 $* |
| Jun-18-2025 | 52200.31 $* | 54810.97 $* |
| May-18-2025 | 45450.30 $* | 47723.31 $* |
| Apr-18-2025 | 51300.81 $* | 53865.72 $* |
| Mar-18-2025 | 50850.44 $* | 53393.34 $* |
| Feb-18-2025 | 50400.62 $* | 52920.25 $* |
| Jan-18-2025 | 49950.30 $* | 52448.59 $* |
Характеристики
Product Description

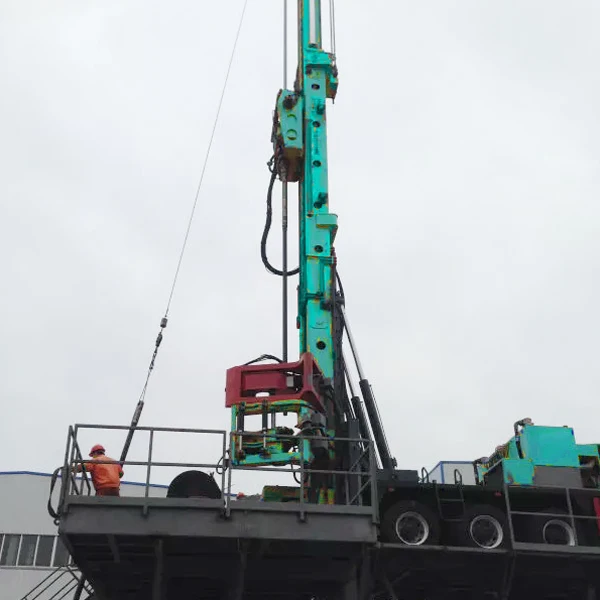

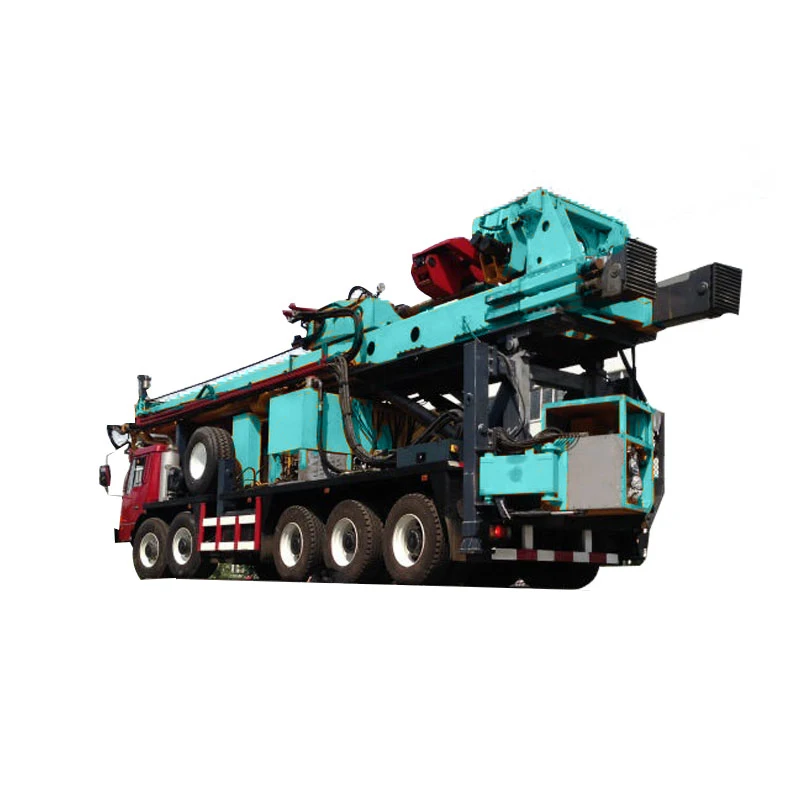

HFMC-800 truck mounted coal bed methane multifunction drilling rig is a full hydraulic CBM drill rig which is designed based on our factory's 40 years experience of design, manufacturing and practicing in drilling field. The feature of coal bed methane exploration in domestic market and advanced experiences in overseas market are taken into consideration during the designed of; It is mainly used in coal bed methane exploration, shadow oil drilling, oil well reparation and geothermal drilling. It could also be adopted in ultra-deep core drilling, engineering rescue, mine ventilation hole and drainage pipeline construction in China.
Main technical features:
1. Full hydraulic driven, design of truck chassis, quick transfortation, low cost of operation;
2. Multi-speed chain structure is adopted on the drilling arm, which is simple and short in transporting length, and the drill
head stroke is designed into 15m for convenient operation in different technologies;
3. HFMC-800’s drill head could be tilted, the max tilting angle is 85°, which is convenient for screwing off the drill rod;
4. The rotation of HFMC-800 is driven by low speed high torque motor. Its max torque is up to 20kN·m, and the max rotation speed is up to 170r/min.
2. Multi-speed chain structure is adopted on the drilling arm, which is simple and short in transporting length, and the drill
head stroke is designed into 15m for convenient operation in different technologies;
3. HFMC-800’s drill head could be tilted, the max tilting angle is 85°, which is convenient for screwing off the drill rod;
4. The rotation of HFMC-800 is driven by low speed high torque motor. Its max torque is up to 20kN·m, and the max rotation speed is up to 170r/min.
Model | HFMC-800 | |||
Type | 10*6 | |||
Power | 276KW | |||
20kN·m/85rpm | ||||
10kN·m/170rpm | ||||
Swing angle | 0~85° | |||
Stroke | 15m | |||
Spindle hole diameter | 75mm | |||
Lifting force/speed | 800KN/ 22m/min | |||
Feeding force/speed | 160KN/ 55m/min | |||
Φ89mm/3200m | ||||
Φ114mm/2200m | ||||
Φ127mm/1600m | ||||
Rotation diameter | Φ800mm | |||
Auxiliary winch | Lifting force | 40KN | ||
Model | KTA19-P700 | |||
Power/rotation speed | 522KW/1800rpm | |||
Type | Open type | |||
Displacement | 2*130+2*100+2*60(L) | |||
Pressure | 32Mpa | |||
Max height | 22m | |||
Min height | 13.8m | |||
Max permissible gradient | 30° | |||
Max traveling speed | 70km/h | |||
Transporting dimension | L*W*H | 13000*2850*4250 mm | ||
Total weight | 51T | |||
Any change of the parameters mentioned above can be made without prior notification | ||||
Company Introduction
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research,manufacture and market. Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig,
horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway andhighway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
1. More than 20 years of experience
The factory is located in Henan Province, China. We are very welcome to visit our factory. If
you need it, we will arrange a pick-up.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.
you need it, we will arrange a pick-up.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.
Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
Services provided during the sale
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our
clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients;
3)Detailed technical assessment;
4)Design of process and equipment layout.
clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients;
3)Detailed technical assessment;
4)Design of process and equipment layout.
After-sale services
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipment;
3) Training the first-line operators on site;
4)Supplying spare parts with cost.
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipment;
3) Training the first-line operators on site;
4)Supplying spare parts with cost.
FAQ
1, Are you trading company or manufacturer?
We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2, Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3, How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4, Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5, What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6, How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
2, Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3, How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4, Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5, What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6, How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
