Формовочная машина для морозильной

Категория: Board Making Machinery >>>
Поставщик: Bobo,Machine,Co.,Ltd.

Цена:95 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	113050.30 $*	118703.9 $*
Aug-16-2025	112100.99 $*	117705.86 $*
Jul-16-2025	94050.1 $*	98753.90 $*
Jun-16-2025	110200.32 $*	115710.90 $*
May-16-2025	95950.24 $*	100748.12 $*
Apr-16-2025	108300.65 $*	113715.0 $*
Mar-16-2025	107350.23 $*	112718.51 $*
Feb-16-2025	106400.87 $*	111720.29 $*
Jan-16-2025	105450.70 $*	110723.61 $*

Характеристики

Product Description

Product Application

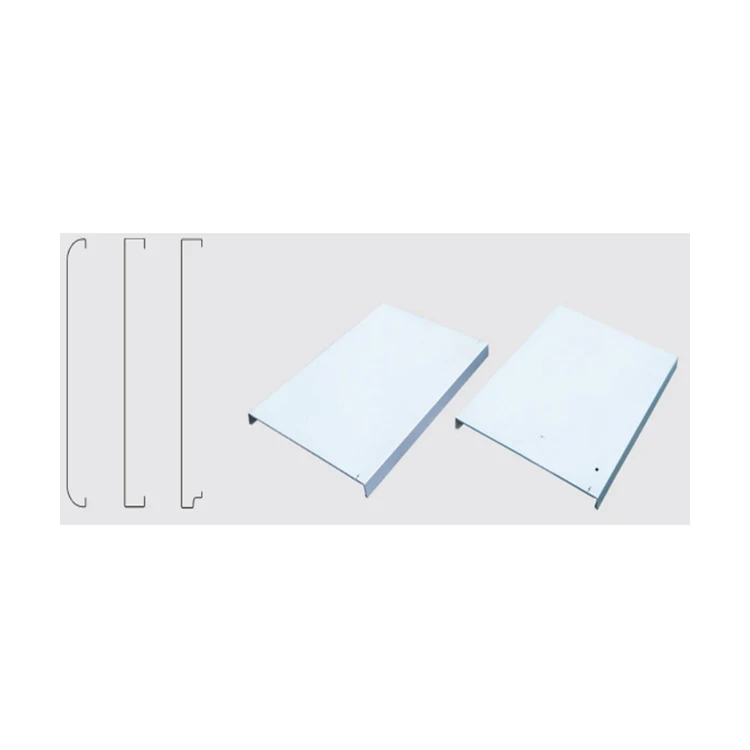

Freezer door shell forming machine

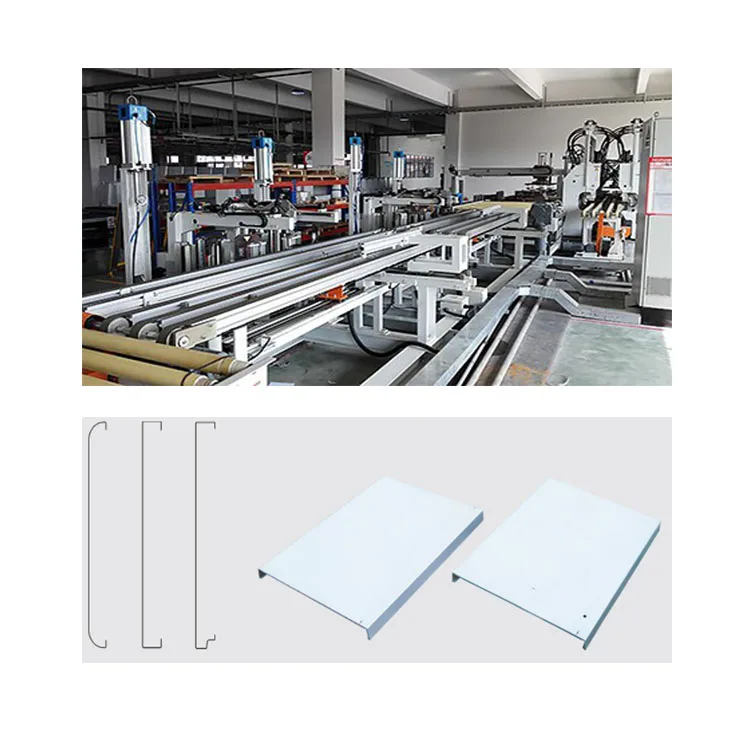

Freezer door forming line adopts more HDMECH'S independent technology, sheet metal in the feeding position after the

follow-upthrough the servo robot to complete the processing of sheet metal punching, bending and other processes to achieve the product offlexible production. This production line has some advantages such as good product compatibility, easy operation, convenient moldchanging and high production efficiency. in the touch screen on the recipe settings can be directly transferred to achieve a key for the type.

The whole forming line generally includes: feeding system punching system bending system I, bending system Il, and bending system Ill. HDMECH can make the design according to the specific needs of customers.

Main Technological process

	Main Technological process
1	Automatic loading
2	punching
3	rotation
4	Z press/mid-cutting
5	L shape
6	door hinge riveting
7	condenser pipe pasting
8	U bending
9	unloading

Detailed Images

Feature

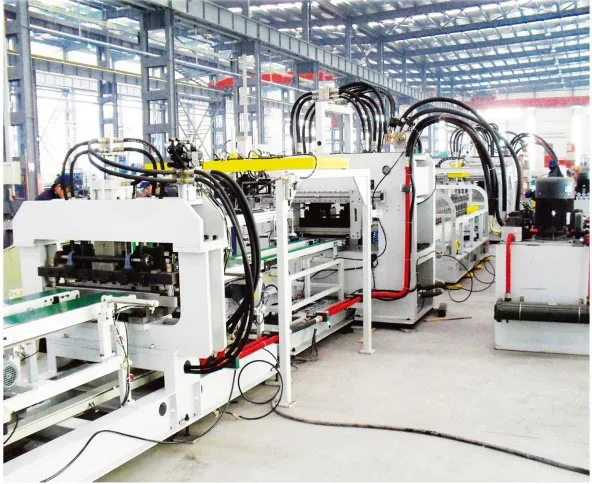

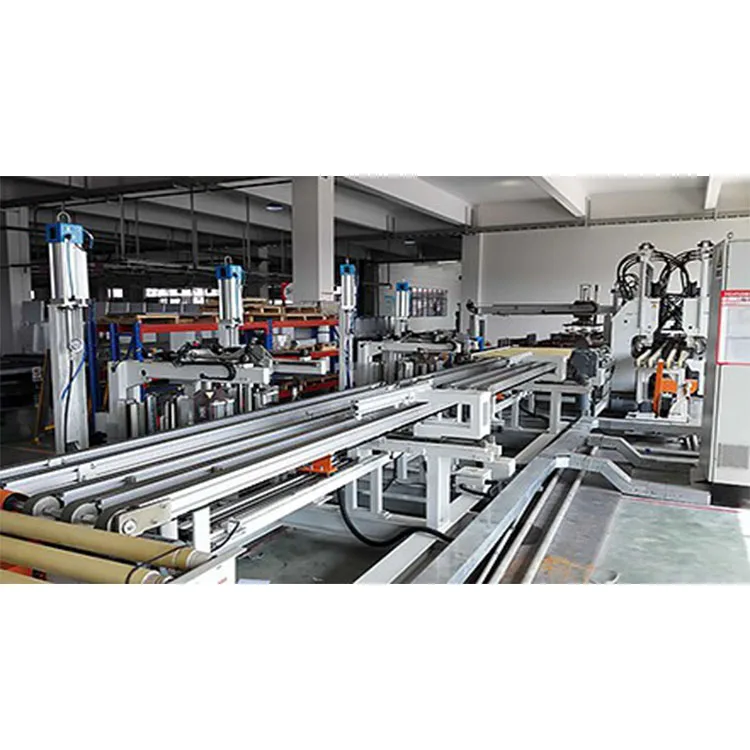

The production line is for the Hisense Freezer door forming line, the production line ycle time is 12S/piece. The forming line is used to finish thechamfering. punching, stretching and bending of the cabinet, the equipment is stable and the operation is simple.

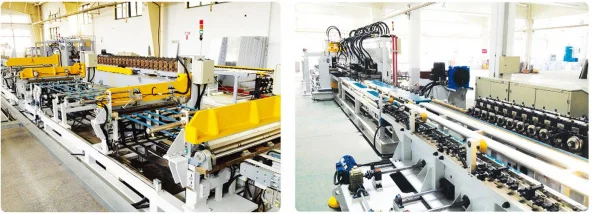

The forming line is mainly composed of feeding machine, punching system scribing machine. bending system I, bending system Il, bending system ill andsupporting pneumatic system, hydraulic system and electric control system and so on.

Equipment in the production of products, the length and width direction can be set according to set parameters (servo drive)for automatic adjustment: datathrough the touch screen settings and storage, at least to store 50 models data. change the type can be automatically adjusted according to model settings.
