12V - 220V 50W 100W постоянная температура проводящая ПТК керамический нагреватель воздуха на дизельном топливе нагревательный элемент сопротивления инкубатор нагревательные

Описание и отзывы

Трекер стоимости

Характеристики

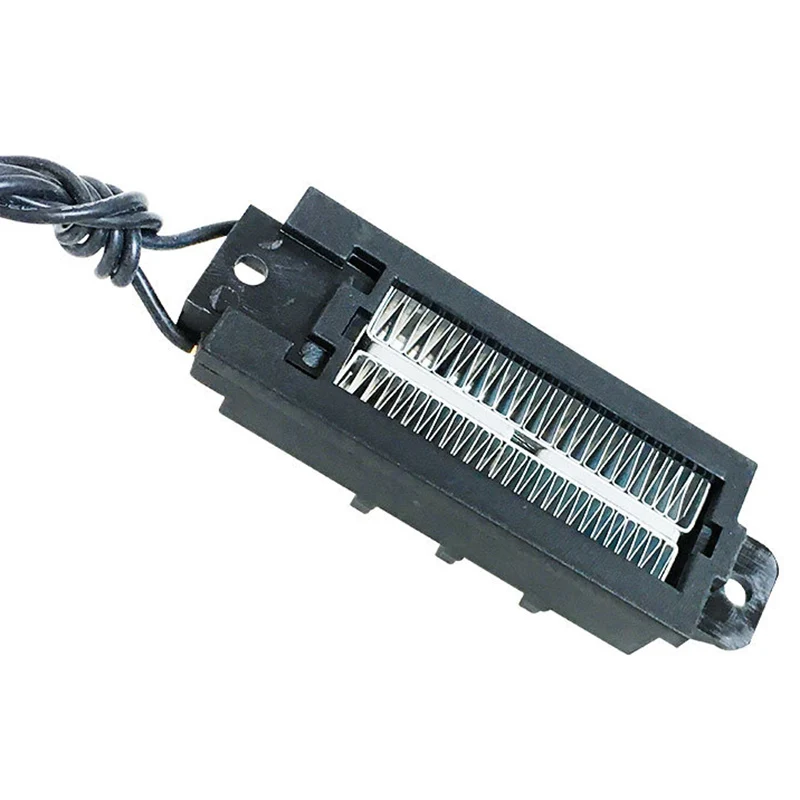

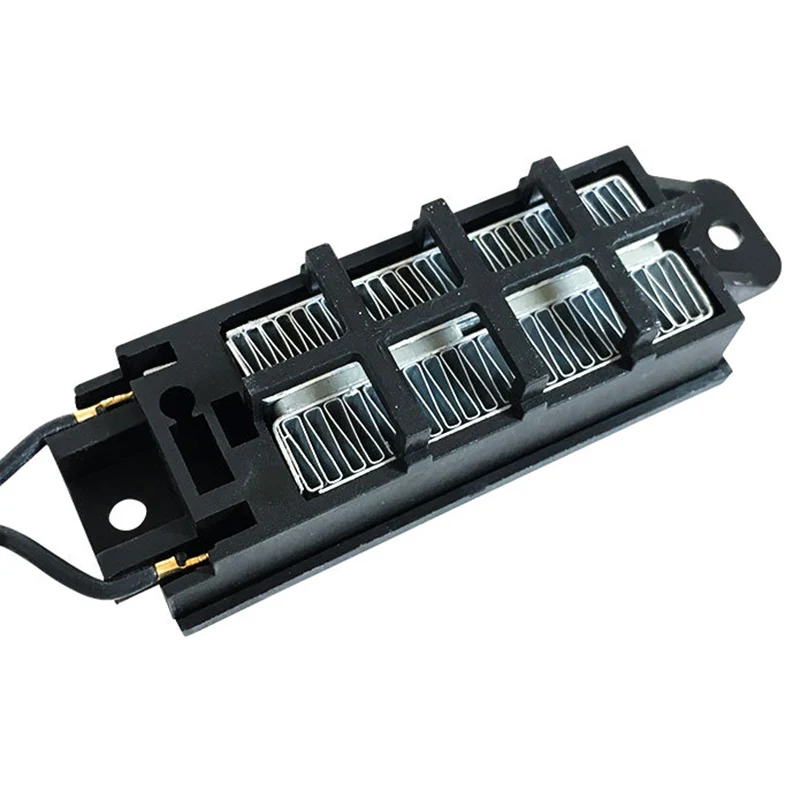

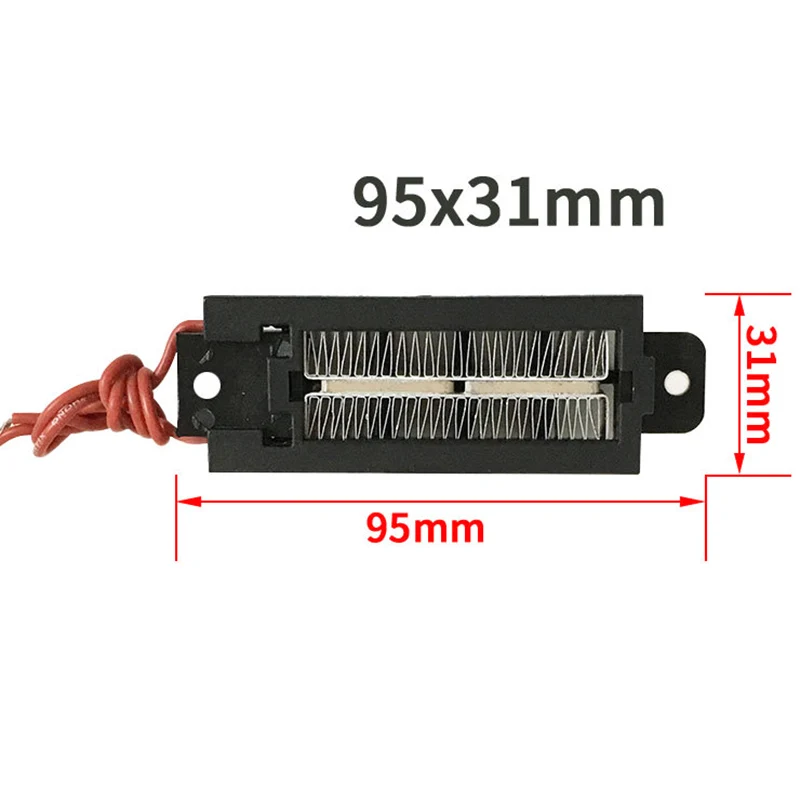

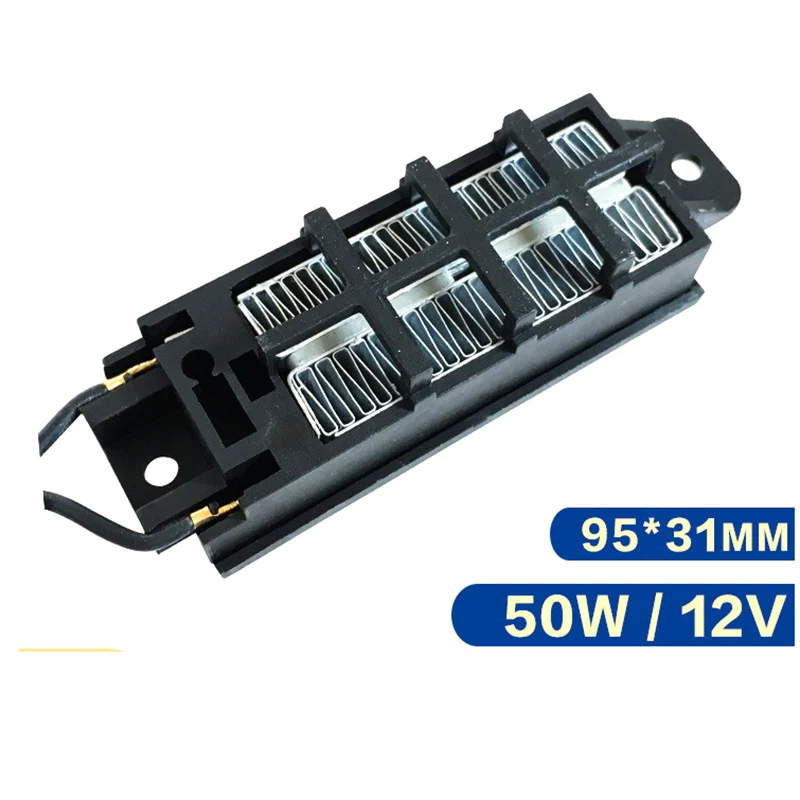

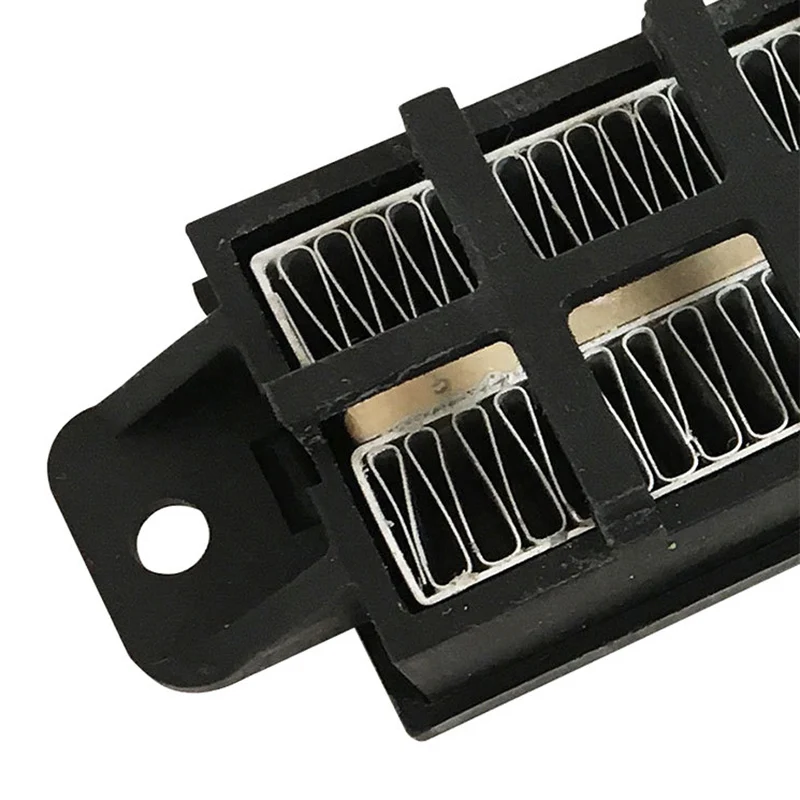

12V - 220V 50W - 100W Constant Temperature Conductive PTC Ceramic Air Heater Heating Body Resistance Incubator Heater Parts



PTC air heater (conductive type)

Material: PTC thermistor

Method: conduct heat through flowing air (must be used with fan or installed in the place where the wind blows)

Lead material: silica gel high temperature wire (it is required to bring the lead option, but the ordinary one does not bring the lead)

Lead length: the total length of the line is 250m (it is required to take the lead option, but the ordinary type does not take the lead),

Product wiring: connect with rated voltage regardless of positive and negative poles (low voltage products ensure sufficient current)

Product temperature: the heater has a meter temperature of 200 ° c, and the rated power (marked power) is measured when the wind speed is 3.3m/s and the ambient temperature is 24 ° c.At this point, the wind temperature is about 60 degrees 10cm away from the outlet of the heater

Actual temperature: the temperature increase is not only determined by the heater, the size of the space, insulation, base temperature and so on are also important factors for the actual temperature, so the stable temperature of the object heated in different operating environments, cannot estimate



Application: air conditioning/electric heating/automobile/instrument/general electric/air curtain machine/humidifier/clothes dryer, etc



For more information or question, please send enquiry contact us directly. Thank you.
