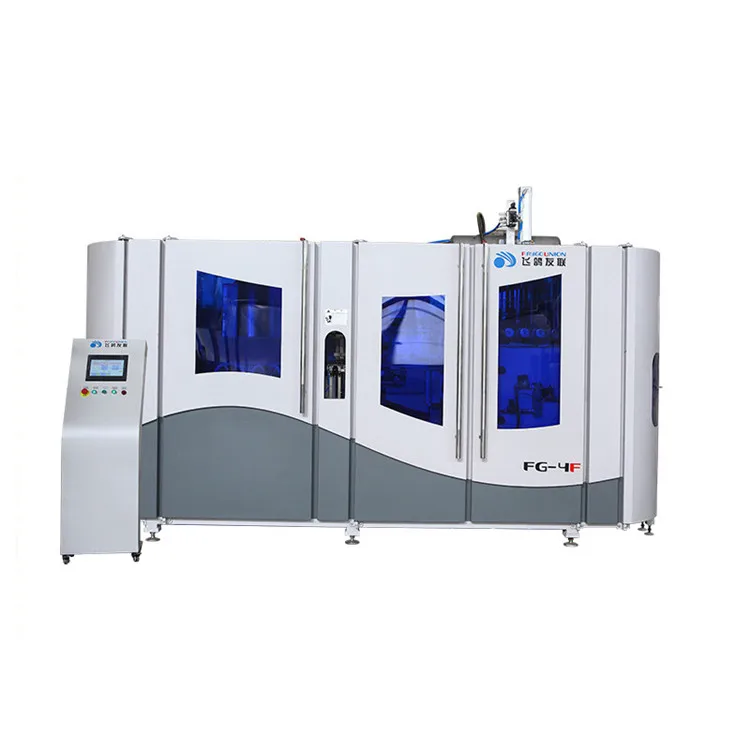

plastic pet bottle blowing machine/FG-4 four cavity PET bottle blowing machine

Ⅰ. Brief Introduction of PET bottle blowing machine :

FG4 series fill the gaps in the domestic high-speed linear blowing machine. Currently, domestic single-mold speed of linear blowing machine still stay around 1000BPH, while international max single mold speed has reached 1800BPH.

 FG series blowing machine are equipped with automatic perform loading and unloading system. The machine is applicable for all shapes of drinking water bottles, carbonated bottles and hot filling bottles. FG4 is composed of three modules: prefrom elevator, perform unscrambler and host machine.

Ⅱ. Technical Features of PET bottle blowing machine :

1). High Speed: 6800-7200BPH (4-cavity).

2). Less Space consumption: Machine is highly integrated, the construction is highly compact.

3). Less electricity consumption: performs intercept is shorten to the minimum, compared with common

4).blowing machine 30% electricity can be reduced.
5). High Intelligence: The machine can be controlled through touch screen and running status is shown on it.
6). High Quality: Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
7). No Contamination: Closed production zone, good self-lubrication system avoid contamination.
8). High Transparency: Easy maintenance, absolute safely, visual inspection, low noise.

Ⅲ. Optional items of PET bottle blowing machine :

1. Exploded bottles ejection unit

During the blowing process, if the bottle burst, it can be automatically removed. This prevents the bad bottles into the filling machine.

2. HP air recovery system

After the bottle blowing accomplished, high-pressure air can be recycled can be used again for the pre-blowing and operational movement.

3. Oven and preform temperature detection system

Real-time detect the temperature of the oven and the temperature of the preform after heating before blowing. When the preform heating temperature does not reach the set blowing temperature blowing workstation will alarm, not blown.

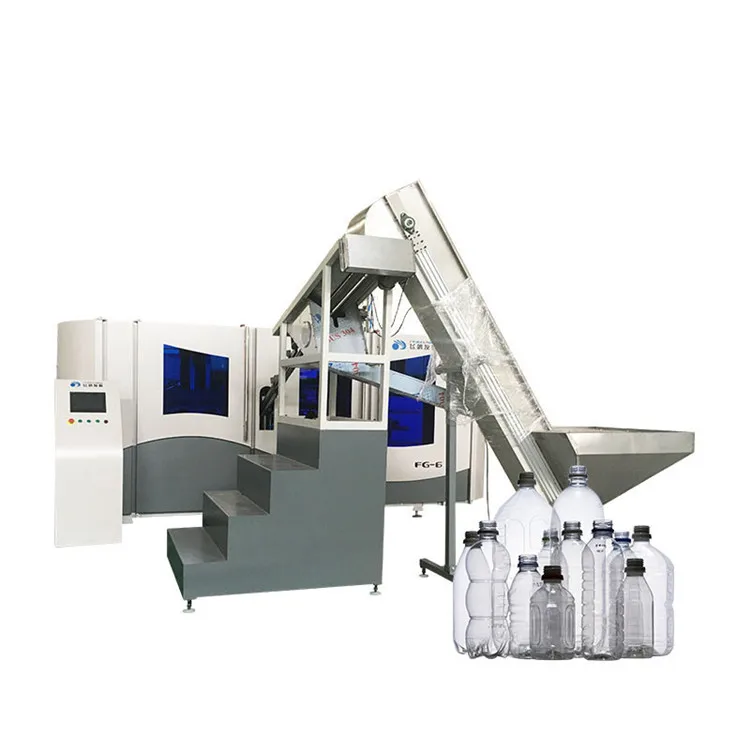

Blowing Machine

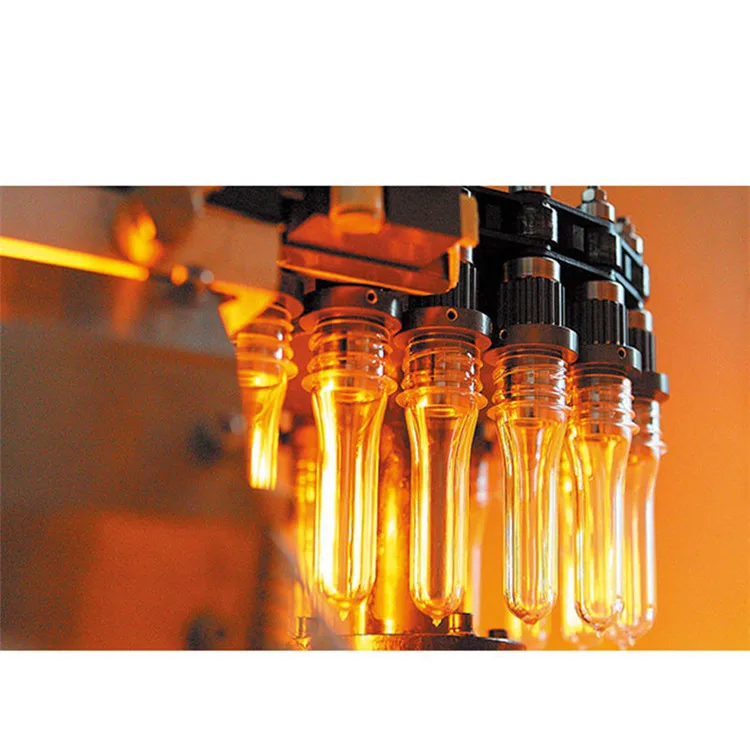

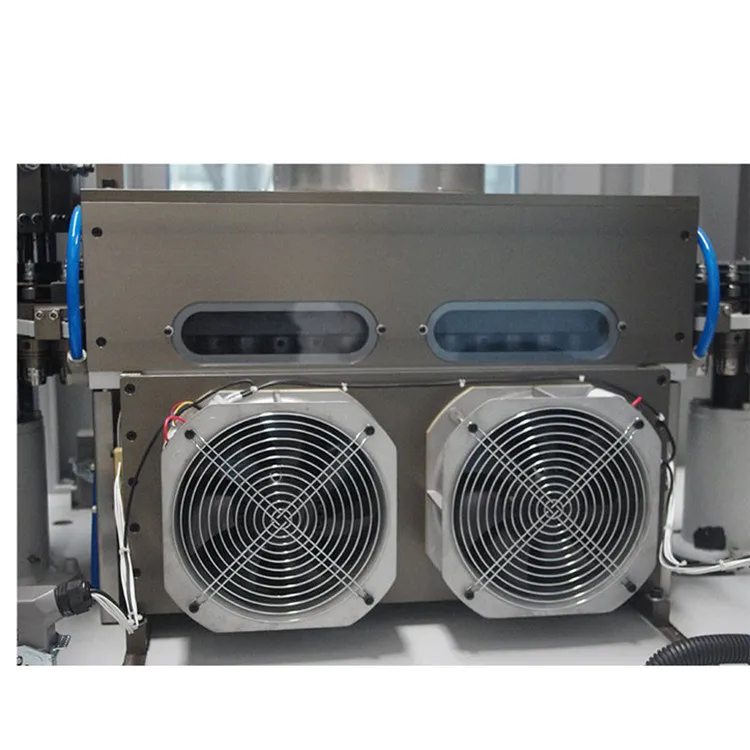

Heating Oven

By rotary and soft preform loading system, the speed of preform feeding is ensured, menawhile, the preform neck is well protected.

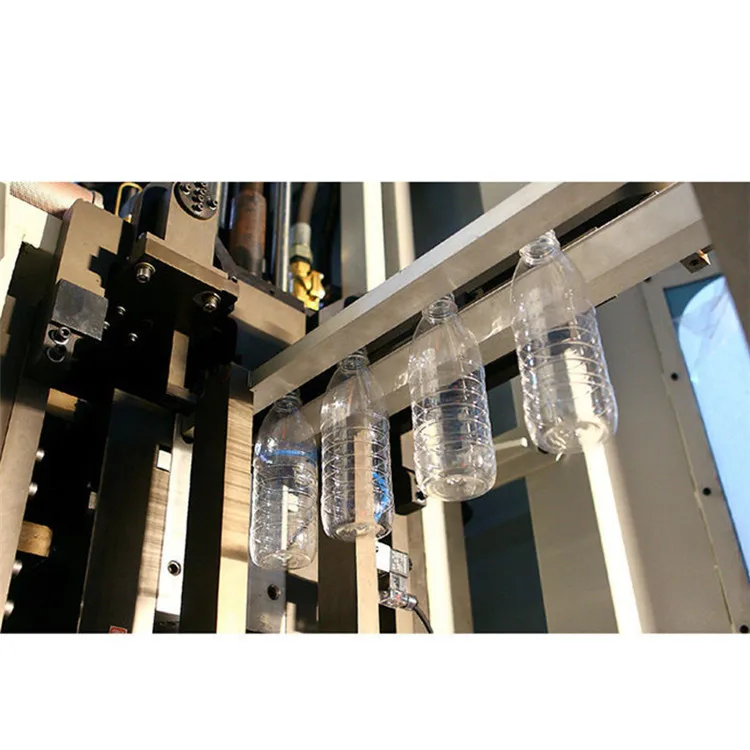

Bottle Outlet

The  machine adopts modularized design concept to make it convenient and cost-saving for the maintenance and changing changeovers.

Bottle Mold

The mold is made of  aluminum, it can achieve surface hardening process.



 Air compressor

Configuration

Item	Brand	Origin
Magnetic valve		Germany
Cylinder		Germany
Servo system	Panasonic	Japan
Frequency inverter	Mitsubishi	Japan
PLC	Mitsubishi	Japan
Touch screen	Mitsubishi	Japan
Blowing valve	Parker	USA
One-way valve		Germany
Throttle valve		Germany
Reducing valve	DURAY	Germany
