Комбинированные сушильные барабанные приводные
- Категория: Drum Drying Equipment >>>
- Поставщик: Gongyi,Yison,Honda,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 9520.70 $* | 9996.65 $* |
| Aug-16-2025 | 9440.5 $* | 9912.84 $* |
| Jul-16-2025 | 7920.99 $* | 8316.21 $* |
| Jun-16-2025 | 9280.45 $* | 9744.68 $* |
| May-16-2025 | 8080.94 $* | 8484.22 $* |
| Apr-16-2025 | 9120.76 $* | 9576.55 $* |
| Mar-16-2025 | 9040.96 $* | 9492.48 $* |
| Feb-16-2025 | 8960.39 $* | 9408.63 $* |
| Jan-16-2025 | 8880.64 $* | 9324.34 $* |
Характеристики
Product Description
Rotary drum dryers can handle large amounts of materials. Due to its reliable operation, flexible operation, strong adaptability, and strong processing ability, it is widely used in construction materials, metallurgy, food, chemical, coal, pharmaceutical, mining and other industries. Drum dryers are usually suitable for granular materials, and can also be used to dry viscous paste materials or high-moisture materials for part of the mixture.
Product name | Drum Drying Equipment |
Warranty | 1 year |
Diameter | 800-3000mm |
Length | 8000-26000mm |
Rotary drum dryer capacity | 500-15000kg/h |
Input moisture | <90% |
Output moisture | >8-12% |
Fuel | Coal,gas,diesel,wood chips etc. |
Usage | Sawdust,wood chips,coal,slurry,sand etc. |
Rotary drum dryer color | As required |
Direction for use
1. Our rotary dryer uses a new type of spreading device, which has the functions of guidance, flow and materials.
2. The material content in the radial section of the dryer can be completely uniform, and the material will become thin.
3. Fully realize the state of heat flow and achieve the purpose of making full use of heat.
4. Our dryers choose reasonable operating parameters. The coal consumption and electricity consumption of ordinary dryers are above 10-15%, and the output of one machine is above 10-15%.
5. It has been widely used in cement and mineral processing enterprises.
2. The material content in the radial section of the dryer can be completely uniform, and the material will become thin.
3. Fully realize the state of heat flow and achieve the purpose of making full use of heat.
4. Our dryers choose reasonable operating parameters. The coal consumption and electricity consumption of ordinary dryers are above 10-15%, and the output of one machine is above 10-15%.
5. It has been widely used in cement and mineral processing enterprises.
Description of application effect
1. The internal assembly structure is used, which improves the accuracy of the equipment and facilitates transportation and installation.
2. According to the characteristics of different fertilizers, arrange the second granulation area reasonably to improve the granulation effect.
3. The use of assembled lifting plate to fully exchange heat and reduce energy consumption.
4. Temperature sensing monitor, uniform vibration and sealing settings, effectively improve performance and productivity.
5. The supporting combustion furnace is energy-saving, with the characteristics of small footprint, easy adjustment, and greenhouse.
2. According to the characteristics of different fertilizers, arrange the second granulation area reasonably to improve the granulation effect.
3. The use of assembled lifting plate to fully exchange heat and reduce energy consumption.
4. Temperature sensing monitor, uniform vibration and sealing settings, effectively improve performance and productivity.
5. The supporting combustion furnace is energy-saving, with the characteristics of small footprint, easy adjustment, and greenhouse.

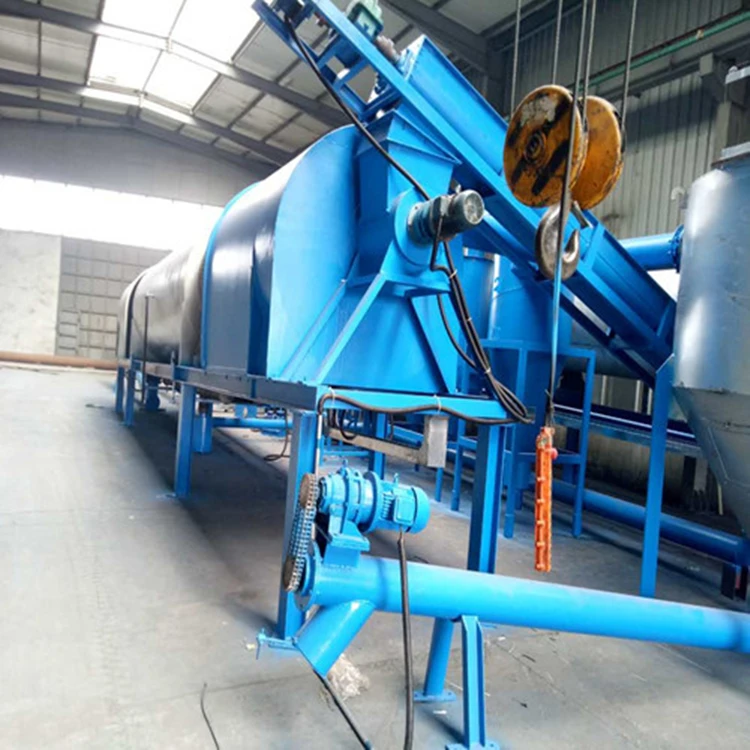

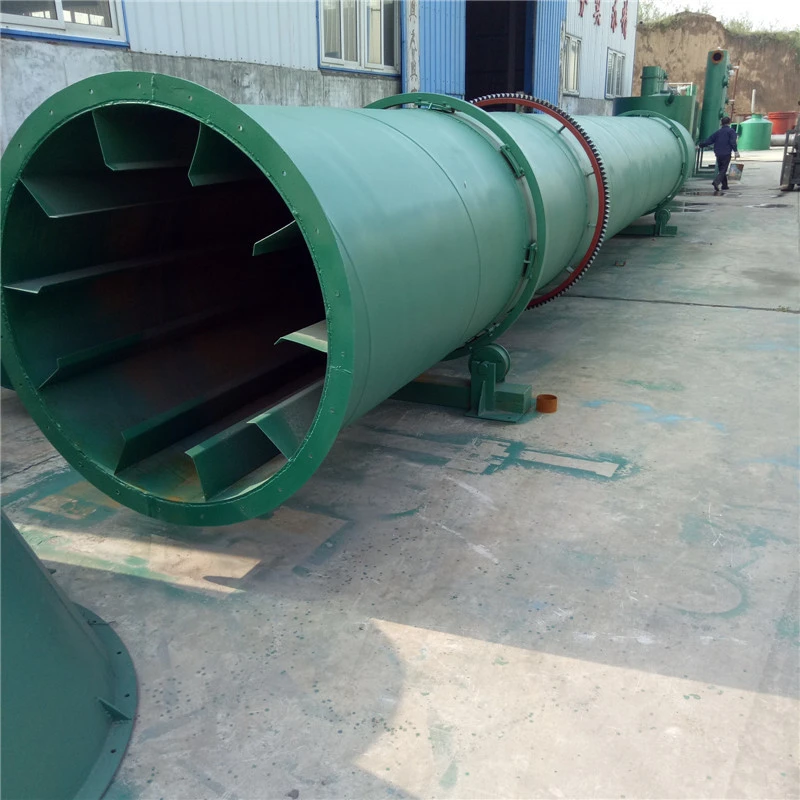

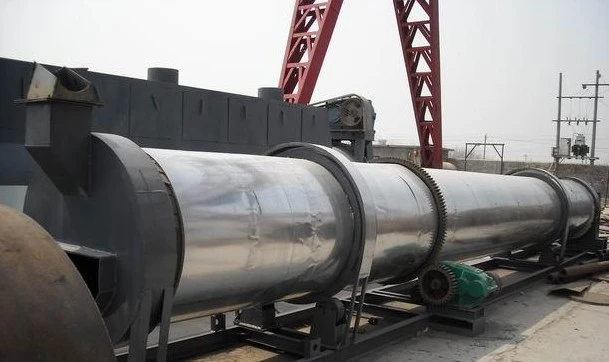

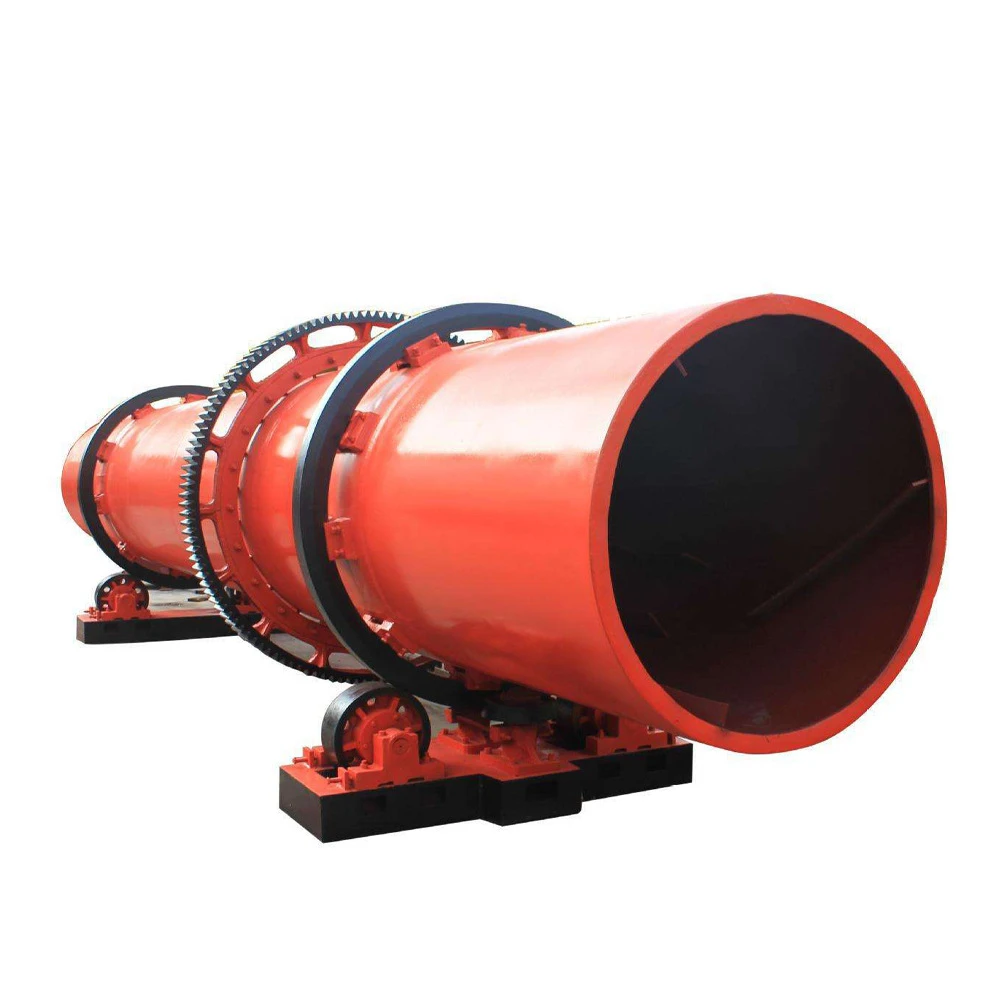

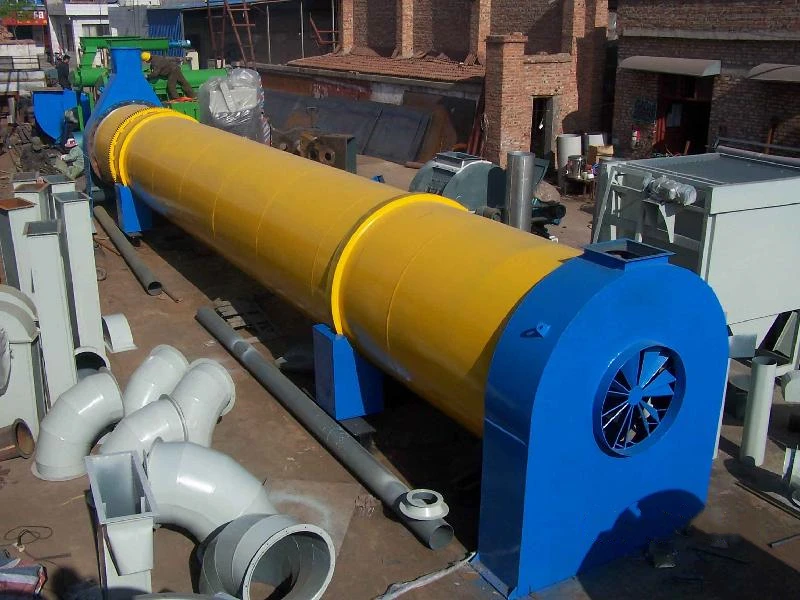

Detailed Images
The raw materials are transported by the scraper conveyor to the inside of the rotary drum dryer. The front is equipped with a hot blast stove. The generated hot gas enters the dryer through the fire separation device, and the materials are dispersed by the low- speed rotating bending plate.
In order to allow high-temperature air to flow through the material and perform heat exchange, the drum dryer has a certain angle of inclination, and there is sufficient air volume to push the material forward. Finally, the dried material is discharged from the discharge port, and the temperature generated by the heat source enters the long refractory lining chamber to keep the temperature low. Add auxiliary air to the chamber to maintain low temperature levels.
In order to allow high-temperature air to flow through the material and perform heat exchange, the drum dryer has a certain angle of inclination, and there is sufficient air volume to push the material forward. Finally, the dried material is discharged from the discharge port, and the temperature generated by the heat source enters the long refractory lining chamber to keep the temperature low. Add auxiliary air to the chamber to maintain low temperature levels.
Size Information
Size Chart of This Design
long | 10000 |
width | 1000 |
high | 2500 |
Related Products

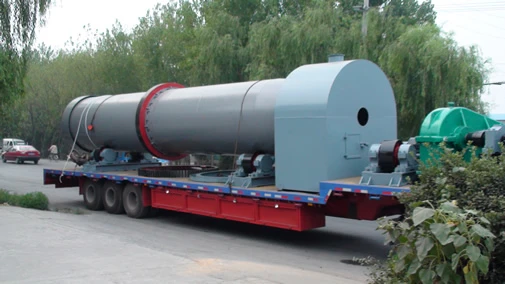

Packing&Shipping
The dryer will start shipping within 30 days after payment. It will be packed in a standard export container, and its main motor and spare parts will be placed in a sealed waterproof wooden box. We guarantee that the rotary dryer will be delivered to you quickly and safely.
After Sales Service
Pre-sales provide project design for free, choose the right equipment for you, complete export process, draw up construction plan and detailed process, accompany you to complete the equipment acceptance. After-sales arrangements for fast delivery, we sent engineers to the site to guide installation and commissioning and train operators. Regarding the installation and commissioning of the rotary dryer, we can guide the overall installation of the entire rotary dryer production line, including the crushed stone production line, the ball mill production line Rotary dryer production line, etc., enables you to start the normal operation of the equipment immediately and successfully.
Company Introduction
Henan Zhongyu Machinery Equipment Co., Ltd. is an independent national import and export enterprise dedicated to the development and production of drying equipment. With the development of enterprises in recent years and the exploration and cooperation with domestic and foreign customers, we have accumulated rich practical experience and key data in the field of drying.
Our Services & Strength
Our technicians will continue to update our products to meet and exceed customer needs, and provide users with equipment design, equipment selection, installation, commissioning, maintenance and technical training. Our strict, professional and high-quality after-sales service is well received and trusted by new and old customers.
FAQ
Q1: In order to provide you with a suitable quotation, we need to know the following information:
Answer: 1. What are the raw materials of the production line?
2. How much capacity do you need per hour?
3. What is the maximum input of raw materials?
4. What is the output and use of the final product?
After we receive your reply, we will provide you with the best quotation immediately.
Note: The price will depend on different models. According to the news, you will get a 5% discount.
Q2: How about the product warranty?
Answer: Zhongyu Machinery provides our customers with a twelve-month warranty for machines exported from us from the date of shipment. During the warranty period, if defects in materials or workmanship occur during normal operation, we will, at our discretion, replace or repair defective parts at no cost.
Q3: Why did you choose Zhongyu Machinery?
Answer: 1. Professional manufacturer, providing mine crushing equipment, construction equipment, ore dressing equipment and mine dryer.
2. Experienced and professional R & D team and manufacturing team;
3. The professional sales team is composed of dedicated, energetic and innovative personnel with international standards.
4. Professional logistics services to ensure safe and timely delivery of products worldwide by sea, air, road and railway.
Answer: 1. What are the raw materials of the production line?
2. How much capacity do you need per hour?
3. What is the maximum input of raw materials?
4. What is the output and use of the final product?
After we receive your reply, we will provide you with the best quotation immediately.
Note: The price will depend on different models. According to the news, you will get a 5% discount.
Q2: How about the product warranty?
Answer: Zhongyu Machinery provides our customers with a twelve-month warranty for machines exported from us from the date of shipment. During the warranty period, if defects in materials or workmanship occur during normal operation, we will, at our discretion, replace or repair defective parts at no cost.
Q3: Why did you choose Zhongyu Machinery?
Answer: 1. Professional manufacturer, providing mine crushing equipment, construction equipment, ore dressing equipment and mine dryer.
2. Experienced and professional R & D team and manufacturing team;
3. The professional sales team is composed of dedicated, energetic and innovative personnel with international standards.
4. Professional logistics services to ensure safe and timely delivery of products worldwide by sea, air, road and railway.
