Высокоскоростная машина JAGUAR с 6 головками для установки и уборки разных производственных линий
- Категория: >>>
- Поставщик: Shenzhen,JAGUAR,Automation,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 22859.30 $* | 23316.31 $* |
| Jul-18-2025 | 18539.30 $* | 18910.89 $* |
| Jun-18-2025 | 22499.47 $* | 22949.89 $* |
| May-18-2025 | 22319.57 $* | 22765.31 $* |
| Apr-18-2025 | 17819.26 $* | 18175.52 $* |
| Mar-18-2025 | 21959.84 $* | 22398.20 $* |
| Feb-18-2025 | 21779.70 $* | 22215.72 $* |
| Jan-18-2025 | 21599.49 $* | 22031.97 $* |
Характеристики

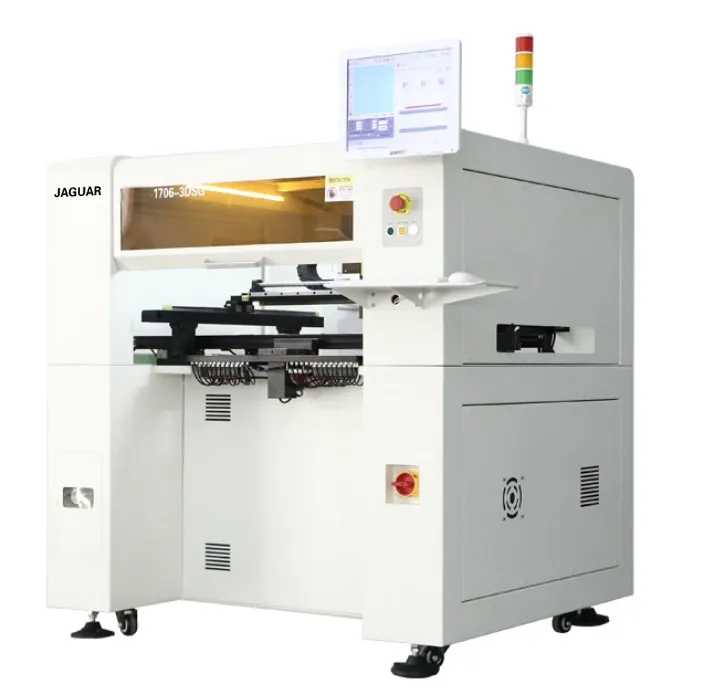

JAGUAR-1706-3DSG Automatic SMT P&P Machine
JAGUAR-1706-3DSG is a high speed pick and place machine, it's max speed can reach to 13000cph, which is also a widely usage machine, from LED, resistance capaciance to Hybrid visual mount, the positioning accuracy can reach to 0.01mm, it is a super cost-performance multi-functional chip mounter.

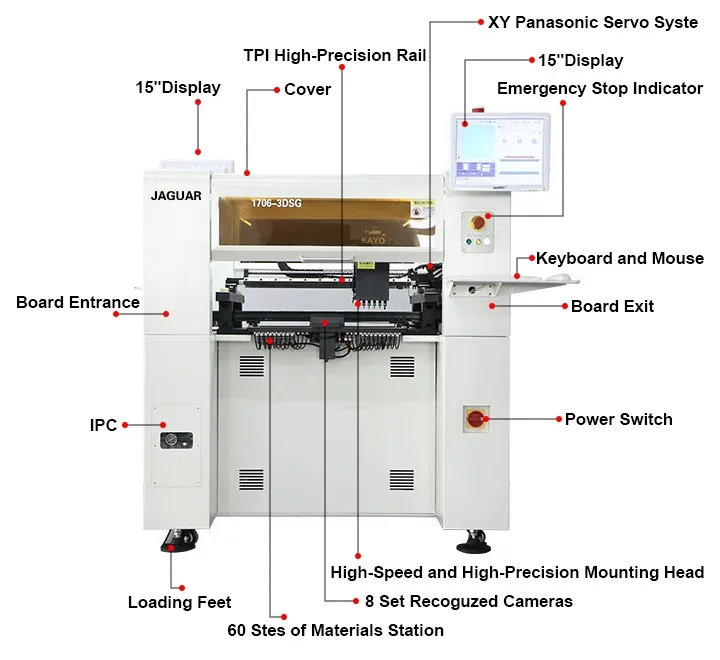

SPECIFICATIONS:
Specification:
Feeder No. | 60 | Product Weight | 500KGS |
Mounting Heads | 6 | XYZ Drive Guide Rail | TBI High-precision heavy-duty straight-line guide rail |
Average Power | 600W | ||
Positioning Accuracy | 0.01mm | Motion Drive System | Panasonic High speed DPS driver |
Nozzle Buffering Range | 5.0mm | Operating System | Support Windows XP, Win7 operating system |
Power Supply | 220V, 50Hz | Component Angle | 0~360°, synchronized rotation in motion |

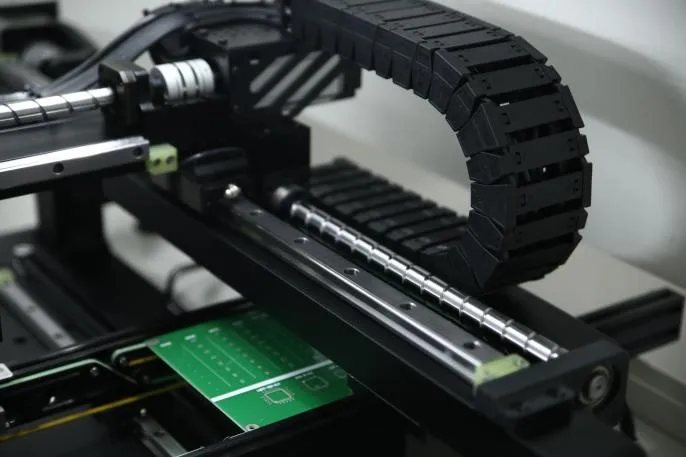

Compressed Air | 0.5-06Mpa | X/Y Running Mode | Imported TBI high-precision ball screw rod + imported TBI heavy-duty linear guide |
Driving Motor | Panasonic servo motor | ||

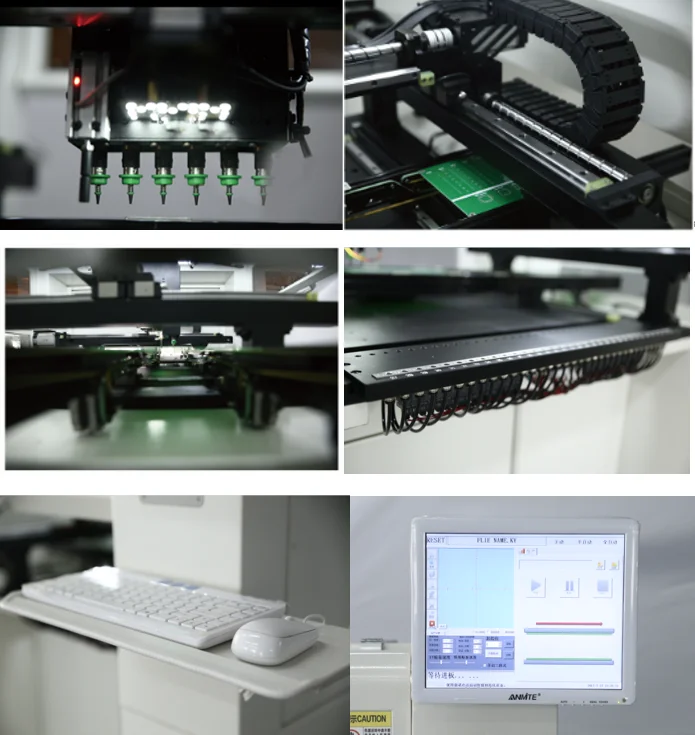

Recognition Method | Six heads recognize synchronously | Mark Point Positioning | Full automation |
Nozzle Vacuum Source | High-speed on-off vacuum generator with vacuum damage | Intelligent Alarm | Automatic correction and supplement, alarm when materials shortage |
Max. Circuit Board Area | 650x370mm | Board Input Method | Three-section transmitting boards-automatic connection from left to right, automatic PCB transmission positioning |
XY Max. Movement Range | 700x619mm | ||
Z Axis Max. Movement Range | 20mm | Visual Display | 15" industrial control display ratio 4:3, resolution 1024X768 |
Belt Type Feeder | 8/12/16/24mm feeders, stick feeder, tube chip | Programming Mode | Point-to-point programming, visual programming, PCB file coordinates inputting, etc. |
Max. Mounting Speed | 13000CPH | ||
Average Mounting Speed | 10000CPH (Visual) | Recognition Camera No. | 1 Mark recognition camera, 6 high speed recognition camera, 1 high-precision recognition camera |
Dimensions | 1335x1230x1420mm | ||
Applicable Mounting Range: Suitable for 0201, 0402, 0603, 0805, 1206, LED lamp beads, diodes, transistors, SOT, 40mm*40mm range pin pitch ≥0.3mm QFP, BGA etc. | |||
Related Products:
About Us:
Shenzhen Jaguar Automation Equipment Co., Ltd. is a professional Reflow Oven and Wave Soldering Manufacturer in Shenzhen, China. We focus on SMT and THT Soldering technology for more than 10 years, and our engineers have more than 20 years experience.
We are certified National High-tech Enterprise since 2017, integrated R&D, manufacture, service, trade, all our products have CE certification, our products are widely recognized at our domestic market as well as oversea market.
Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.
Our Factory:
More than 6000 square meters production plant.
More than 20 years experience in SMT automation equipment manufacturing. More than 50 peoples production team, among them
36 mechanical assembly technicians
12 electrical engineers
4 professional QC
Successful Experience:
JAGUAR's customer in 35 countries around the world
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 600 experts and technician for customers.
3. Became the most reliable Chinese partner for you.
Customer and Feedback:
Exhibitions:
Keep attending more than 10 exhibitions and forums each year.
The annual NEPCON and Electronica exhibitions are our regular event.
Participate in 3-5 overseas famous exhibitions regularly every year, like:
IPC Expo in San Diego, US
Electronica in Delhi, India
Electron Tech Expo in Mosco, Russia
WIN Exhibition in Istanbul, Turkey
Our Certificates:
We passed ISO certifications
We are IPC member company
We are National High-tech Enterprise
All the machines have CE and ROHS certifications
