3 оси гравировальный станок GRBL контроллер драйвер платы для ЧПУ 3018
- Категория: Laser Equipment Parts >>>
- Поставщик: Henan,Lunyee,Industrial,Automation,Equipment,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 29.90 $* | 30.37 $* |
| Aug-19-2025 | 28.24 $* | 29.70 $* |
| Jul-19-2025 | 24.93 $* | 25.67 $* |
| Jun-19-2025 | 28.50 $* | 29.46 $* |
| May-19-2025 | 24.26 $* | 25.23 $* |
| Apr-19-2025 | 27.98 $* | 28.52 $* |
| Mar-19-2025 | 27.47 $* | 28.43 $* |
| Feb-19-2025 | 27.9 $* | 28.24 $* |
| Jan-19-2025 | 27.6 $* | 28.80 $* |
Характеристики

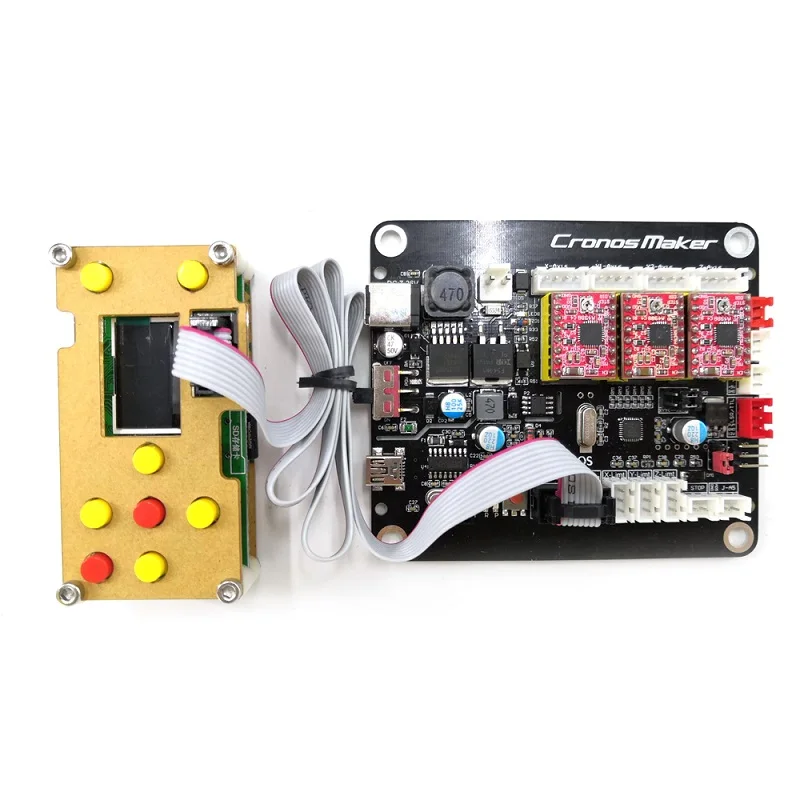

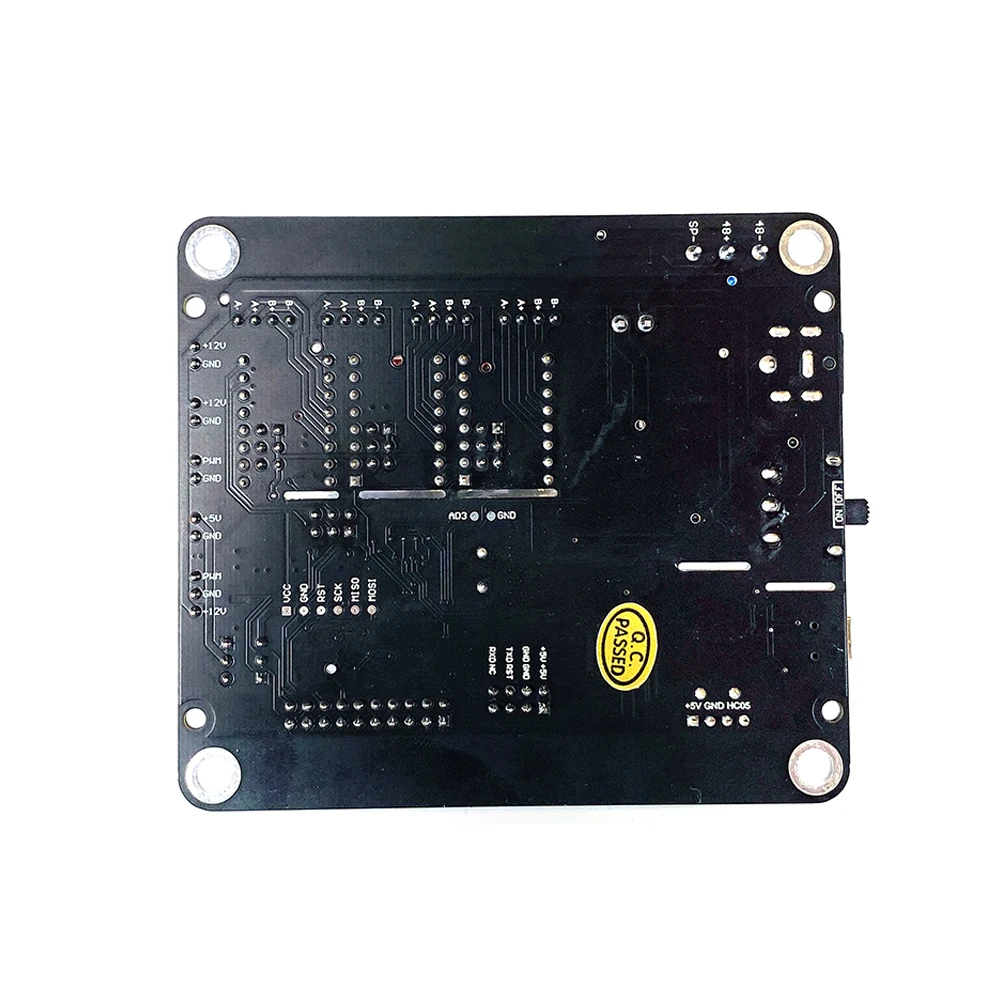

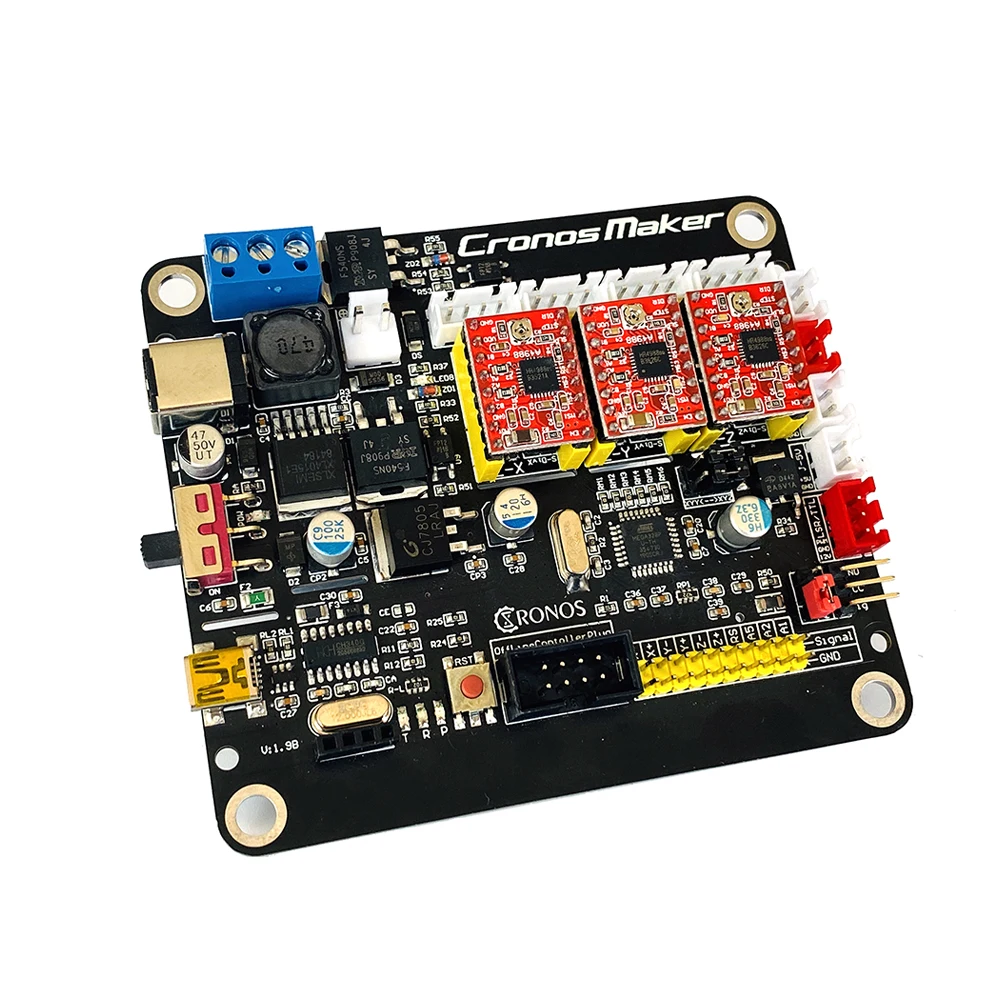

3 Axis GRBL Controller Driver Board for CNC 3018 Pro Engraving Machine
Specification
--Support Laser or Spindle. | ||
--Support 12V, 5V with TTL and without TTL laser. | ||
--Adjustable driver subdivision. | ||
--Support external Offline Controller(Optional). | ||
--Support the xyz limit switch, probe interface. | ||
--A4988 can be replaced with 8825 driver. | ||

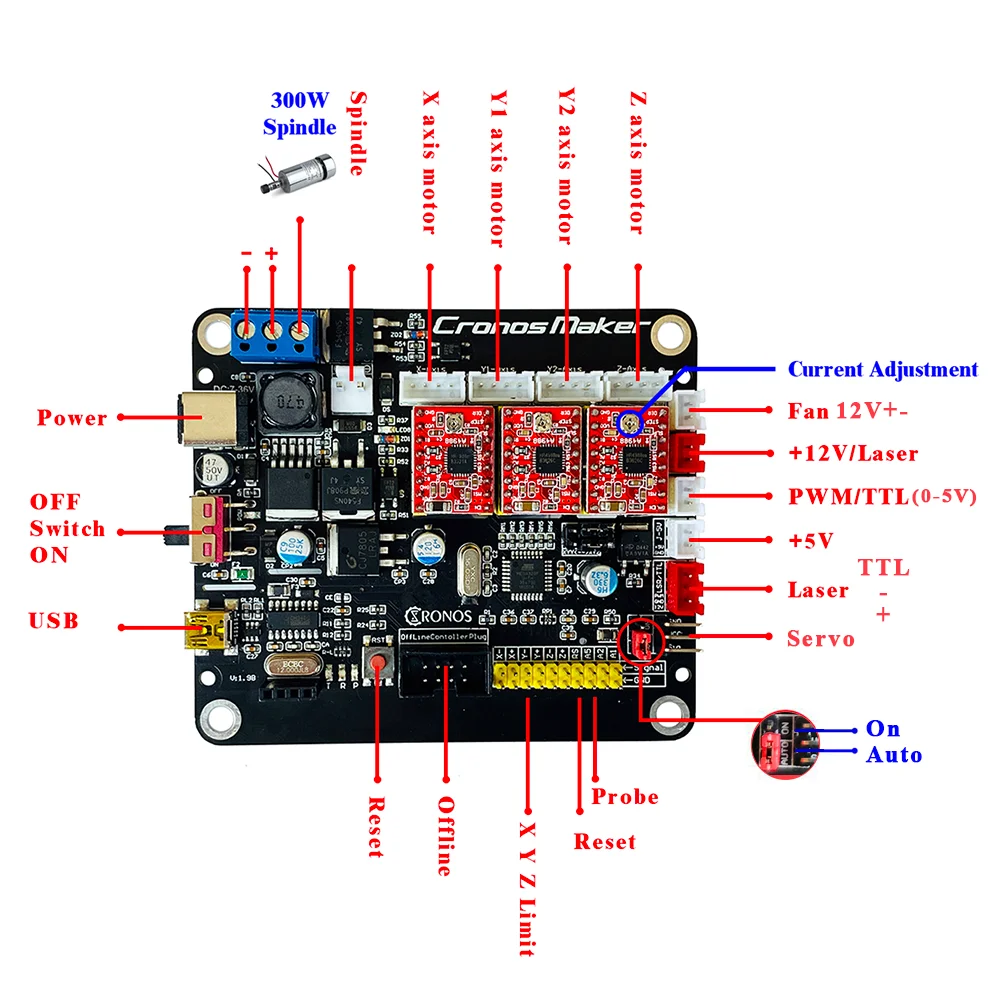

How to connect?
Product Description

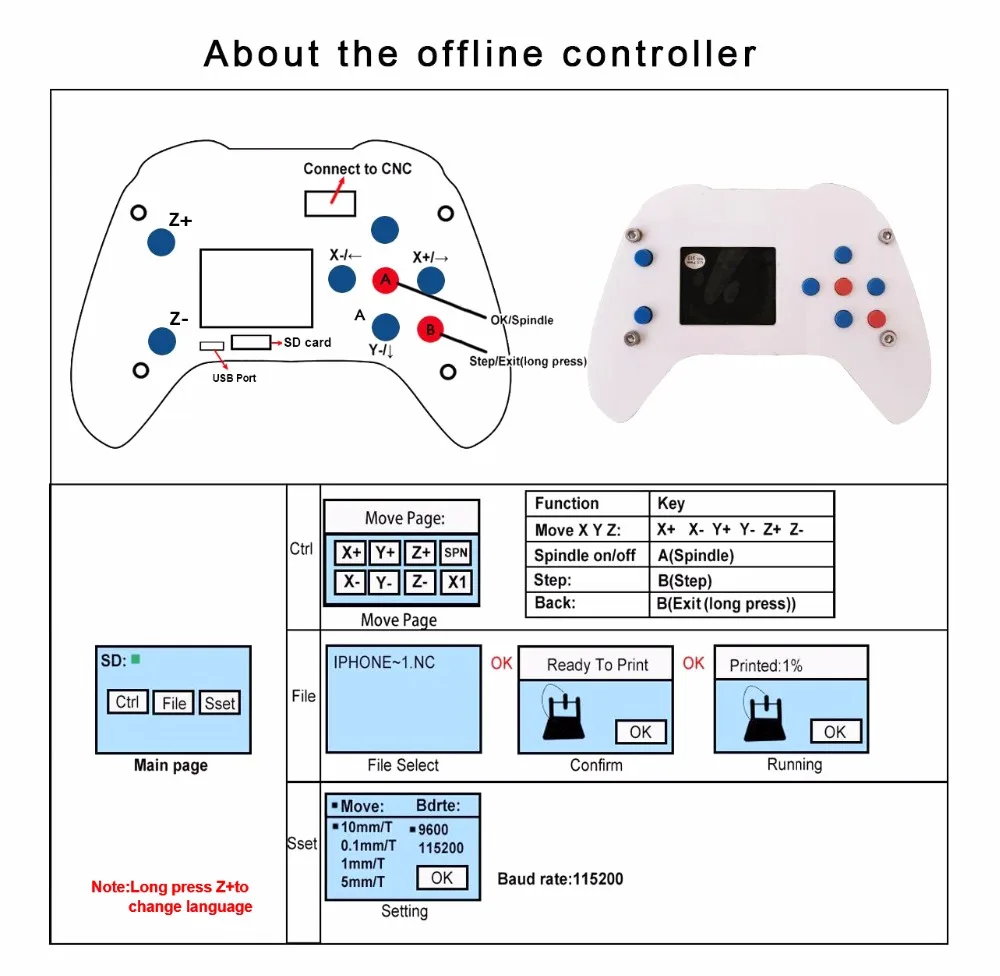

Function:
1. Manually control: manually adjust X, Y, Z axis location as engraving starting point, manually open or close spindle, manully
open or close cooling fan
2. File engraving: after off-line controller save file, it can connect the GRBL control board and process engraving, no need to
connect PC computer
3. Save file: after the off-line controller connect PC, it will be recognized as USB, large capacity storage device, can access
engraving file directly.
1. Manually control: manually adjust X, Y, Z axis location as engraving starting point, manually open or close spindle, manully
open or close cooling fan
2. File engraving: after off-line controller save file, it can connect the GRBL control board and process engraving, no need to
connect PC computer
3. Save file: after the off-line controller connect PC, it will be recognized as USB, large capacity storage device, can access
engraving file directly.
Company Profie
FAQ
Q1.What can be connected to the control board?

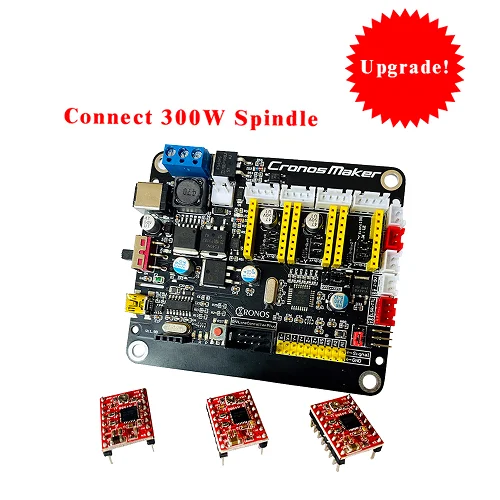

A:it can connect 300W Spindle/Offline/Limit/2Pin Laser/3Pin Laser/Fan
Q2.Can 3-axis control board be used on 2-axis engraving machine?
A: Yes
Q3.What about the warranty period?
A:3 Months
Q4.What payment methods can you accept?
A:Paypal,Western Union ,TT transfer and so on.
A:Paypal,Western Union ,TT transfer and so on.
