Прямая Заводская цена древесная стружка вращающийся барабан Вакуумная сушилка для
- Категория: Drum Drying Equipment >>>
- Поставщик: Zhengzhou,Leabon,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.46 $* | 0.54 $* |
| Aug-20-2025 | 0.65 $* | 0.81 $* |
| Jul-20-2025 | 0.95 $* | 0.1 $* |
| Jun-20-2025 | 0.27 $* | 0.74 $* |
| May-20-2025 | 0.50 $* | 0.80 $* |
| Apr-20-2025 | 0.55 $* | 0.1 $* |
| Mar-20-2025 | 0.71 $* | 0.29 $* |
| Feb-20-2025 | 0.38 $* | 0.87 $* |
| Jan-20-2025 | 0.56 $* | 0.8 $* |
Характеристики
Product Description
1)Drying is important before briquetting process.It is necessary to control the moisture of material at 8-12% exactly.In order to get superior quality of biomass briquetees with high density
2)The selection of dryer model depends on the original moisture content of raw materials.
3)Wood dryer is suitable for drying materials like sawdust,rice hull,milling wheat straw,corn stalk etc.Raw materials size:<1mm&<5mm.
Working Principle

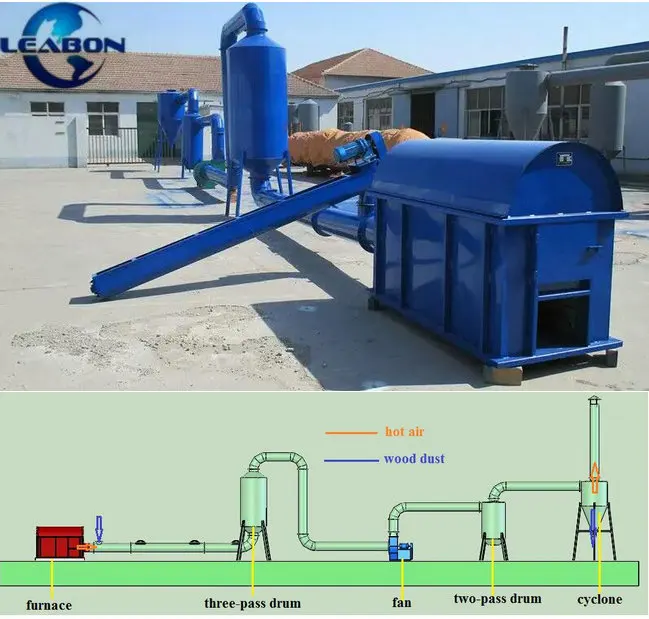

The whole system consists of fan blower,motor engine,fuel boiler,steel pipe,cyclone and air lock.In this system ,wet material is input into hopper by screw feeder.Fuel furnace produces large volume of hot air.The hot air is driven into steel pipes,mixed with wet sawdust and moved through curving pipes and drying chamber by the power of fan blower.Fast moving hot air sustains and is mixed with raw material sent by spiral feeder in the suspending state through the steel pipe:moisture evaporates as the material traverses along the steel pipe and is rendered dry at the discharge end.Humid air is continuously exhausted,thus the material is dried.
Specification
Model | Stove No. | Power(kw) | Capacity(kg/h) | Dimension(m) | Weight(kg) |
HGJ-I | One stove | 4 | 300-400 | 2.44*1.72*1.91 | 960 |
HGJ-II | One stove | 7.5+1.5+0.75 | 600-700 | 2.45*1.72*1.91 1.45*1.42*1.41 | 2280 |
HGJ-III | One stove | 11+1.5+0.75 | 800-900 | 2.45*1.72*1.91 1.45*1.42*1.41 | 2300 |
HGJ-IV | Two stoves | 5.5+1.5 | 300-400 | 2.44*1.23*1.9 1.4*1.3*1.4 | 1190 |
HGJ-V | Two stoves | 7.5+1.5 | 400-500 | 2.44*1.23*1.9 1.4*1.3*1.4 | 1600 |
HGJ-VI | Two stoves | 11+1.5+0.75 | 1000-1200 | 2.45*1.72*1.91 1.42*1.42*1.41 1.23*1.24*1.73 | 3080 |
HGJ-VII | Two stoves | 15+1.5+0.75 | 1100-1300 | 2.45*1.72*1.91 1.42*1.42*1.41 1.23*1.24*1.73 | 3090 |

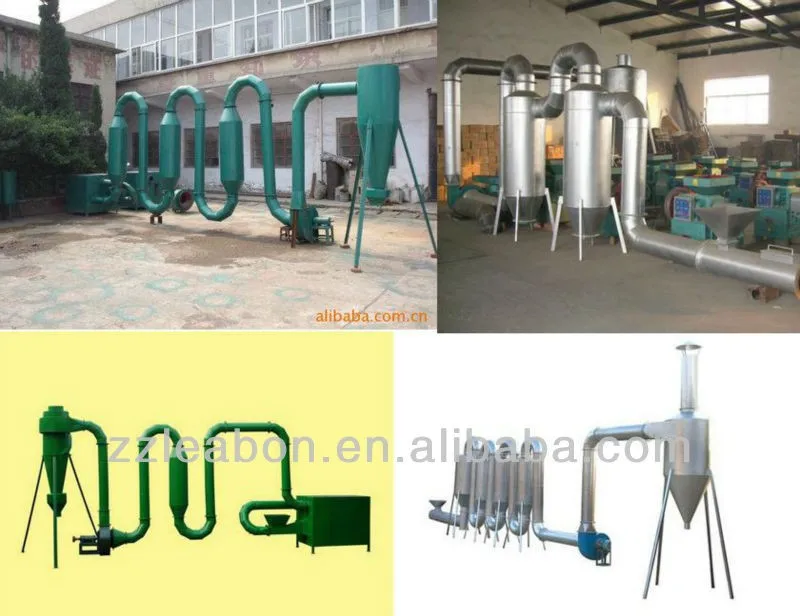

Details Images
Spare parts
Packing & Delivery
Company Profile
*We can provice you the one year warranty but without the spare part
*The professional and timely 24hours after-sale service
*The relative vedio of the machine installation and instruction will be provided for you
*We can provide you the different mould to meet your different requirements
*We can also meet the special voltage demand
*The engineer is availiable to service machinery oversea
*The professional and timely 24hours after-sale service
*The relative vedio of the machine installation and instruction will be provided for you
*We can provide you the different mould to meet your different requirements
*We can also meet the special voltage demand
*The engineer is availiable to service machinery oversea
