Газовая горелка для духовки с порошковым покрытием инфракрасная каталитическая природного газа сжиженного углеводородного


Поделиться:


Цена:533,67 $ - 630,69 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-18-2025 677.85 $* 691.77 $*
Jul-18-2025 549.43 $* 560.15 $*
Jun-18-2025 666.9 $* 679.98 $*
May-18-2025 661.55 $* 674.54 $*
Apr-18-2025 528.55 $* 539.47 $*
Mar-18-2025 650.96 $* 663.25 $*
Feb-18-2025 645.41 $* 658.4 $*
Jan-18-2025 640.47 $* 653.24 $*

Характеристики



BNG 85,125 ,210,250   1

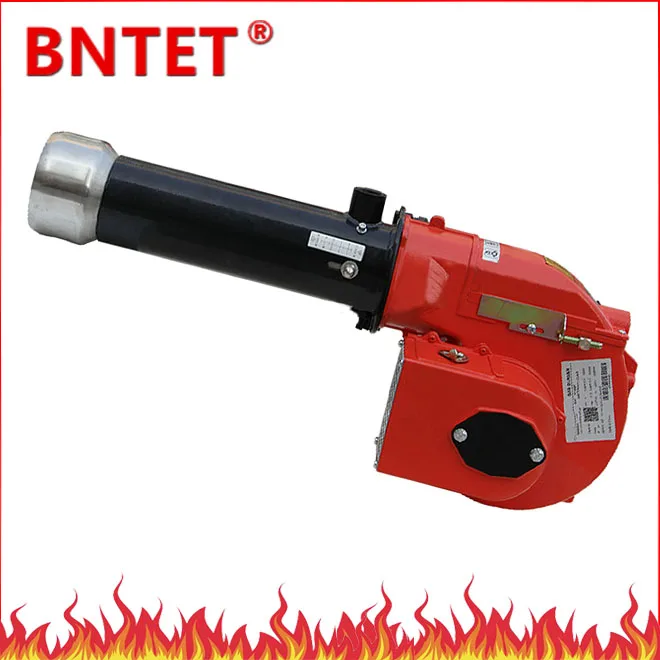

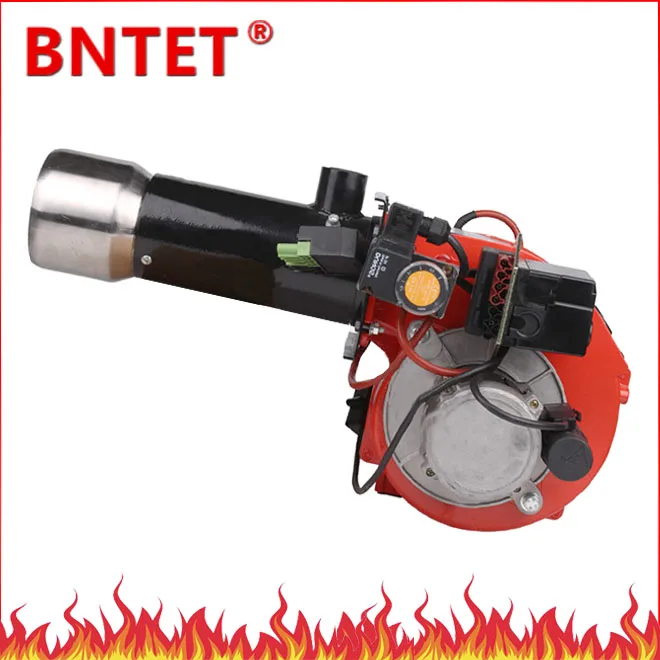

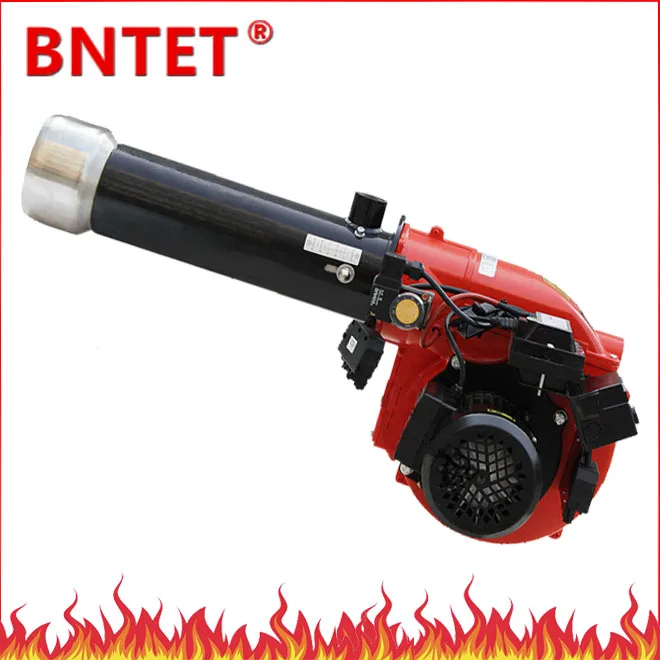

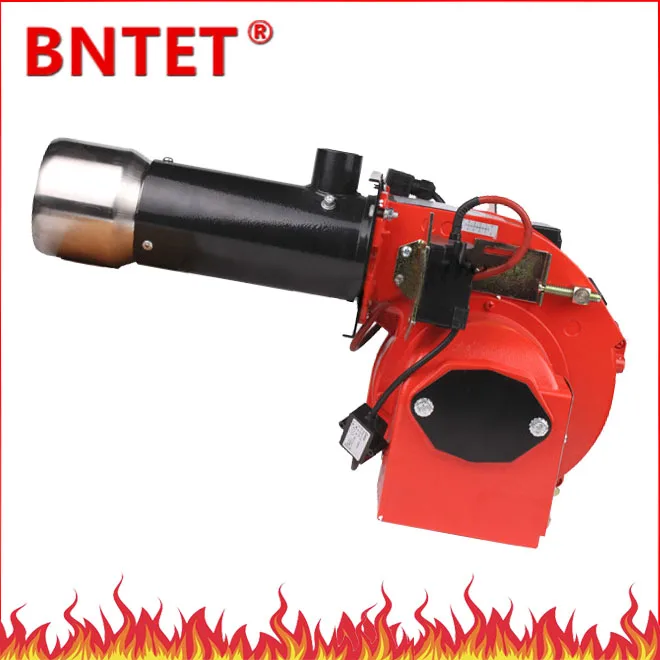

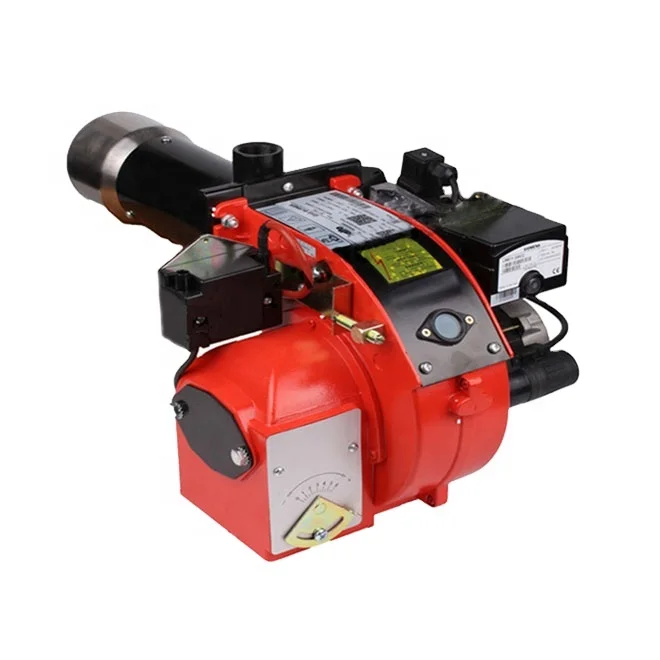

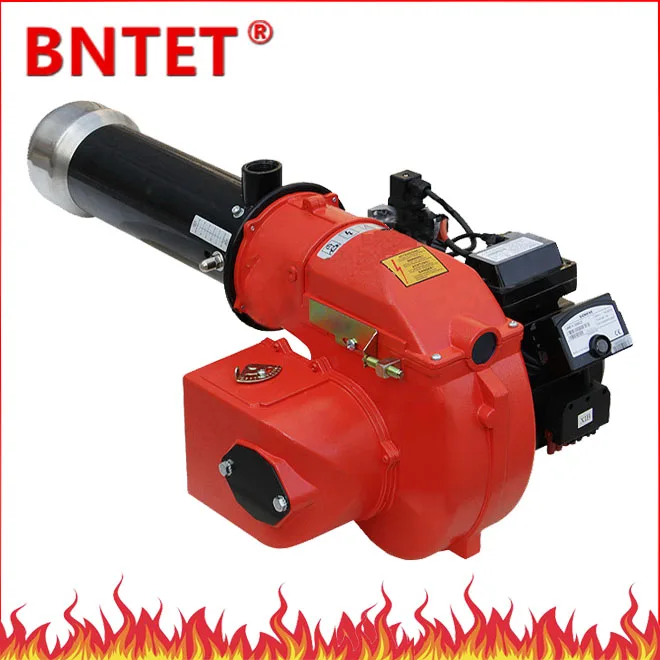

Gas burner performance :



1.Natural gas and liquefied petroleum gas burners
2.Two-stage sliding/modulating working.
3.Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.
4.The hinge connection,can be opened naturally.
5.Maintenance facilitated by the fact that the atomisation unit can be removed without having to remove the burner from the boiler.
6.Sliding/modulating The servo motor which fixed with a cam can adjust the consumption for fuel and air.
7.One flange and one insulating seal for boiler fastening.
8.Combustion air intake with air flow adjustment device.
9.Sliding boiler coupling flange to adapt to head protrusion of the various types of boilers.
10.Flame presence check by ionisation electrode.
11.three-way electric motor to run fan.



Gas burner model:





































































































































ModleMax. Output (Kcal/H)Power (Kw/H)Control Method
BNG 650,000 30-58Single Stage
BNG 1080,000 50-100Single Stage
BNG 15129,000 50-150Single Stage
BNG 28240,800 80-280Single Stage
BNG 35309,600 90-360Single Stage
BNG 50516,000 170-600Single Stage
BNG 60636,400 250-740Single Stage
BNG 85731,000 280-850Single Stage
BNG 35 P309,600 90-360Two Stage
BNG 50 P516,000 170-600Two Stage
BNG 60 P636,400 250-740Two Stage
BNG 85 P731,000 280-850Two Stage
BNG 120 P1,032,000 350-1200Two Stage
BNG 150 P1,290,000 400-1500Two Stage
BNG 210 P1,720,000 490-2000Two Stage
BNG 250 P2,150,000 500-2500Two Stage
BNG 300 FC2,562,800 660-2980Modulating
BNG 350 FC3,010,000 920-3500Modulating
BNG 400 FC3,397,000 400-3950Modulating
BNG 600 FC4,644,000 800-5400Modulating






























low temp.jpg









Zhengzhou Bona Heat Energy Equipment Co., Ltd is an innovative technology enterprise, which is focusing on the production, R & D and technical consulting services of burner, burner accessories, hot air furnace, and boiler related products. Zhengzhou Bona Heat Energy Equipment Co., Ltd upholds the development and innovation consciousness, produces products with high-performance combustion technology.Our Main products is various boiler burners, and industial burners. Such as natural gas burners, liquefied gas burners, industrial gas burners, light oil burners (diesel burners), heavy oil burners, waste oil burners, pulverized coal burners, rotary kiln burners, hot air furnace(hot blast stoves), and related products.





1. How to choose suitable burner for myself?
Usually according to combustion output capacity. You can provide relevant parameters of combustion output such as:
104xkcal/h
kW/h
m³/h (for gas)
Kg/h (for oil)
Then we will recommend the model which is most suitable for you, as the combustion output you provide.


2. What is included in the burner purchased? Do I need to purchase additional accessories?
The burner you buy usually contains the burner body, fan part, electric control part, and valve combination. Generally speaking, you do not need to purchase additional accessories. Therefore, you only need to provide fuel, such as gas source, oil, and the required power supply. Remarks: According to your needs, you can choose whether you need to buy a temperature controller.


3. What parts of the burner are wearing parts?
Gas series: ignition needle, fire detection needle, high voltage cable, gas filter. Oil series: solenoid valves, oil pumps, ignition needles, oil sparying nozzles, filters, usually greatly affected by the purity of the oil.


4. How long is the burner warranty?
According to the standard, one year warranty. The warranty period of some electrical appliances is in accordance with the quality assurance regulations of electrical appliances manufacturers.


5.Can the burner burn two fuels at the same time?
It is not possible to burn at the same time, but it can be switched using a dual-material burner, burning two different fuels at different times.


6. What parts of the burner are wearing parts?
Gas series: ignition needle, fire detection needle, high voltage cable, gas filter.
Oil series: solenoid valves, oil pumps, ignition needles, oil sparying nozzles, filters, usually greatly affected by the purity of the oil.
