Звукоизоляционный Водонепроницаемый Тип FAWDE genset 25 ква дизельный генератор 20 кВт с антиконденсатным
- Категория: Diesel Generators >>>
- Поставщик: Taizhou,Sutech,Power,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 2499.63 $* | 2624.47 $* |
| Aug-15-2025 | 2478.58 $* | 2602.16 $* |
| Jul-15-2025 | 2079.18 $* | 2183.55 $* |
| Jun-15-2025 | 2436.97 $* | 2558.12 $* |
| May-15-2025 | 2121.18 $* | 2227.50 $* |
| Apr-15-2025 | 2394.73 $* | 2514.41 $* |
| Mar-15-2025 | 2373.36 $* | 2492.79 $* |
| Feb-15-2025 | 2352.39 $* | 2470.2 $* |
| Jan-15-2025 | 2331.25 $* | 2448.93 $* |
Характеристики
Soundproof waterproof type FAWDE genset 25 kva diesel generator 20 kw with anti-condensation heater
Related Products
25 kva diesel generator (Optional engine brands, alternator brands and Control panel)
| Rated power | Engine | Alternator | Control panel |
| 20kw~1300kw | Cummins | Stamford Leroy somer Marathon Mecc alte ABB Chinese alternators | Deepsea ComAp Harsen Smartgen |
| 8kw~1600kw | Perkins | ||
| 68kw~504kw | Volvo | ||
| 20kw~500kw | Deutz | ||
| 220kw-2400kw | MTU | ||
| 280kw-800kw | MAN | ||
| 600kw-1800kw | Mitsubishi | ||
| 50kw-650kw | Doosan | ||
| 2kw~2500kw | Chinese engine |
Product Description
Soundproof waterproof type FAWDE genset 25 kva diesel generator 20 kw with anti-condensation heater
Engine Model | 4DW92-35D |
Engine manufacturer | FAW |
Number of Cylinders | 4 cylinders |
Cylinders arrangement | Vertical in line |
Cycle | 4 stroke |
Aspiration | Naturally |
Bore×Stroke | 90mm x110mm |
Displacement | 2.545L |
Compression ratio | 17.5:1 |
Prime Power/Speed | 26 kw/1500 rpm |
Standby Power/Speed | 29 kw/1500 rpm |
Speed Governor | Mechanical |
Cooling System | Forced water cooling cycle |
Steady speed droop | ≤1% |
Fuel Consumption at 100% Load | 202 g/kw.h |
Starter Motor | DC24V |
Alternator | DC24V |
Soundproof waterproof type FAWDE genset 25 kva diesel generator 20 kw with anti-condensation heater
Alternator brand | Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII… |
Prime power | 25 KVA |
Frequency/speed | 50HZ/1500rpm |
Exciter type | Single bearing, Brushless, Self-excited |
Power factor | 0.8 |
Voltage adjust range | ≥5% |
Voltage regulation NL-FL | ≤±1% |
Insulation Grade | H |
Protection Grade | IP23 |
25 kva diesel generator (Control panel)
Brand | Deepsea/ComAp/SmartGen |
The control module gives digital readouts of: Generator voltage; Output frequency; Engine speed; Battery voltage; Engine hours run. The control module has indicators for failure information: Overspeed/underspeed, Emergency stop Low oil pressure; High water temperature Failure to start Battery charger failure Automatic shutdown occurs under: Low engine oil pressure; High engine water temperature; Overspeed/underspeed; Failure to start after three attempts. |
|
Product Overviews

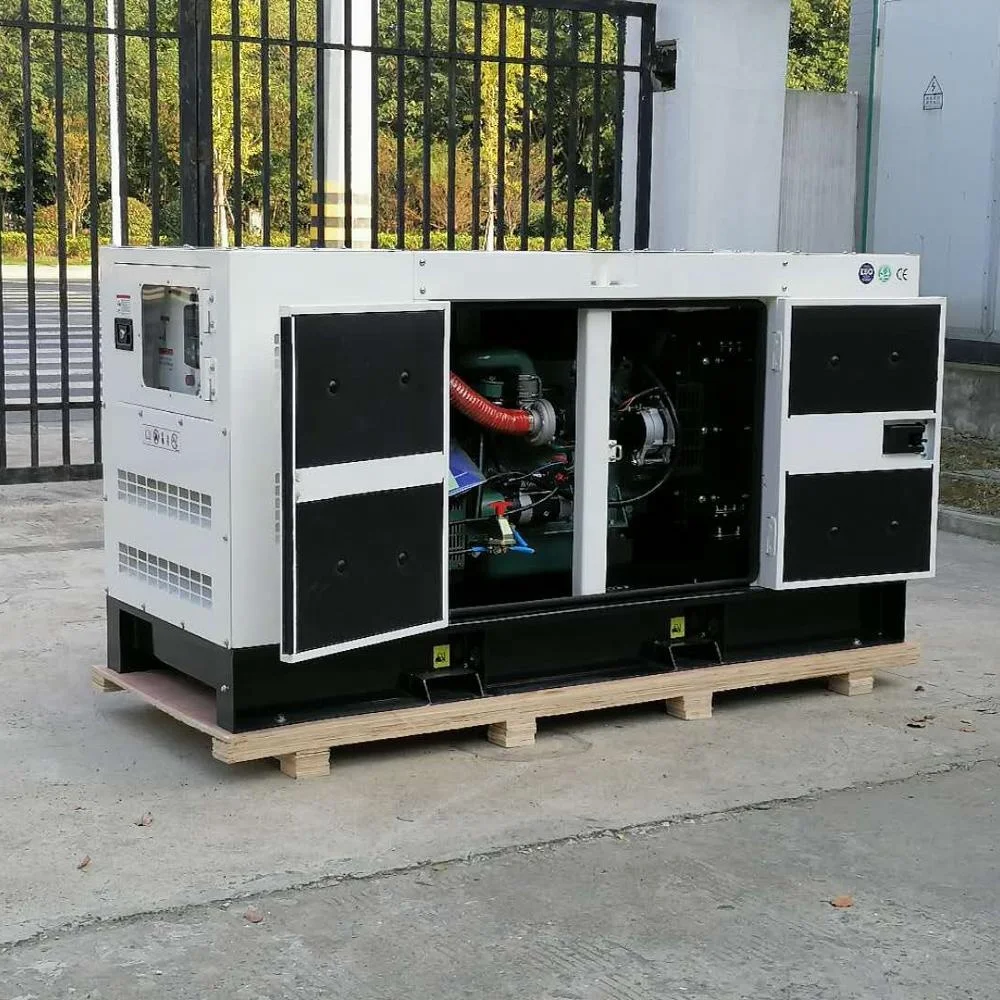

Cheap price FAW diesel generator 25 kva

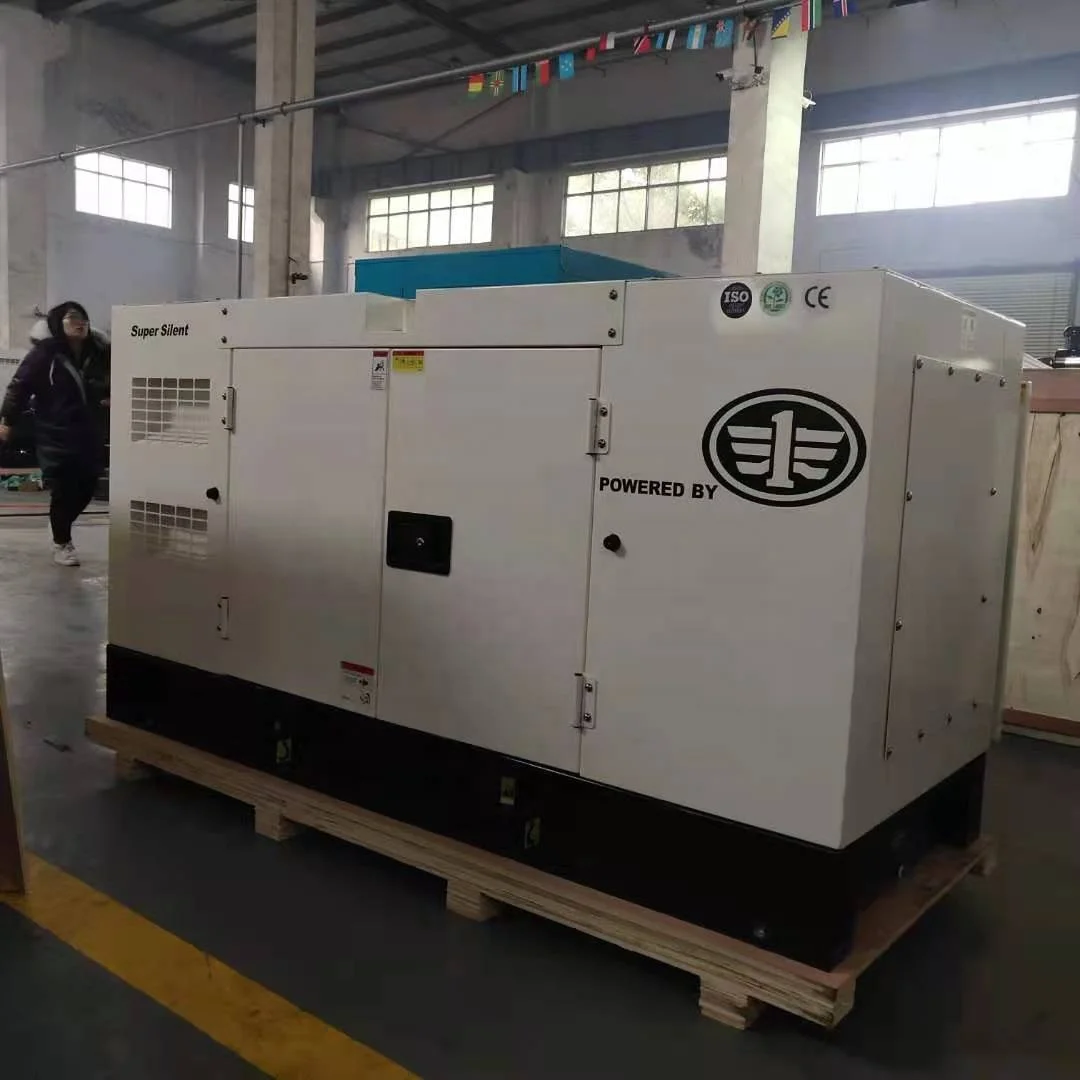

Silent diesel generator 20 kw with FAWDE engine

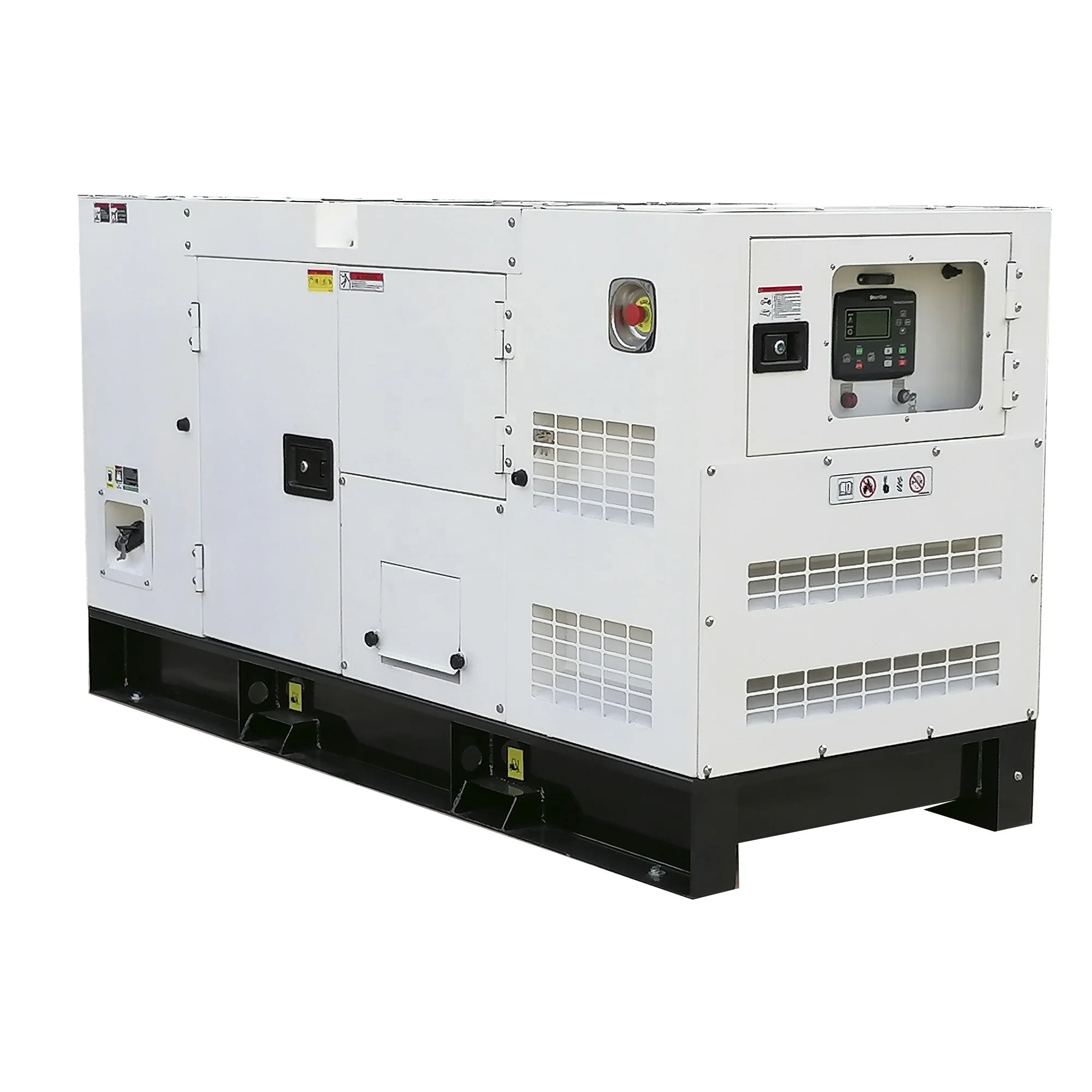

20 kw FAW diesel generator with silent canopy

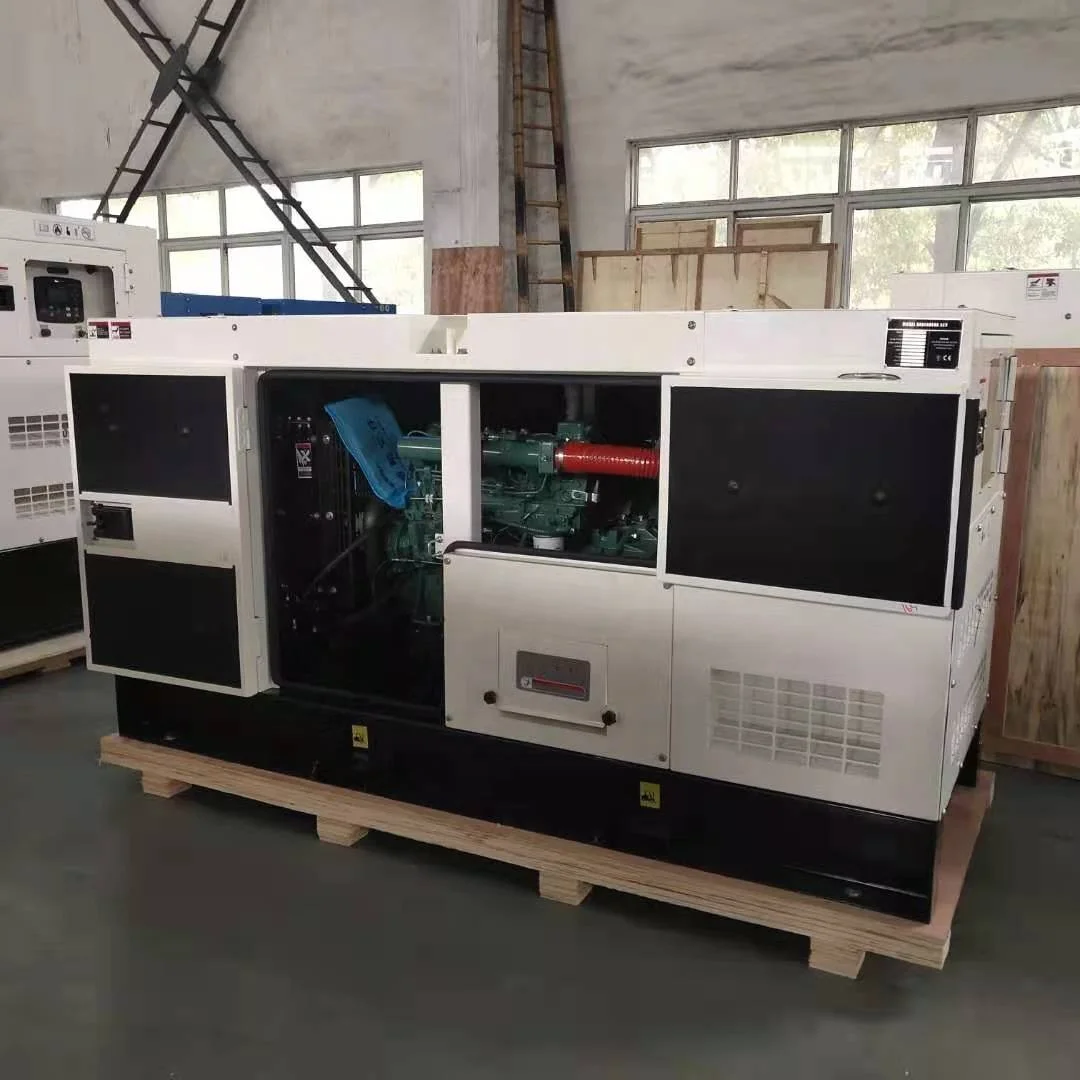

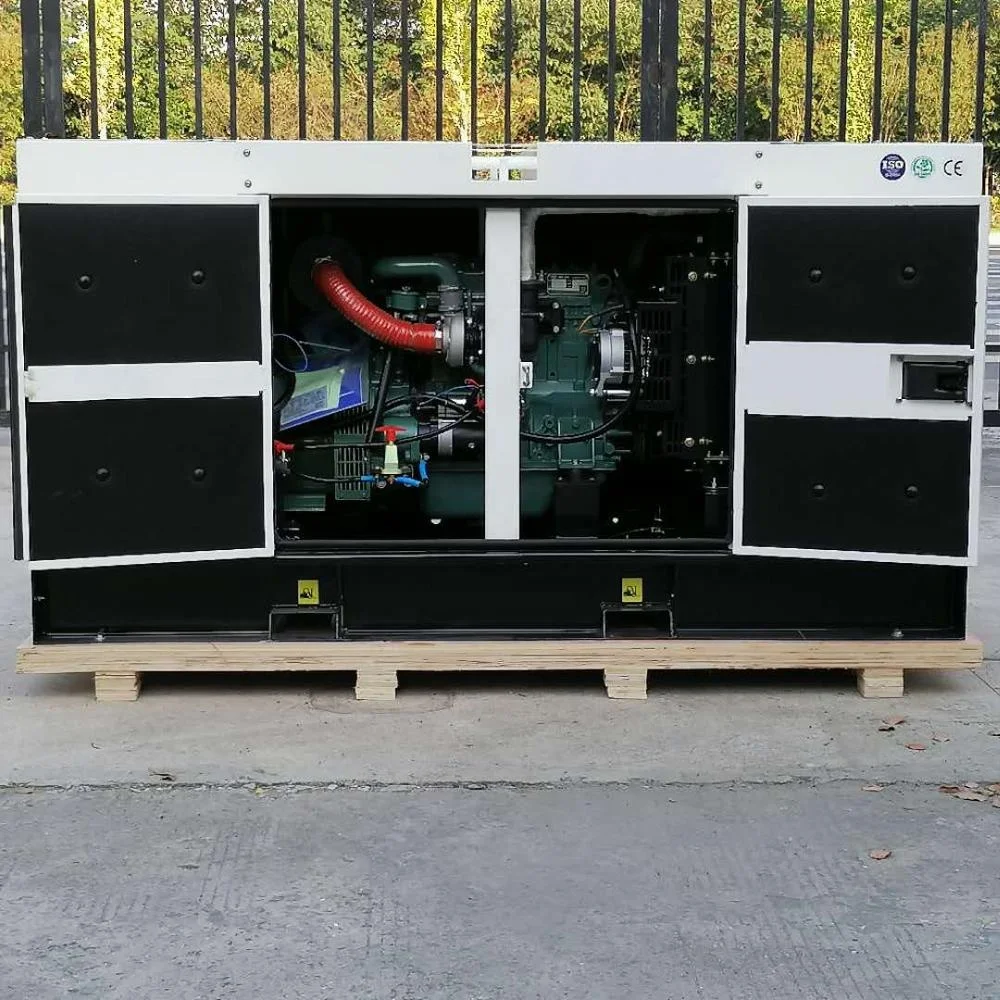

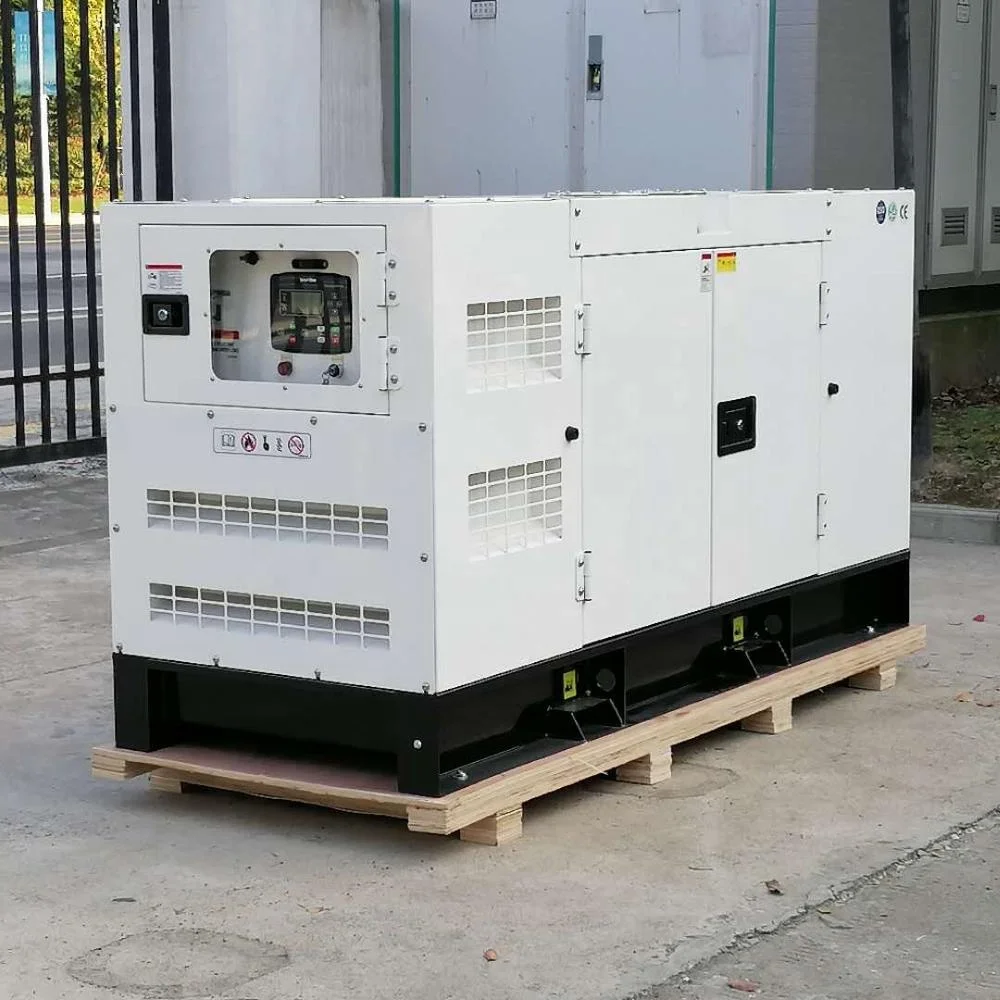

25 kva diesel generator details
Application
- 24 hours continuous stable power supply, in extreme or normal temperatures from -10 °C to 50 °C.
Sutech Power generators are design to work 24*7 in extreme temperature conditions with minimum maintenance requirement.
- In some cases CHP & CCHP (Combined heat and power/ Combined cooling heat and Power) to utilized heat.
Sutech Power specially designs Diesel and Gas CHP/CCHP Power generators to provide hot water or steam as well as Power.
- Lower noise level is important.
Sutech power generators are made to be environment friendly with low emission and lower noise level
- Reliable AMF & ATS System (Auto mains failure & Auto transfer System) which can start and stop generators automatically with load transfer in case of city supply on or off.
Company Information
Taizhou Sutech power Machinery Co., Ltd which is one of the largest diesel generator set manufacturers in China mainland. Our production capacity amounts to 9000 sets per year. We are specialized in making 1kva to 3000kva diesel generator sets under the brands of CUMMINS, VOLVO PENTA, PERKINS, DEUTZ, DAEWOO, MTU, SHANGCHAI, FAWD, WEICHAI, JICHAI and other engines to equip with STAMFORD, MARATHON, LEROY SOMER, MECC ALTE, SIMENS, ENGGA, TWGII alternators. Our gensets mainly use DEEPSEA and SMARTGEN control panel. According to your requests, they can be open type, silent type, mobile type and container type.
Our goal is to provide our users the best and most effective power solution. Customer needs is the direction of our efforts, customer satisfaction is our pursuit.
Any needs in land or marine emergency, backup and primary electric power, please don't hesitate to contact us.
