Обучающий автомобильный тренировочный верстак автоматический двигатель тренажер для бега и разборки
- Категория: Educational Equipment >>>
- Поставщик: Guangzhou,Guangtong,Educational,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.72 $* | 0.28 $* |
| Aug-16-2025 | 0.72 $* | 0.7 $* |
| Jul-16-2025 | 0.83 $* | 0.73 $* |
| Jun-16-2025 | 0.63 $* | 0.96 $* |
| May-16-2025 | 0.13 $* | 0.33 $* |
| Apr-16-2025 | 0.18 $* | 0.82 $* |
| Mar-16-2025 | 0.28 $* | 0.57 $* |
| Feb-16-2025 | 0.69 $* | 0.99 $* |
| Jan-16-2025 | 0.66 $* | 0.35 $* |
Характеристики
Product Description
Technical parameter
1. Dimensions: Rolling stand 1100x700x1100mm;
Control &test bench: 1000x600x1800mm
2. Battery: Gasoline engine: DC12V/60AH; diesel engine : DC12V/100AH
3. Fuel tank: 10L
4. Coolant: Glycol
Product description

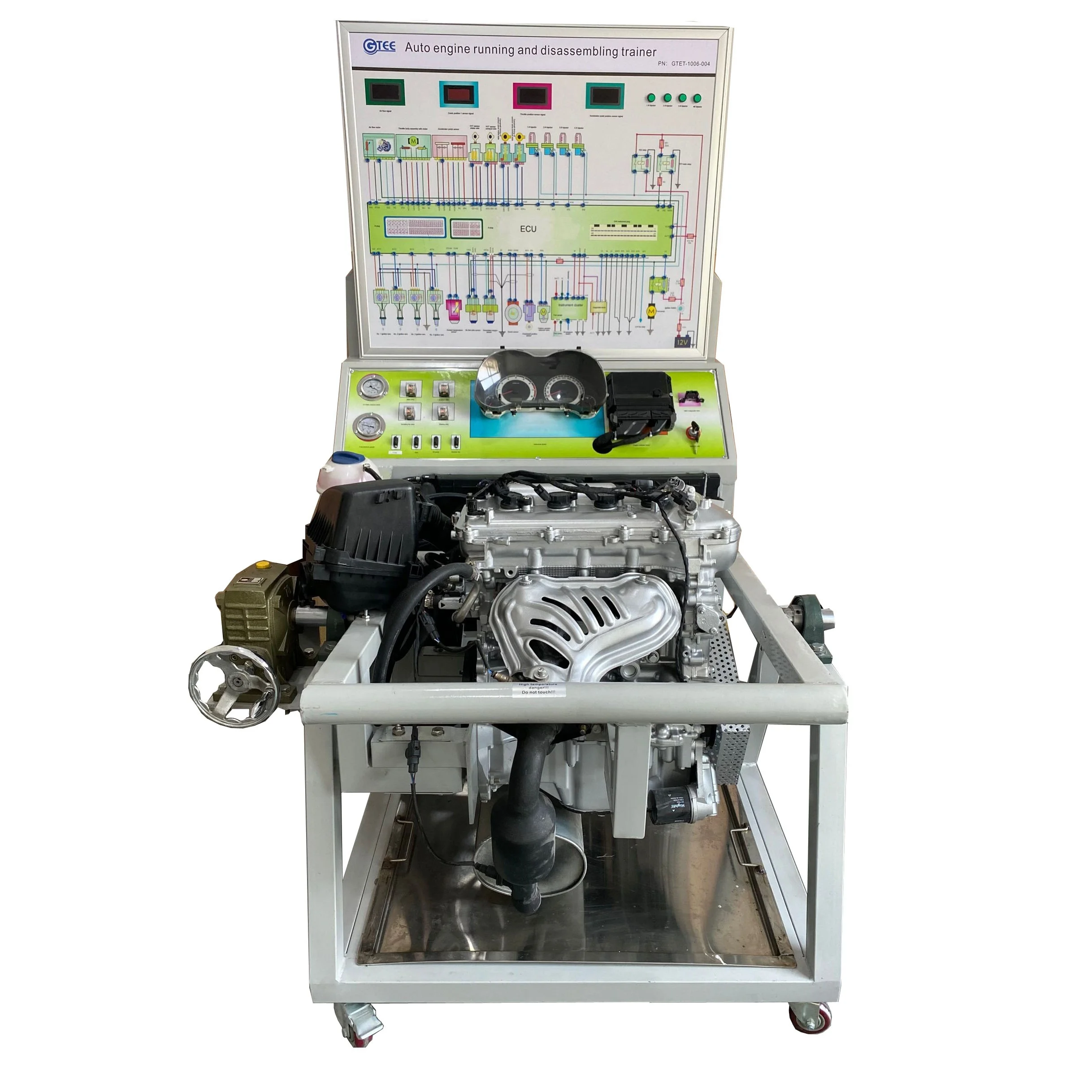

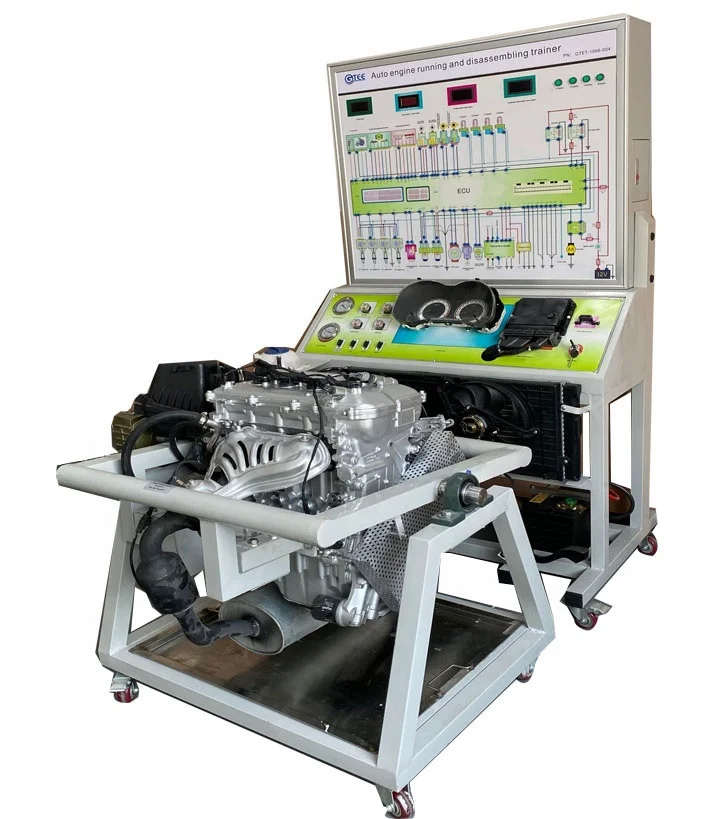

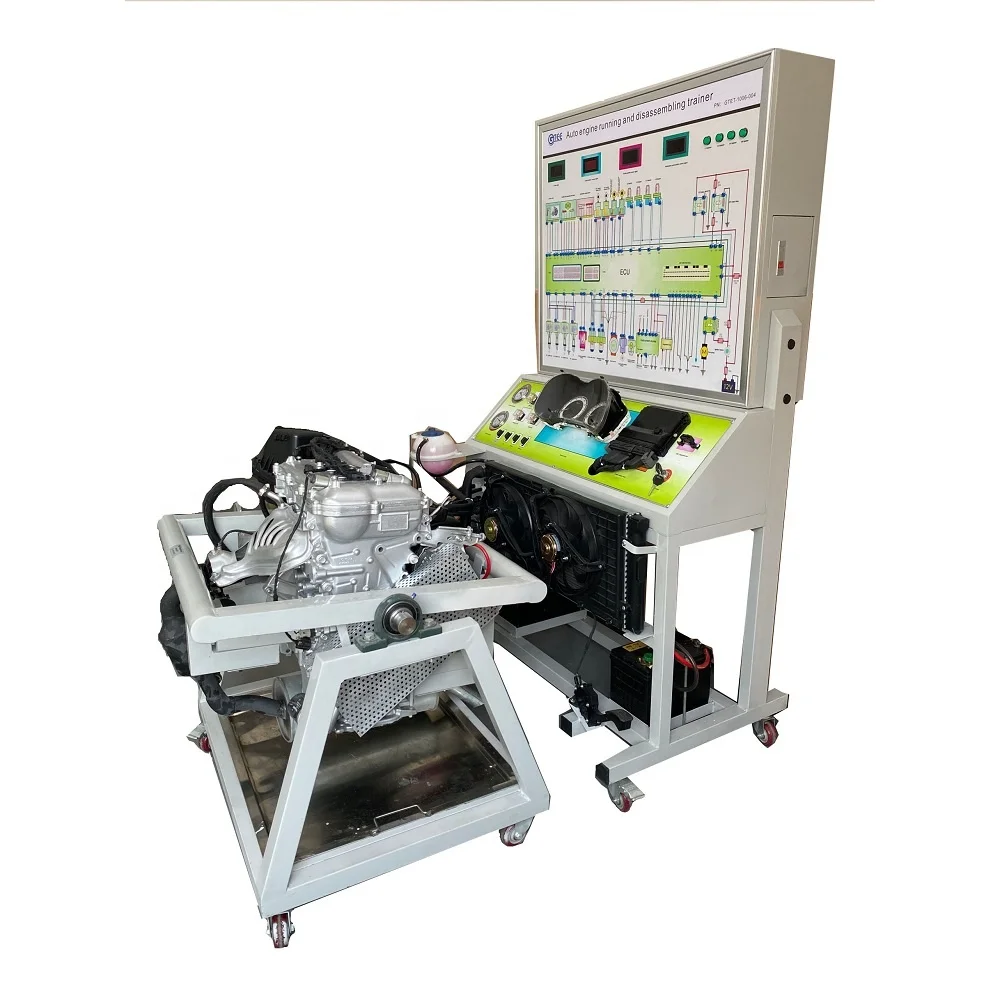

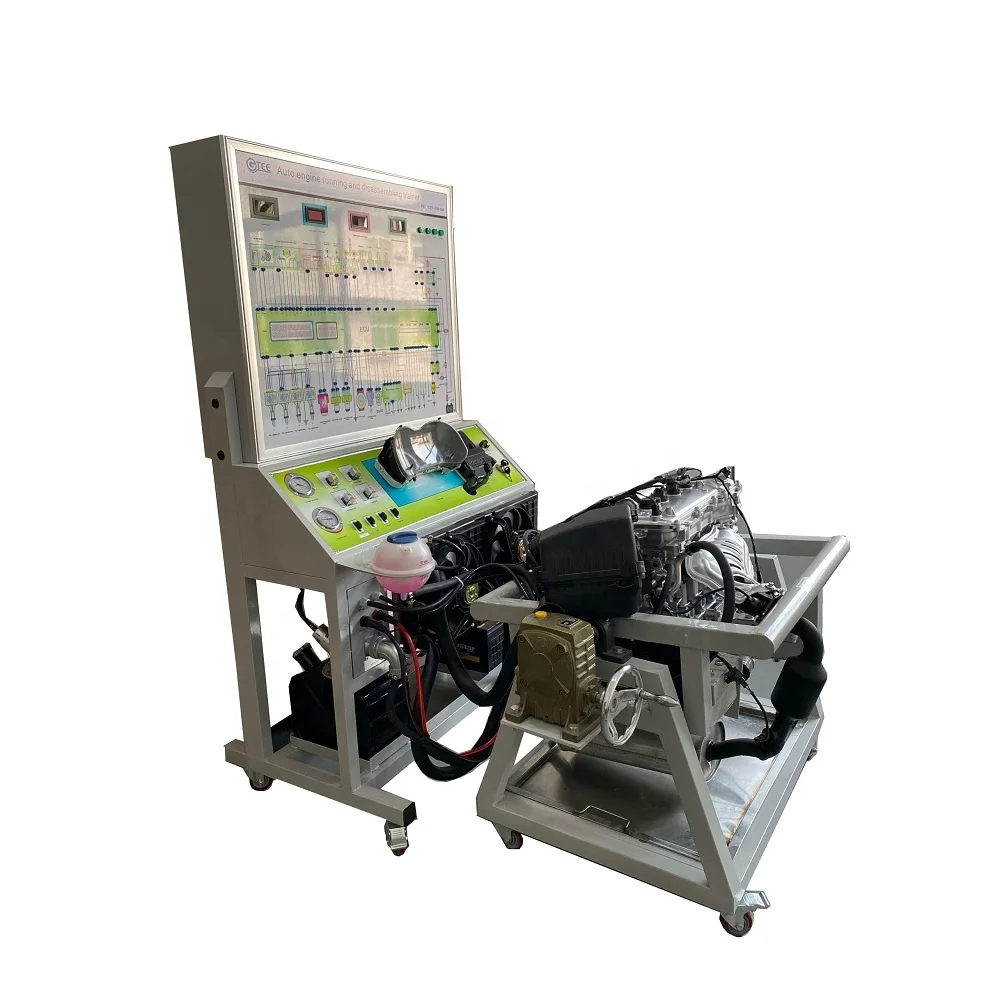

The trainer displays the basic principles and structures of diesel or gasoline engine. It is used for engine disassembly and assembly, commissioning, operation and inspection.
Product composition
Control &test bench: 1000x600x1800mm
2. Battery: Gasoline engine: DC12V/60AH; diesel engine : DC12V/100AH
3. Fuel tank: 10L
4. Coolant: Glycol
Product description
The trainer displays the basic principles and structures of diesel or gasoline engine. It is used for engine disassembly and assembly, commissioning, operation and inspection.
Product composition
Engine assembly | 1PCS |
ECU | 1 PCS |
Dashboard | 1PCS |
Battery | 1PCS |
Control and test bench with circuit schematic | 1PCS |
OBD diagnostics seat | 1PCS |
Engine flip frame | 1PCS |
Fuel pressure gauge | 1PCS |
Vacuum pressure gauge | 1PCS |
Sensor signal meter | 3PCS |
Fault set module (Manual switch type) | 1PCS |
Main features
Main features
1. The trainer includes engine assembly, flip frame, control and testing bench, etc. The engine can rotate 360 degrees during disassembly and assembly, maintaining stability at any angle, making disassembly and assembly work very easy.
2. The control and testing bench is equipped with battery, fuel tank, cooling water tank, instrument panel, starting system and other engine starting accessories.
3. After the engine assembly is completed, the students can run and start the engine, ie. start, idle, accelerate, and
decelerate.
4. The control and test bench is equipped with the original vehicle electrical control circuit, test terminals, dashboard, and
diagnostic seat. Self diagnosis functions can be achieved through a scanner, such as reading fault codes and testing data streams from ECU.
5. The flip frame is equipped with a large oil basin, which allows tools, spare parts, and oil to not contaminate the ground of the training room during engine disassembly and assembly.
6. Fault setting module: Manual switch type (Optional intelligent type)
Training courses
1. Function introduction of main components of gasoline or diesel engine;
2. Engine Disassembly and Assembly Training
3. Demonstration of engine operation, startup, acceleration, etc.;
4. Sensor and actuator signal measurement;
5. Operation of the scanner;
6. Fault set and troubleshooting;
7. Basic engine maintenance;
Suitable car or engine models listed below:
1. The trainer includes engine assembly, flip frame, control and testing bench, etc. The engine can rotate 360 degrees during disassembly and assembly, maintaining stability at any angle, making disassembly and assembly work very easy.
2. The control and testing bench is equipped with battery, fuel tank, cooling water tank, instrument panel, starting system and other engine starting accessories.
3. After the engine assembly is completed, the students can run and start the engine, ie. start, idle, accelerate, and
decelerate.
4. The control and test bench is equipped with the original vehicle electrical control circuit, test terminals, dashboard, and
diagnostic seat. Self diagnosis functions can be achieved through a scanner, such as reading fault codes and testing data streams from ECU.
5. The flip frame is equipped with a large oil basin, which allows tools, spare parts, and oil to not contaminate the ground of the training room during engine disassembly and assembly.
6. Fault setting module: Manual switch type (Optional intelligent type)
Training courses
1. Function introduction of main components of gasoline or diesel engine;
2. Engine Disassembly and Assembly Training
3. Demonstration of engine operation, startup, acceleration, etc.;
4. Sensor and actuator signal measurement;
5. Operation of the scanner;
6. Fault set and troubleshooting;
7. Basic engine maintenance;
Suitable car or engine models listed below:
P.N. | Car model | P.N. | Car model |
GTAT-1006-001 | Jetta 1.6L(Gasoline) | GTAT-1006-006 | Magotan TSI(Gasoline) |
GTAT-1006-002 | Santana AJR(Gasoline) | GTAT-1006-007 | Honda FIT(Gasoline) |
GTAT-1006-003 | Passat 1.8T(Gasoline) | GTAT-1006-008 | Buick Excel(Gasoline) |
GTAT-1006-004 | Toyota Corolla 2ZR-FE (Gasoline) | GTAT-1006-009 | Great wall 2.8TC(Diesel) (High pressure common rail) |
GTAT-1006-005 | Toyota Vios 1ZR-FE (Gasoline) | GTAT-1006-010 | Isuzu 2.8TC(Diesel) (High pressure common rail) |
Packing&Shipping
Solid plywood box and normally ship by sea, but if the size is not big, also by air, Fedex or DHL, TNT and so on
Related Products
Company Introduction

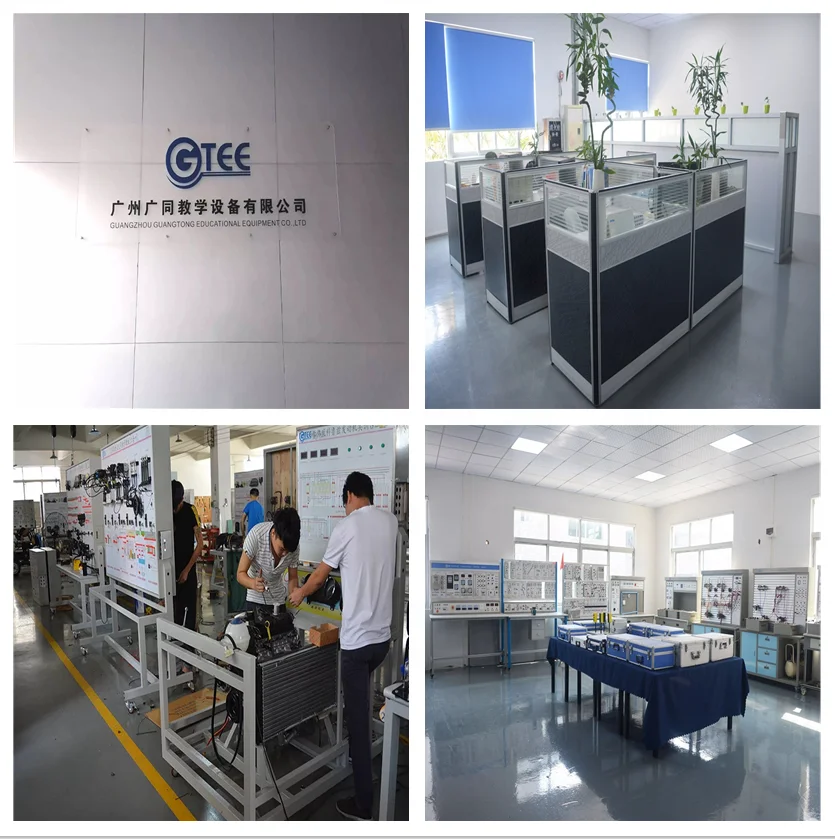

Guangzhou Guangtong Educational Equipment Co.,LTD is a well-know high-tech company, we participate in many international educational tenders and help our customer win the tender
GTEE is located in Baiyun District, Guangzhou City and adjacent to Guangzhou Baiyun International Airport.
With our several years of design, development, manufacturing and international service experience and expertise, GTEE is growing up and developing very fast.
We continuously focus on providing high quality products with competitive price and reliable after sale services for our overseas customers. We will response to our customers within 24 hours after get the feedback and requirements.
We are specialized in development and manufacturing of professional Educational Equipment including automotive teaching equipment, air conditioning and refrigeration teaching equipment, electrical and electronic teaching equipment, lift teaching, solar energy trainer, electric car training device and other vocational training equipment etc.
1.OEM & ODM Service
Customer requirement is our biggest concerns, we are flexible to satisfy customer needs as much as we can.
2.Technical Support
Good English training materials and training videos help teachers and students for better teaching effects.
Remote and on-site training or technical support are provided.
3.Solution for International Tenders
GTEE has professional engineer team for tender specification review and can quote competitive price to support our customers to win many international tenders and provide good quality products and good aftersales service to gain good reputation.
Customer Photos
Contact us
Please contact us for full product catalog/accurate price/more details about our product and service, we are very willing to help you !
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer .
Q: How long is your delivery time?
A: Depends on product quantity and stock. Please check with our sales team.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance.
Payment>=5000USD, 50% T/T in advance, 50% T/T balance before shipment.
Q: Do you offer aftersales support ?
A: Yes, of course, we will provide training materials together with the device, and also we can provide on site training and installation if customer request. We aslo have techincal engineer for online or remote support, and if within warranty, products parts damaged due to our quality problems, we will send parts via DHL to you for replacement for free as we seek long term cooperation with customers.
Q: How to have exclusive sales rights of GTEE ?
A: Place order to GTEE, when the order amount reach certain level, GTEE and customer will negotiate about exclusive rights.
Or Send your company profile to GTEE, after GTEE evaluation, start from general agents and gradually become exclusive agent.
