Центробежный бесшумный циркуляционный насос BLDC на длительный срок службы для коврика с
- Категория: >>>
- Поставщик: Changsha,TOPS,Industry,And,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 11.45 $* | 11.6 $* |
| Jul-19-2025 | 9.45 $* | 9.4 $* |
| Jun-19-2025 | 11.51 $* | 11.25 $* |
| May-19-2025 | 11.62 $* | 11.22 $* |
| Apr-19-2025 | 9.20 $* | 9.68 $* |
| Mar-19-2025 | 11.40 $* | 11.17 $* |
| Feb-19-2025 | 11.19 $* | 11.99 $* |
| Jan-19-2025 | 11.43 $* | 11.49 $* |
Характеристики
Why choose TOPSFLO Factory ?
♦ TOPSFLO is the only double certified enterprise by German TUV IATF16949 & ISO9001 in the pump industry
♦ 16 years of industry experience.Independent research and development, national high-tech enterprise, multiple domestic and foreign invention patents
♦ Annual production capacity of 3,008,000 pieces
♦ 4 laboratories that meeting the CNAS certification standard
♦ 80% of the products are exported to high-end market in Europe and America
Remarks:
- We are high-end Brushless DC pumps Manufacturer. Can provide customized services
- If you are interested in our products, pls feel free to contact us
Customer Reviews
Company Information
You want it, We all have !
APPLICATION FIELD
Trustworthy micro pump supplier
♦ Home appliance
Electric Instant Water Heater “Zero cold water” water heater
Air Source Water Heater Dishwasher Intelligent Toilet
Home Brewing Solar Energy Water Heater
Water Cooling / Heating Mattress Computer Water Cooling System
♦Food industry
Carbonated Beverage Machine Water Dispenser Coffee Machine
♦Automotive industry
![12v dc mini water pump]()
Car Engine Pre-heating
EV Battery Cooling System
If you don’t have one of your application areas, please contact us!

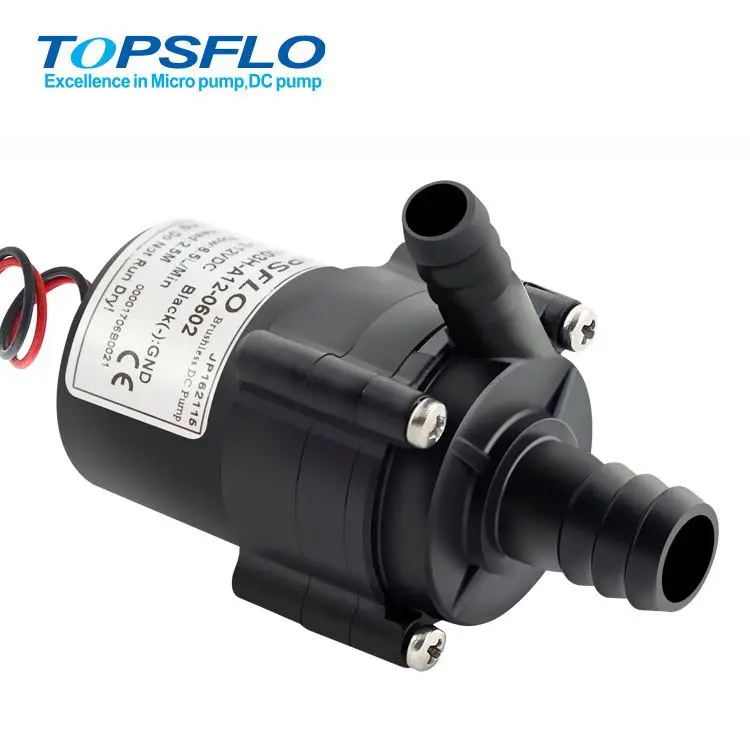

Product Description
Brushless dc hot water pump centrifugal pump 12 volt,12 volt dc pump food grade
Application:
Coffee maker/coffee machine, Water cooler/water dispenser, Beverage dispenser
Water purifier/water dispenser, Tea maker, Milk dispenser, Laboratory
Medical treatment, Fountain, aquariums,Computer CPU cooling circulation,Water heating mattress

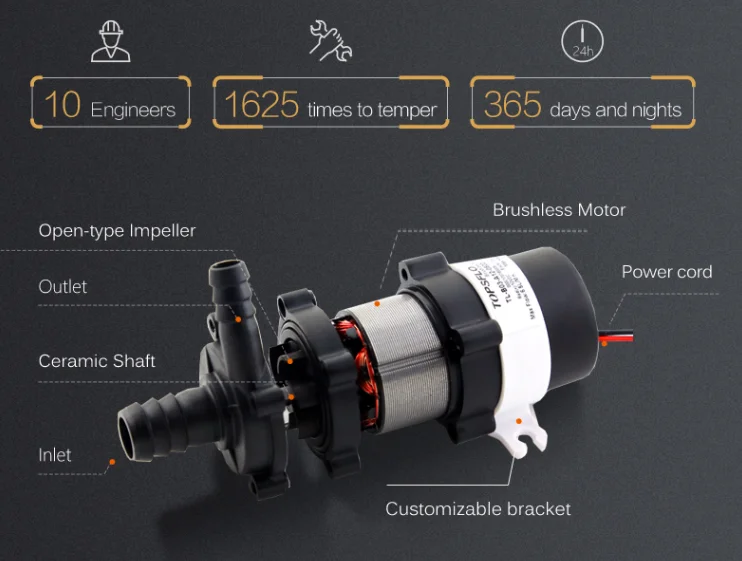

Product Features:
•.High efficiency brushless DC motor with long lifetime 20,000hours
•.Heavy duty work,can sustain continuous 24hours work
•.Special designed high efficiency closed-impeller for low power consumption
•.Motor widely voltage designed suitable for battery,Power supplying with peak-low voltage damply
•.All wetted materials Food grade approved to be safety usage
•.Durable permanent magnetic rotor/impeller and fine ceramic shaft
•.Low or no maintenance
•.IP protection level: IP68, submersible directly
•.Blocked protection

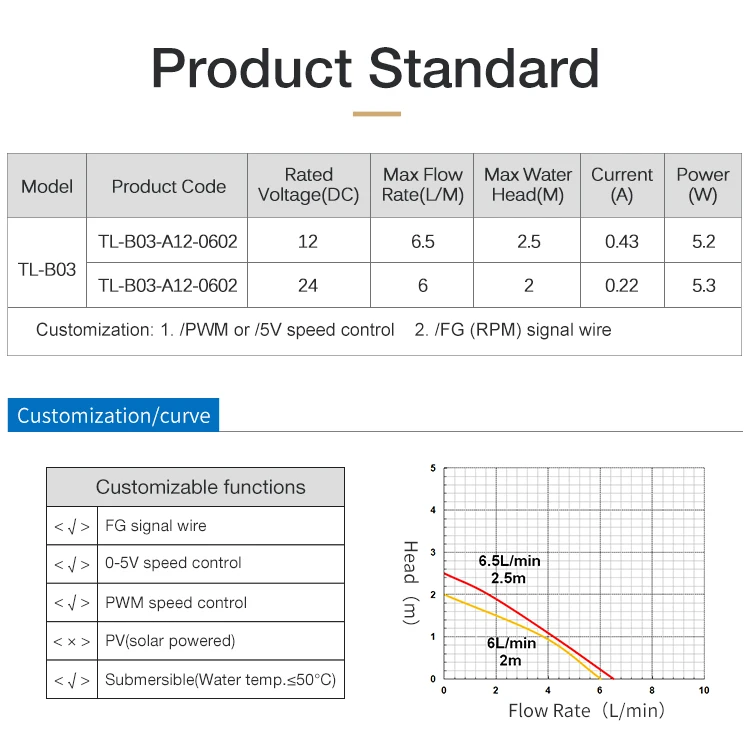

Product Specification:
| Model | Product Code | Max Water Flow (L/Min) | Rated Voltage(DC) | Rated Current (A) | Max Water Head(M) | Rated Power(W) |
| B03 | TL-B03-A12-0602 | 6.5 | 12 | 0.43 | 2.5 | 5.16 |
| TL-B03-A24-0602 | 6 | 24 | 0.22 | 2 | 5.28 | |
| TL-B03-A12-0501 | 4.8 | 12 | 0.2 | 1.2 | 2.4 | |
Customization: 1. /S Submersible, liquid ≤50°C 2. /FG (RPM) signal wire 3. /PWM or /5V speed control | ||||||
Product Characteristics:
| Max Flow Rate | 6.5L/MIN |
| Max Water Head | 2.5 M |
| Rated Voltage | 12V/24V |
| Working Voltage Range | 6V-18V /12V-28V |
| Motor Type | Brushless DC motor |
| Liquid Temperature | 0-105°C |
| Noise Class form 0.3M | 37dB /Max |
| Ideal Life Time | 20000 Hours |
| Working Mode | Continuous |
| OD of Inlet/Outlet | 14 mm/9.4mm |
| Max pressure / Continue work Pressure | 1.8Mpa / 0.5Mpa |
| Working liquid | Pure Water,antifreeze,etc |
| Power Supply | DC power supply, battery |
| Remarks | Can’t dry-running, not Self-priming |
Usage Note:
Dry-running is prohibited.
Reverse polarity is not allowed (except customized).
The pump if dropped or with heavy vibration do not use.
Liquid contain impurities or magnetic particles are not allowed.
Liquid temperature over 80°C is not allowed (except high temperature models).
Acidic or alkaline liquid is prohibited (except customized).
Get more Technical data, please click here
Get more detail, please click here
