Главная
Все Категории
Оборудование для изготовления досок
Сборный бетонный станок для подпорных стен с полым

Сборный бетонный станок для подпорных стен с полым

Категория: Оборудование для изготовления досок >>>
Поставщик: Henan,Victory,Industrial,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.37 $*	0.19 $*
Aug-19-2025	0.49 $*	0.17 $*
Jul-19-2025	0.16 $*	0.26 $*
Jun-19-2025	0.85 $*	0.22 $*
May-19-2025	0.44 $*	0.45 $*
Apr-19-2025	0.17 $*	0.48 $*
Mar-19-2025	0.70 $*	0.73 $*
Feb-19-2025	0.77 $*	0.67 $*
Jan-19-2025	0.95 $*	0.69 $*

Характеристики

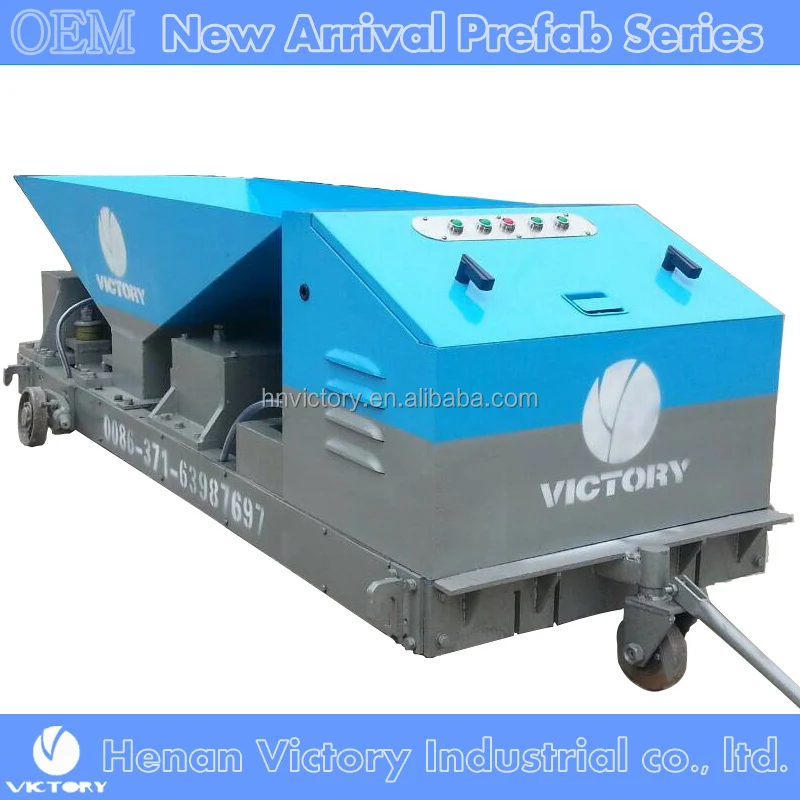

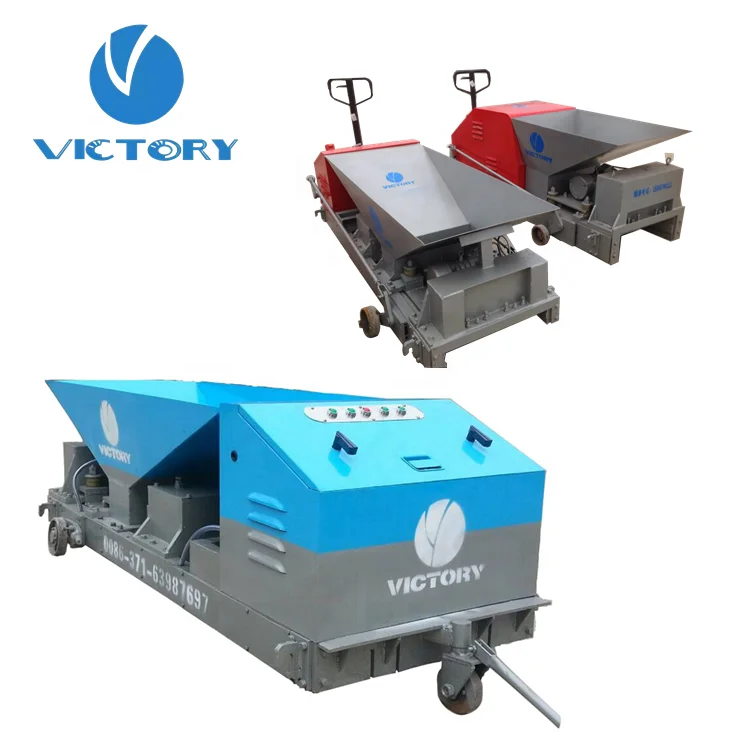

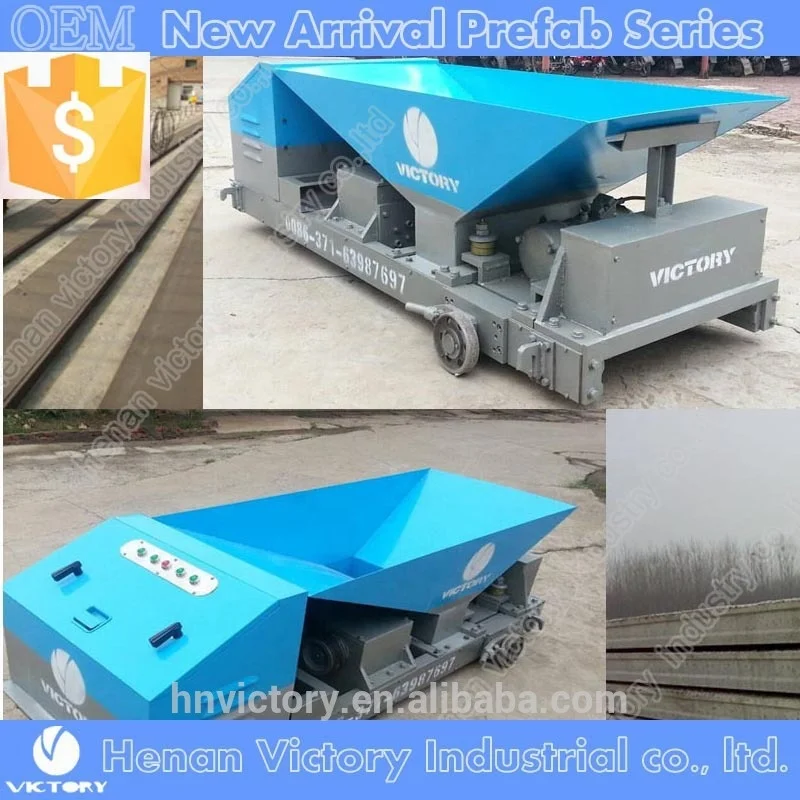

Precast concrete retaining wall slab machine

wall panel machine11-3.jpg

1.General introduction

JQT Series lightweight wall panel machine is a new precast production machinery , which is specialized in forming wall panel for variety of industrial and civil construction.

2.Raw materials

(1). Industrial ash,slag,fly ash,coal gangue,pumice,shale,haydite, etc..

(2).Expanded perlite or industrial wasted

(3).Added with a certain proportion of ordinary cement

(4).1.6-3mm low-carbon steel wire for strengthening.

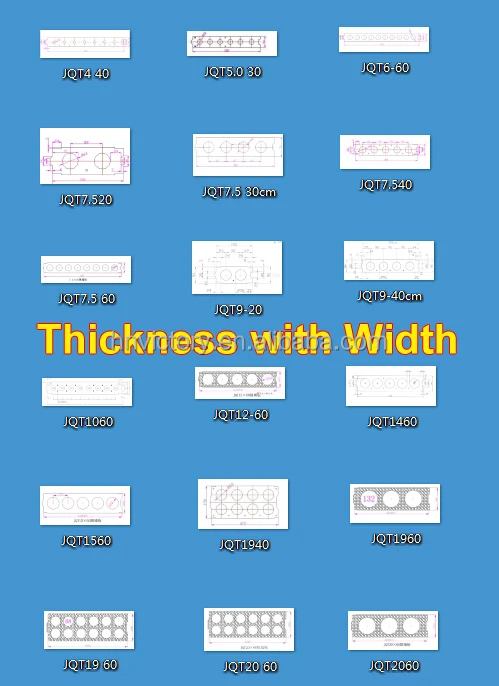

3.Size of output products

Width:normally 600mm

Thickness :from 60mm-180mm upon your needs

Holes: 3 - 7

Hole diameter: 58mm-132mm

The size of the products is flexible, so you can choose the most suitable size upon your needs and your market.

4. Advantages of the wall panel

5.Main dataS of the machine

Model	JQT9x60	JQT10x60	JQT12x60	JQT18x60
Width(mm)	595±2	595±2	595±2	595±2
Thickness(mm)	90±1	100±1	120±1	180±1
No. of holes and hole diameter(mm)	7*58	6*58	5*85	3*132
Panel making speed(m/min)	1.1-1.7	1.1-1.7	1.1-1.7	1.1-1.7
Main motor (kw)	4	4	4	4
Vibrator(kw)	0.8	0.8	0.8	1.1
Overall dimensions (mm)	2560x950x980	2560x950x980	2560x950x980	2560x950x980
GW(kg)	1100	1200	1300	1800

Also we can make other models according to your needs

6.The supporting machine for the whole production line

1.steel bar tension machine,

2. wall panel cutting machine,

3. dumper

4. concrete mixer

5. hammer crusher if need

panel production line.jpg

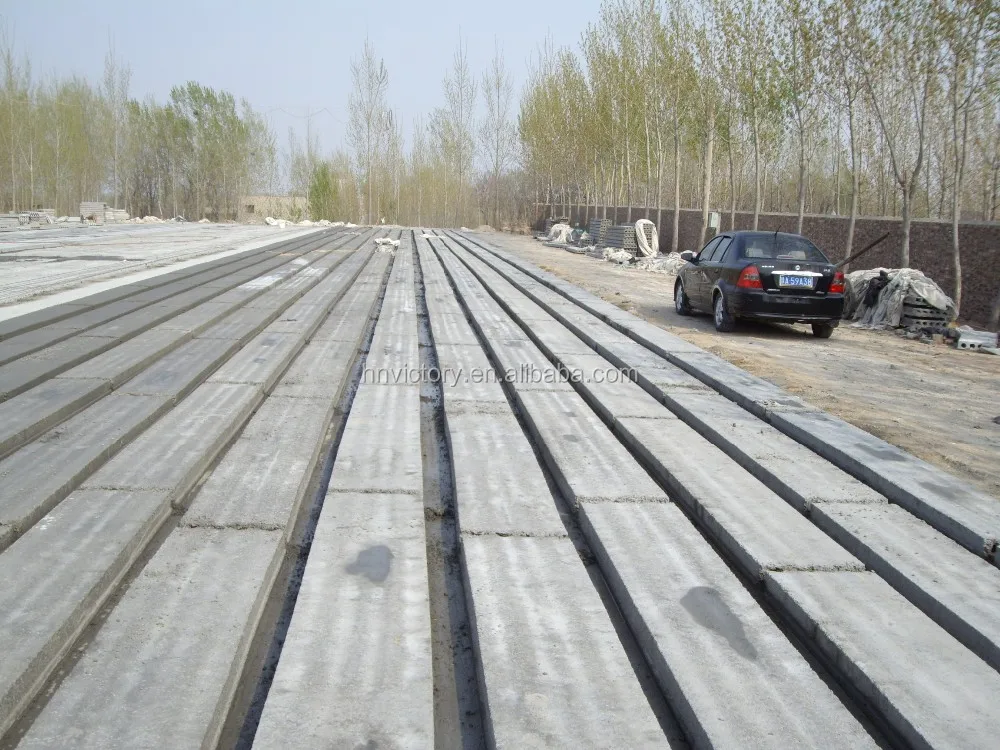

Superb surface panel

Project reference

Our customers

FAQ

1. Where is your company located?

Henan Victory Co. is located in ZhengZhou,Henan province,China.

closest to XinZheng airport,we can pick you up before you arrived.

2. What is the Standard Size of Wall panel machine
Precast Light weight Wall panel machine
JQT7.5*60 and JQT9*60 is more Standard all over the world
(75mm thickness, 600mm width etc.)

3. How Much Sqm will be installed 1 day?
Very quickly by Our Wall panel Installer (300sqm/day)

4. Can we use wall panel as Exterior and interior Wall?
Low Price Prefab light weight concrete wall panel machine
Yes, Can be used for both. (Exterior can be Double Layer Holes. Interior
can use 9*60 or 7.5*60)

5. How To Order From "Henan Victory Industrial co. ltd."?
Confirm PI (Profroma Invoice) with our sales Man and
Payment: 50% deposit, the Balance 50% paid against Bill Of Lading Copy.
(Old Customer: 30% &70%)
