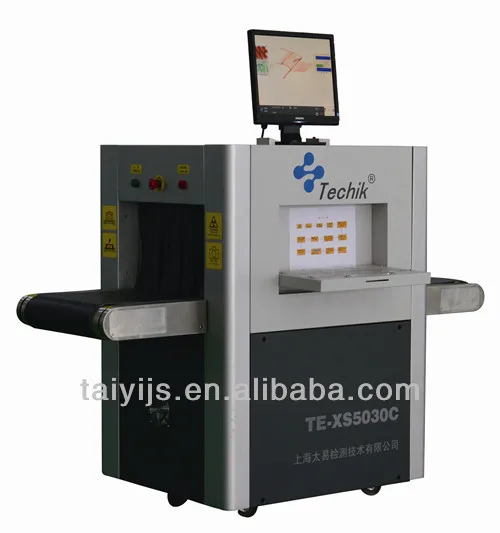

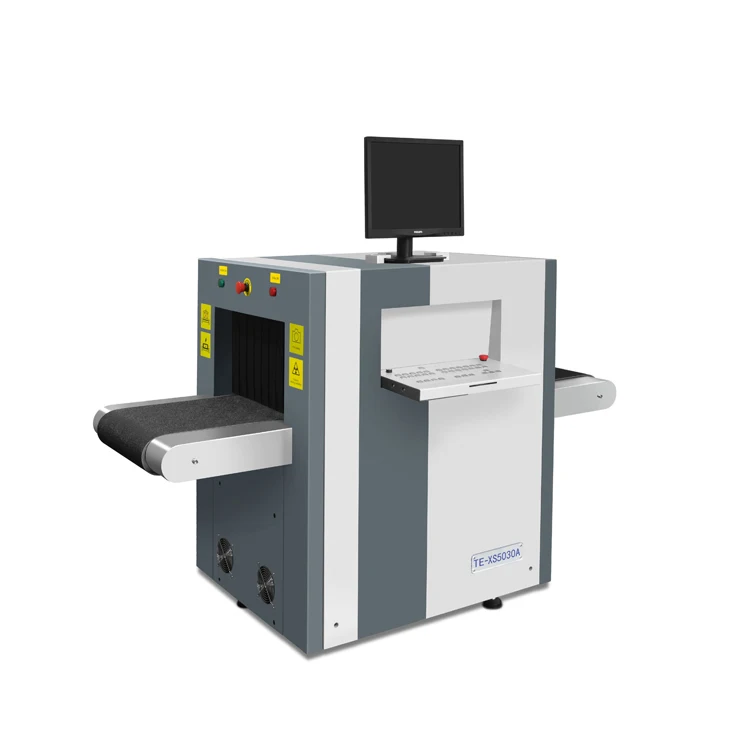

Аэропорт рентгеновский сканер багажа TE-XS5030

General Specification

Tunnel Size

505mm(Width)*307mm(Height)

Conveyor Speed

0.2m/s

Conveyor Height

730mm

Conveyor Max.Load

100kg(Uniform distribution)

Resolution

40AWG(0.0787mm) 44SWG

Penetrable Resolution

36AWG(0.127mm) 40SWG

Penetration

43mm of steel

Monitor

17” color screen; Screen resolution:1280×1024

X-ray Generator

Anode Voltage

140-160Kvp (Adjustable)

Cooling/ Duty cycle

Sealed oil cooling/ 100%

Dose per Inspection

Less than 1.0μGy

Image Processing System

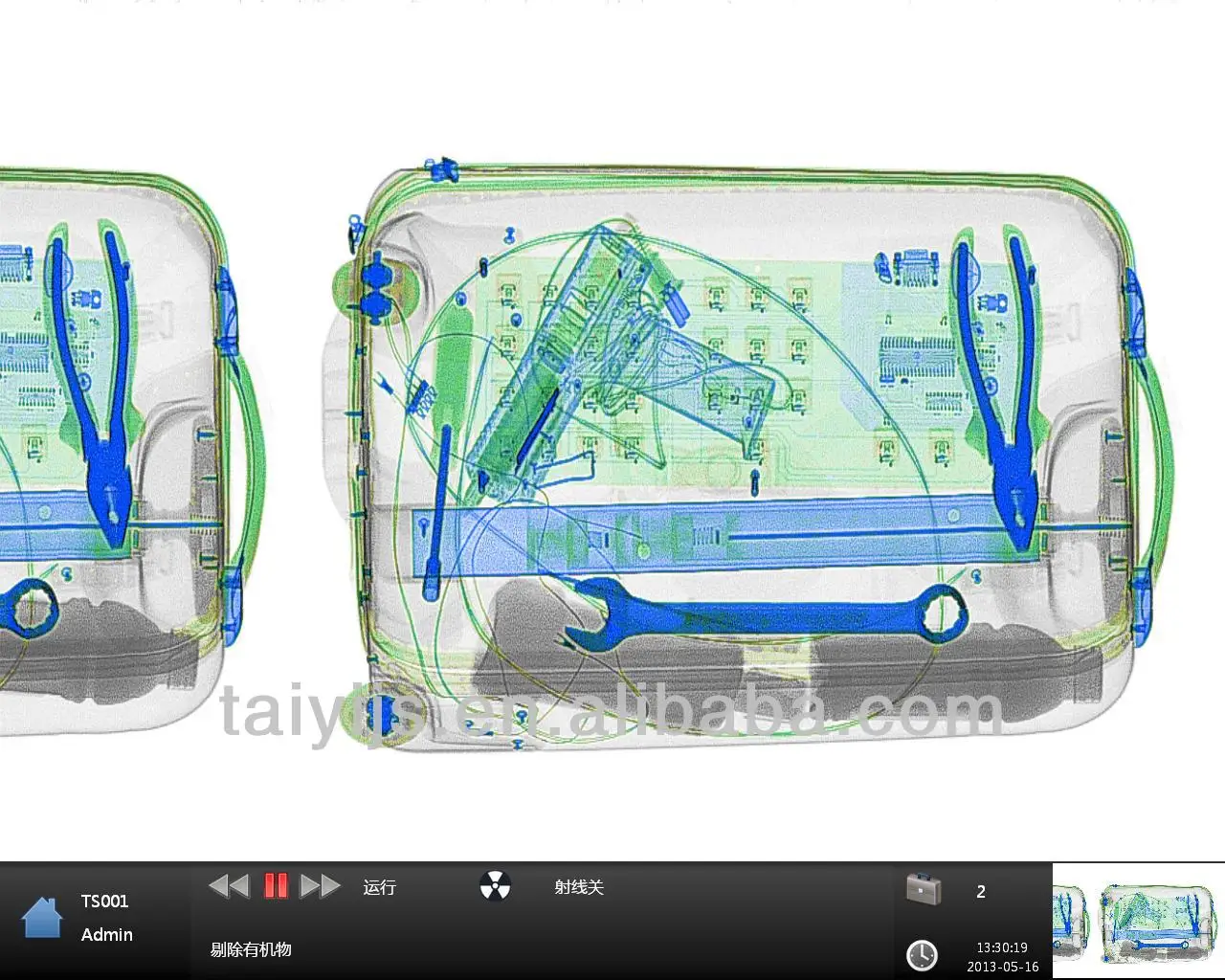

Image Enhancement Features

Color/black&white image,organic/inorganic materials image,

variable absorption rate,edge-enhancement, negative image,

high/low penetration, pseudo image

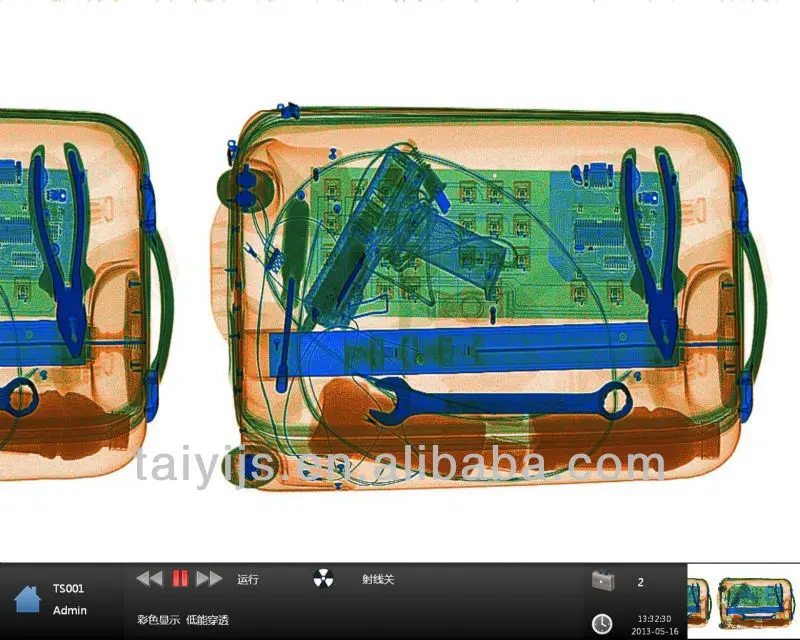

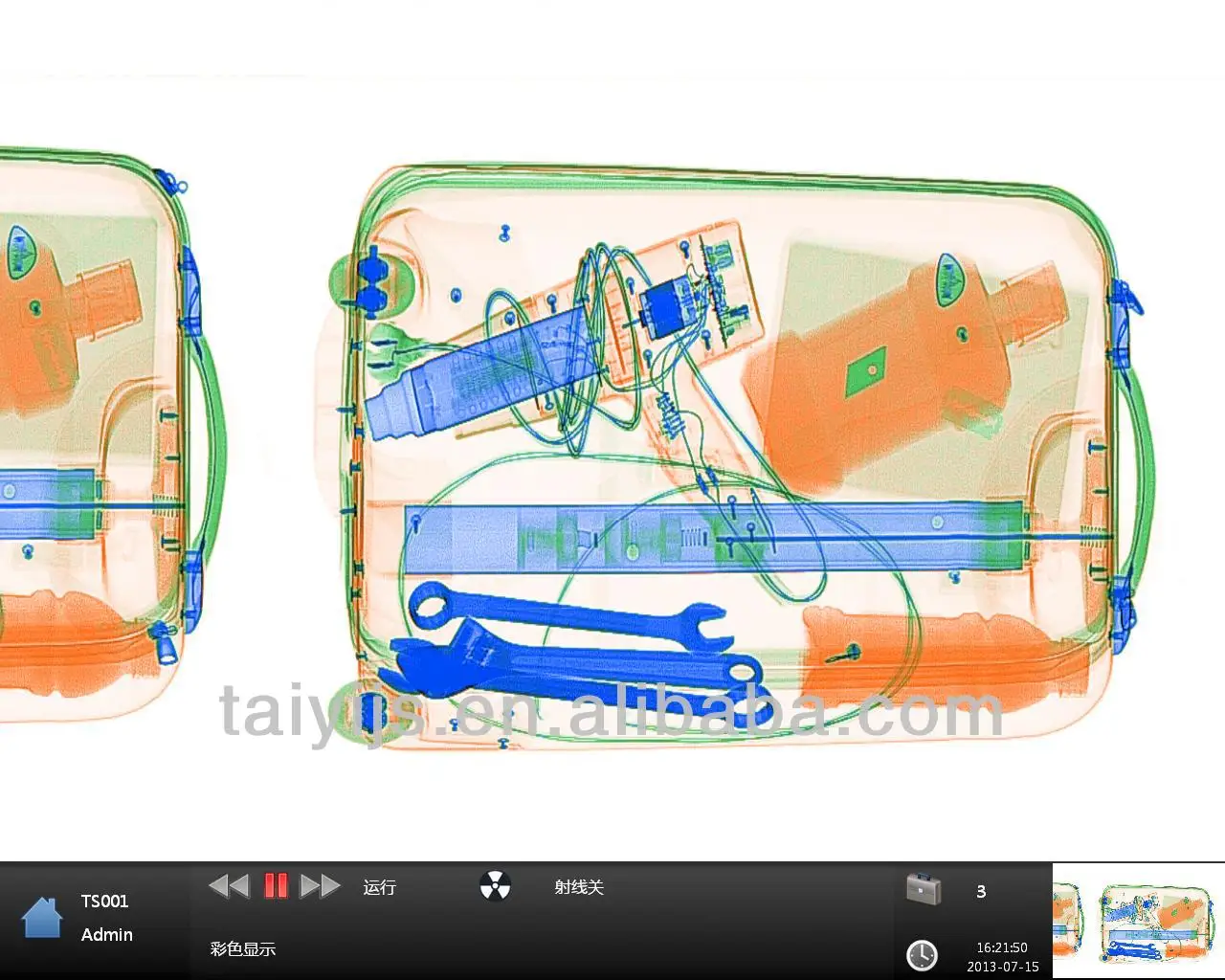

Multi-energetic distinguish objects

Organic objects in orange,inorganic objects in blue,mixture in green

Selection and enlargement

variable zoom,1-32 times enlargement,support continuous enlargement

Image Playback

Checked image playback

Storage Capacity

At least 100,000 images

Radiation Safety

Radiation leakage

Less than 0.5μGy /h In full compliance with all

international radiation safety requirements and external emissions limits.

Film Safety

In accordance with ASA/ISO1600 film safe standard

System Function

TIP(Threat Image Projection), high density alarm, date / time display, baggage counter,

user management,system timing,ray beam timing,power on self test,image storage

and search maintenance and diagnosis, bi-directional scanning, image recognition training

Installation Data

External Dimensions

1719mm(Length)*761mm(Width)*1183mm(Height)

Weight

500Kg

Power Consumption

0.6kVA

Operating Voltage

220VAC(±10%) 50±3Hz

Stabilized Power Supply Parameter

Input voltage: 220VAC (± 15%) 50Hz (± 5%)

Output voltage: 220VAC (± 1%) 50Hz ± 1Hz

Operation Temperature

-5±3°C~+45±2°C

Storage Temperature

-40±3°C~+60±2°C

Relative Humidity

5%~95%(Non-condensing)
