Радиальный сверлильный станок


Поделиться:


Цена:9 000,00 $ - 9 500,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-17-2025 10710.53 $* 11246.20 $*
Aug-17-2025 10620.20 $* 11151.93 $*
Jul-17-2025 8910.92 $* 9356.98 $*
Jun-17-2025 10440.50 $* 10962.49 $*
May-17-2025 9090.13 $* 9545.26 $*
Apr-17-2025 10260.69 $* 10773.54 $*
Mar-17-2025 10170.71 $* 10679.57 $*
Feb-17-2025 10080.89 $* 10584.25 $*
Jan-17-2025 9990.57 $* 10490.21 $*

Характеристики



Product Description

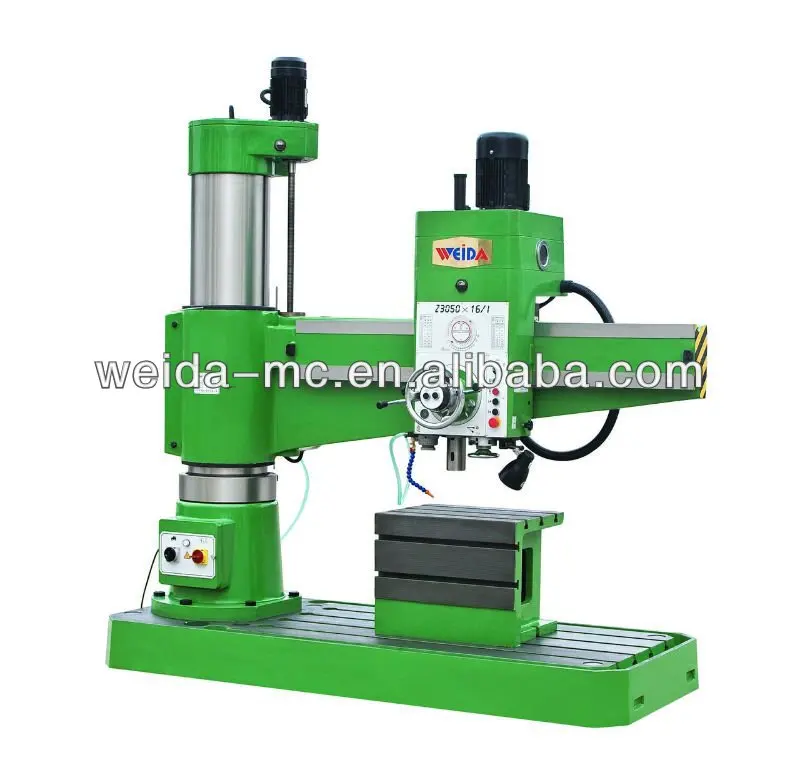

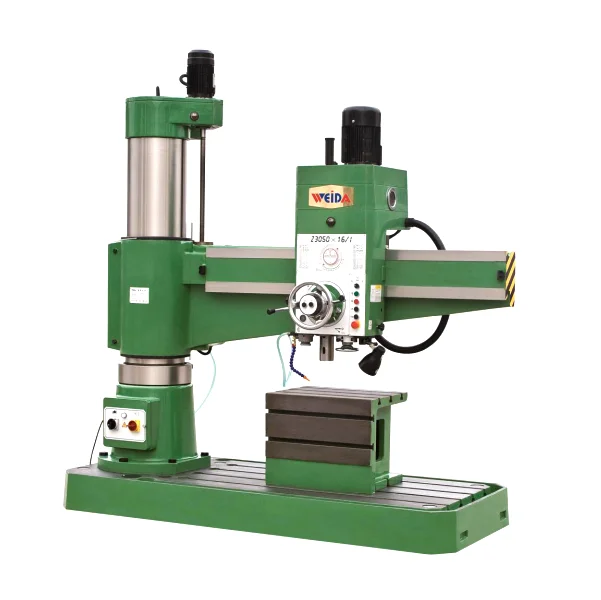

Radial drilling machine Z3050x16/1





1.The machine is with hydraulic clamping system
2.The spindle is automatical feed as well as micro feed
3.Arm can swivel +/-180 degrees
4.The machine is mainly used to machining holes,such as drilling, reaming and chambering etc.



Z3032x10
Z3040X13
Z3050X16
Z3063X20
Z3080X25
Dimensions of Box Table
mm
550X400X400
600X450X450
630x500x500
800X630X500
1000X800X560
Dimensions of Base
mm
1710X800X160
2050X900X200
2400x1000x200
2900X1250X250
3530X1400X300
Working Surface of Base Plate
mm
1030X645
1330X750
1560X830
1950X1080
2380X1200
T slot of base
mm
3/22/200
3/22/225
4/28/180
4/28/250
4/28/276
spindle axis to column
mm
300-1000
300-1300
350-1600
450-2000
500-2500
spindle nose to table surface
250-1000
300-1120
320-1220
400-1600
550-2000
spindle head travel(horizontal)
mm
700
1000
1250
1600
2000
Spindle taper
MT4
MT4
MT5
MT5
MT5
quill travel
mm
280
280
315
400
450
Max.drilling diameter
mm
32
40
50
63
80
spindle Speed Range /steps
rpm
32-2500/16
32-2500/16
25-2000/16
20-1600/16
16-1250/16
Max.spindle torque
Nm
200
300
500
800
1568
spindle feed/steps
0.1-1.25/8
0.1-1.25/8
0.04-3.2/16
0.04-3.2/16
0.04-3.2/16
spindle motor powe
kw
2.2
3
4
5.5
7.5
elevating motor for Arm
kw
0.75
1.1
1.5
2.2
3
coolant pump
kw
0.09
0.75
0.09
0.125
0.125
clamping type
Manual
Manual
Hydraulic
Hydraulic
Hydraulic
overall dimension (L*W*H)
cm
176X80X230
210X90X249
250x107x284
308X125X330
373X140X403
N/W
kg
1650
2500
3500
7000
11000

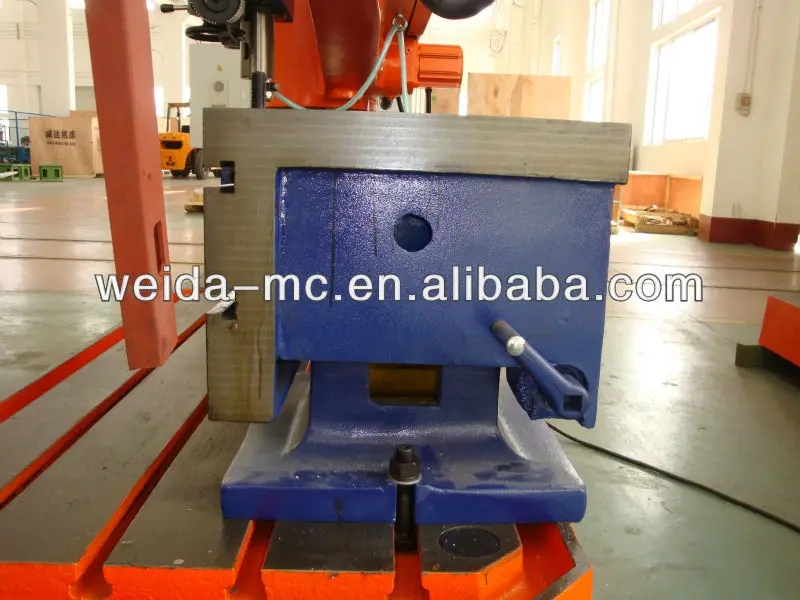

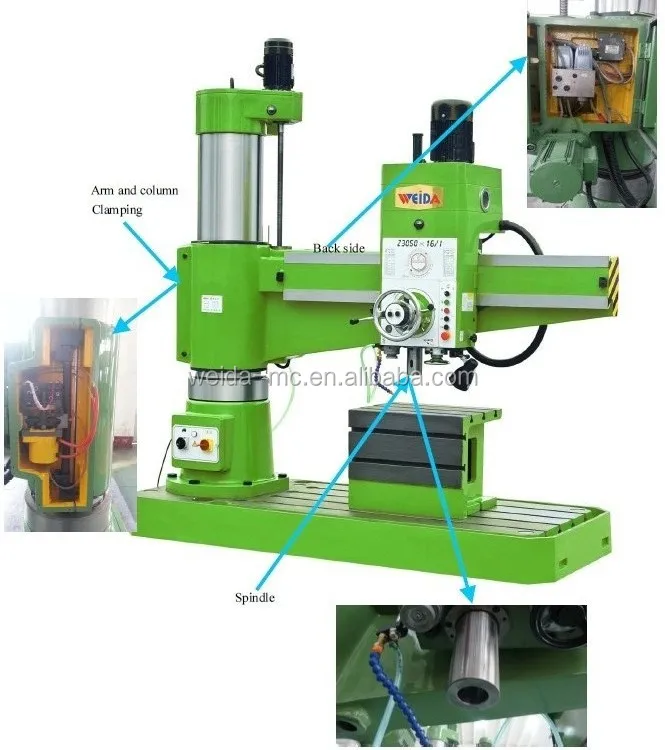

Detailed Images






Packing&Shipping




Machine model: Z3050X16/1
Packing size: 258*114*255CM
N.W./G.W.:3500/3700KGS
Suitable container:40HC
