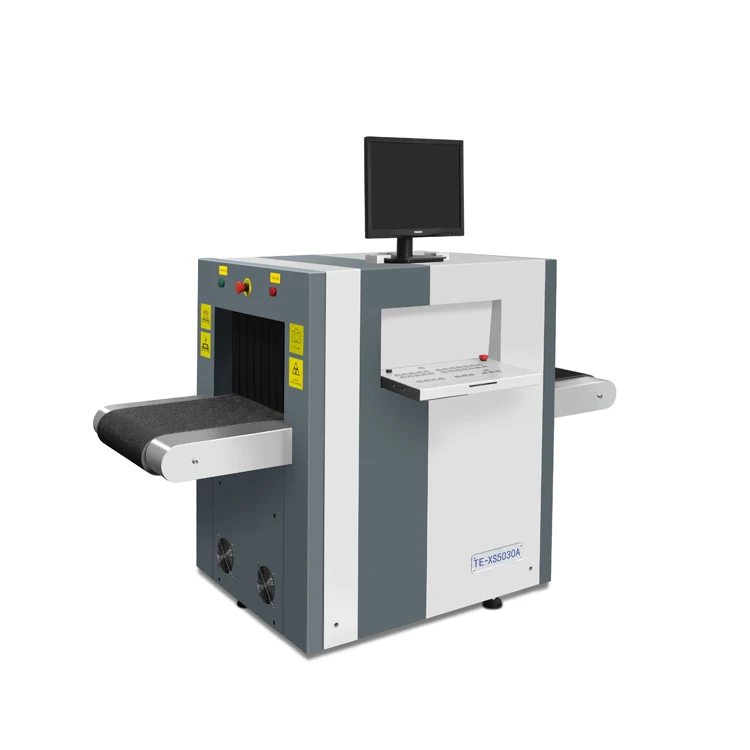

TE-XS5030 A X-ray Security Inspection System



Application

Security inspection for carry-on baggage or parcels etc. It is an ideal security inspection system to inspect small size baggage in railway stations, bus stands, government institutions, mall centers, multiplex theaters, hotels etc.



Main Features

  • Compact Design
  • High density alarm
  • Cost Effective
  • Extremely High Resolution
  • Multi-language support
  • Assist to detect drug and explosive powder




Technical indexes



General Specification

Tunnel Size

505mm(Width)*307mm(Height)

Conveyor Speed

0.2m/s

Conveyor Height

730mm

Conveyor Max.Load

100kg(Uniform distribution)

Resolution

40AWG(0.0787mm of wire) 44 SWG

Penetrable Resolution

32AWG(0.202mm) 35 SWG

Penetration

10mm of steel

Monitor

17” color screen; Screen resolution:1280×1024

X-ray Generator

Anode Voltage

80Kvp

Cooling/Dutycycle

Sealed oil cooling/ 100%

Dose per Inspection

Less than 1.0μGy

Image Processing System

Image Enhancement Features

Color/black&white image, organic/inorganic materials image, variable absorption rate, edge-enhancement, negative image, high/low penetration, pseudo image

Selection and enlargement

variable zoom, 1-32 times enlargement, support continuous enlargement

Image Playback

Checked image playback

Storage Capacity

At least 100,000 images

Radiation Safety

Radiation leakage

Less than 0.5μGy /h

In full compliance with all international radiation safety requirements and external emissions limits.

Film Safety

In accordance with ASA/ISO1600 film safe standard

System Function

TIP(Threat Image Projection), high density alarm, date / time display, baggage counter, user management, system timing, ray beam timing, power on self test, image storage and search maintenance and diagnosis, bi-directional scanning, image recognition training.

Installation Data

External Dimensions

1719mm(Length)*761mm(Width)*1183mm(Height)

Power Consumption

0.6kVA

Operating Voltage

220VAC(±10%) 50±3Hz

Stabilized Power Supply Parameter

Input voltage: 220VAC (± 15%) 50Hz (± 5%)

Output voltage: 220VAC (± 1%) 50Hz ± 1Hz

Operation temperature

0°C±3°C~+40°C±2°C

Storage Temperature

-40±3°C~+60±2°C

Relative Humidity

5%~95%(Non-condensing)

Weight

500Kg



Note

TH-XS5030 A is single-energy
