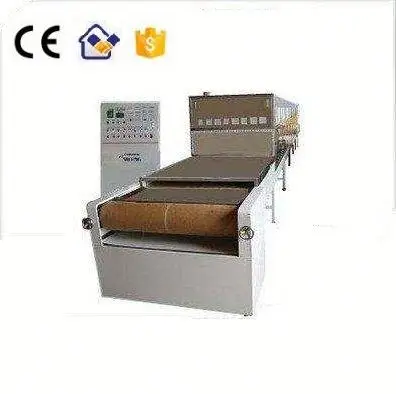

nuts roasting drying and sterilizing microwave equipment



Brief Description of nuts roasting drying and sterilizing microwave equipment:

 Microwave dry equipment is a such dryer which is used of microwave to reduce the raw material.

Unlike other external heating drying, microwave dry equipment can dry the raw material from

 internal and external at the same time. Using this method, microwave dry equipment can save

drying time and avoid the raw material becoming metamorphism or coking at the overheat environment.

The drying effect is very good, especially for the heat sensitive food.







The Technical Parameter of nuts roasting drying and sterilizing microwave equipment:

TL-40 nuts roasting drying and sterilizing microwave equipment
Model	TL-40
Microwave output frequency	2450±50MHz
Ambient temperature	-5-40°C
Rated input power(KVA)	56kw
Microwave output power(KW)	40kw
Expected dehydration(kg/h)	40~48
Expected sterilization capacity(kg/h)	550~650
Size L*W*H(mm)	10680*1440*1750
NOTE: We can specially design the equipment according to your   products' features. Height of inlet&outlet,belt width,machine dimension can be designed   according to your requirements.(We can specially design according to your   product and product features) We reserve the improvement of technology







The Working Principles of Microwave Dry Equipment:

Microwave dry equipment is used of electro-magnetic induction or infrared radiation to dry the raw material.

By microwave energy permeation, the material inner moisture quickly been heated and gasified,

forming a strong outward diffusion situation, to make the moisture extremely quickly spread to the surface.







The Main components of Microwave Dry Equipment:

1.Microwave generator system

2.Microwave box

3.Temperature controlling system

4.Humidity controlling system

5.Transmission system

6.Humidity discharging system

7.Electrical cabinets

8.Cooling system

19.Hot air recycling and circulatory system





The Application of Microwave Dry Equipment:

Microwave dry equipment is widely used in powder, sludge, granular,

crystalline materials, chemical material, dehydration treatment, such as

 chemical raw materials, chemical ore, fin chemicals, organic chemicals,

 inorganic chemicals, chemical fertilizers polymers, coatings and

 inorganic pigments, dyes and organic pigments, food and feed

additives, catalysts and chemical additives, adhesives, new energy

 materials, rubber products, chemical reagents, etc.







The Advantages of Microwave Dry Equipment:

 1.Microwave generating system is used high-quality original device

 microwave electronics accessories which are  high-quality original

device, high performance, high reliability, and long life.

2.Small investment, fast-drying, evaporation, high strength.

3.Microwave dry equipment have a uniform drying effect.

Because of water molecules is the best microwave absorptive material

 and different water content parts has different microwave absorptive amount,

so the final moisture of material is very uniform.

4.Our microwave dry equipment is energy-efficient. Microwave direct on the

material, so there is no heat loss. It can save 30% power than far-infrared heat.

5.Microwave dry equipment has a short drying time, the microwave is from the every

directions into the material, both inner and surface water are heated, it greatly reduce the drying time,

6.Our microwave dry equipment have advanced design easy operation, and no thermal inertia.

You just need to control the system, then the microwave dry equipment can work by itself.

7.The transmission speed of microwave dry equipment can be adjusted,

you can adjust the transmission speed according to different capacity and different moisture.
