6LB-350 High Quality oil filter press

Описание и отзывы

Трекер стоимости

Характеристики





Function:
Can clear the oil, also can be used to filter the waste oil, waste water and bio-diesel etc.



Feature:

This series oil filter is mainly used for filtering the crude oil pressed out by screw type oil press.



Application:



1.Advantage:  nice shape, highly structured, easy installation, save labor and power.



2.New type:this kind of machine is our new tpre environment protection oil filter.



3.Main feature:the oil after this machine filter is perfect oil,.



4.Suitable place:this kind of machine is situable for small-medium factory and supermarket.



Main data:



Model	filter plate size	Working  pressure	Capacity	Power	Dimensions (mm)	weight
6LB-200	200x200mm	0.3-0.4mpa	30-50kg/h	0.55kw	550x440x640	150kg
6LB-250	250x250mm	0.3-0.4mpa	100kg/h	0.75kw	780x540x680	200kg
6LB-350	350x350mm	0.3-0.4mpa	200kg/h	1.1kw	1300x750x700	470kg

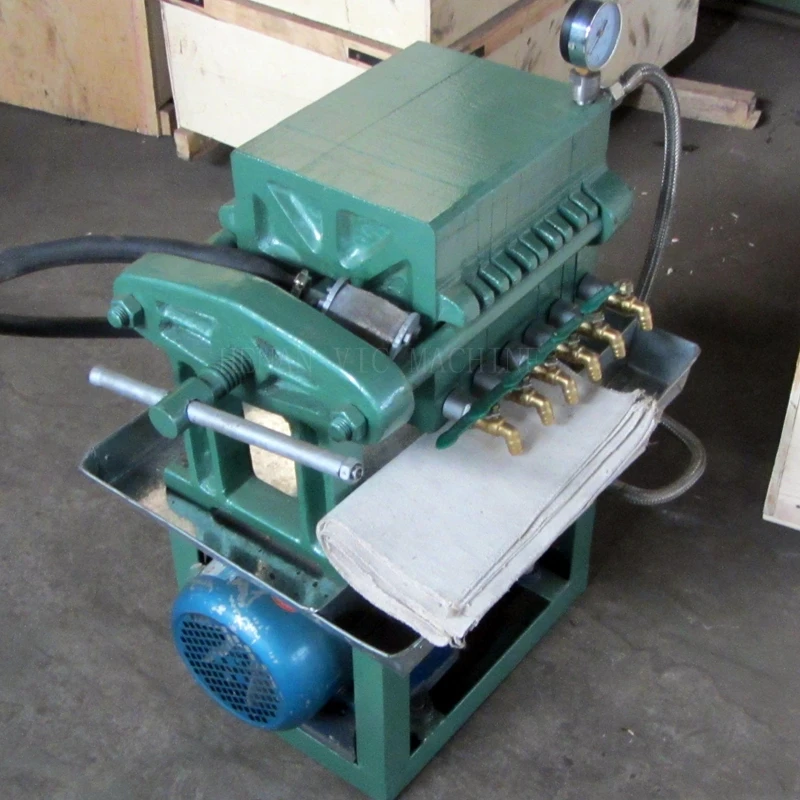

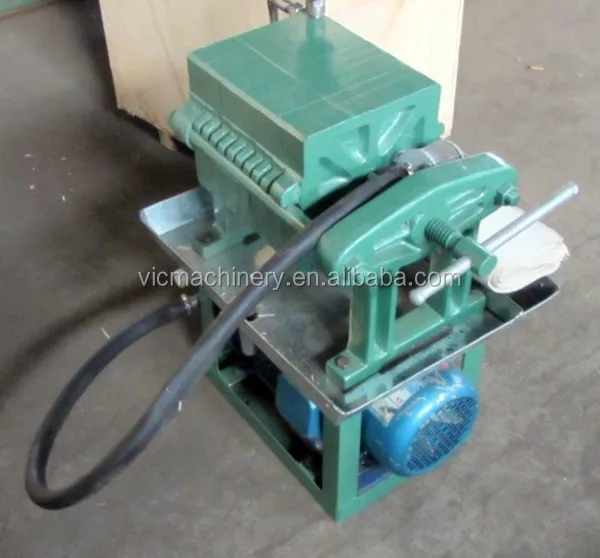

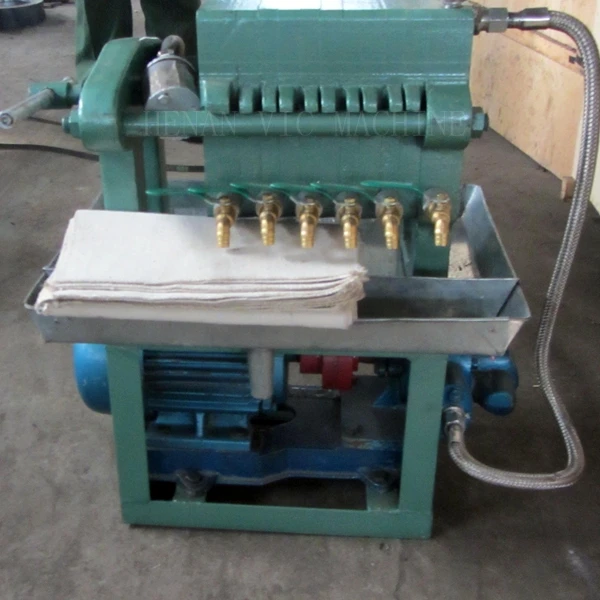

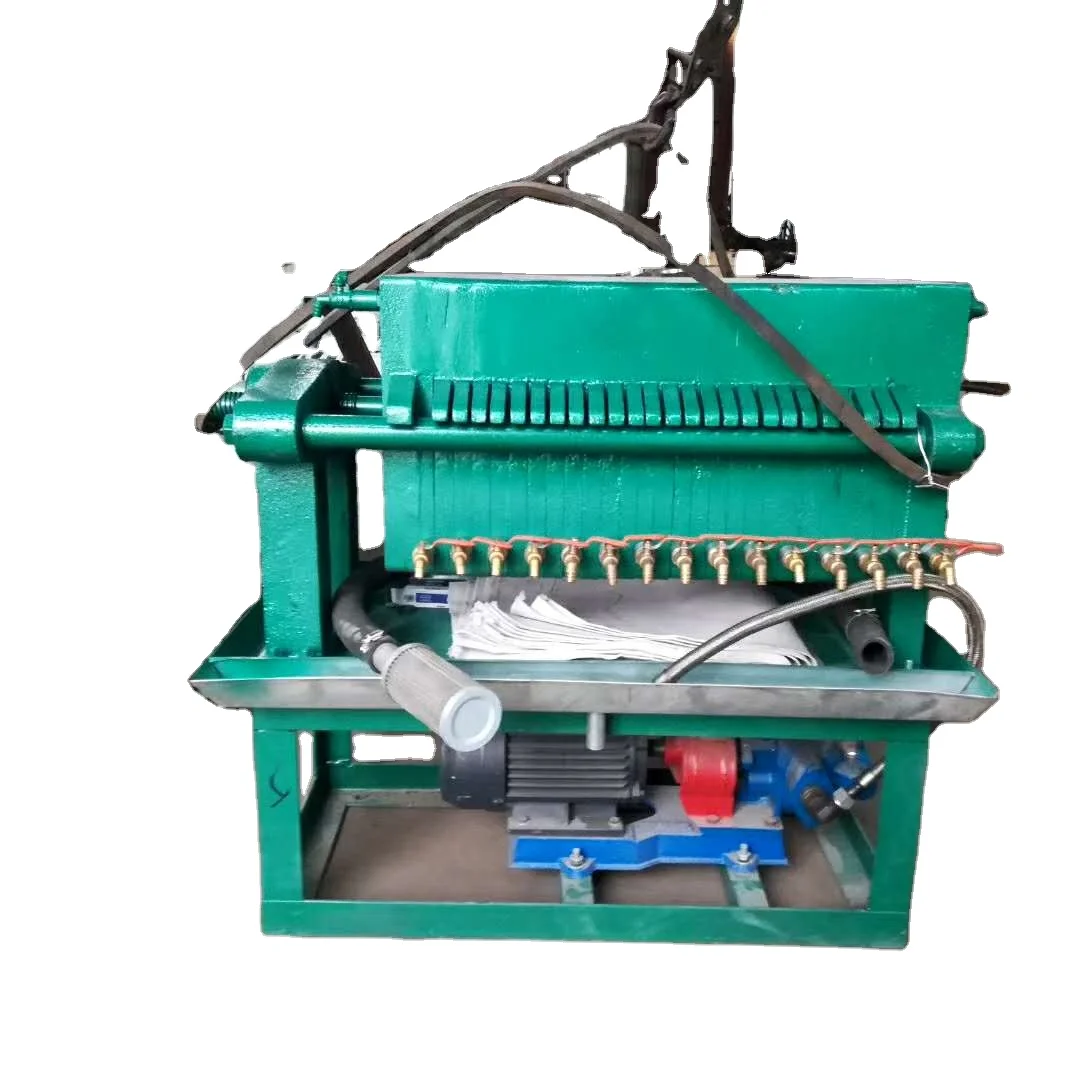

More picture of 6LB

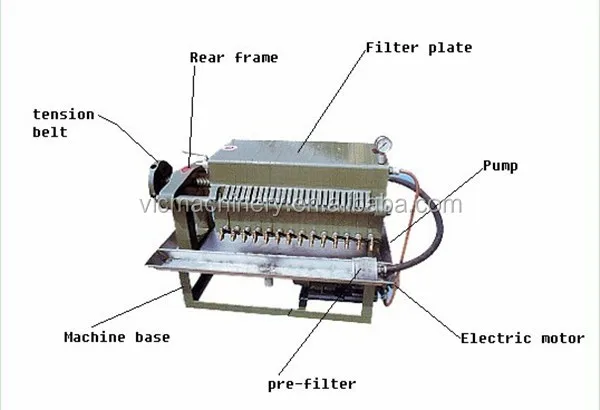

Structure of 6LB







Shipping:



Delivery time: In 15 days after paid deposit.



Packing: wooden case package.



Partial shipment:not allowed



Transshipment:allowed







The final oil after filter





For warranty parts and service:



**1 year warranty.
**Within warranty period, all exchanges due to defects are free (Buyer is responsible for shipping charges).
** Within warranty period, As to after-sales service, all the freight fare and accommodation will be paid by buyer
