new model Yuhong    biomass pellet machine price    in China for sale



1.Application of  Yuhong   biomass pellet machine price   in China for sale

It’s widely used in pellets,straw,wood pellet fuel,organic fertilizer and so on.Wood pellets,grass particles,food particles,the mixture particles, it not only can  produced   biomass fuel, but also feed like pigs,cattle,sheep,chicken,fish,geese,duck and other livestock particles.



2.work principle of  Yuhong biomass pellet machine price   made in China for sale

This machine to machine is based on circular motion, electric power to driven, driven by the motor, rotation of pressing stick, produce temperature between pressure stick and particles, power material through high temperature gelatinization, it can discharge from the bores under the extrusion effect of the pressure stick. Through the rejection tray can make particles which have produced sent outside the machine. By the cutter, the size of particles can charge.



3.Advantage of   Yuhong biomass pellet machine price   made in China for sale

3.1 Advanced belt-driving system with double motors, stable and reliable

3.2 Main shaft chooses SKF bearings to ensure the transmission efficient, stable, low noise.

3.3 Stainless steel door cover and high strength alloy cutter.

3.4  A variety of overload protection devices and warning signs.

3.5  tructural alloy steel main shaft with good strength and toughness.



4. Technical parameter of   Yuhong biomass pellet machine price     made in China for sale

MODEL		YHKL-350	YHKL- 420	YHKL- 508	YHKL- 600
CAPACITY(T/H)	Feed	3-5	5-12	8-15	13-20
	Biomass	0.4-0.6	1.0-1.5	1.5-2.0	2.5-3.5
Main power(KW)		55	90	110	160
PELLET SIZE(MM)		Φ1.2-18	Φ1.2-18	Φ1.2-18	Φ1.2-18
POWER OF FEEDER(KW)		0.75	1.5	2.2	2.2

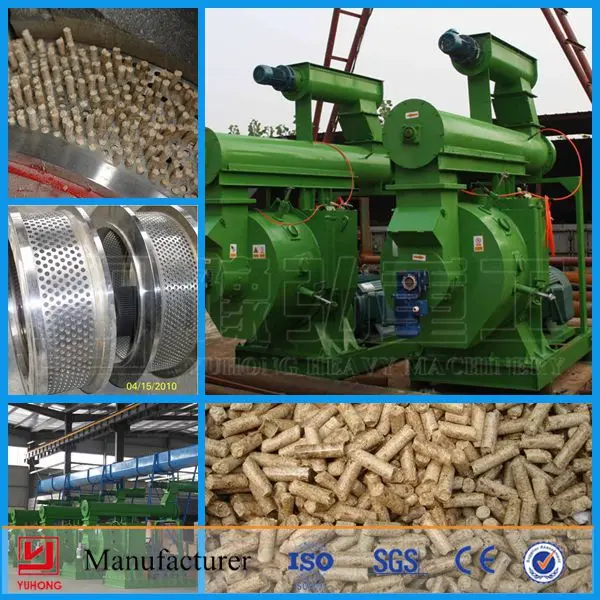

5. biomass pellet machine price    in our workshop



                                                              biomass pellet machine price   (1)



                                                          biomass pellet machine price   (2)



5. biomass pellet machine price  mould



6. Final product of     biomass pellet machine price
