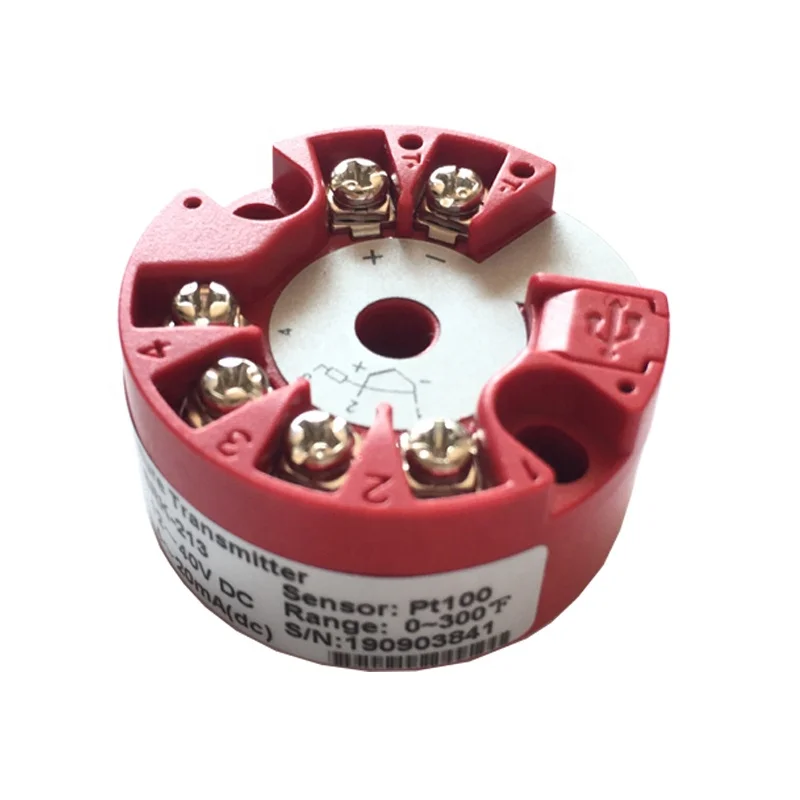

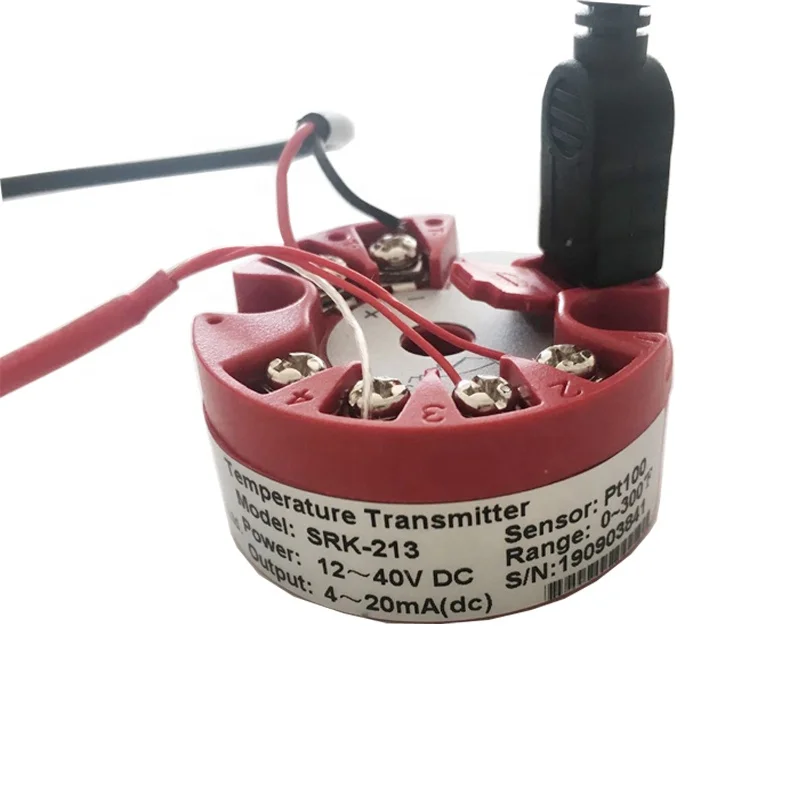

Smart 4-20mA Head Mounted Temperature Transmitter pt100

I. Head Mounted Temperature Transmitter pt100

Intelligent temperature transmitter (round card) is used for the signal input of resistance temperature detector (RTD) and thermocouple (TC),linear resistance input,and 4 - 20mA analog output of the two-wire system. It is installed inside the sensor(Form B).

II. SRK300 Thermal Resistance-based Intelligent Temperature Transmitter Feature:

SRK300 Thermal Resistance-based Temperature Transmitter is based on the thermal resistance signal input, .

III. Technical Specification:

Input
Input signal	Resistance temperature detector (RTD), thermocouple (TC), and linear resistance.
Cold-junction compensation temperature scope	-20~60℃
Compensation precision	±1℃
Output
Output signal	4-20mA
Load resistance	RL≤(Ue-12)/0.021
Output current of upper and lower limit overflow alarm	IH=21mA,IL=3.8mA
Output current of input disconnection alarm	21mA
Power supply
Supply voltage	DC12-40V
Other parameters
Transmission precision (20℃)	0.1%FS
Temperature drift	0.01%FS/℃
Response time	Reach to 90% of the final value for 1s
Used environmental temperature	-40~80℃
Storage temperature	-40~100℃
Condensation	Allowable
Protection level	IP00; IP66 (installation)
Aseismicity	4g/2~150Hz
Installation angle	Unlimited
Installation area	B-type top cassette installation
Electromagnetic compatibility	Conform to GB/T18268 industrial equipment application requirements (IEC 61326-1)

IV. Universal Input:

Model	Type	Measurement scope	Minimum measurement scope
Resistance temperature detector (RTD)	Pt100	-200~850℃	10℃
	Cu50	-50~150℃	10℃
Thermocouple (TC)	B	400~1820℃	500℃
	E	-100~1000℃	50℃
	J	-100~1200℃	50℃
	K	-180~1372℃	50℃
	N	-180~1300℃	50℃
	R	-50~1760℃	500℃
	S	-50~1760℃	500℃
	T	-270~400℃	50℃
	Wre3-25	0~2315℃	500℃
	Wre5-26	0~2310℃	500℃
