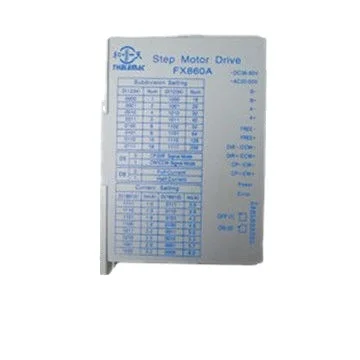

1,FX860A summarizef



1.AC voltage: 20V-50V
2.DC voltage: 36V-80V
3.Adaptive current: below 6.0A
4.Outer diameter: 42-86mm
5.It has 16 files, the highest resolution is 51200Pluse/rev
6.Internal used similar principle circuit of ac servo control, no noise,high-speed characteristics, low-speed, no creeping.
7.Imported with original packaging, Have strong anti-jamming
8. Mainly used for Medium and small CNC equipment, such as Engraving machine, winding machine, CNC lathe, Computerized embroidery machines, packing machinery, etc

2,FX860A characteristics and structure instructions







2.According to high subdivision operation when working with low subdivision, it can improve motor performance
2.Internal used protection circuit of over-current, over-voltage, thermal, can protect the driver working regularly
2.Maximum peak current of every phase drive is 5.7A, and current 16 files can be adjusted
2.After the motor stopped 0.5s, drive automatic half flow, can reduce motor’s temperature.
2.Working with single pulse or double pulse both ok.
2.The highest Response Frequency is 200KHz
2.Phase blackouts automatic memory



3,FX860A Parameter Settings
Subdivision Setting



D1	D2	D3	D4	Subdivision
ON	ON	ON	ON	1
ON	ON	ON	OFF	2
ON	ON	OFF	ON	4
ON	ON	OFF	OFF	5
ON	OFF	ON	ON	6
ON	OFF	ON	OFF	8
ON	OFF	OFF	ON	10
ON	OFF	OFF	OFF	16
OFF	ON	ON	ON	18
OFF	ON	ON	OFF	20
OFF	ON	OFF	ON	32
OFF	ON	OFF	OFF	40
OFF	OFF	ON	ON	50
OFF	OFF	ON	OFF	64
OFF	OFF	OFF	ON	128
OFF	OFF	OFF	OFF	256



Note: change subdisvision should electrify again

Pulse mode selection:



Dial the code switch ON=0, OFF=1
D5
ON	CW/CCW Double Mode
OFF	CP/DIR Single Mode





D6
ON	Full Current
OFF	Half Current



Current setting:



D7	D8	D9	D10	Current(A)
OFF	OFF	OFF	OFF	1.0
OFF	OFF	OFF	ON	1.3
OFF	OFF	ON	OFF	1.6
OFF	OFF	ON	ON	1.9
OFF	ON	OFF	OFF	2.2
OFF	ON	OFF	ON	2.5
OFF	ON	ON	OFF	2.9
OFF	ON	ON	ON	3.2
ON	OFF	OFF	OFF	3.5
ON	OFF	OFF	ON	3.9
ON	OFF	ON	OFF	4.2
ON	OFF	ON	ON	4.6
ON	ON	OFF	OFF	5.0
ON	ON	OFF	ON	5.3
ON	ON	ON	OFF	5.7
ON	ON	ON	ON	6.0



4,FX860A Control signal wiring











The diver has six Input signal:

CP+/CW+,CP-/CW-,DIR+/CCW+,DIR-/CCW,FREE+,FREE-



 PLC internal triode NPN wiring:









PLC Internal triode PNP wiring:













5, EX860A SIZE (mm)
