Новинка! 12VDC 700 мг/ч Corona разрядный озоновый генератор трубчатый
- Категория: Water Treatment Machinery >>>
- Поставщик: AQUAPURE,CN,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 17.23 $* | 18.89 $* |
| Aug-16-2025 | 17.95 $* | 18.41 $* |
| Jul-16-2025 | 14.42 $* | 15.11 $* |
| Jun-16-2025 | 16.29 $* | 17.56 $* |
| May-16-2025 | 14.70 $* | 15.5 $* |
| Apr-16-2025 | 16.54 $* | 17.14 $* |
| Mar-16-2025 | 16.91 $* | 17.36 $* |
| Feb-16-2025 | 16.67 $* | 17.7 $* |
| Jan-16-2025 | 16.81 $* | 17.3 $* |
Характеристики

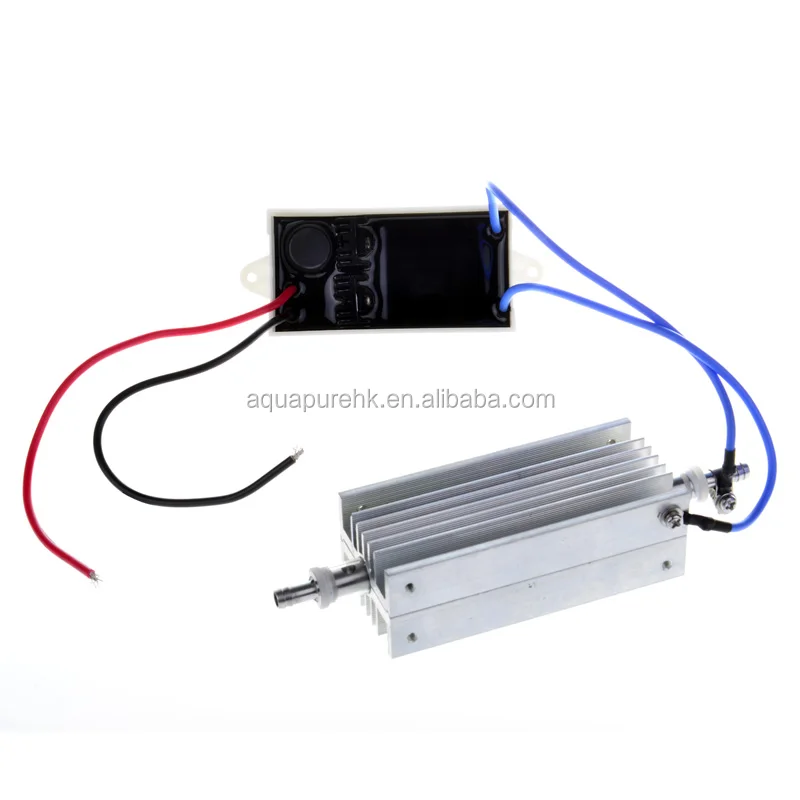

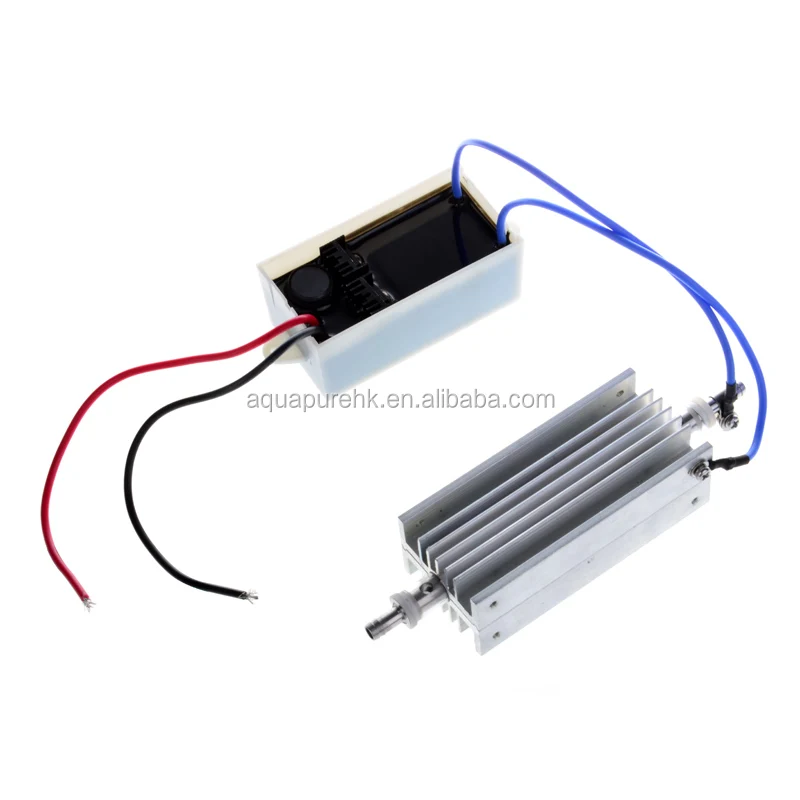

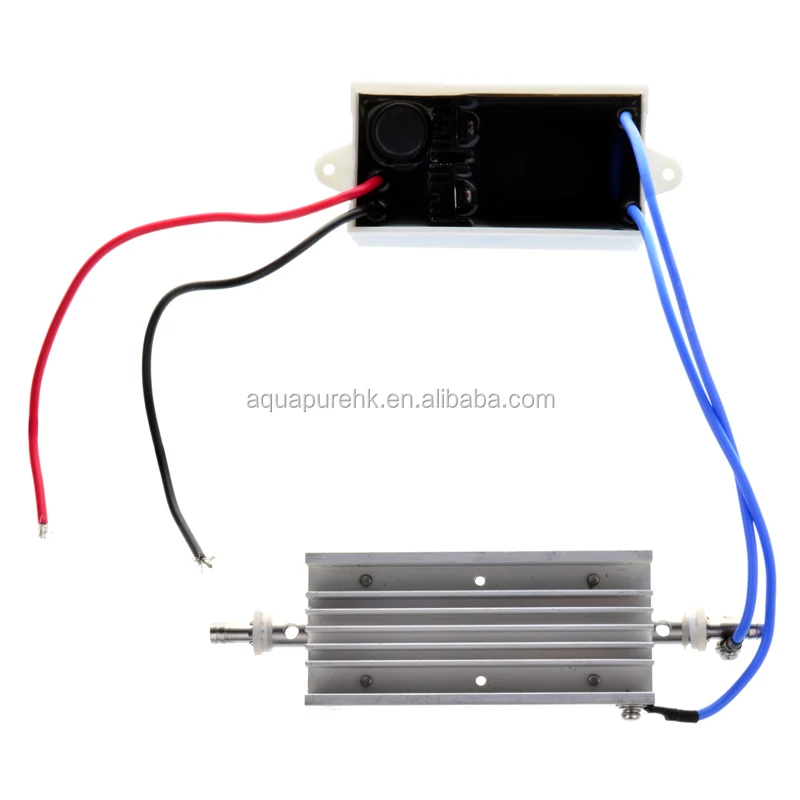

New! 12VDC 700mg/h Corona Discharge Ozone Generator Tube Module
PRODUCT DESCRIPTION:
This water ozone generator uses the latest Quartz Tube and Stainless Steel Electrode technology which produce stable ozone output and high ozone concentration You can save lots of costs as they have a life of over 10,000 hours and high performance.
1. Ozone output: 700 mg/h
2. Ozone generator: Quartz Tube and Stainless steel Electrode
3. High ozone concentration: > 5.0 mg/L at 1 L/min
4. Light weight: only 0.35 Kg
5. Long Life: > 10,000 hours
6. Low power consumption
7. Two different applications: a) for air application; b) for water application
TECHNICAL SPECIFICATION:
Ozone Output | 1.0 g/h at 5.0 L/min |
Ozone concentration | > 5.0 mg/L at 1.0 L/min air flow |
Gas source | Dry air or oxygen source recommended |
Air Flow | value 5.0 L/min for air application, < 20 L/min for water application |
Output connections | 5.0 mm diameter |
Continuous operation | 24 h/day |
Cooling system | Air cooling, 40 CFM fan recommended |
Ozone generating method | Corona discharge, Stainless steel electrode |
Input voltage | 12 V DC |
Power | 22 W |
Operating temperature | -10 deg C ~ +60 deg C |
Storage temperature | -20 deg C ~ +70 deg C |
Size Generator | 90 x 40 x 30 mm |
Size Electronics | 78 x 40 x 33 mm |
Weight | 0.35 Kg |
*************************************************************************************************************************
Typical Curves
*************************************************************************************************************************
Advantages Compared With Disinfectants and Oxidants
Ozone bas several significant advantages over its chemical alternatives:
- Ozone can be generated on-site.
- Ozone is one of the most active, readily available oxidizing agents.
- Ozone rapidly decomposes to oxygen leaving no traces.
- Reactions do not produce toxic halogenated compounds.
- Ozone acts more rapidly, and more completely than other common disinfecting agents do.
- Ozone reacts swiftly and effectively on all strains of viruses.
