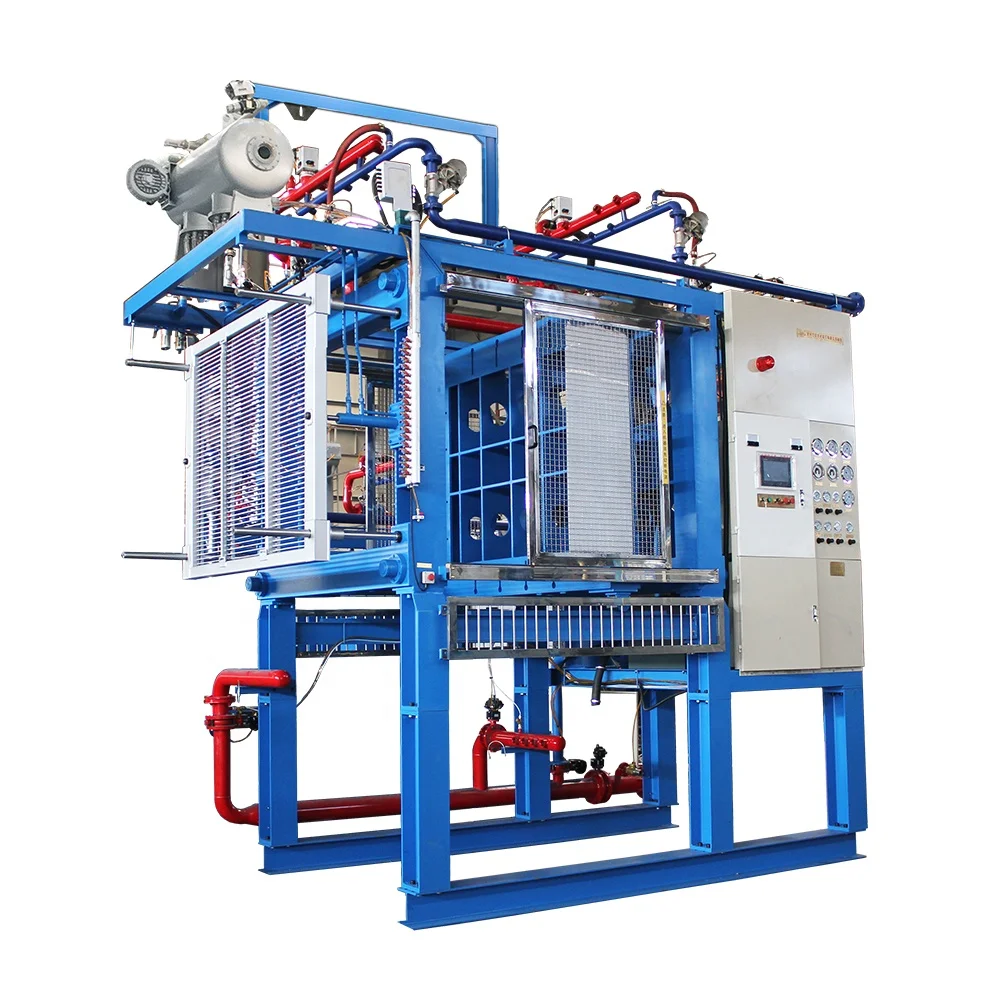

      SPZ100-200T eps making machine

The eps foam machine has many improvements compared to the basic type shape molding machine and the features are as follows:
1. Machine structure:
All frame are welded onto 16/20mm steel plate with high machine legs. This greatly improves machine strength.
High machine legs are made by strong ''H'' type profile. It is easy for the client to install the machine (only prepare floor foundation).
2. Filling system:
Adopts normal pressure, vacuum for high pressurized filling. Material filling is controlled by level sensor with double rotation chamber discharge and has 44 filling outlets.
3. Steam system:
Adopts balanced PID control valve with German gauge. This greatly improves steam accuracy and reduces consumption by around 20% compared with A/B type.
4. Cooling system:
Big vacuum pump with vertical tank, equipped with vertical vacuum cooling water spray on the top. The vacuum pump outlet has air & water separator. All these keep very high efficiency, so that vacuum cooling will be used as main cooling instead of water cooling(normally water cooling will be set up only 8-12S), which will keep the water content of product less than 10%.
5. Drainage system:
Increased large for inlet and outlet of mould, adopts 8-1'' inlet foe steam, ensuring fast cycle time, 6/8-2'' outlet for drainage system, 6'' big drainage pipe is controlled by butterfly valve, Together they greatly increase heating and drainage speed.
6. Control system:
Adopts PLC(Mitsubishi) and touch screen (Schneider) making operation easy.
All electronic components are from famous brands, which greatly improve the machines stability.
The air cooling, steam, de-mould, pressure of filling are controlled by long-distance balance valve.



Item	Unit	SPZ100T	SPZ120T	SPZ140T	SPZ160T	SPZ175T	SPZ180T
Mould Dimension	mm	1000×800	1200×1000	1400×1200	1600×1350	1750×1500	1800×1600
Max Product Dimension	mm	800×700×330	1000×900×330	1200×1000×330	1400×1100×330	1550×1300×330	1610×1400×330
Outside Dimensions	mm	4760×1900 ×4700	4760×2100 ×4900	4920×2250 ×4660	5220×2530 ×4690	5220×2680 ×4790	5220×2760 ×5120
Weight	t	4.50	5.20	5.70	7.00	7.50	8.00
Cycle Time	s	60-90	60-100	60-150	90-160	90-160	120-190
