Shotcrete Machine
Продаж сухой торкрет торкретирования машины с завода непосредственно более низкие

Продаж сухой торкрет торкретирования машины с завода непосредственно более низкие

Категория: Shotcrete Machine >>>
Поставщик: Wenzhou,Engineering,Machinery,Co.,Ltd.

Цена:1 500,00 $ - 1 650,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	1785.82 $*	1874.7 $*
Aug-18-2025	1770.39 $*	1859.0 $*
Jul-18-2025	1485.33 $*	1559.75 $*
Jun-18-2025	1740.24 $*	1827.96 $*
May-18-2025	1515.53 $*	1591.94 $*
Apr-18-2025	1710.78 $*	1796.53 $*
Mar-18-2025	1695.34 $*	1780.44 $*
Feb-18-2025	1680.73 $*	1764.80 $*
Jan-18-2025	1665.30 $*	1748.88 $*

Характеристики

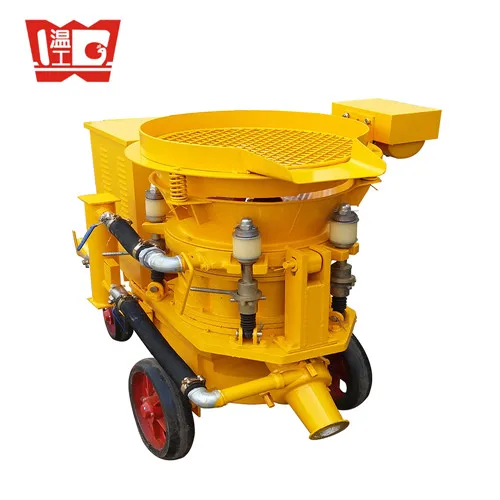

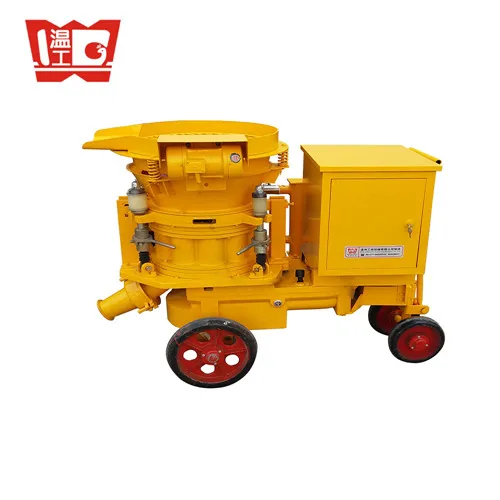

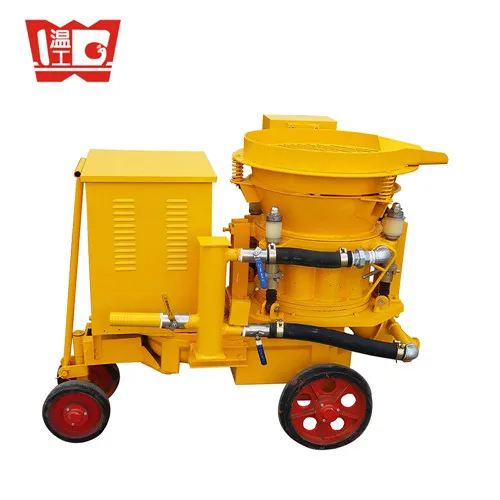

PZ-6 Dry gunite shotcrete machine

1. PZ series dry concrete shotcrete machine can be used for dry spraying, moist spraying, and wet spraying which introduced present new technology of concrete shotcrete.

2. It is an optimized and improved generation product, adopts straight-through type chamber with smooth material flow.

3. It also has advantages with strong ability of handling mixture, blanking delay, less remaining material, low dust, single-point compaction, easily adjustment and maintain, rubber sealing plate with long service life, small volume and strong mobility, low feeding height and small labor intensity etc.

4. PZ series dry concrete shotcrete machine is widely applicable for spraying concrete construction in tunnel, culvert, railway, highway, water conservancy projects, underground projects, coal mine, moorland mine well and roadway.

_20190819145135 _20190819145148 _20190819145151 _20190819145155 _20190819145139 _20190819145144

Technical parameter

Model	-	PZ-6	PZ-9
Motor power	kw	5.5	7.5
Production capacity	m³/h	6.0	7-9
Cement-sand ratio	-	1 : 3-5	1 : 3-5
Water-cement ratio	-	≤0.4-0.45	≤0.4-0.45
Maximum horizontal delivery distance	m	200	200
Maximum vertical delivery distance	m	40	40
Vibration motor power	kw	0.25	0.25
Maximum aggregate size	mm	20	20
Inner diameter of delivery hose	mm	51	51
Working air pressure	Mpa	0.2-0.4	0.2-0.4
Air consumption	m³/h	7-8	10-12
Net weight	kg	700	900
Dimension (L×W×H)	mm	1300×900×1000	1300×800×1300

company information

Wenzhou Engineering Machinery Co., Ltd. is a member of China Construction Machinery Association, China Bulk Cement Association of Popularization & Development, is the first batch of key enterprises in Zhejiang Province. It is leader of China's mortar spraying technology, and recognized as one of the scale of strong enterprises for the manufacture of mortar spraying machine.

Wenzhou Engineering Machinery Co., Ltd. has been committed to the manufacture of concrete machinery for such a long time, based on the domestic leading technology, relying on international cooperation R & D advantages, together with Germany NORD, CELLMANN and other famous companies to import advanced management concepts and management models, improved product quality management system. Following the ISO9001 quality management system, and with full implementation and effective operation of it, we are able to ensure product’s quality and stability.

Our products are renowned because of high quality and a famous brand at home and abroad. In the 1970s, our company introduced the German plunger type, squeeze type, Screw concrete transportation, Mortar spraying technology into China. And nowadays the continuation of the current concrete pump, mortar spraying machine products from the Chinese market has expanded to Europe, South America, North America, Australia, the Middle East, Southeast Asia, Africa and other regions and countries. Our products with high quality and reliable performance services are popular with the trust of users around the world. Now we have been formed the ability that our annual output of various types of mortar spraying machine reaches 12000 sets.
