AM/ FM Radio Trainer : Order Code - 10905

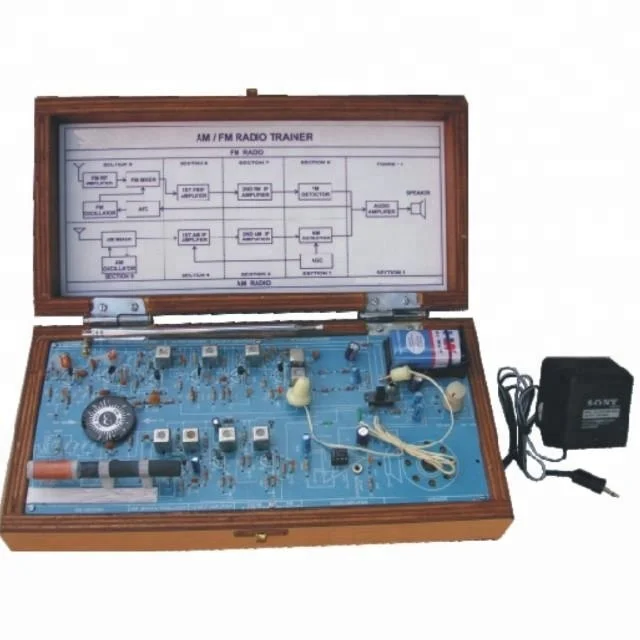

AM/FM Radio Trainer Kit has components placed over their corresponding symbols in the schematic drawing on the surface of the printed circuit board thereby maximizing the learning process and explain theory of operation of the radios. The radios are constructed in sections with each section being completely tested before moving on to the next, reducing difficult troubleshooting associated with some other kits. Trainer includes a high quality printed circuit board with schematic printed on the surface. The manual is easy to understand and assumes no previous electronics knowledge. Trainer forms a "Superheterodyne" receiver of standard AM (amplitude modulation) and FM (frequency modulated) broadcast frequencies.

Object:
01. To Study AM RADIO RECEIVER
02. To Study FM RADIO RECEIVER

Specifications:
(1) Am Radio Section:
Tuning Range : 520 KHz – 1620 KHz
IF Frequency : 455 KHZ
Tracking : + - 3 db from 700 KHz to 1400 KHz
10 db Signal to Noise at 200 microvolt typical

(2) Fm Radio Section:
Tuning Range : 88 MHz – 108 MHz
IF Frequency : 10.7 MHZ
Tracking : + - 5 db from 90 MHz to 106 MHz
DETECTOR : Uses Ratio detector and full time auto frequency control
10 db Signal to Noise at 12 microvolt typical

(3) NINE SECTIONS:
Audio Amplifier Circuit
AM Detector Circuit
AM IF Circuit
AM Amplifier Circuit
AM Mixer and Oscillator Circuit
FM Detector Circuit
First FM IF AMPLIFIER Circuit
Second FM IF AMPLIFIER Circuit
FM Radio Frequency Stages

(4) Other:
Test Points : 15 Numbered as TP1 to TP15
Trainer is complete with : Ear Phone & Operational/ Instruction Manual.
Loud speaker on panel

Operative Voltage :
9Volt DC Battery (Provided)
9V DC Power Adaptor (Provided)
